Epoch Batteries | 24V 230Ah V2-T Elite LiFePO4 Battery (5.89kWh)

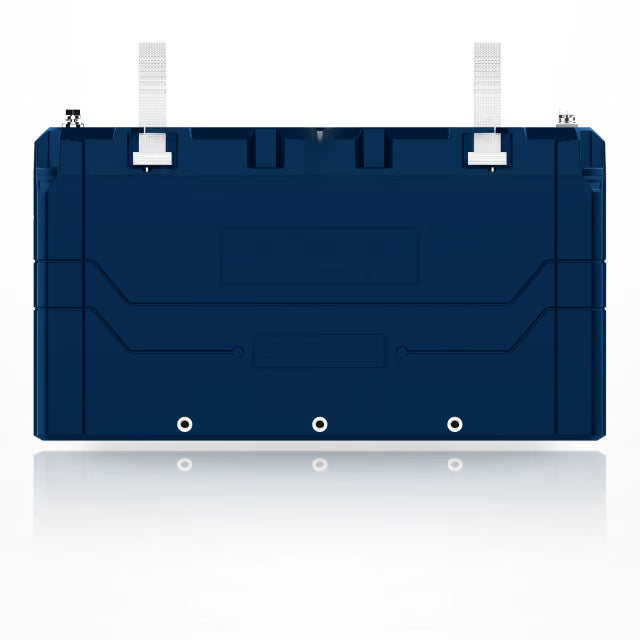

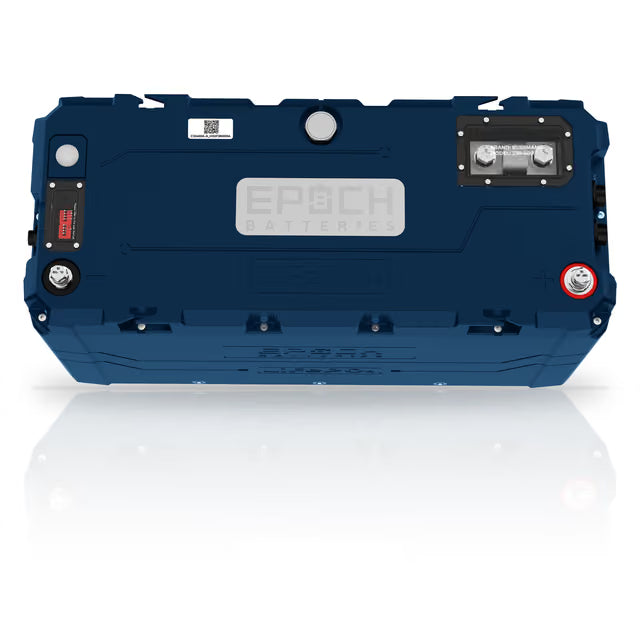

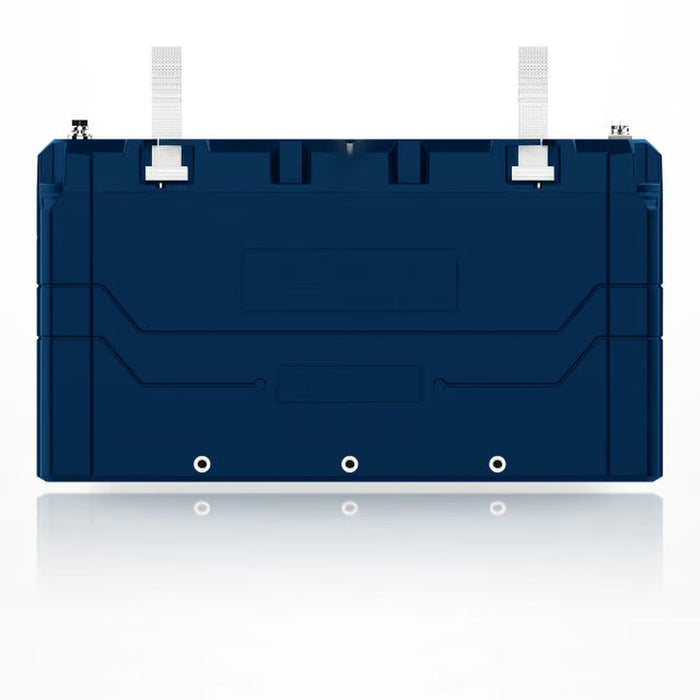

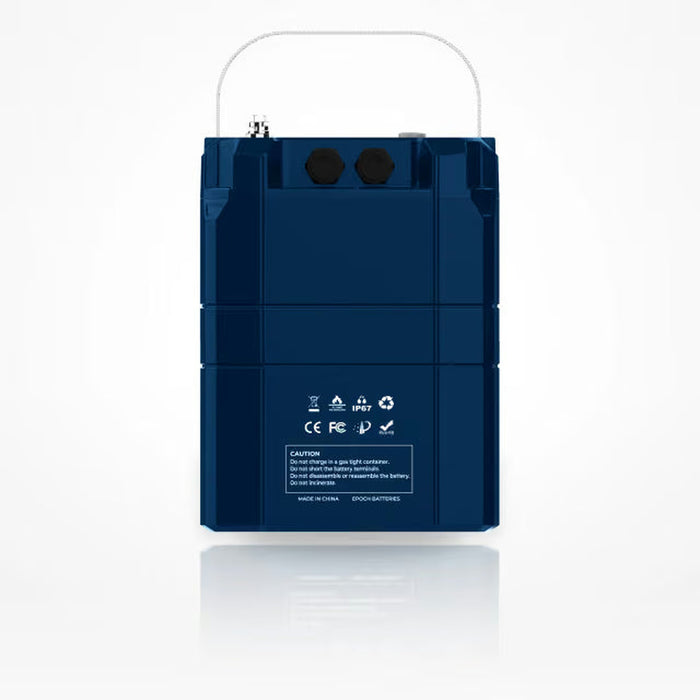

24V 230Ah V2-T Elite LiFePO4 Battery
The Epoch 24V 230Ah V2-T Elite Series LiFePO4 Battery delivers 5.89kWh of stored energy for demanding 24V marine, RV, off-grid, solar, and energy-storage applications. Built with LiFePO4 chemistry, native Victron CANBus communication, Bluetooth monitoring, internal self-heating, IP67 protection, and a user-serviceable 300A Eaton Class-T fuse, it is designed for high-capacity deep-cycle power systems. Up to 16 identical batteries can be connected in parallel, providing approximately 94.2kWh of nominal energy storage.
KEY FEATURES
- 5.89kWh Energy Capacity – Provides 230Ah of storage at a 25.6V nominal voltage.
- LiFePO4 Chemistry – Lithium iron phosphate chemistry designed for deep-cycle energy storage.
- Native Victron CANBus Communication – Supports compatible Victron GX devices and DVCC-managed charging.
- User-Serviceable 300A Class-T Fuse – Integrated Eaton JJN-300 high-interrupt source fuse.
- 115A Continuous Discharge – Detailed technical specifications list up to 115A continuous discharge.
- 115A Continuous Charging – Detailed technical specifications list up to 115A continuous charge current.
- 250A Short-Duration Output – Detailed technical specifications list 250A for 5 seconds.
- Internal Self-Heating – BMS-controlled 153.6W heater supports cold-weather charging.
- Bluetooth Monitoring – Monitor state of charge, cell voltage, temperature, cycles, and system health through the Epoch app.
- IP67 Protection – Dust-tight and rated for temporary immersion up to 1 meter for up to 30 minutes when properly sealed.
- Advanced BMS – Monitors cell voltage, current, temperature, protection events, and balancing.
- Expandable Battery Bank – Up to 16 identical batteries can be connected in parallel.
- Series Capability – Up to two identical batteries can be connected in series for a 48V nominal system.
- 4,000+ Cycle Rating – Epoch's current product page lists 4,000+ cycles.

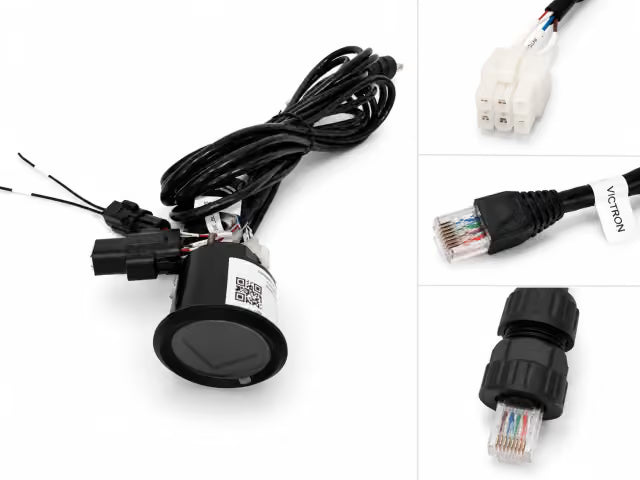

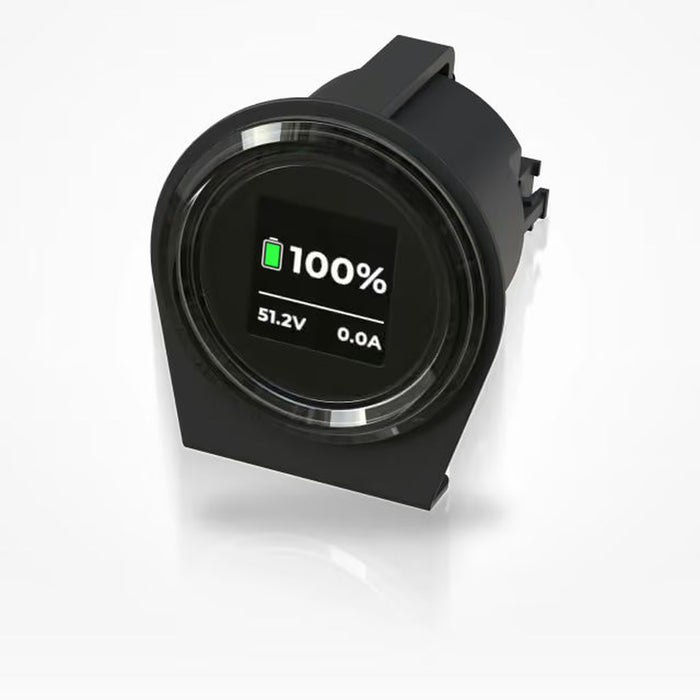

- External Controls – Includes an external power button and remote digital battery gauge.
- 11-Year Warranty – Backed by Epoch's published manufacturer warranty.
Specifications
| Brand | Epoch Batteries |
| Product | 24V 230Ah V2-T Elite Series LiFePO4 Battery |
| Model / SKU | C24230A-A |
| Series | Epoch V2-T Elite Series |
| Battery Type | Deep-Cycle LiFePO4 Battery |
| Battery Duty | Deep-Cycle House Power & Energy Storage |
| Chemistry | LiFePO4 / Lithium Iron Phosphate |
| Cell Configuration | 8S1P |
| Nominal Voltage | 25.6V |
| Rated Capacity | 230Ah |
| Stored Energy | 5.888kWh / approximately 5.89kWh |
| Maximum Voltage | 29.0V |
| Minimum Voltage | 20.8V |
| Operating State of Charge | 0–100% |
| Internal Resistance | ≤16mΩ |
| Self-Discharge Rate | ≤3% per month |
| Continuous Discharge Current | ≤115A |
| Continuous Charge Current | ≤115A |
| Short-Duration Discharge | 250A for 5 seconds |
| Short-Duration Charge | 180A for 5 seconds |
| Nominal Continuous DC Output | Approximately 2,944W at 25.6V before inverter losses |
| Class-T Fuse | Eaton JJN-300 |
| Fuse Rating | 300A |
| Fuse Interrupt Rating | 20kAIC at 160VDC |
| Bluetooth | Bluetooth 4.0 |
| CANBus | 500kbit/s |
| Victron Integration | Compatible with supported Victron GX devices and DVCC |
| Series Connection | Up to 2 identical batteries |
| Parallel Connection | Up to 16 identical batteries |
| Mixed Series-Parallel | Not supported |
| Maximum Parallel Energy | Approximately 94.2kWh |
| Cycle Life | 4,000+ cycles |
| Charge Temperature | 0°C to 50°C / 32°F to 122°F with heating support |
| Discharge Temperature | -20°C to 50°C / -4°F to 122°F |
| Storage Temperature — ≤1 Month | -20°C to 45°C / -4°F to 113°F |
| Storage Temperature — ≤1 Year | 0°C to 35°C / 32°F to 95°F |
| Internal Heater Power | 153.6W |
| Heater Voltage | 29.2VDC |
| Charge Low-Temperature Protection | 0°C with heating |
| Heater Activation | 5°C |
| Heater Deactivation | 10°C |
| Discharge Low-Temperature Protection | -20°C |
| Dimensions | 20.86 × 8.65 × 12.06 in |
| Dimensions (Metric) | 529.8 × 219.8 × 306.3 mm |
| Weight | 98.9 lbs / 45.86 kg |
| Case Material | PC + ABS, UL94 V-0 |
| Terminals | M8 bolts |
| Terminal Torque | 12 N·m / 8.85 lb-ft |
| Cooling | Passive convection |
| Ingress Protection | IP67 |
| Warranty | 11 Years |
| Pack Certification | UL1973 |
| Cell Standards | UL1642, UL9540A, IEC 62619:2022 |
| Other Compliance | CE, RoHS |
| Fuse Listing | UL60691 |
RECOMMENDED CHARGING SETTINGS
| Setting | Specification |
|---|---|
| Absorption Voltage | 28.4V |
| Absorption Time | 15 minutes per battery |
| Float Voltage | 27.0V |
| Equalization | Off / Disabled |
| Temperature Compensation | Disabled |
For Victron systems, Epoch specifies use of the battery communication harness, compatible GX device, CANBus communication, and DVCC configuration.
APPLICATIONS
- 24V marine house banks
- Trolling motors
- Marine electronics and fish finders
- Yachts and cruising boats
- RV and camper power systems
- Camper vans and expedition vehicles
- Off-grid solar systems
- Solar battery banks
- Inverter and energy-storage systems
- Remote cabins and backup power
- Home energy storage
- Commercial and specialty power systems
Important: This battery is intended for deep-cycle house power and energy storage, not engine cranking. The integrated Class-T fuse provides source protection but does not replace a system main disconnect, downstream overcurrent protection, appropriate cabling, or other installation requirements.
Specification Note: Epoch's live page currently contains different current figures between its summary/description and detailed Technical Specifications. The detailed table above follows Epoch's technical specification section: 115A continuous discharge, 115A continuous charge, and 250A for 5 seconds. Epoch itself advises verifying the physical product label or latest model-specific datasheet when published values differ.
