Flatline Van Co. | Low Pro Roof Rack for Ford Transit 148" High Roof
Flatline Van Co | Low Pro Roof Rack for Ford Transit 148" High Roof
The Flatline Van Co Low Pro Roof Rack is a durable and low-profile roof storage system designed specifically for Ford Transit 148" High Roof vans. Engineered to maximize roof utility while keeping wind resistance low, it provides a secure mounting platform for solar panels, cargo boxes, ladders, and other rooftop accessories. Its modular design offers flexible configuration options, making it ideal for camper van builds, overlanding, and commercial use.
KEY FEATURES
- Low‑Profile Design – Aerodynamic lines with integrated fairing improve fuel efficiency compared to bulky racks.
- Lightweight – Aluminum side rails and crossbars keep the rack strong yet lightweight, enhancing handling and performance.
- 6x Crossbars – Adjustable system accommodates rooftop gear such as fans, AC units, and solar panels.
- Drop‑In Hardware Slots – 10‑Series crossbars with slots make accessory mounting quick and easy.
- DIY‑Friendly Install – Bolts directly to Ford factory locations; simple installation with basic hand tools.
- Built to Last – Rugged yet lightweight construction designed to last the life of your van.
Transit 148" High Roof Low Pro Rack w/Light Bar Compatible Fairing
Select this option to receive the Light Bar Compatible Fairing for mounting a light bar or off road lights. The Light Bar Fairing has pre-cut holes for mounting lighting and comes ready to accommodate most 50” LED light bars.
- For optimal fitment, we suggest the Baja Designs ONX6 50" Arc LED Light Bar
- A light bar is not included with this option
DETAILS
- Lightweight all-aluminum side rails and crossbars - the total rack weight is only 64 pounds
- Landing pads to mount the rack are constructed with formed 12GA 304L stainless steel with dual flanges for even weight distribution
- Lightweight Aluminum wind fairing
- 10-series 80/20 compatible anodized aluminum crossbars - Qty 6
- Stainless Steel Hardware Included
- Fiamma F45S 300 Awning bolts up with no modifications required
- Transit Van Side Ladder - High Roof bolts directly to the Low Pro Roof Rack
COMPATIBILITY
- 2015+ Ford Transit 148 High Roof Vans*
*Does not fit 2026+ vans equipped with shark fin antenna - 2023+ Ford Transit Trail

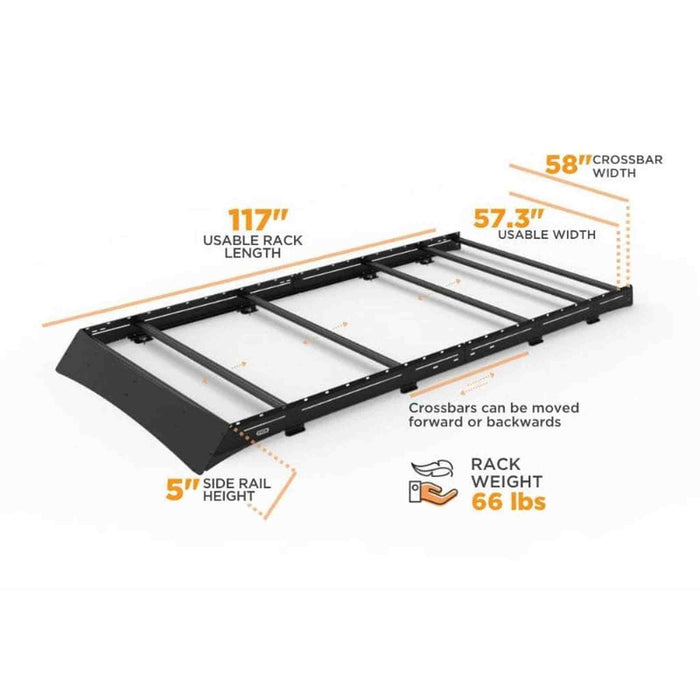

Specifications
- Usable rack length: 117"
- Crossbar width: 58"
- Usable width: 57.3"
- Side rail height: 5"
- Rack weight: 66 lbs
