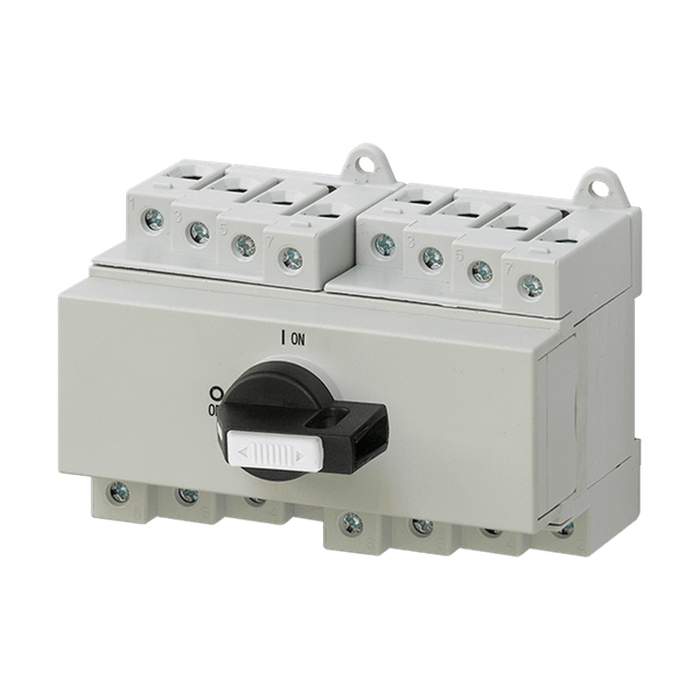

Modular DC Switch IP40 6 Pole 3 String 25A 700VDC
The Modular DC Switch IP40 6 Pole 3 String 25A 700VDC is a compact and reliable direct current isolator designed for use in solar PV and industrial systems. With its 6-pole, 3-string configuration and a robust 25A rating at 700 VDC, it enables safe disconnection of multiple PV strings, enhancing safety during maintenance or emergency shutdowns.
Built with a modular form factor and IP40 protection rating, this switch is ideal for indoor applications where environmental protection is moderate but operational reliability remains critical. The lockable rotary handle provides an additional layer of safety, helping to prevent accidental reconnections.
Key Features
-
25A, 700 VDC Rating
Reliable operation for high-voltage DC systems. -
6 Pole, 3 String Configuration
Efficiently isolates up to three PV strings in one unit. -
IP40 Protection
Suitable for controlled indoor environments with limited exposure to dust or moisture. -
Lockable Rotary Handle
Prevents unauthorized or accidental switching for enhanced safety. -
Modular Design
Easy to integrate into existing control panels or systems.
Specification
| Specification | Details |
|---|---|
| Warranty Years | 5 |
| Handle Type | Lockable Rotary Handle |
| Lockable | Yes |
| Number of Strings | 3 |
| Mounting | Enclosed |
| UL Current Rating (A) | 25.00 |
| Temperature Range (°C) | -40 to +45°C |
| Number of Poles | 6P |
| IP Rating | IP67 |
| Cable Sizes (AWG) | 12-10 AWG |
| Rated Current (A) | 16A |
| Cable Size (mm²) | 4-16 mm² |
