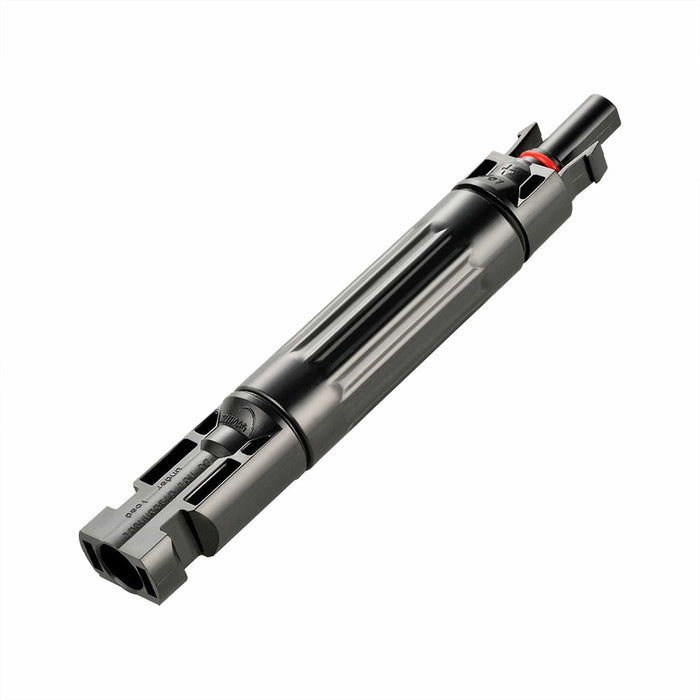

Rich Solar | Inline Fuse Holder | Waterproof Replacement Inline Fuse Holder | Choose Amp: 10A, 15A, 20A, 30A
Overview
Features
- Fuse Can Replace
- 10A/15A/20A/30A fuse embedded into a waterproof fuse holder, solar connector lead on each end.
- Compatible with PV cables with different insulation diameters.
- Designed for a wide range of DC applications.
- Simple plug-and-play.
- Auto-lock equipment of male and female points renders connections easy and reliable.
- Waterproof fuse holder - IP67 Class Protection.
- Insulation material PPO.
- High current-carrying capacity.
- Prevent large currents from damaging the solar panels.
- Designed to provide complete single-circuit protection to your solar power array.
- Protection Class II
- Connector adopts touch and insertion of reed with inner-knob type.
- Purchase this product for extra protection on your system.
Specifications
- Rated Current: 10A/15A/20A/30A
- Degree of Protection: IP2*/IP67
- Rated Voltage: 1000 V DC
- Flame Class: UL94-V0
- Test Voltage: 6000V (50Hz,1 min)
- Safety Class: II
- Overvoltage Category: CATIII
- Suitable Connector: Solar Connector
- Contact Resistance of Plug Connector: 1mΩ
- Insertion Force / Withdrawal Force: ≤50N / ≥50N
- Contact Material: Copper, Silver Plated
- Insulation Material: PPO
- Temperature Range: -40 to +125°C
