KC HiLiTES | 2" C-Series C2 LED - 2-Light System - Backup - 20W Flood Beam
2" C-Series C2 LED - 2-Light System - Backup - 20W Flood Beam

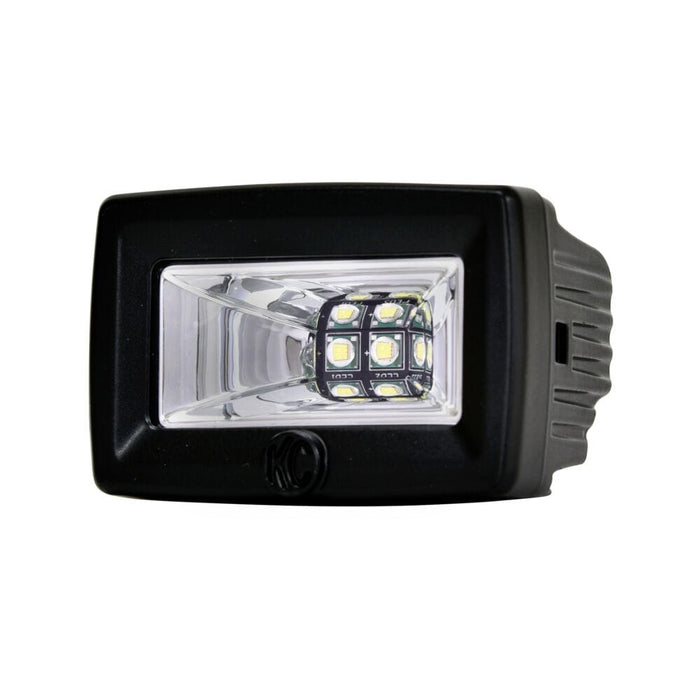

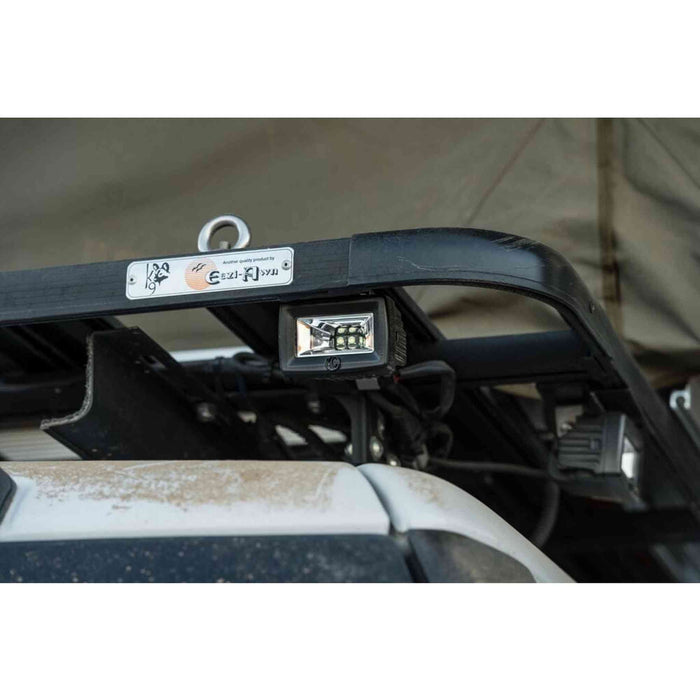

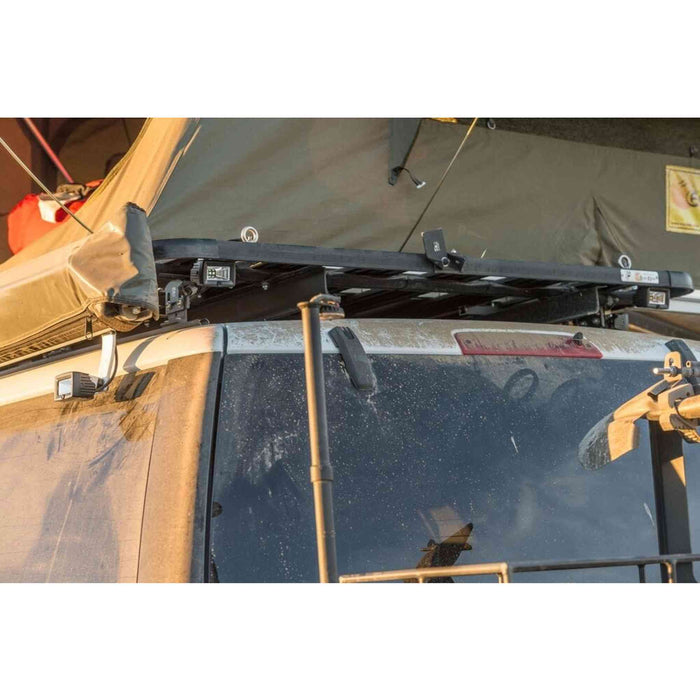

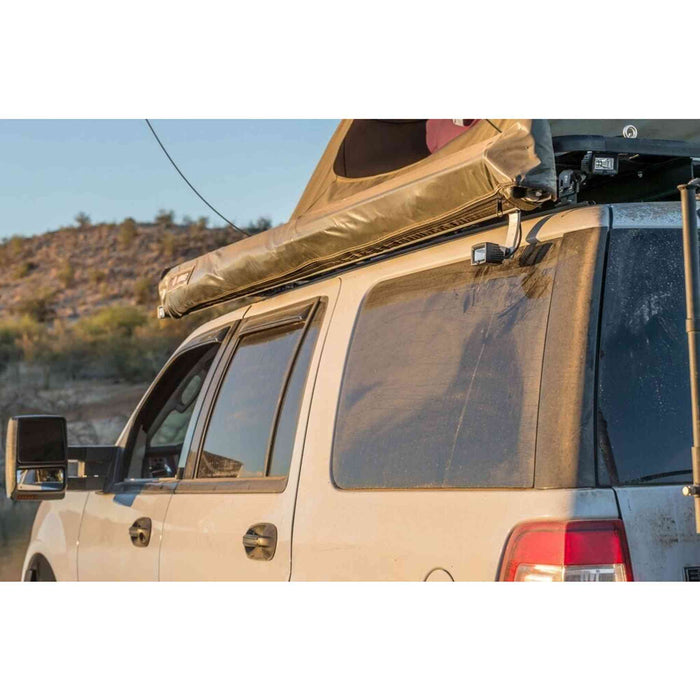

The KC HiLiTES C-Series C2 LED Backup Light System is designed to improve rear visibility with powerful, ultra-wide flood lighting. Featuring two compact C2 LED Area Flood Lights, this system delivers broad peripheral illumination to enhance safety and visibility when reversing, working, or maneuvering in low-light conditions. Complete with Z-brackets, an extended wiring harness, and weatherproof connectors, this kit provides a simple and effective backup lighting solution for a wide range of vehicles.
KEY FEATURES
- (2) C-Series C2 LED Area Flood Backup Lights
- Ultra-wide 120° flood beam pattern for maximum peripheral visibility
- Ideal for backup, reverse, work, and utility lighting

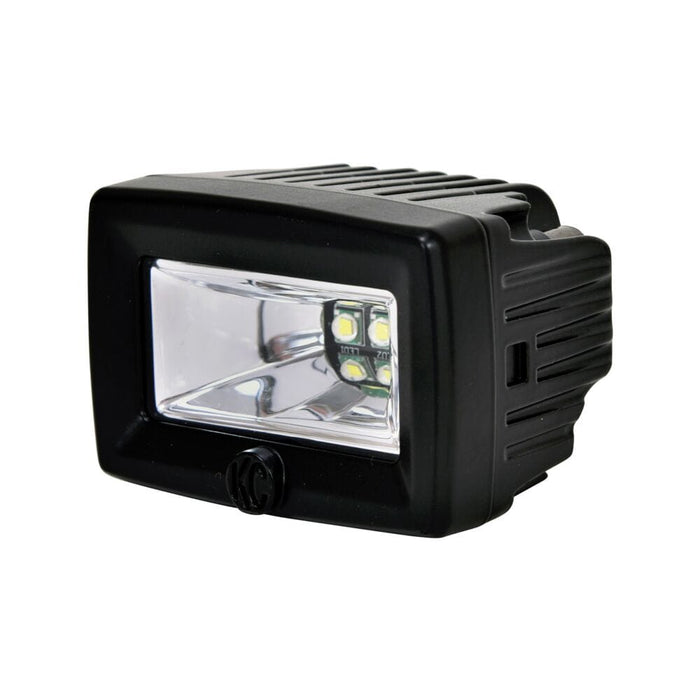

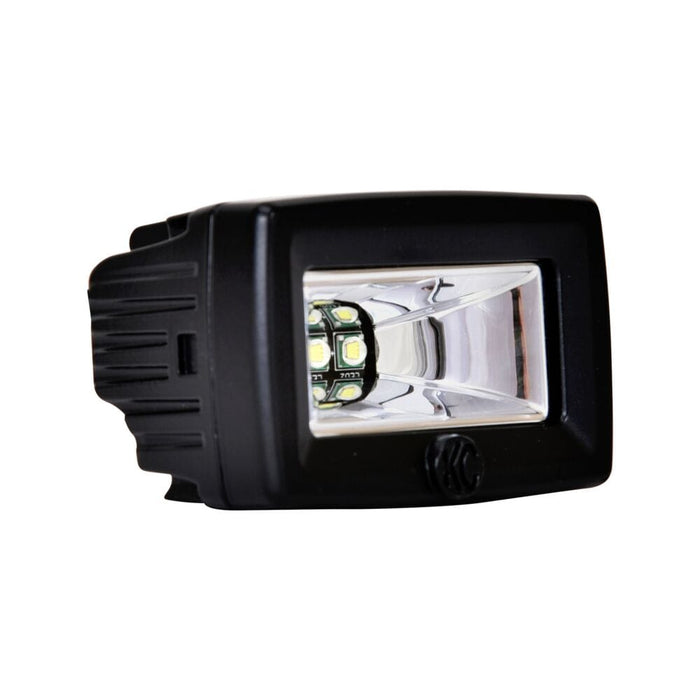

- Durable die-cast 6063 aluminum housing
- UV-resistant black powder-coated finish

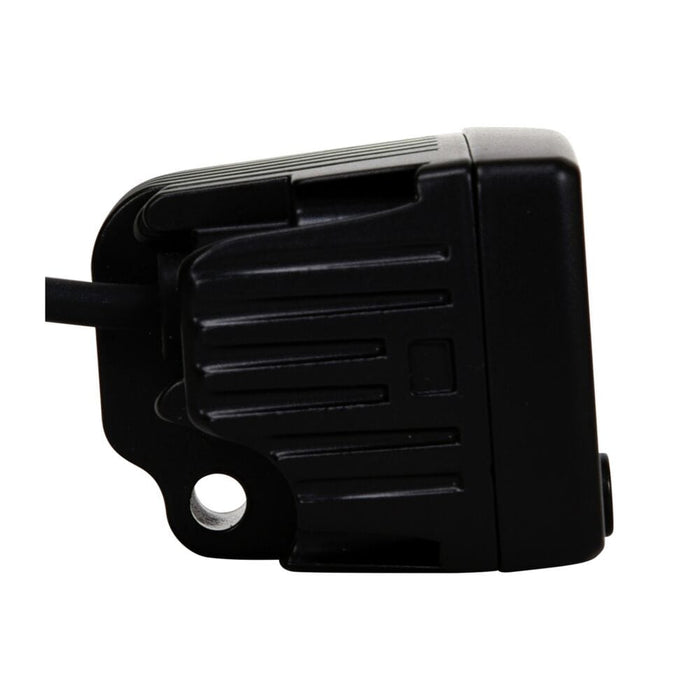

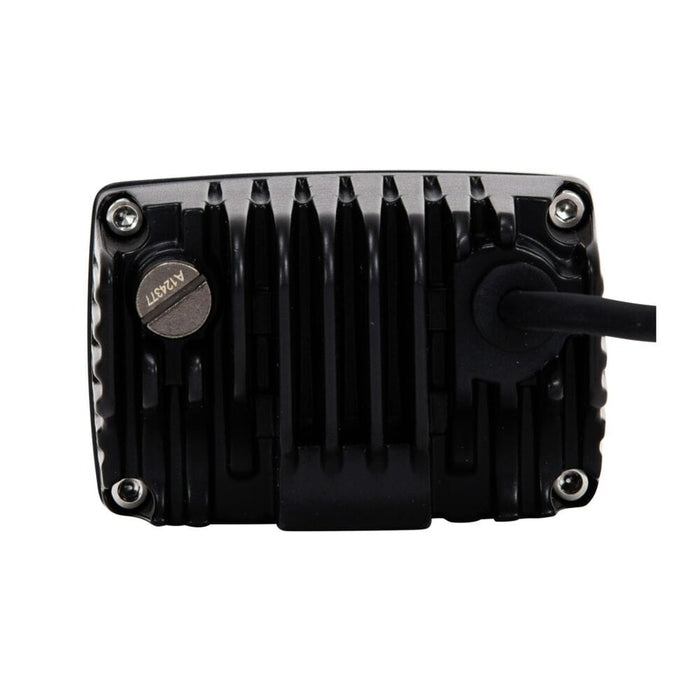

- Dual oversized heat-sink design for improved cooling and LED longevity
- Gore® military-grade breather membrane helps prevent condensation and contamination
- Optically clear, shatter-resistant Lexan® lens
- Compact size for flexible mounting options
- Includes extended wiring harness for rear-mounted installations
LIGHT PERFORMANCE (PER LIGHT)
- Raw Lumens: 2,200 lm
- Lux @ 10 Meters: 27 lx
- Candela: 2,700 cd
- Beam Distance: 104 m
Specifications (Per Light)
- Wattage: 20W
- LED Source: Cree XMK
- LED Color Temperature: 6000K
- Amp Draw: 1.6A
- Voltage: 9V–36V
- IP Rating: IP67
- Dimensions: 2.85" W x 2.21"/1.91" H x 2.17" D

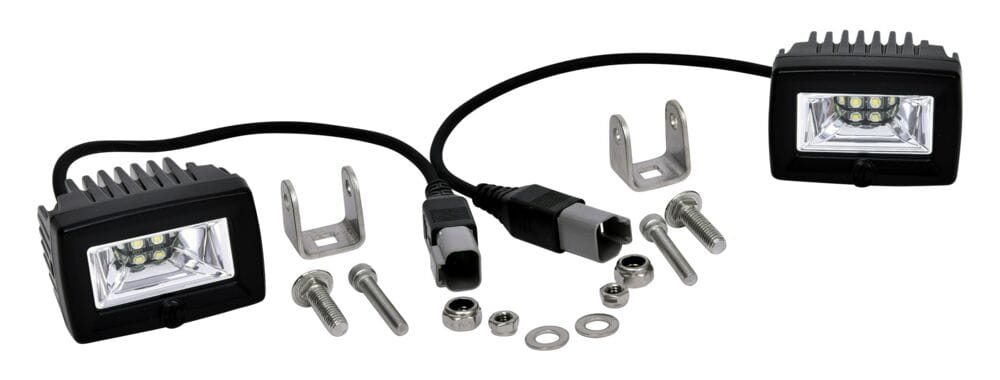

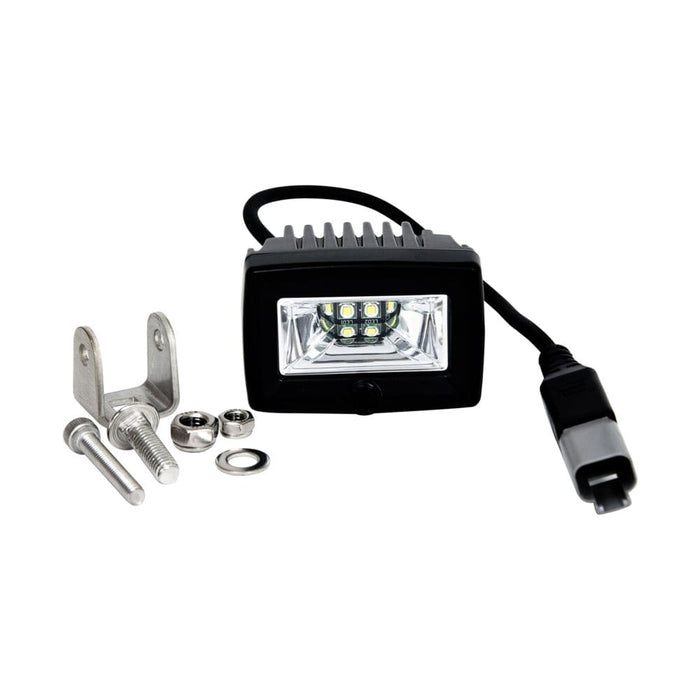

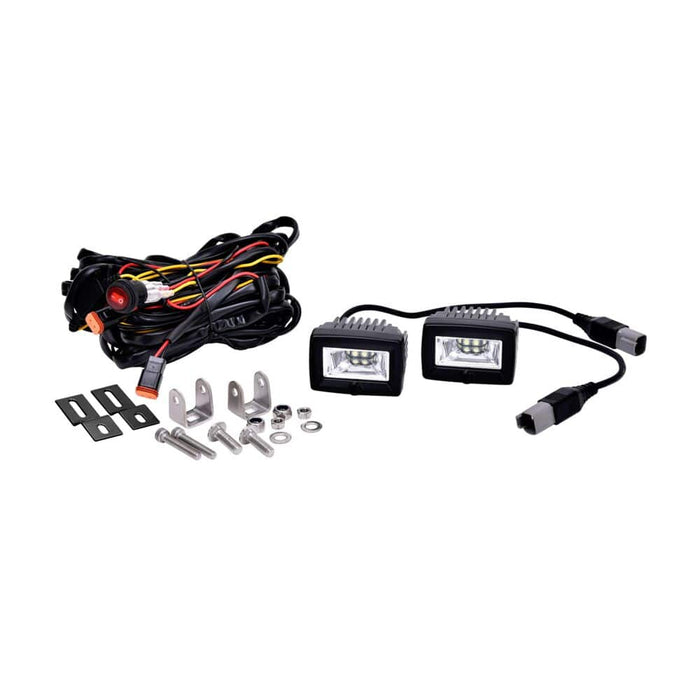

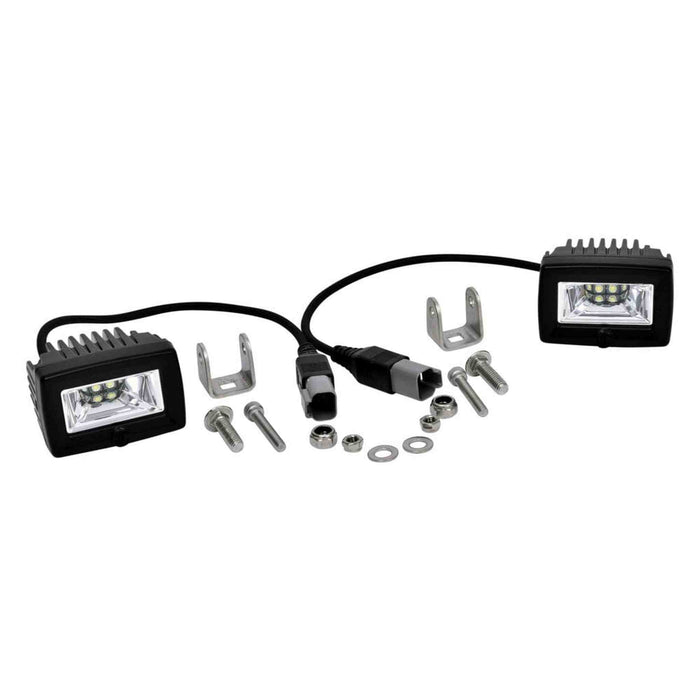

WHAT'S INCLUDED
- (2) 20W C-Series C2 LED Flood Lights

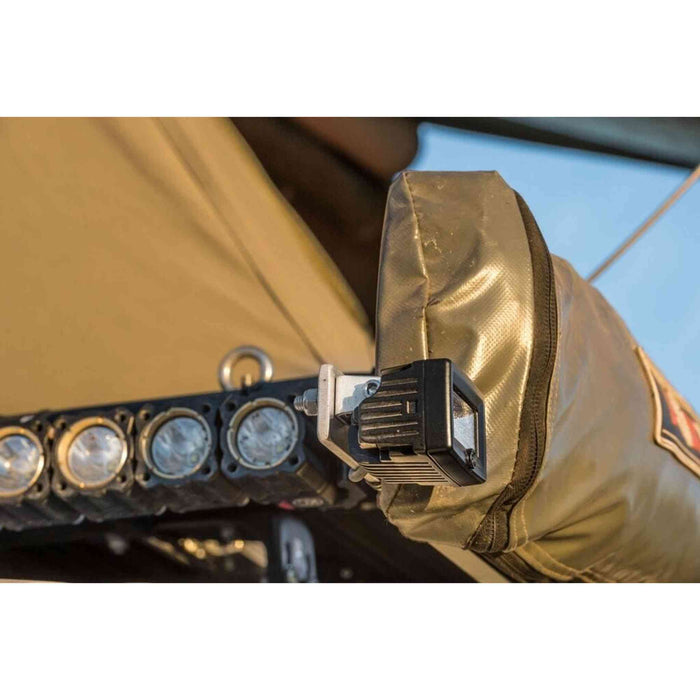

- (2) Z-Brackets
- Wiring Harness with Weatherproof DT Connectors and Switch
Fitment & Installation Notes

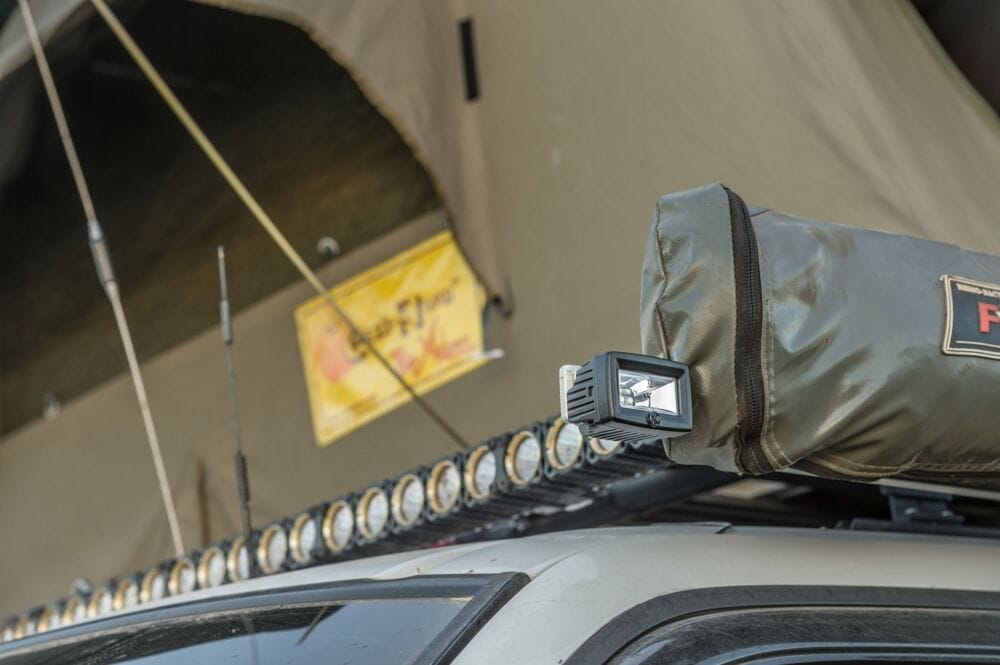

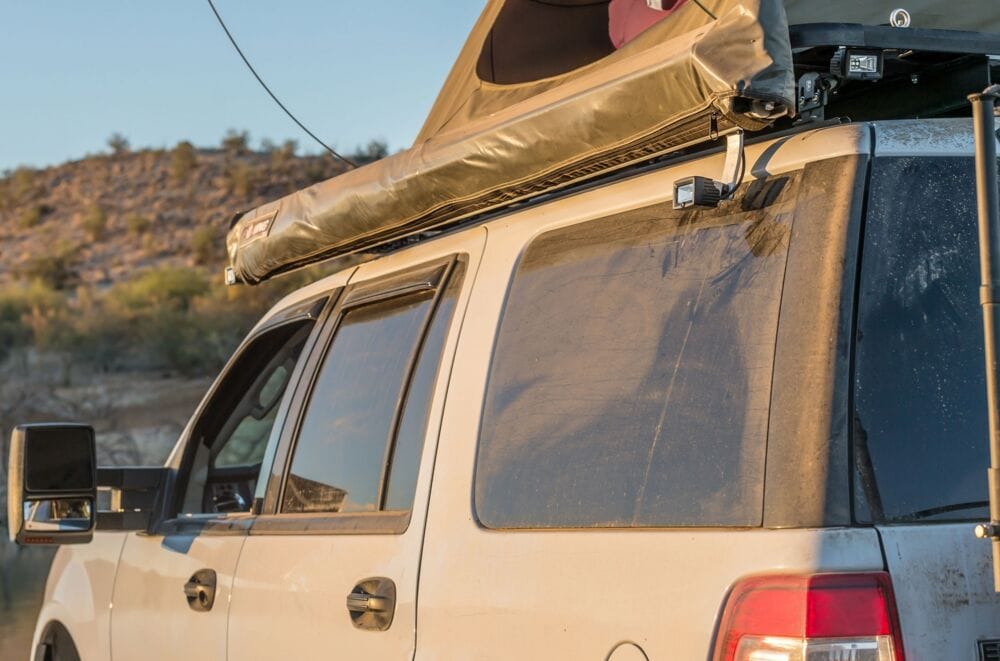

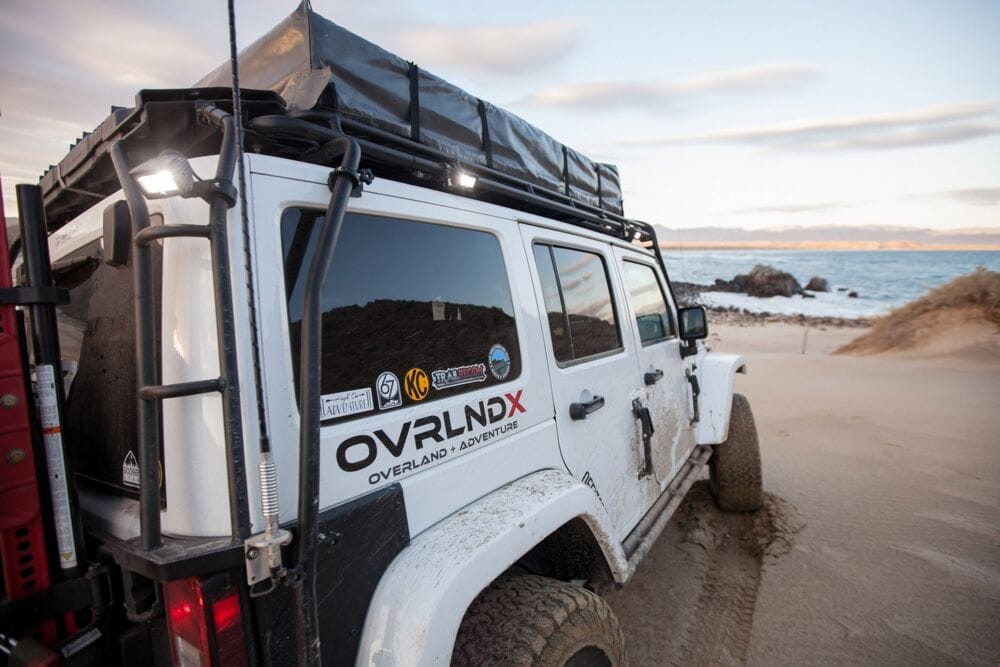

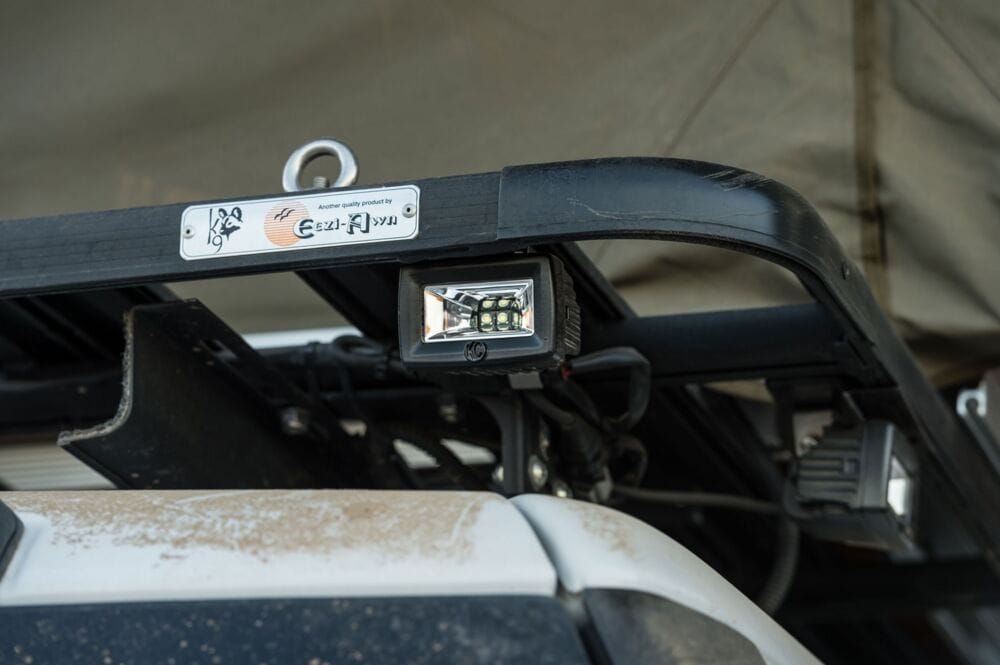

- Universal fitment for trucks, SUVs, Jeeps, vans, trailers, UTVs, and off-road vehicles
- Designed specifically for backup and reverse lighting applications
- Includes extended wiring harness for easier rear vehicle installation
- Compatible with 9V–36V electrical systems
Optical Performance & LED Efficiency

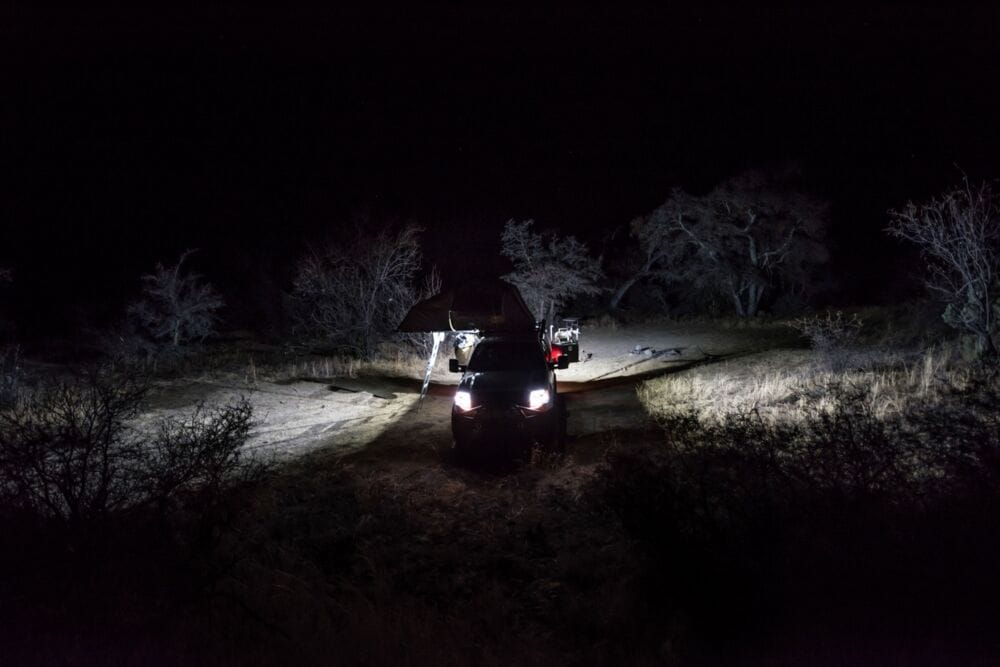

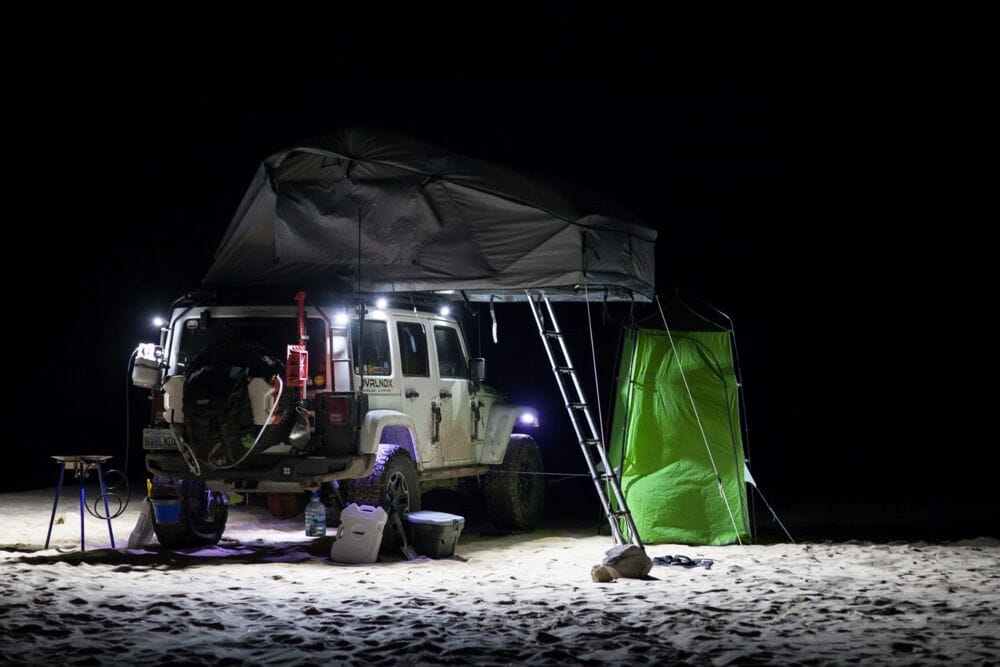

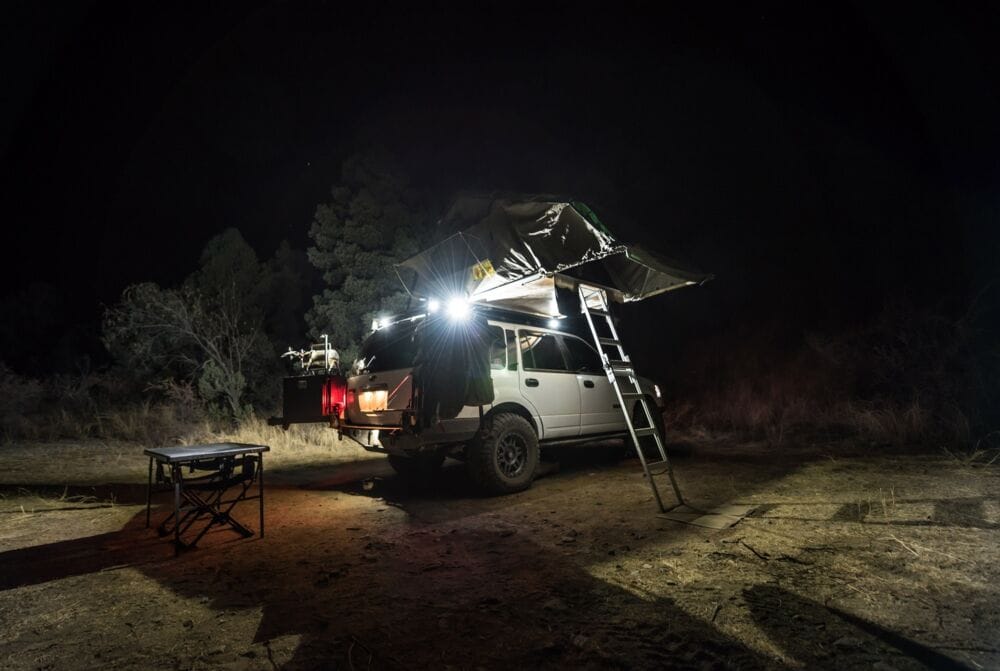

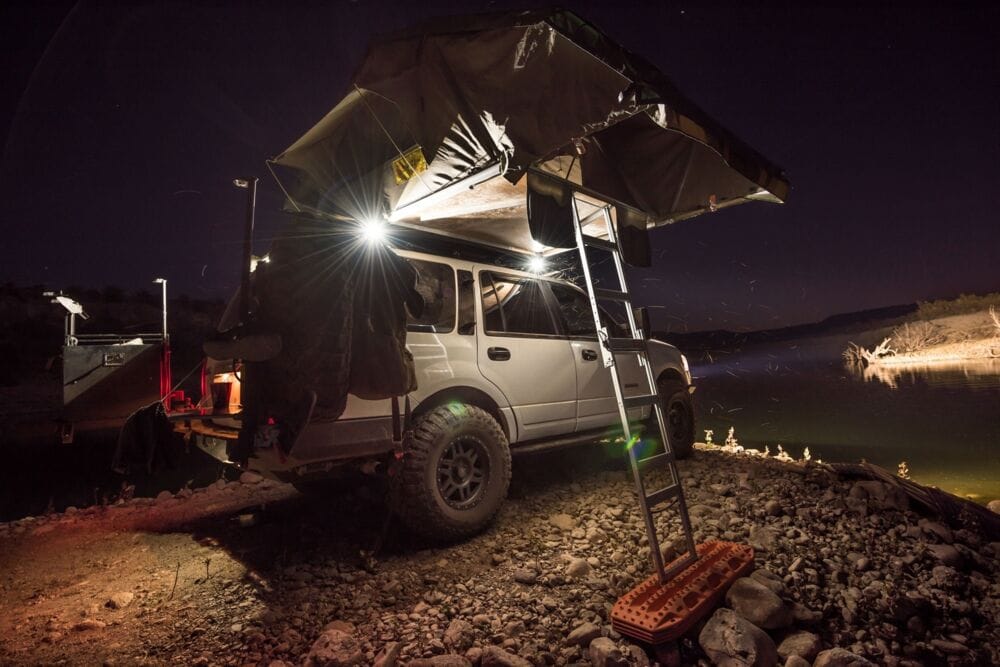

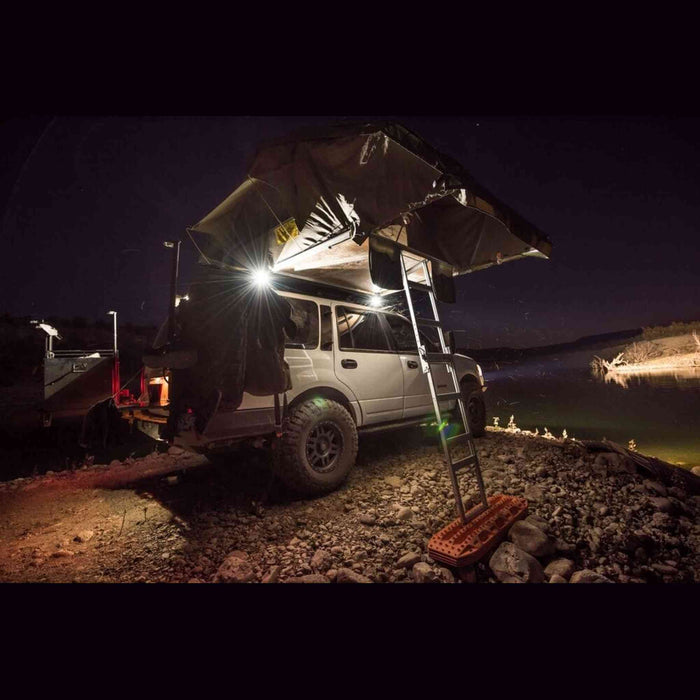

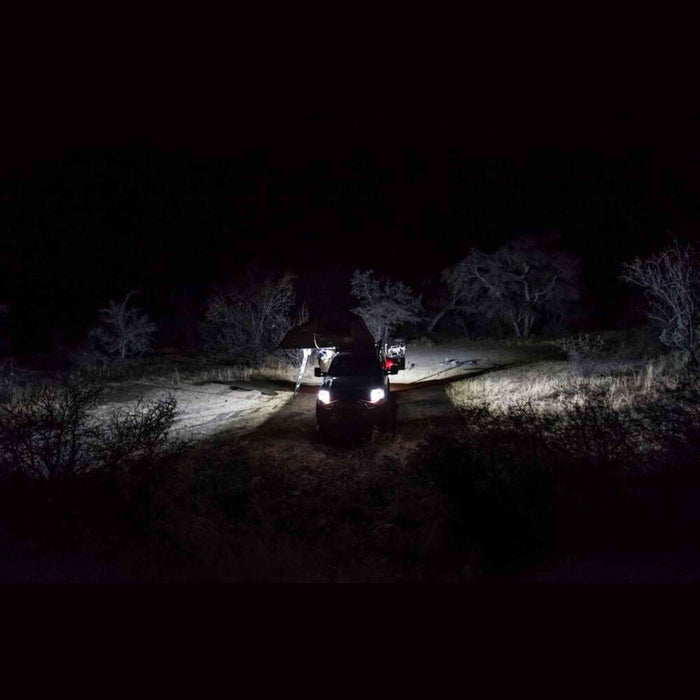

The C2 LED Backup Light System utilizes KC's ultra-wide 120-degree flood reflector optics to create smooth, evenly distributed illumination across a broad field of view. This wide beam pattern improves visibility behind the vehicle, making it ideal for reversing, loading gear, campsite setup, and worksite applications.
Durable Construction
Engineered for demanding environments, each C2 light features a military-grade die-cast aluminum housing, shatter-resistant Lexan® lens, and IP67-rated protection against dust and water. The advanced dual heat-sink design promotes efficient thermal management, helping maintain peak performance and extending LED lifespan up to 50,000 hours.
The KC HiLiTES C-Series C2 LED Backup Light System delivers reliable, high-output rear illumination in a compact and rugged package, making it an excellent upgrade for improved safety and visibility in any environment.
Specifications
| SKU | 0519 |
|---|---|
| Weight | 4.000000 |
| Wattage Per Light | 20W |
| Total Wattage | 40W |
| Amp Draw Per Light | 1.67 a |
| Total Amp Draw | 3.3 a |
| Voltage | 9V-36V |
| Lumens Per Light | 2,200 lm |
| Total Lumens | 4,400 lm |
| Lux Per Light | 27 lx |
| Candela Per Light | 2,700 cd |
| Total Candela | 2,700 cd |
| Light Temp | 6000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Flood What's this? |
| Beam Distance | 104 m |
| Light Technology | LED |
| Mount Location | A-Pillar / Ditch, Bumper, Overhead |
| Size of Products | 2" |
| Material | Aluminum Alloy |
| Product Finish | Black |
| Included Components | 2 x 2" C2 LED C-Series LED Scene Light, 2 x Z-Bracket, Wire Harness with weatherproof DT connectors, Illuminated LED light switch |
| Color | Black |
| Product Dimensions | W: 2.85 " x H: 2.21 " x D: 2.17 " |
| UPC | 084709005191 |
| IP Rating | IP67 |
