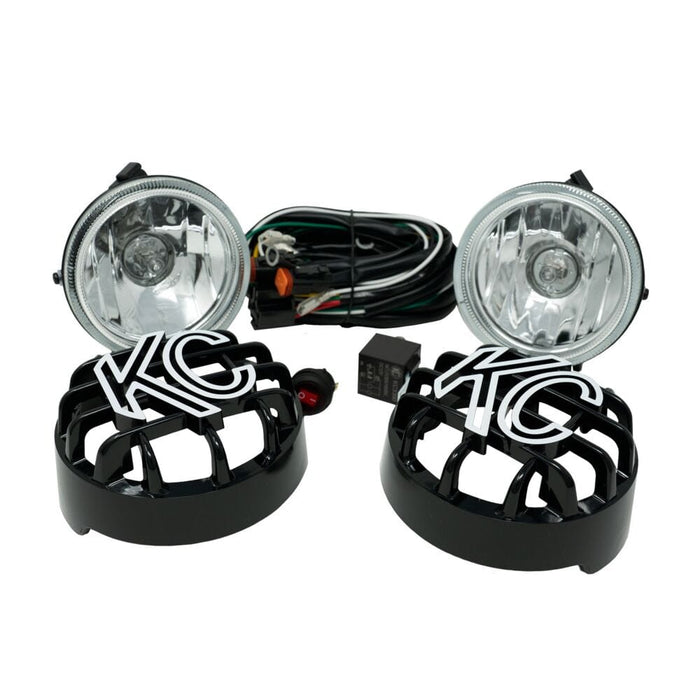

KC HiLiTES | 4" Rally 400 Halogen - 2-Light System - 55W Spread Beam
KC HiLiTES | Rally 400 4" Halogen Spread Beam Light Kit
The KC HiLiTES Rally 400 4" Halogen Spread Beam Light Kit combines compact sizing with powerful halogen performance, making it an excellent choice for trucks, Jeeps, SUVs, and other off-road vehicles. Featuring precision reflector optics, rugged steel housings, and KC's proven lighting technology, these lights deliver a balanced spread beam pattern that enhances both peripheral and forward visibility for safer nighttime driving and trail exploration.
KEY FEATURES
- (2) 55W H3 Halogen Bulbs
- Black Steel Housing
- Precision Reflector Optics
- Clear Tempered Glass Lens
- Spread Beam Pattern
- Compact 4" Design for Versatile Mounting
- Two-Axis Adjustable Mounting System
- Durable Construction for On- and Off-Road Use
LIGHT PERFORMANCE (PER LIGHT)
- Raw Lumens: 1,350 lm
- Lux @ 10 Meters: 392 lx
- Candela: 39,240 cd
- Beam Distance: 396 m
WHAT'S INCLUDED
- (2) 55W 4" Rally 400 Halogen Lights
- Deluxe Wiring Harness with 2-Pin Weatherproof Connectors
- (2) 4" ABS Protective Stone Guards
- 30 Amp Illuminated Switch with Switch Panel
PERFORMANCE HALOGEN AND PRECISION OPTICS
The Rally 400 delivers up to 392 lux at 10 meters with a beam distance of 396 meters. Powered by 55W H3 halogen bulbs and paired with KC's precision-engineered reflector optics, these lights provide strong illumination and enhanced visibility for both high-speed and long-distance driving conditions.
SPREAD BEAM PERFORMANCE
The Spread Beam pattern provides a balanced combination of wide-angle and forward-facing illumination. This design improves peripheral visibility while maintaining excellent distance projection, making it ideal for trail driving, backroads, and off-road adventures.
ADJUSTABLE MOUNTING FOR PRECISION AIMING
The integrated two-axis mounting system allows for precise beam adjustment, helping drivers fine-tune light positioning for optimal coverage and consistent performance in a variety of driving conditions.
COMPACT SIZE AND VERSATILITY
Featuring a compact 4-inch profile and durable steel housing, the Rally 400 is well-suited for installations where mounting space is limited. Its versatile design makes it an excellent choice for front bumpers, grille mounts, and auxiliary lighting applications on trucks, Jeeps, SUVs, and other off-road vehicles.
Specifications
| SKU | 0490 |
|---|---|
| Weight | 3.500000 |
| Wattage Per Light | 55W |
| Total Wattage | 110W |
| Amp Draw Per Light | 4.58 a |
| Total Amp Draw | 9.17 a |
| Voltage | 9V-32V |
| Lumens Per Light | 1,350 lm |
| Total Lumens | 1,350 lm |
| Lux Per Light | 392 lx |
| Total Lux | 393 lx |
| Candela Per Light | 39,240 cd |
| Total Candela | 39,240 cd |
| Light Temp | 4000 K |
| Lens Color | Clear |
| LED Color | White |
| Beam Pattern | Spread What's this? |
| Beam Distance | 396 m |
| Light Technology | Halogen |
| Mount Location | A-Pillar / Ditch, Bumper, Overhead |
| Size of Products | 4" |
| Material | Stainless Steel |
| Product Finish | Black |
| Included Components | 2 x 55W 4" Rally 400 Light, 2 x 4" Black ABS Stone Guards, Deluxe Wiring Harness with DT Weatherproof Connectors, Illuminated LED Light Switch |
| Color | Black |
| Product Dimensions | W: 4.142 " x H: 4.409 " x D: 2.602 " |
| UPC | 084709004903 |
| IP Rating | IP68 |
