KC HiLiTES | 7" Gravity® LED DOT Headlight - Driving Beam - Pair - 07-18 Jeep JK
KC HiLiTES | Gravity LED 7" Headlights Jeep JK 07–18 High/Low Beam DRL Pair

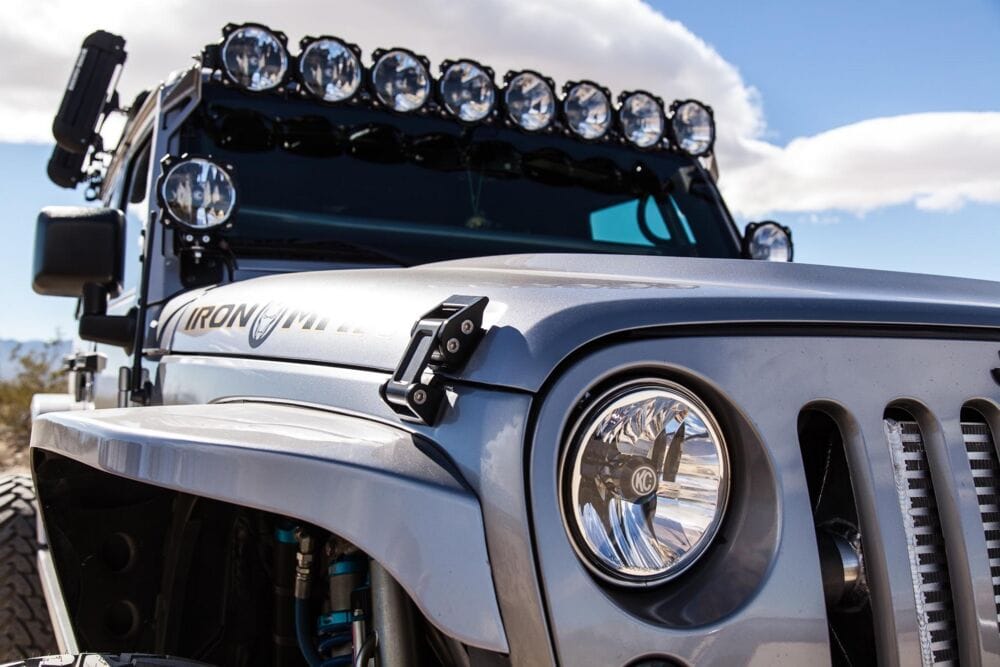

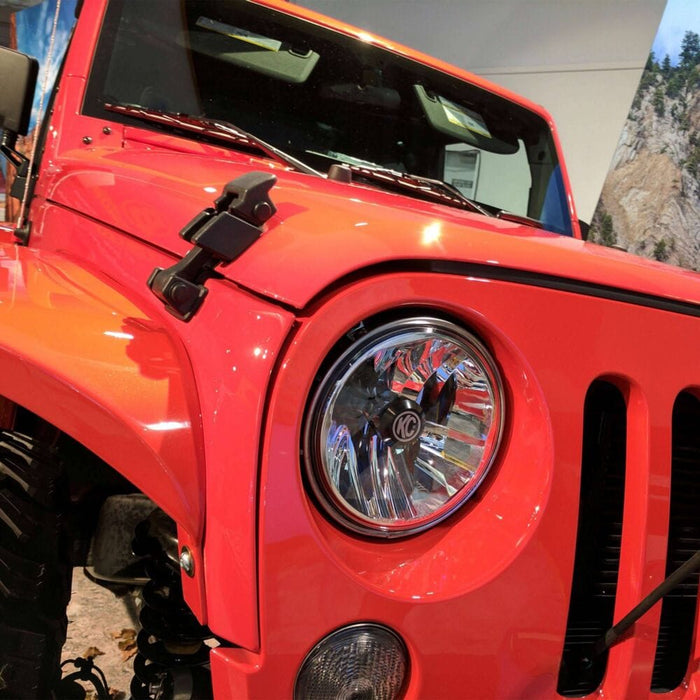

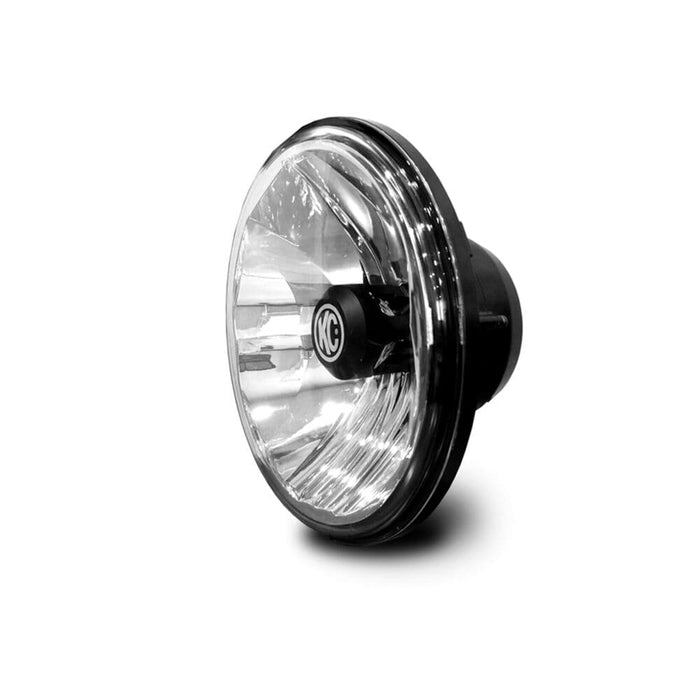

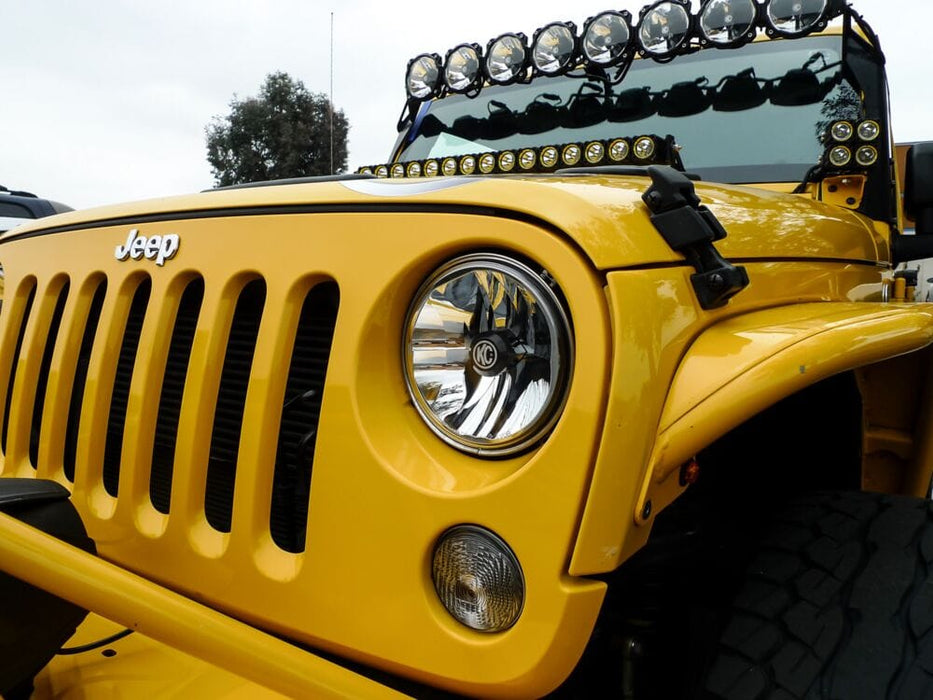

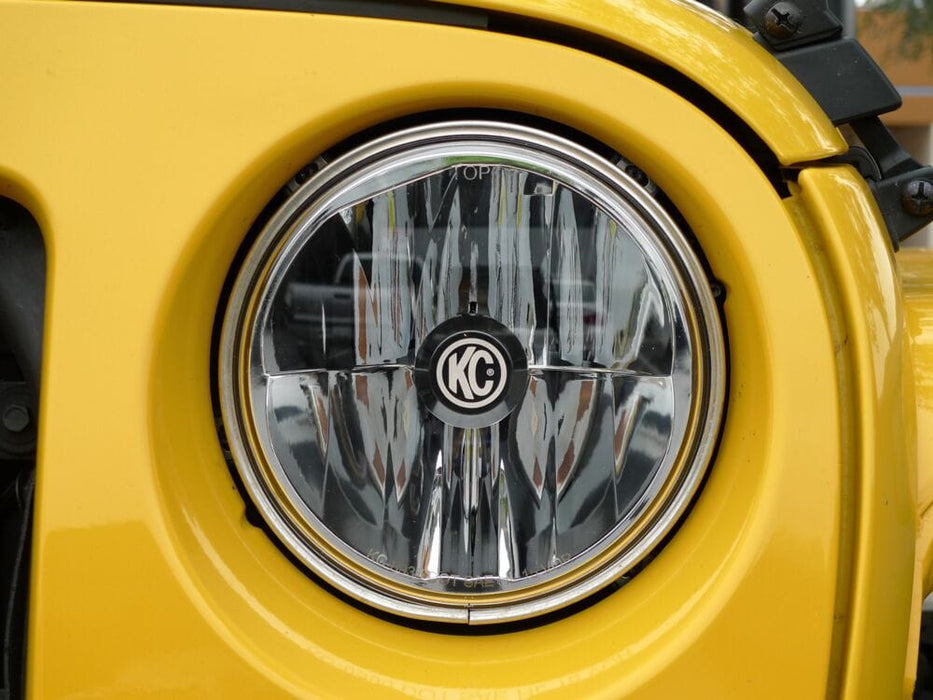

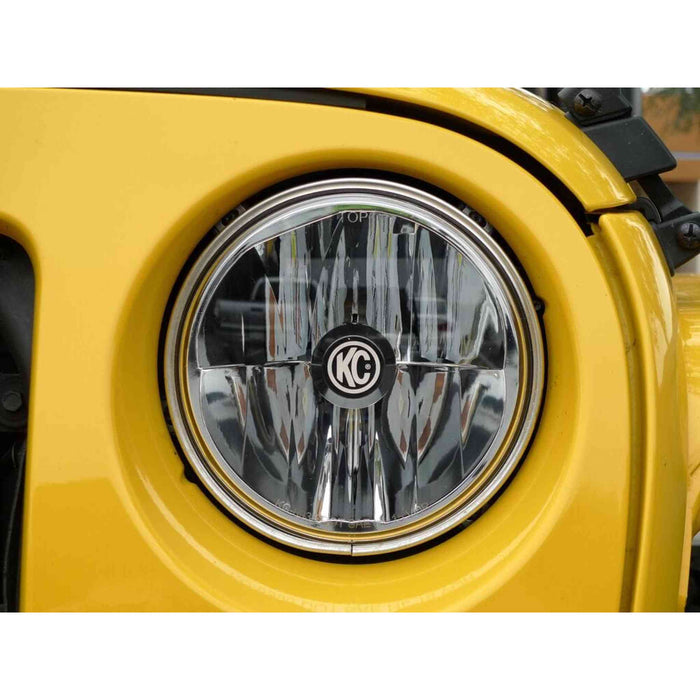

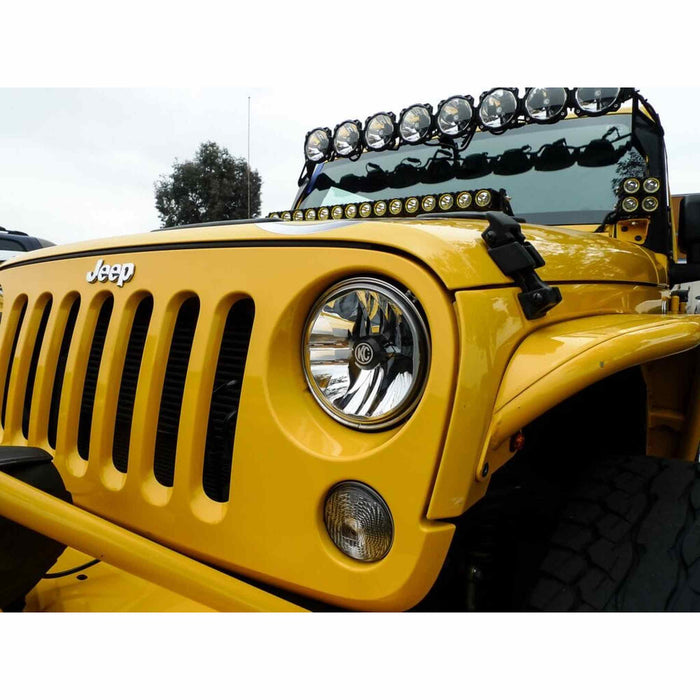

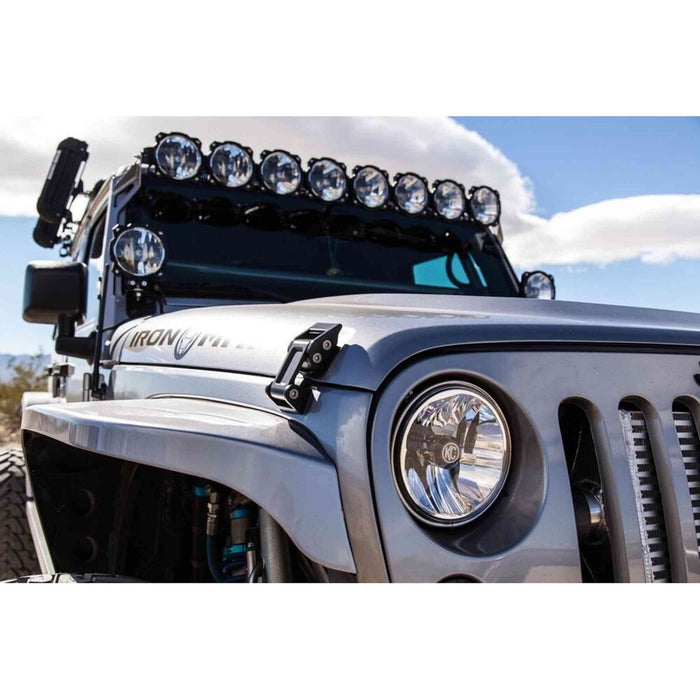

The KC HiLiTES Gravity LED 7" Headlights are direct replacement LED headlights designed for 2007–2018 Jeep Wrangler JK models. Each headlight uses Gravity® Reflective Diode (GRD) technology with precision reflector optics to deliver controlled low beam, high beam, and integrated daytime running light (DRL) functionality. Built with a die-cast aluminum housing and hard-coated polycarbonate lens, the system is engineered for durability and improved visibility compared to factory Jeep JK headlights. Designed for full plug-and-play installation using H13 connectors.
KEY FEATURES
- 2 x 40W Gravity® LED 7" headlight system.
- Hard-coated polycarbonate lens for impact and UV resistance.
- Full plug-and-play installation for 2007–2018 Jeep Wrangler JK.
- Precision die-cast aluminum housing for strength and heat management.
- KC engineered polished reflector optics for controlled beam output.
- DOT compliant low beam and high beam with onboard DRL support.
- Transport Canada (TC) compliant for 2007–2018 Jeep JK with DRL enabled systems.
- Plug-and-play H13 connectors included for Jeep JK compatibility.
LIGHT PERFORMANCE (PER LIGHT)
- Raw lumens: 1,260 lm (Low beam), 3,666 lm (High beam), 275 lm (DRL)
- Compliance: DOT compliant
- Lux @ 10 meters: 415 lx (Low), 775 lx (High)
- Candela: 41,500 cd (Low), 77,500 cd (High)
- Beam distance: 407 m (Low), 557 m (High)
Specifications
- Wattage: 18W (Low), 22W (High)
- LED type: CREE XHP35 HI and Nichia
- Color temperature: 5000K
- Current draw: 1.88A
- Operating voltage: 9V–18V
- IP rating: IP68
- Dimensions: 6.96 in (W) x 3.72 in (D)
PARTS INCLUDED

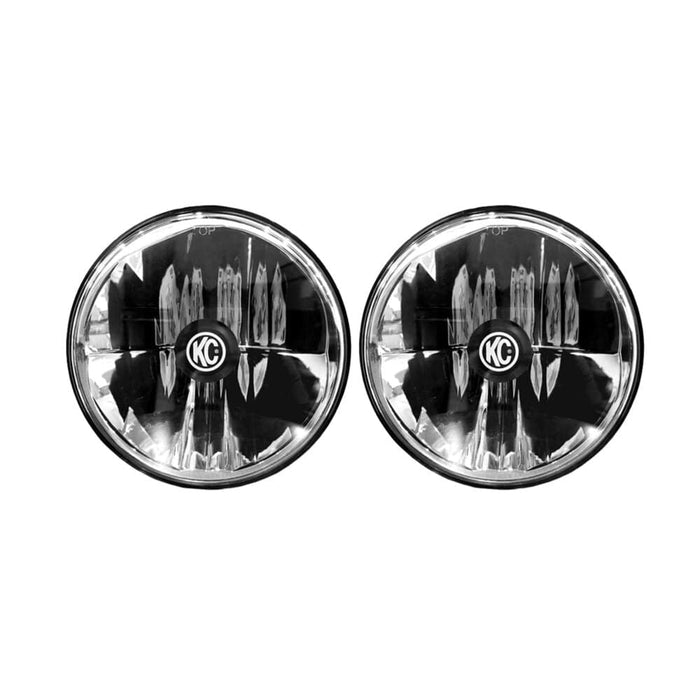

- (2) Gravity® LED 7" headlights
- Plug-and-play H13 connectors for Jeep JK
TECHNOLOGY & DESIGN
- Gravity® Reflective Diode (GRD) system for efficient light projection
- Precision reflector optics engineered for controlled beam shaping
- Integrated low beam, high beam, and DRL functionality
- Die-cast aluminum housing for thermal stability and durability
- Hard-coated polycarbonate lens designed for harsh environmental conditions
