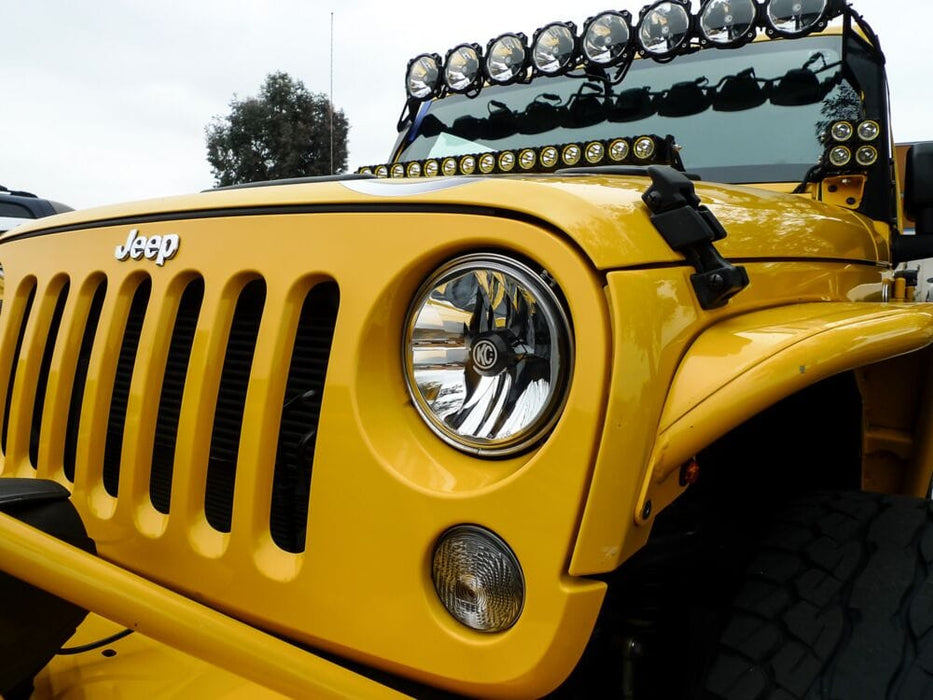

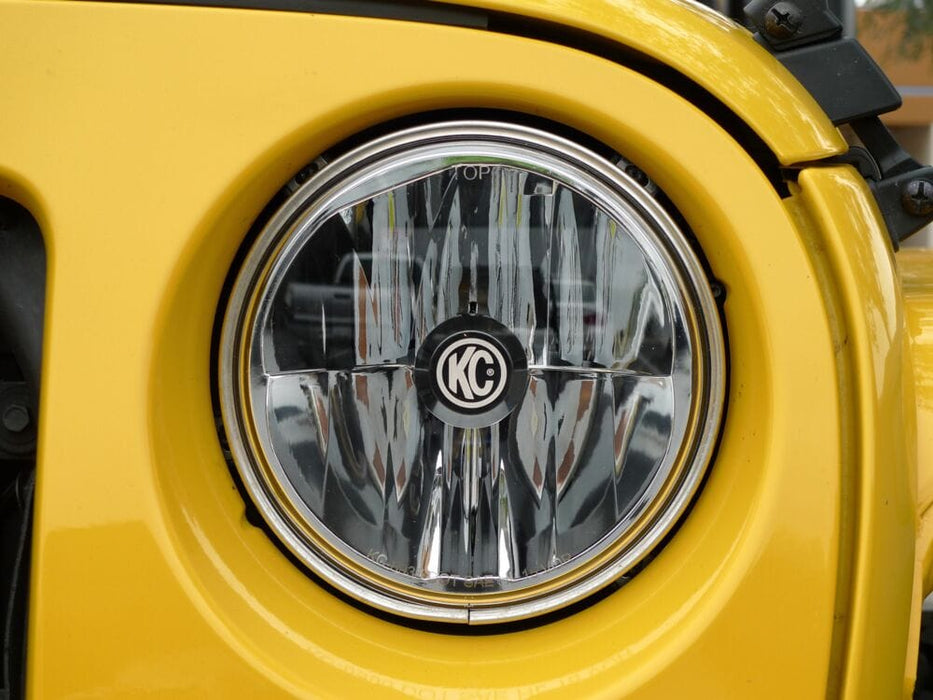

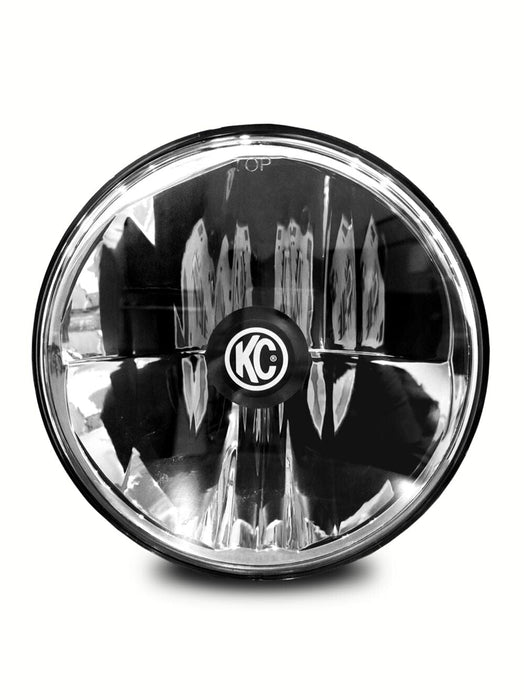

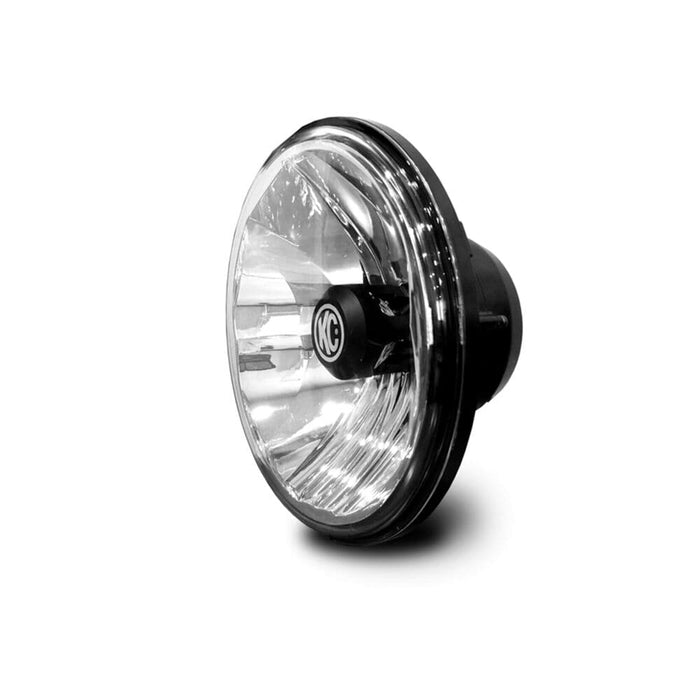

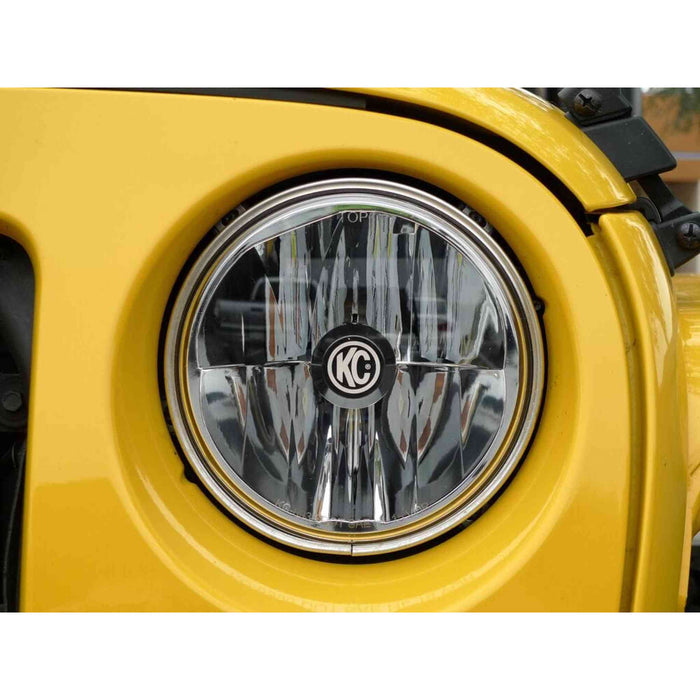

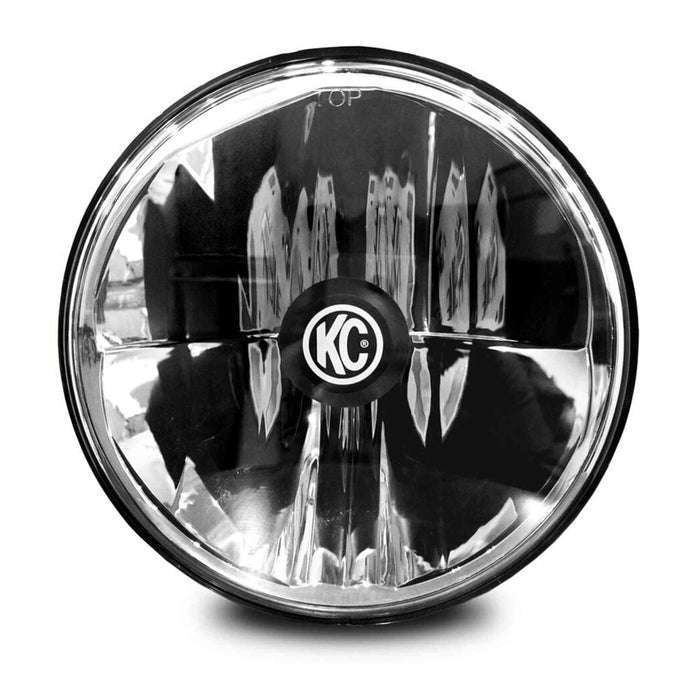

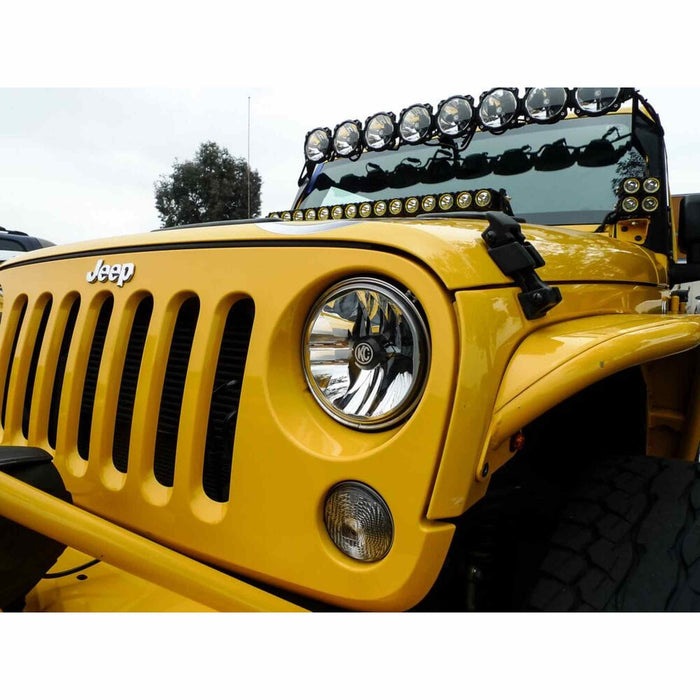

KC HiLiTES | 7" Gravity® LED DOT Headlight - Driving Beam - Single - 07-18 Jeep JK
KC HiLiTES | Gravity LED 7" Headlight Jeep JK 07–18 High/Low Beam DRL
The KC HiLiTES Gravity LED 7" Headlight is a full replacement LED headlight designed for 2007–2018 Jeep Wrangler JK models. It features Gravity® Reflective Diode (GRD) technology that directs LED output into precision reflector optics for controlled beam performance. The unit provides low beam, high beam, and daytime running light (DRL) functionality in a sealed die-cast aluminum housing with a hard-coated polycarbonate lens. It is designed as a plug-and-play upgrade for compatible Jeep JK factory headlight systems.
KEY FEATURES
- 40W Gravity® LED 7" headlight system.
- Hard-coated polycarbonate lens for durability and impact resistance.
- Plug-and-play installation for 2007–2018 Jeep Wrangler JK.
- Precision die-cast aluminum housing for structural strength and heat control.
- KC engineered polished reflector optics for controlled beam output.
- DOT compliant low beam, high beam, and DRL functionality.
- Transport Canada (TC) compliant for 2007–2018 Jeep JK with DRL equipped and enabled systems.
- Designed to improve visibility and beam control over factory halogen headlights.
LIGHT PERFORMANCE (PER LIGHT)
- Raw lumens: 1,260 lm (Low beam), 3,666 lm (High beam), 275 lm (DRL)
- Compliance: SAE J851 & ECE-R112
- Lux @ 10 meters: 415 lx (Low), 775 lx (High)
- Candela: 41,500 cd (Low), 77,500 cd (High)
- Beam distance: 407 m (Low), 557 m (High)
Specifications
- Wattage: 18W (Low), 22W (High)
- LED type: CREE XHP35 HI and Nichia
- Color temperature: 5000K
- Current draw: 1.88A
- Operating voltage: 9V–18V
- IP rating: IP68
- Dimensions: 6.96 in (W) x 3.72 in (D)
PARTS INCLUDED
- Plug-and-play H13 connector for Jeep JK
TECHNOLOGY & DESIGN
- Gravity® Reflective Diode (GRD) system for optimized light projection
- Precision reflector optics for controlled beam shaping
- Integrated low, high, and DRL functionality in a single housing
- Sealed construction for resistance to water, dust, and harsh environments
- Designed for improved road visibility and beam clarity versus factory headlights
