KC HiLiTES | 7" Gravity® LED Pro DOT Headlight - Driving Beam - Single - Universal / 07-18 Jeep JK
KC HiLiTES | Gravity LED Pro 7" Headlight Jeep JK 07–18 High/Low Beam DRL

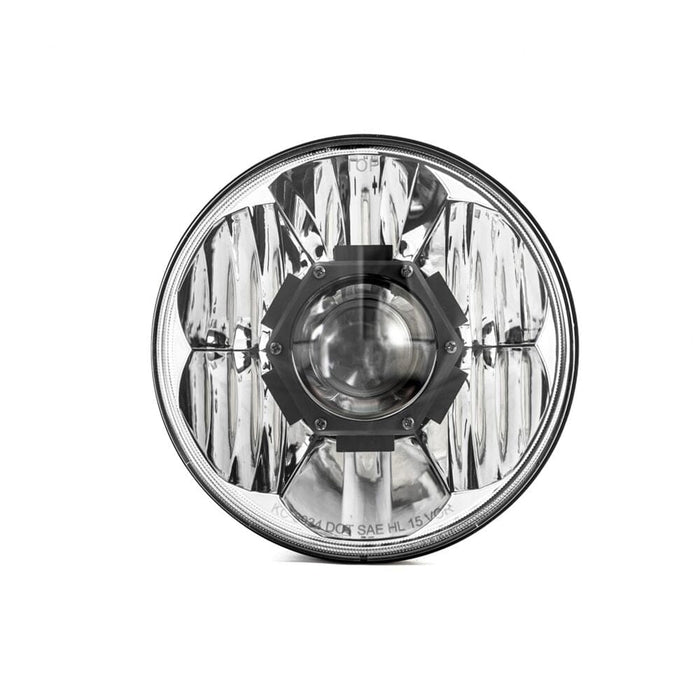

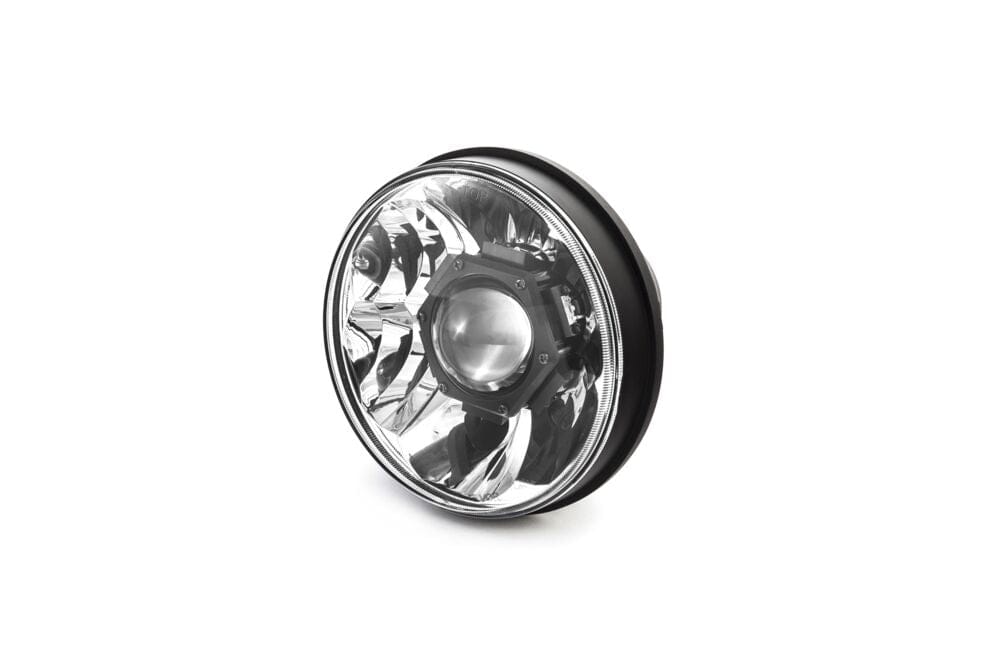

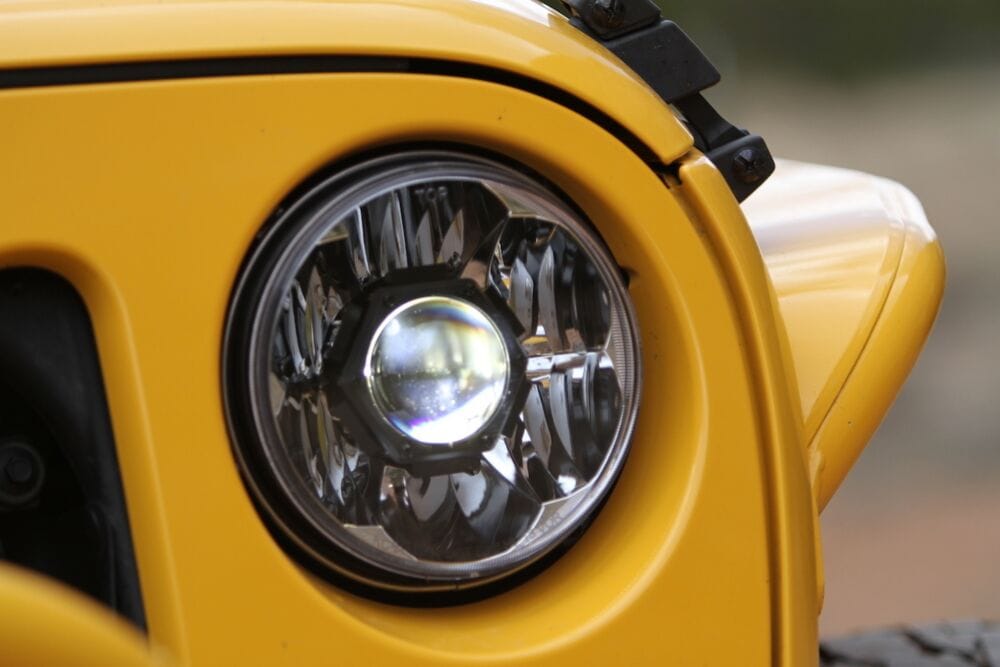

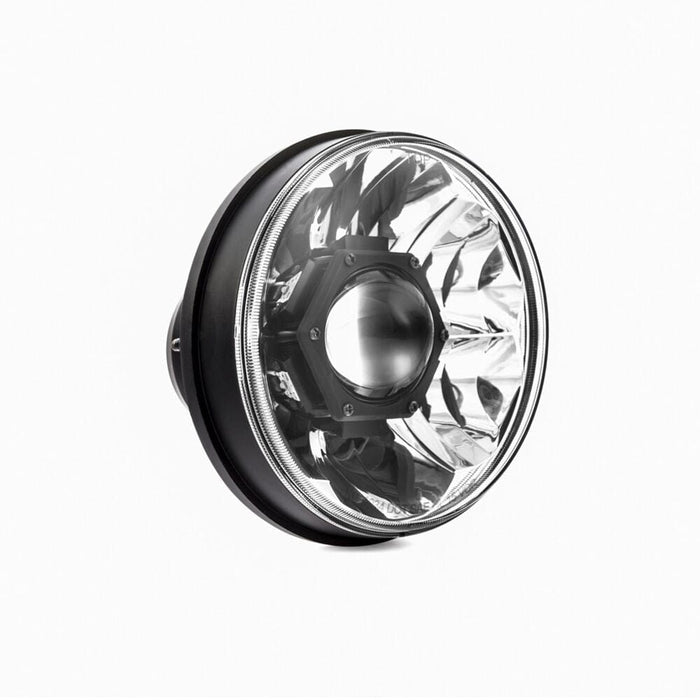

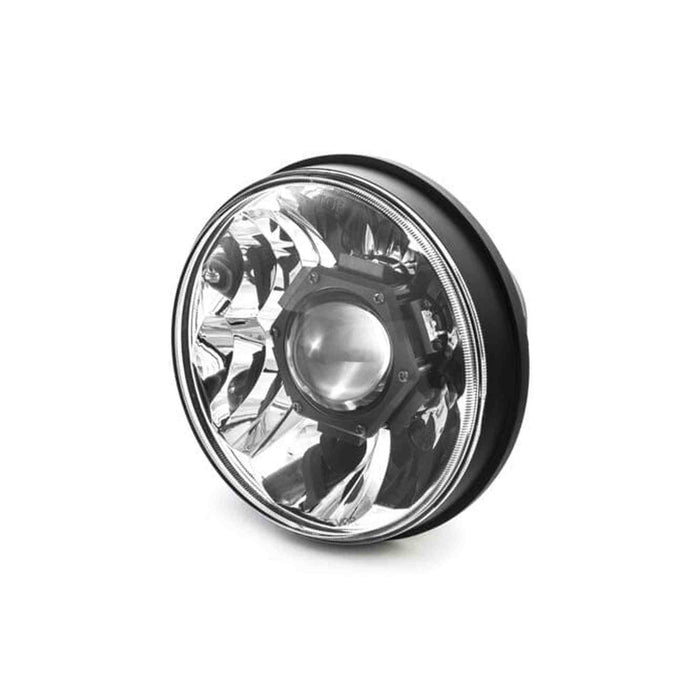

The KC HiLiTES Gravity LED Pro 7" Headlight is a projector-style LED headlight designed for 2007–2018 Jeep Wrangler JK models with factory halogen headlights. It uses patented Gravity® Projector Optic (GPO) technology to produce controlled high and low beam patterns with integrated daytime running light (DRL) functionality. The housing is built from die-cast aluminum with a hard-coated polycarbonate lens for durability in varying driving and environmental conditions. It is designed as a plug-and-play upgrade for compatible JK applications.
KEY FEATURES
- 40W patented Gravity Projector Optics (GPO) for controlled beam output.
- DOT-compliant high and low beam functionality with DRL support.
- Transport Canada (TC) compliant for 2007–2018 Jeep JK with DRL enabled models.
- Hard-coated polycarbonate lens for impact and scratch resistance.

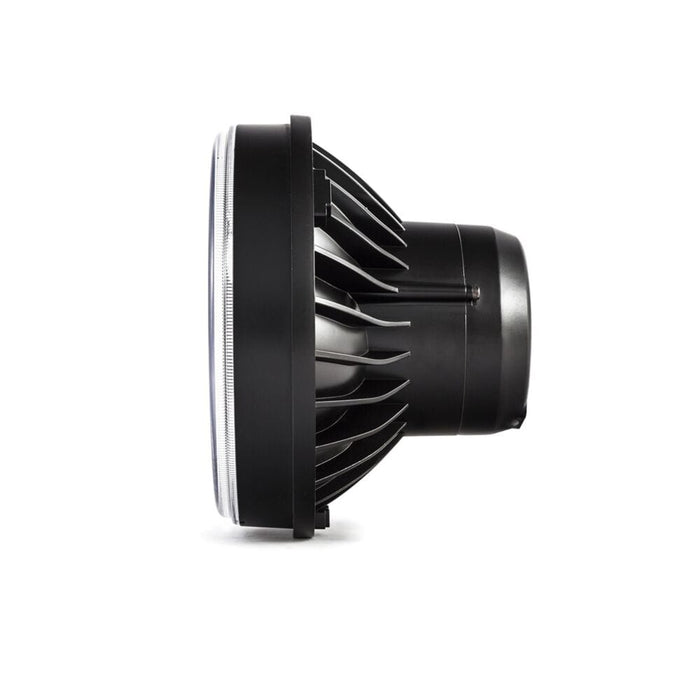

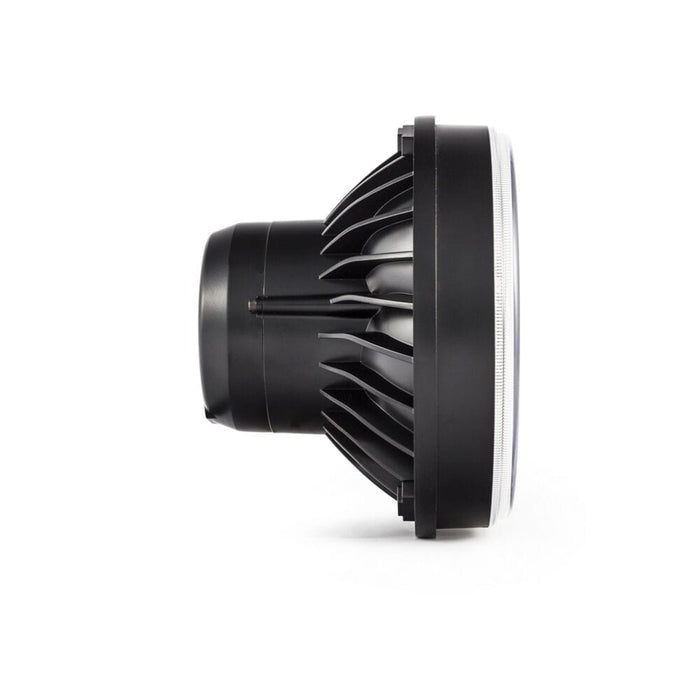

- Precision die-cast aluminum housing for structural durability and heat management.

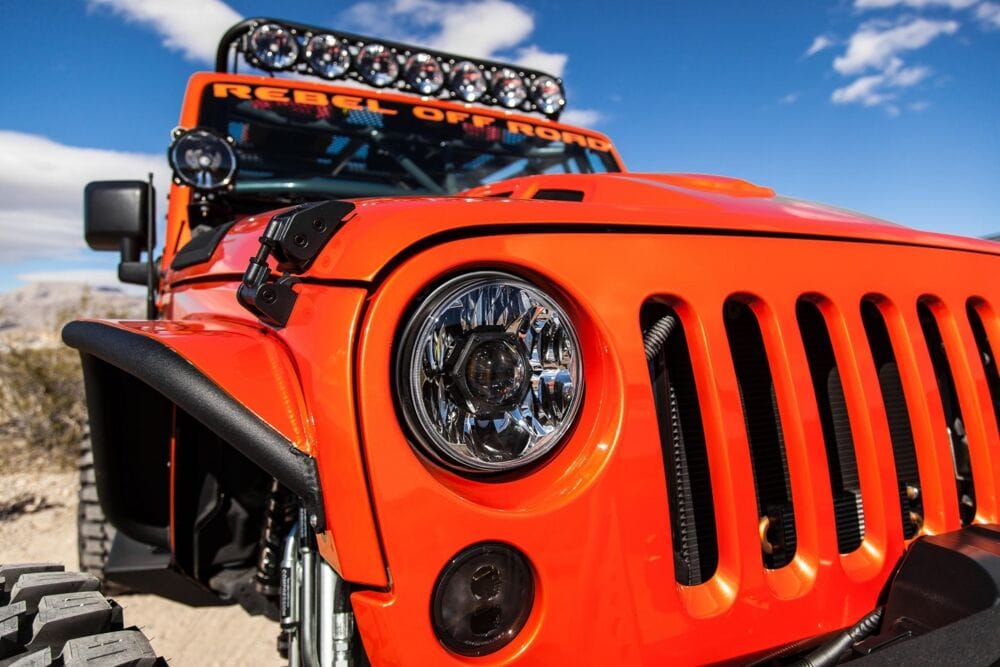

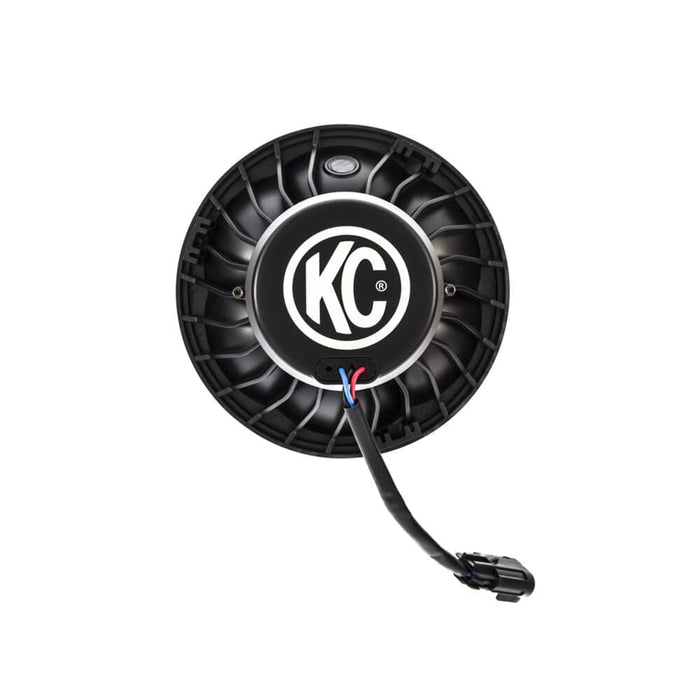

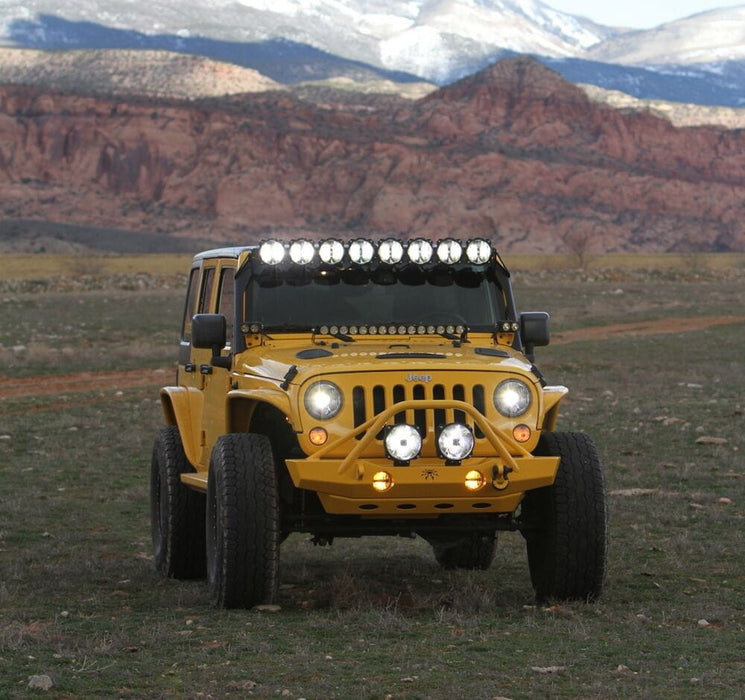

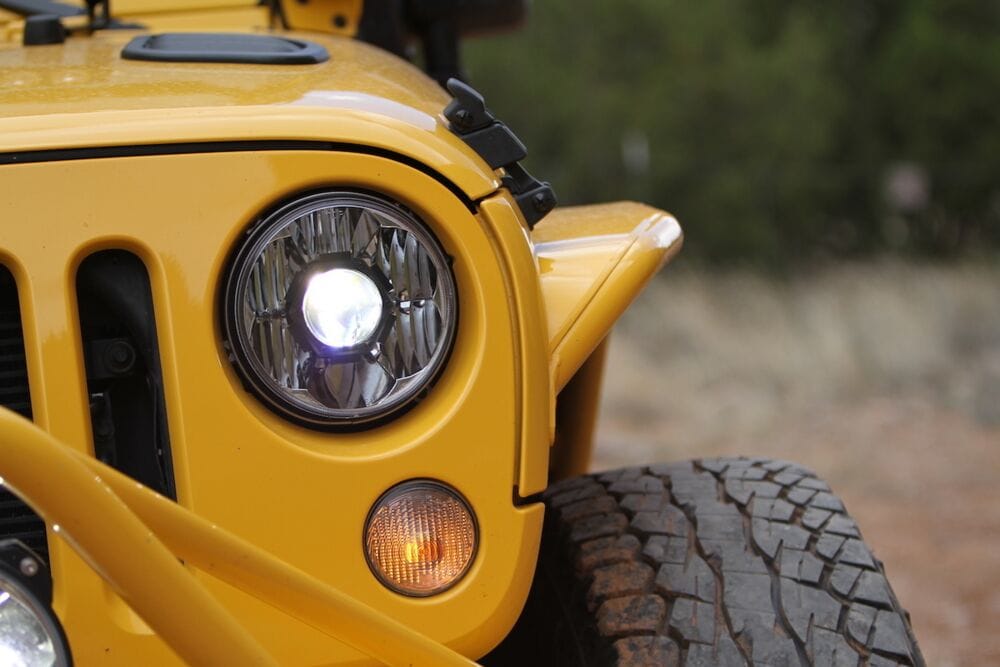

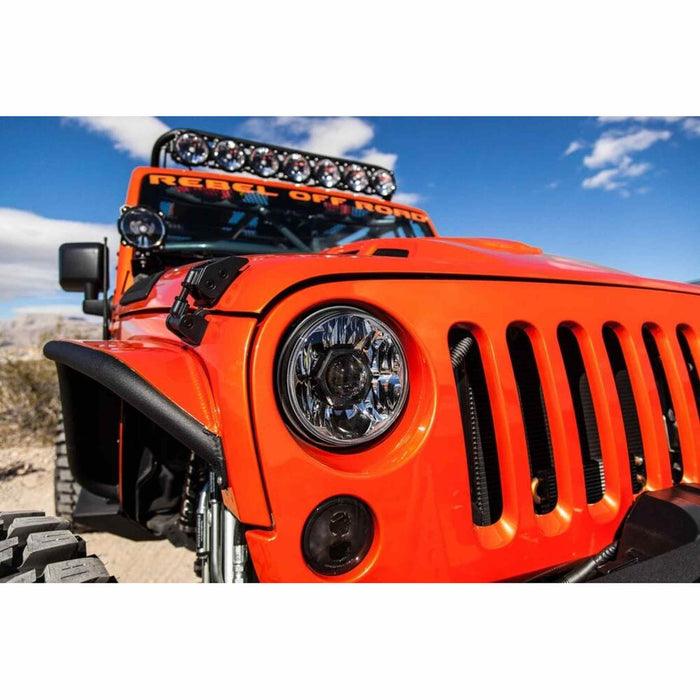

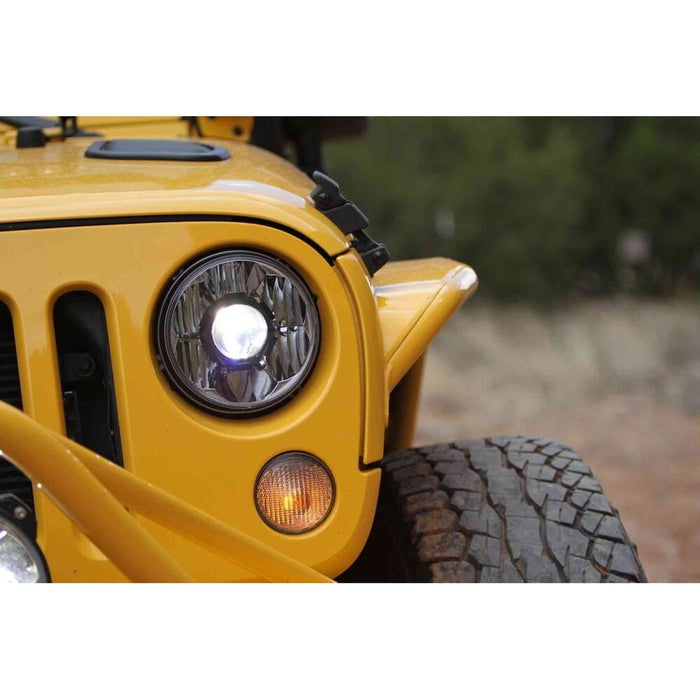

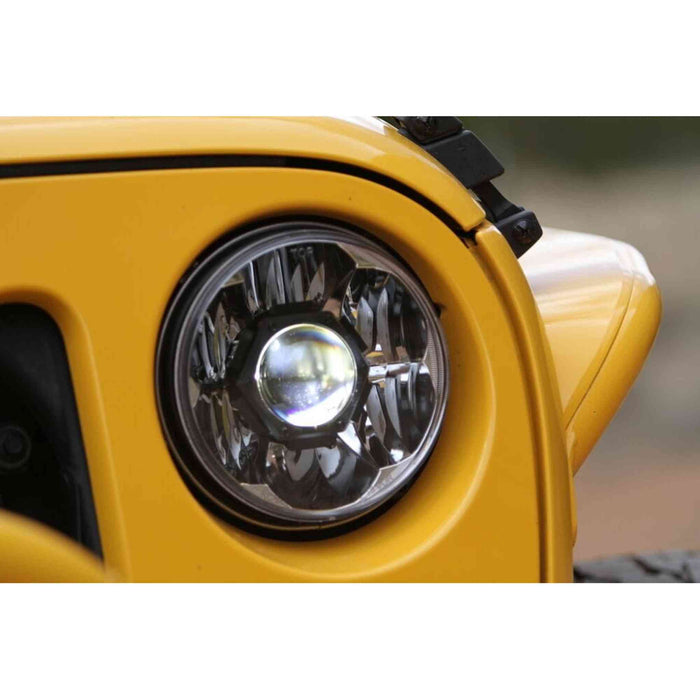

- Plug-and-play installation for 2007–2018 Jeep Wrangler JK/JKU with factory halogen headlights.

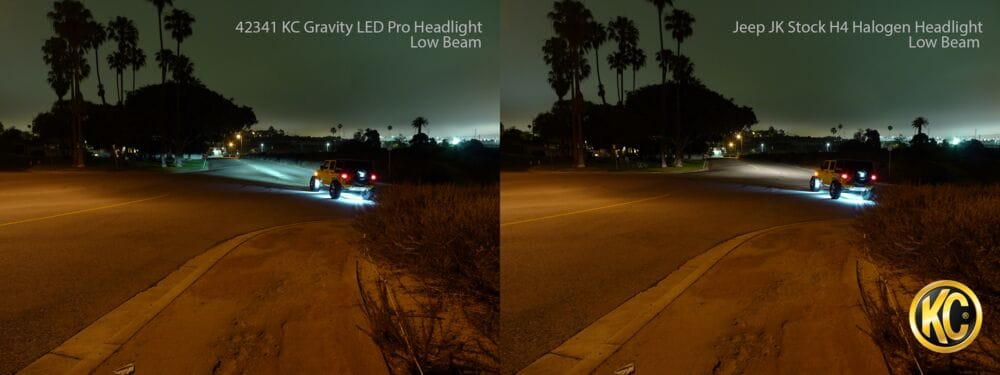

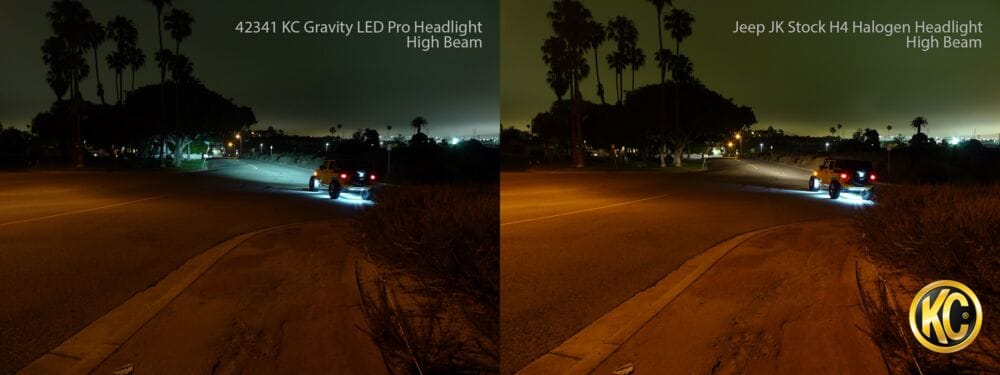

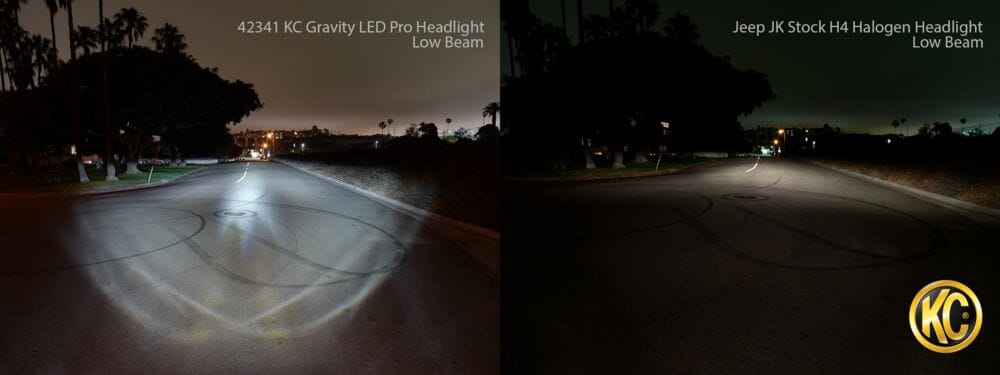

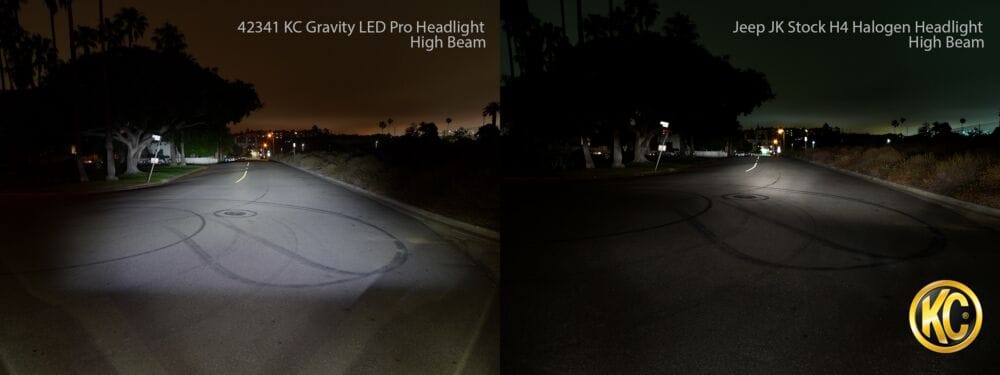

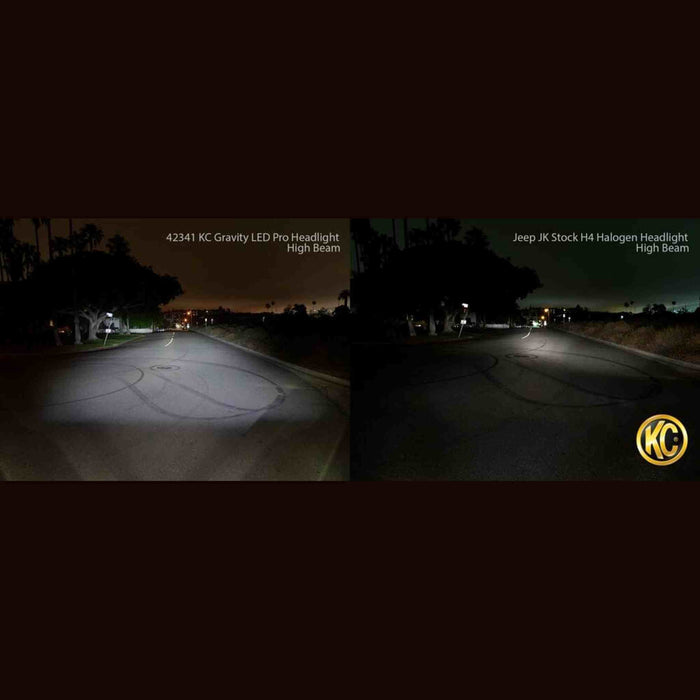

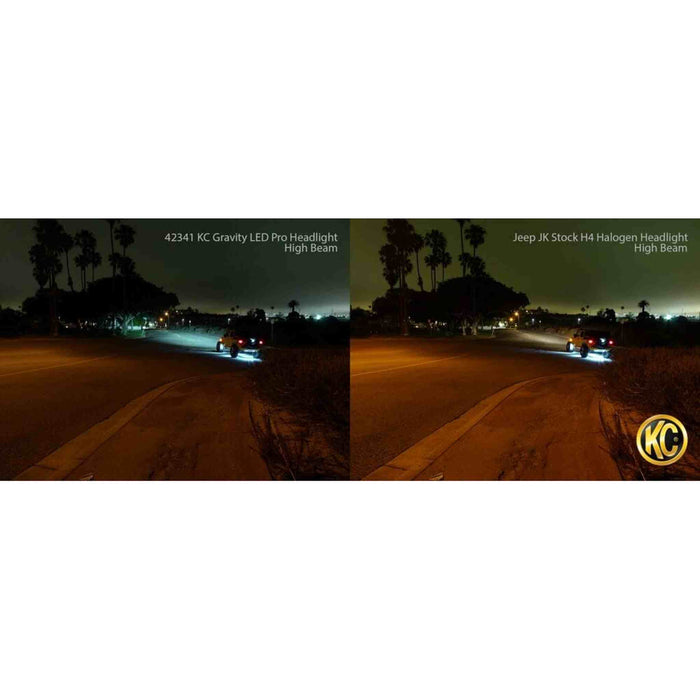

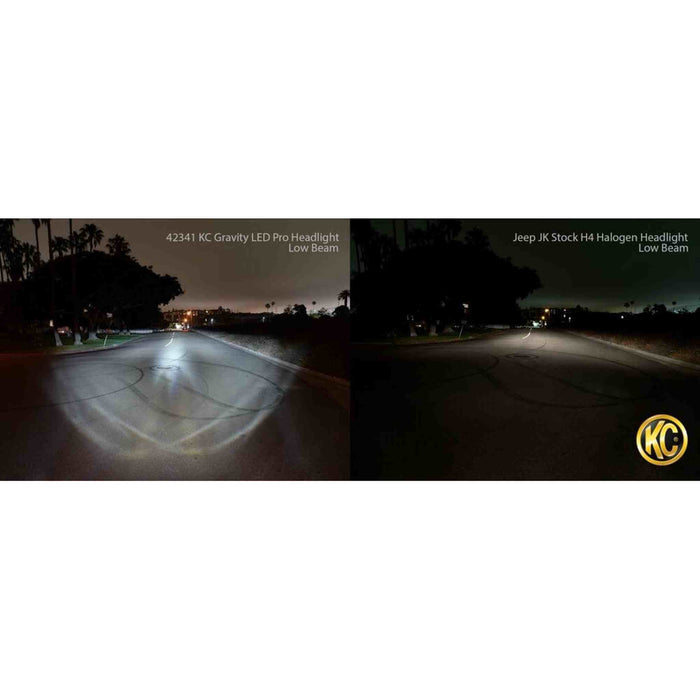

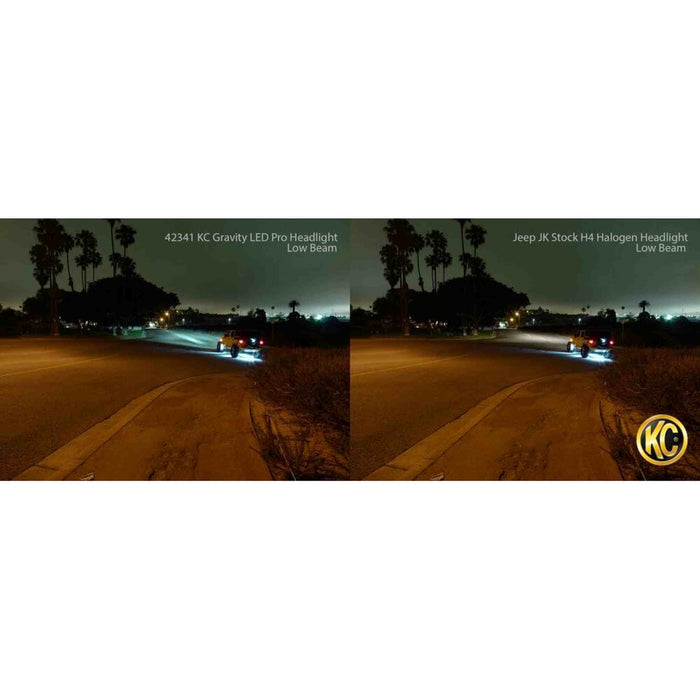

- Designed to improve beam clarity and road visibility over stock halogen systems.
- Integrated GRD LED core and projector optics system for controlled light distribution.
NOTE
- Does not fit 2017–2018 Jeep Wrangler JK Rubicon/Sahara editions or vehicles equipped with factory LED headlights.
- Lens depth may not be compatible with certain aftermarket grilles, including “Angry Eye” designs.
LIGHT PERFORMANCE
- Raw lumens: 2,967 lm (Low beam), 2,575 lm (High beam), 386 lm (DRL)
- Lux @ 10 meters: 400 lx (Low), 700 lx (High)
- Candela: 40,000 cd (Low), 70,000 cd (High)
- Beam distance: 400 m (Low), 529 m (High)
Specifications
- Wattage: 20W (Low), 30W (High), 1.35W (DRL)
- LED type: CREE XP HI / XPG2
- Color temperature: 5000K
- Current draw: 1.88A
- Operating voltage: 9V–18V
- IP rating: IP68
- Dimensions: 6.96 in (W) x 5.098 in (D)
TECHNOLOGY & DESIGN
- Patented Gravity® Projector Optic (GPO) system for beam control
- GRD LED core designed for efficient lumen utilization
- Optimized reflector and projector combination for improved light distribution
- Sealed housing designed for harsh climate and off-road conditions
- Built for enhanced visibility compared to factory halogen systems
