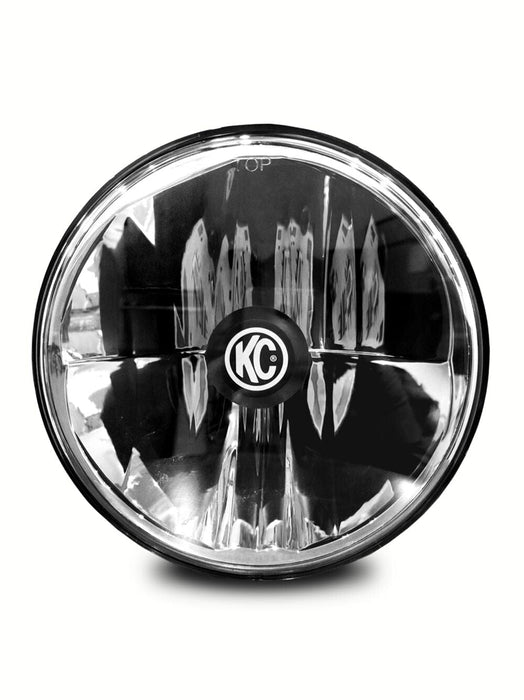

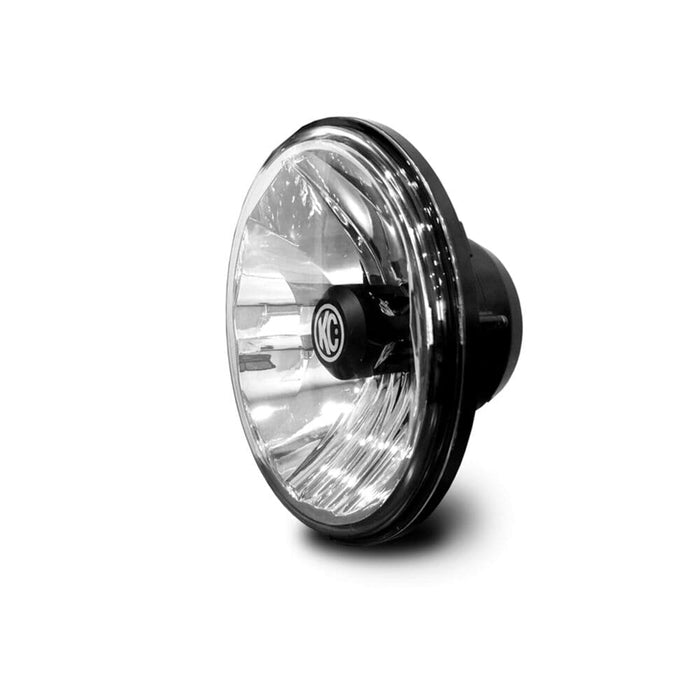

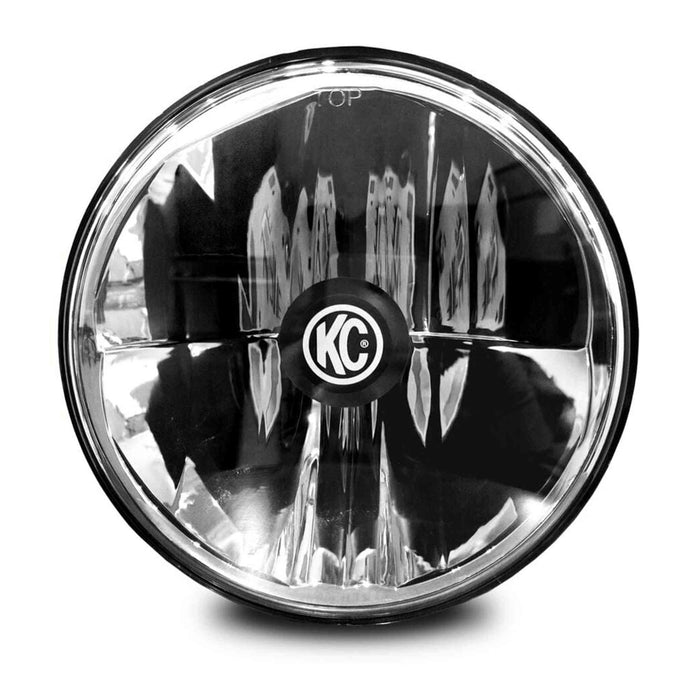

KC HiLiTES | 7" Gravity® LED DOT Headlight - Driving Beam - Single - Universal / 97-06 Jeep TJ
KC HiLiTES | Gravity LED 7" Headlight Jeep TJ 97–06 High/Low Beam DRL
The KC HiLiTES Gravity LED 7" Headlight is a direct replacement LED headlight designed for 1997–2006 Jeep Wrangler TJ models. It uses Gravity® Reflective Diode (GRD) technology with polished reflector optics to deliver controlled low beam, high beam, and daytime running light (DRL) functions. The unit is housed in a die-cast aluminum body with a hard-coated polycarbonate lens for durability in on-road and off-road environments. It is designed for plug-and-play installation on compatible Jeep TJ applications and other vehicles with 7-inch round headlight openings using H4 connections.
KEY FEATURES
- 40W Gravity® LED 7" headlight system.
- Hard-coated polycarbonate lens for impact and scratch resistance.
- Full plug-and-play installation for 1997–2006 Jeep Wrangler TJ.
- Precision die-cast aluminum housing for strength and heat management.
- KC engineered polished reflector optics for controlled beam output.
- DOT compliant low beam, high beam, and daytime running light functionality.
- Transport Canada (TC) compliant for 1997–2006 Jeep TJ with DRL enabled systems.
- Compatible with select 7" round headlight applications using H4 connectors.
LIGHT PERFORMANCE (PER LIGHT)
- Raw lumens: 1,260 lm (Low beam), 3,666 lm (High beam), 275 lm (DRL)
- Compliance: SAE J851 & ECE-R112
- Lux @ 10 meters: 415 lx (Low), 775 lx (High)
- Candela: 41,500 cd (Low), 77,500 cd (High)
- Beam distance: 407 m (Low), 557 m (High)
Specifications
- Wattage: 18W (Low), 22W (High)
- LED type: CREE XHP35 HI and Nichia
- Color temperature: 5000K
- Current draw: 1.88A
- Operating voltage: 9V–18V
- IP rating: IP68
- Dimensions: 6.96 in (W) x 3.72 in (D)
PARTS INCLUDED
- Plug-and-play connector (Jeep TJ / Universal H4)
TECHNOLOGY & DESIGN
- Gravity® Reflective Diode (GRD) system for optimized forward light projection
- Precision reflector optics for controlled beam shaping and clarity
- Integrated low beam, high beam, and DRL functionality in a sealed housing
- Die-cast aluminum body designed for thermal stability and durability
- Hard-coated polycarbonate lens engineered for harsh environmental conditions
