KC HiLiTES | 7" Gravity® LED Pro DOT Headlight - Driving Beam - Pair - Universal / 07-18 Jeep JK
KC HiLiTES | Gravity LED Pro 7" Headlights Jeep JK 07–18 High/Low Beam DRL Pair

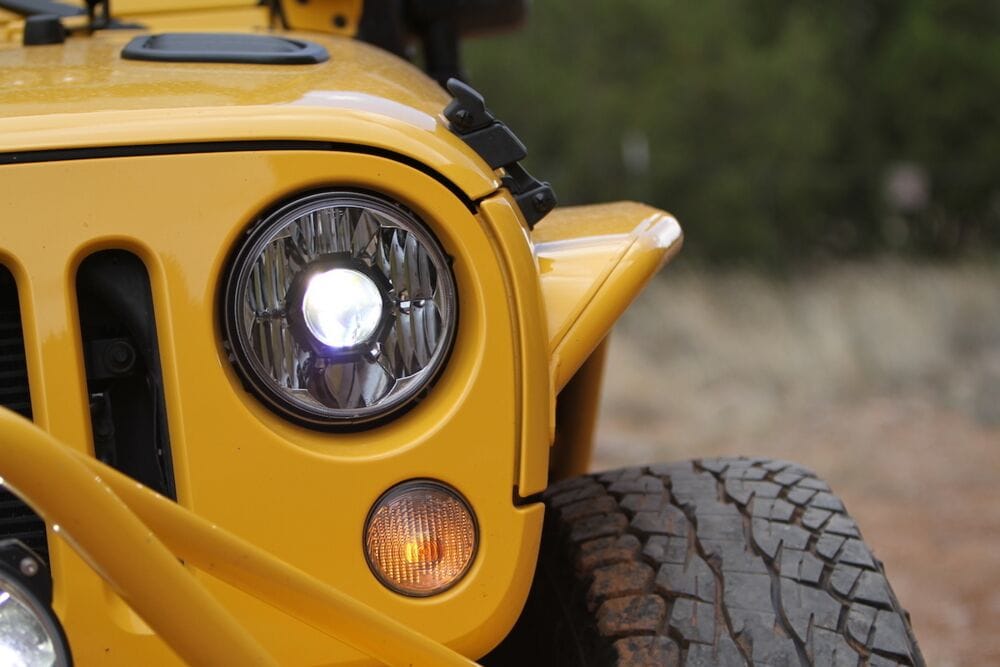

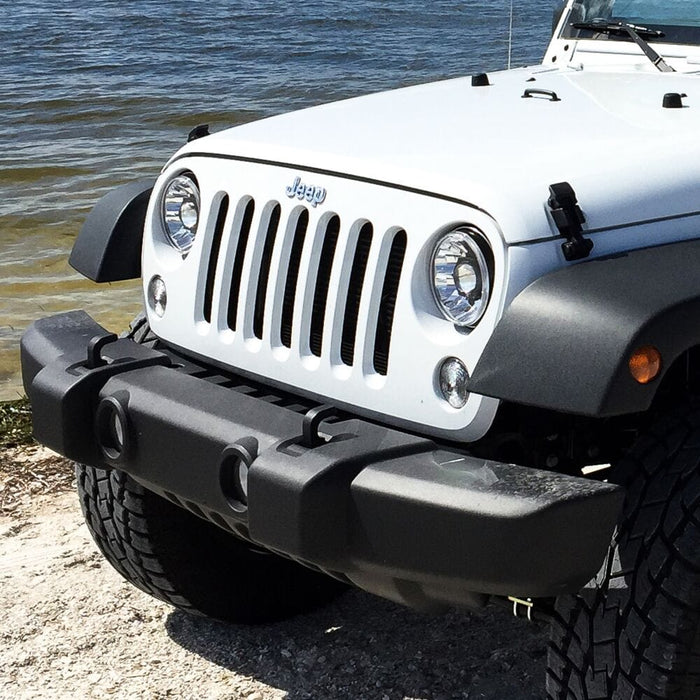

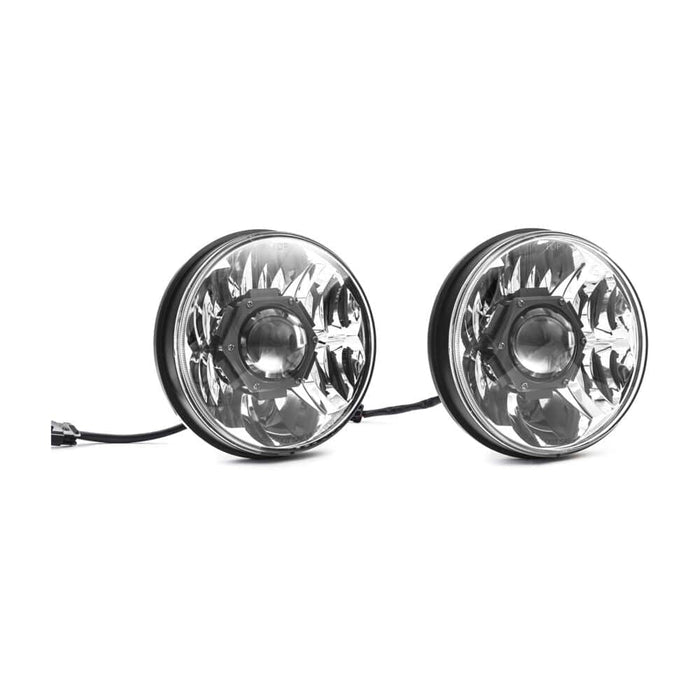

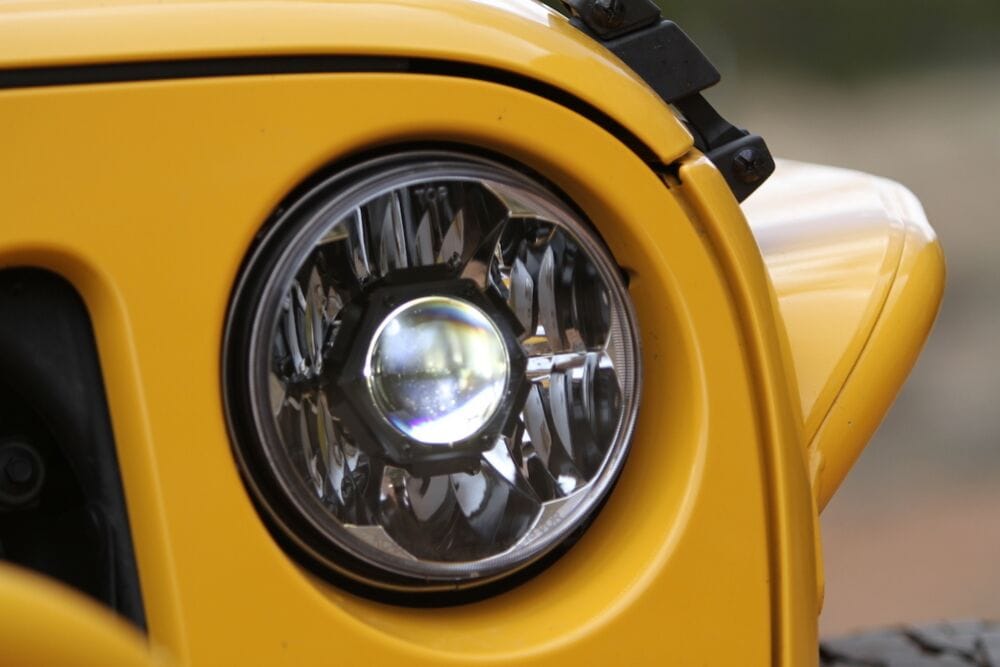

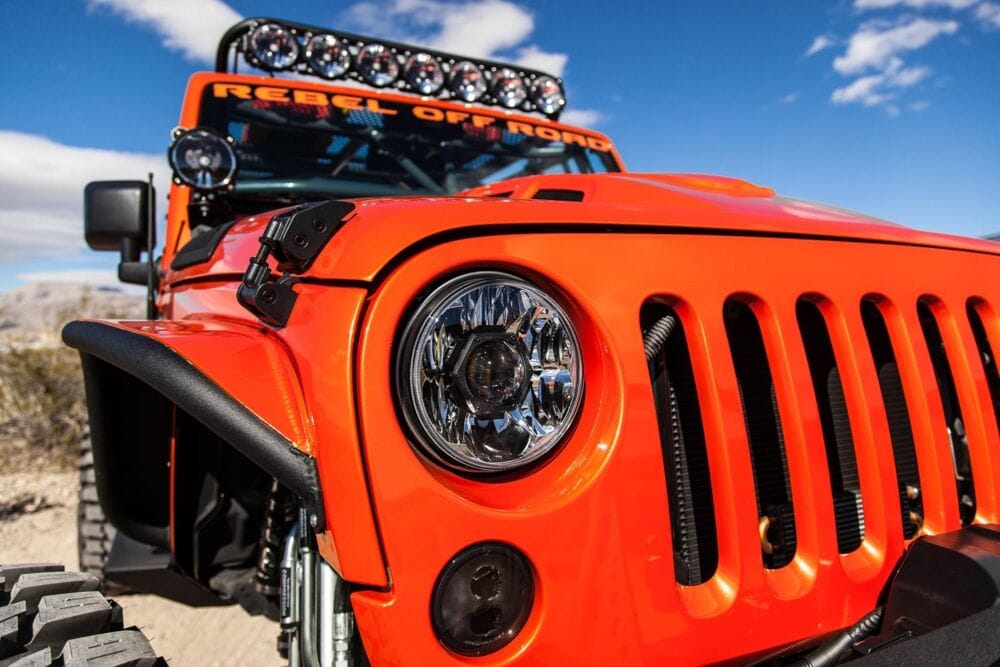

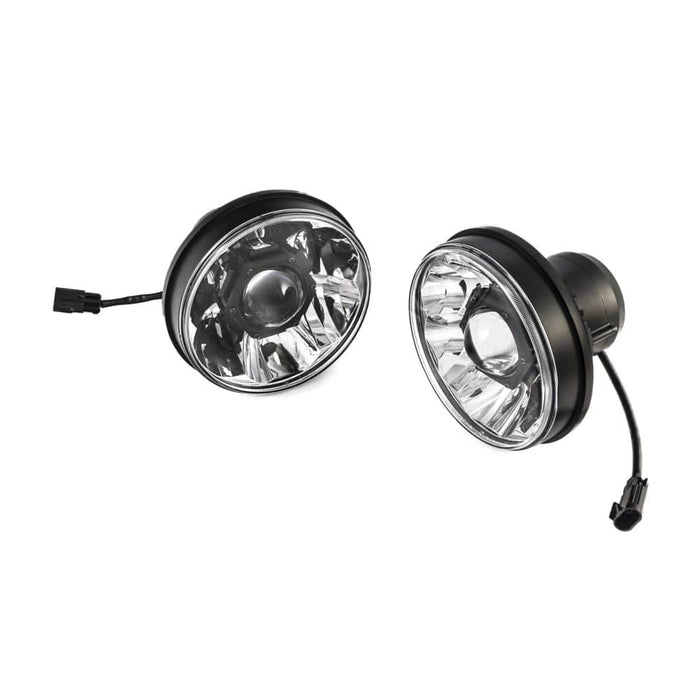

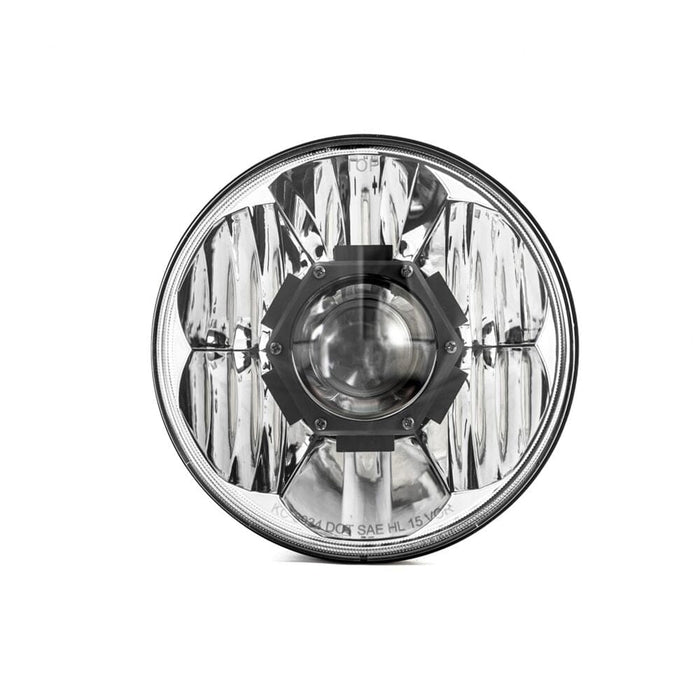

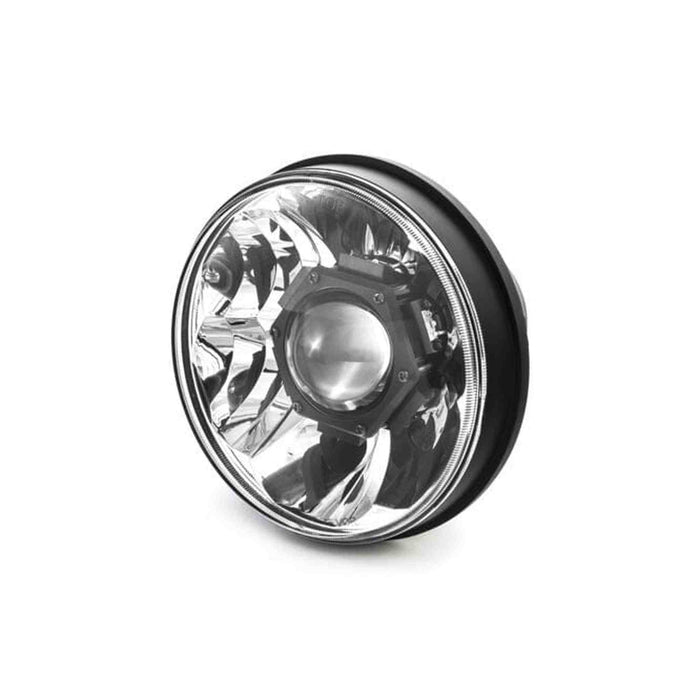

The KC HiLiTES Gravity LED Pro 7" Headlights are projector-style LED replacement headlights designed for 2007–2018 Jeep Wrangler JK models. Each unit uses patented Gravity® Projector Optics (GPO) combined with a GRD LED core to deliver controlled beam output with low beam, high beam, and integrated daytime running light (DRL) functionality. The housing is constructed from precision die-cast aluminum with a hard-coated polycarbonate lens for durability in demanding driving conditions. Designed for plug-and-play installation on compatible Jeep JK applications.
KEY FEATURES
- 40W Gravity® LED Pro 7" headlight system.
- Patented Gravity® Projector Optics (GPO) for controlled beam shaping.
- KC engineered polished reflector optics for improved light distribution.
- Hard-coated polycarbonate lens for impact and UV resistance.
- Precision die-cast aluminum housing for thermal management and durability.
- DOT compliant low beam, high beam, and integrated DRL functionality.
- Transport Canada (TC) compliant for 2007–2018 Jeep JK with DRL enabled systems.

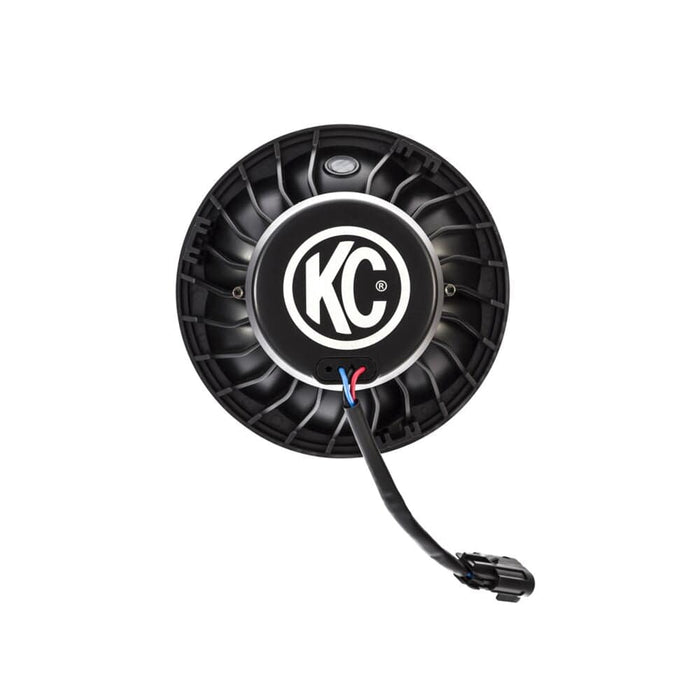

- Plug-and-play installation for Jeep Wrangler JK applications.
NOTE
- Does not fit Jeep Wrangler JK Rubicon/Sahara editions or vehicles equipped with factory LED headlights.
- Lens depth may not fit certain aftermarket grilles, including “Angry Eye” styles.
LIGHT PERFORMANCE (PER LIGHT)
- Raw lumens: 2,967 lm (Low beam), 2,575 lm (High beam), 386 lm (DRL)
- Lux @ 10 meters: 400 lx (Low), 700 lx (High)
- Candela: 40,000 cd (Low), 70,000 cd (High)
- Beam distance: 400 m (Low), 529 m (High)
Specifications
- Wattage: 20W (Low), 30W (High), 1.35W (DRL)
- LED type: CREE XPL / XPG2
- Color temperature: 5000K
- Current draw: 1.88A
- Operating voltage: 9V–18V
- IP rating: IP68
- Dimensions: 6.96 in (W) x 5.098 in (D)
TECHNOLOGY & DESIGN

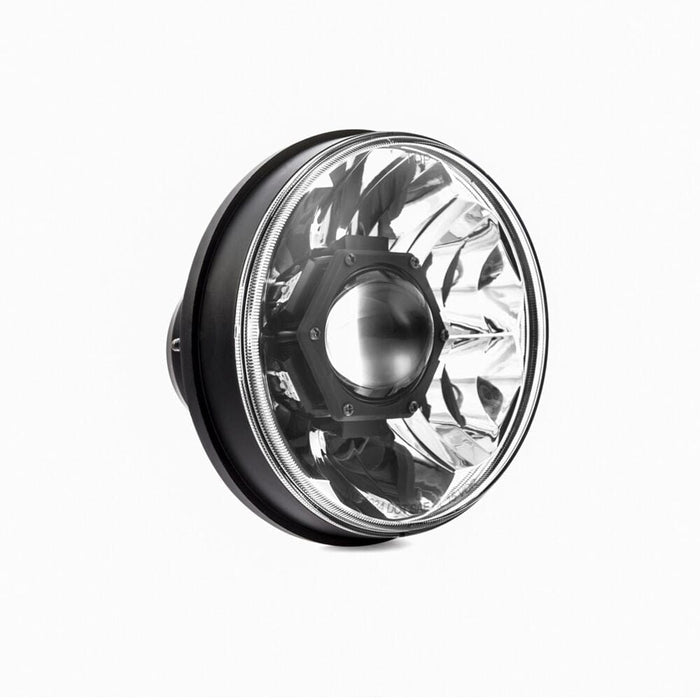

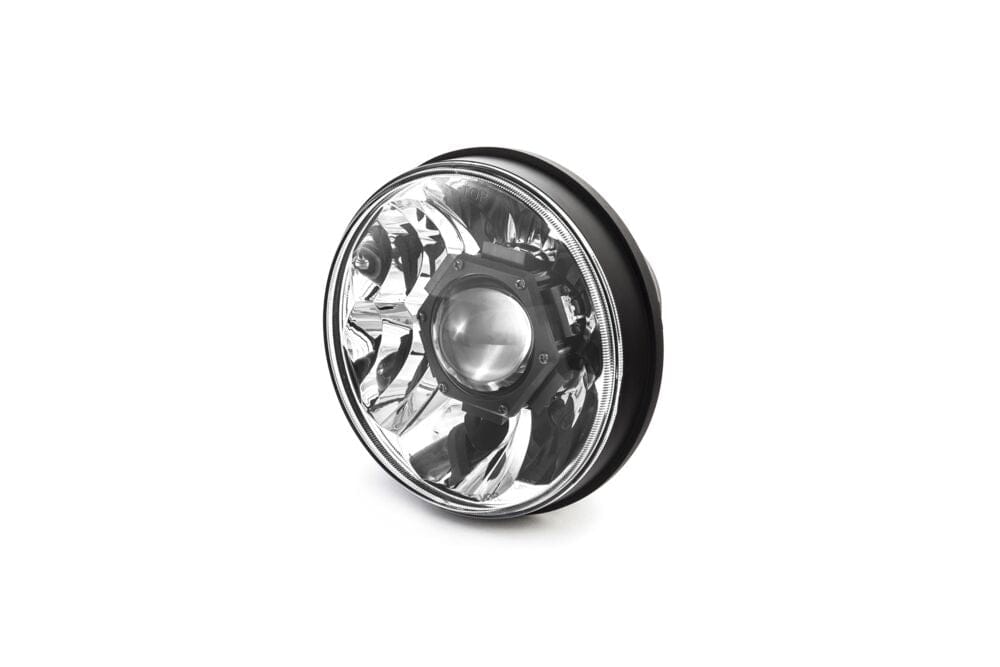

- Gravity® Projector Optic (GPO) system for focused beam control
- GRD LED core designed to maximize usable light output
- Integrated low beam, high beam, and DRL functionality in one housing

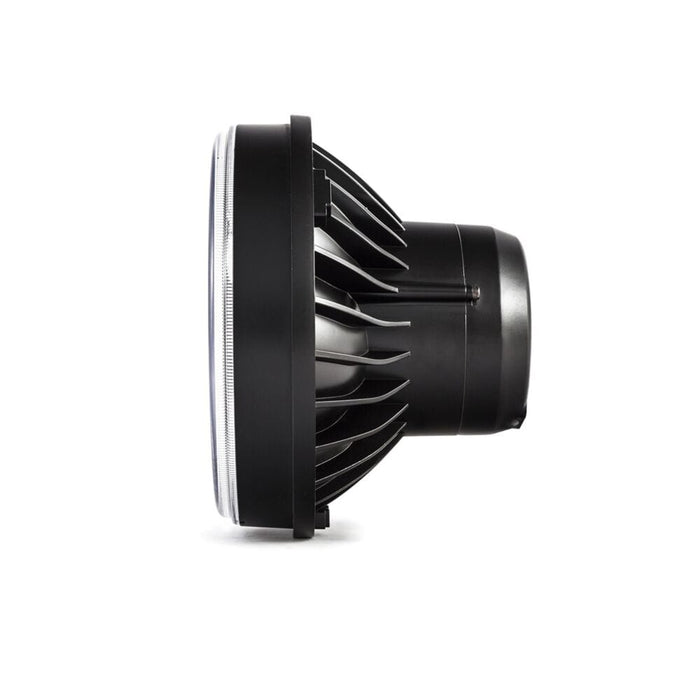

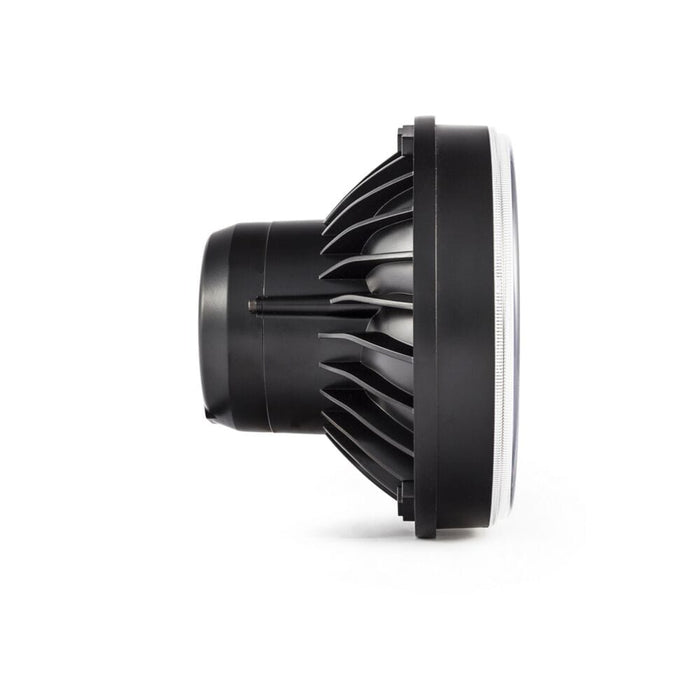

- Die-cast aluminum construction for heat dissipation and durability
- Engineered for improved beam clarity over factory headlight systems
