KC HiLiTES | FLEX ERA® 1 - Standard Backup Light Kit
KC HiLiTES | FLEX ERA® 1 LED Backup Light Kit
The KC HiLiTES FLEX ERA® 1 Backup Light Kit provides a complete rear-lighting solution for vehicles requiring enhanced reverse, work, or dust lighting. Featuring two compact yet powerful FLEX ERA® 1 LED Light Pods pre-configured with spread beam optics, this kit includes everything needed for installation, including a dedicated extended-length backup light wiring harness. Designed for rear bumpers with light cutouts, the FLEX ERA® 1 delivers exceptional performance in a compact package.
KEY FEATURES
- Complete backup and reverse lighting solution

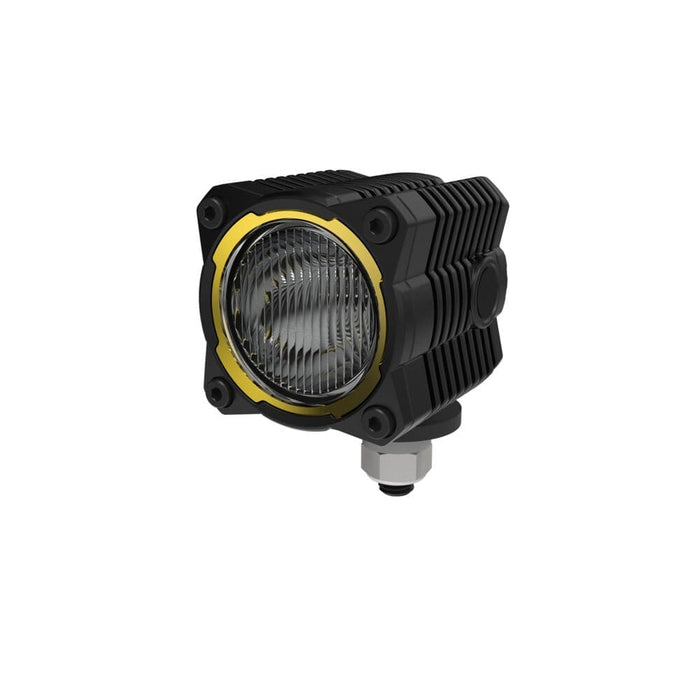

- Includes (2) FLEX ERA® 1 LED Light Pods in Spread Beam configuration
- Dual Power Modes:

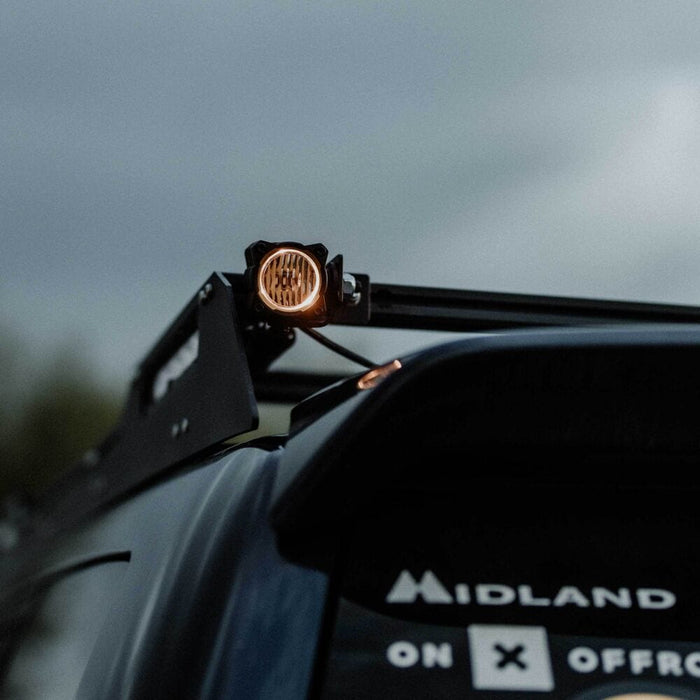

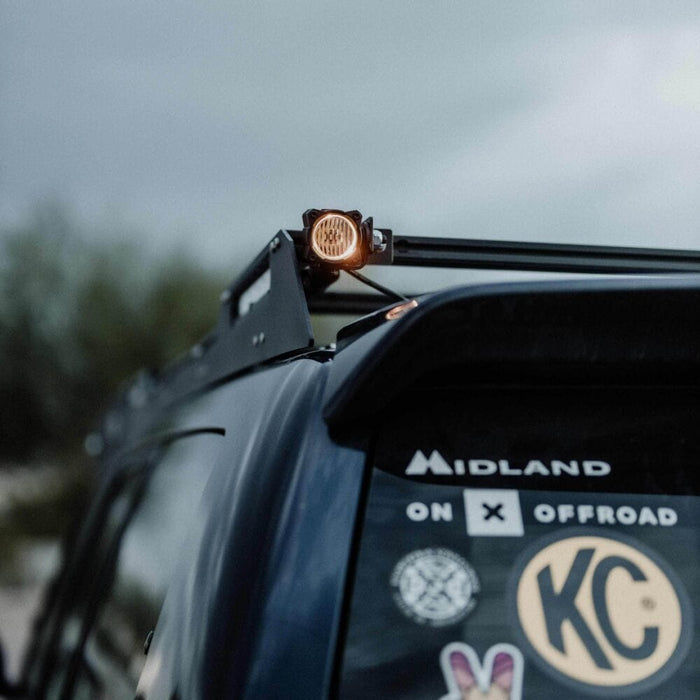

- Amber LED Backlight

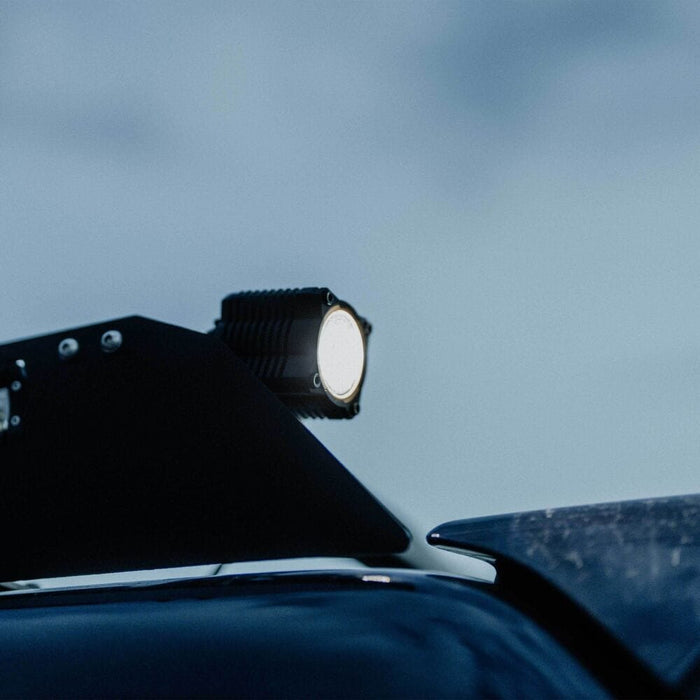

- Full-Power Output (Off-Road Use Only)
- Compact design ideal for bumper-mounted applications

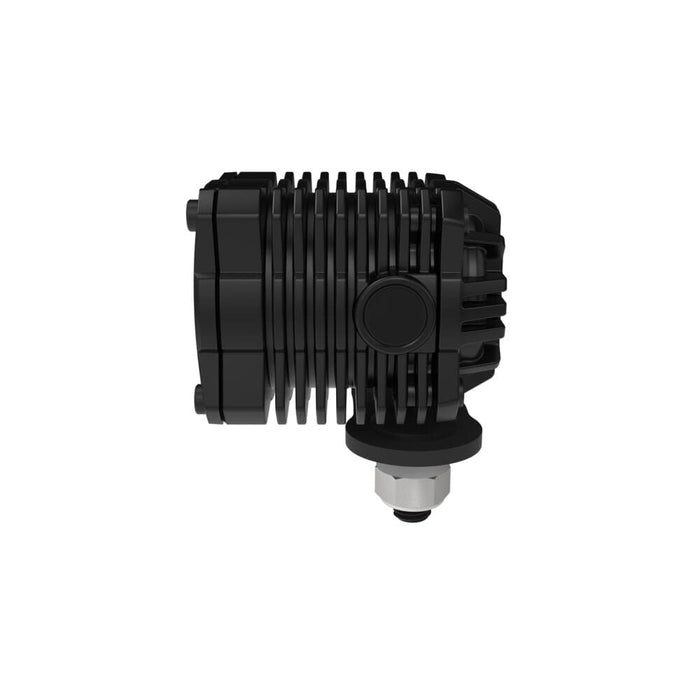

- Durable black powder-coated construction
- Extended-length wiring harness designed for rear vehicle installations
- Customizable bezel colors available separately
- IP68-rated dustproof and waterproof protection
IDEAL FOR

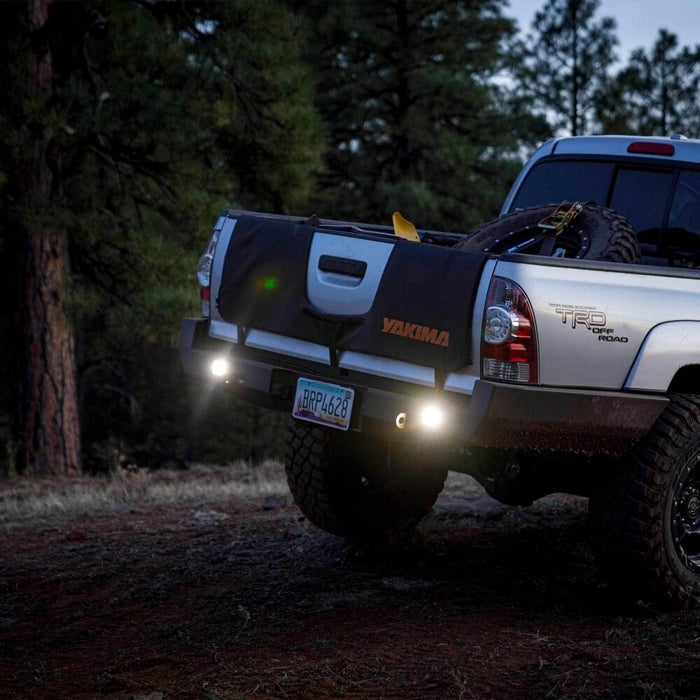

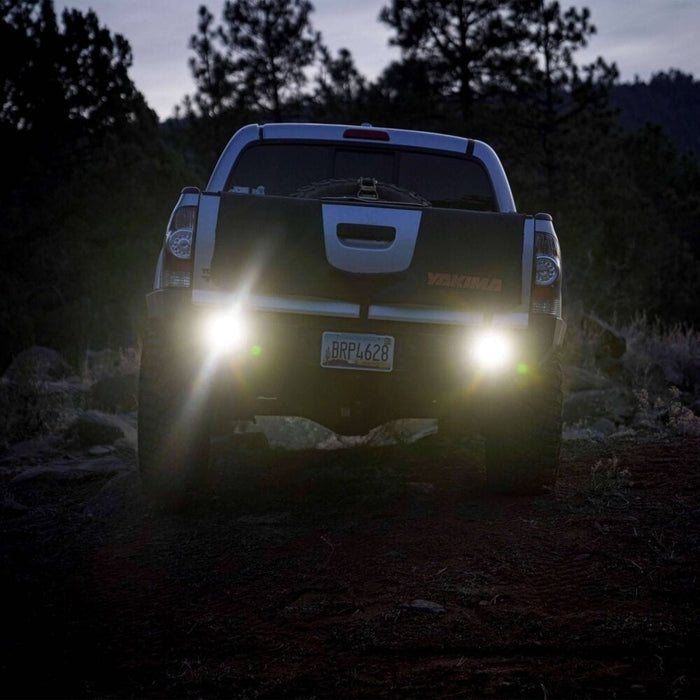

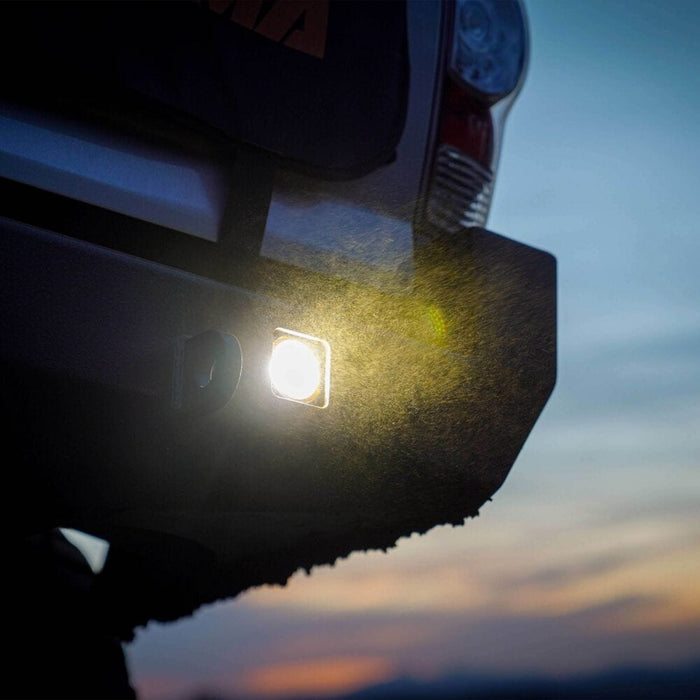

- Backup and reverse lighting
- Rear-facing work lights
- Dust lights when paired with FLEX ERA® 1 Performance Yellow Lenses
- Camp lighting and utility applications
- Rear bumper light cutout installations
Light Performance (Per Light)
- Lumens: 2,430 lm
- Lux @ 10 Meters: 162 lx
- Candela: 16,200 cd
- Beam Distance: 127.3 m
Specifications (Per Light)
- Wattage: 5W (Amber Backlight) / 23W (High Power)
- Amp Draw: 0.83A / 3.83A
- Voltage: 9V–36V
- IP Rating: IP68

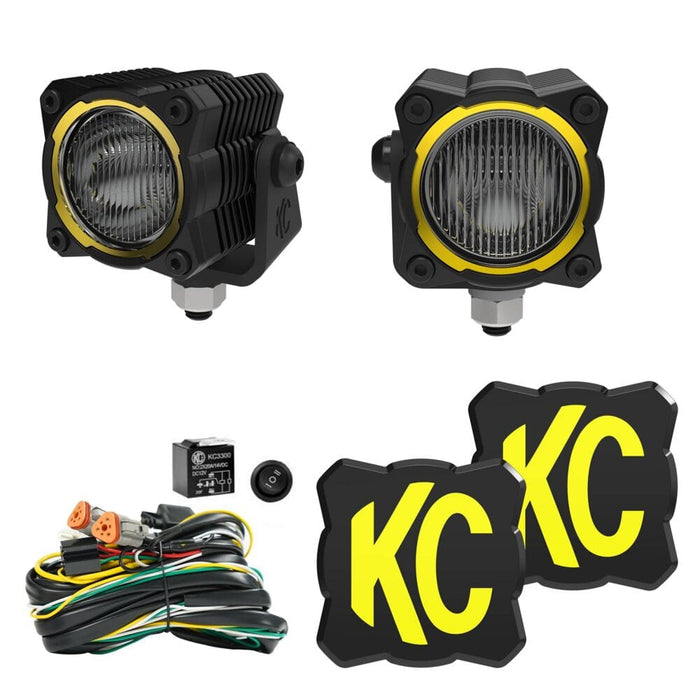

WHAT'S INCLUDED
- (2) FLEX ERA® 1 LED Light Pods in Spread Beam Pattern
- (1) Complete FLEX ERA® Backup/Reverse Light Wiring Harness
Fitment & Installation Notes
- Designed for rear-facing applications

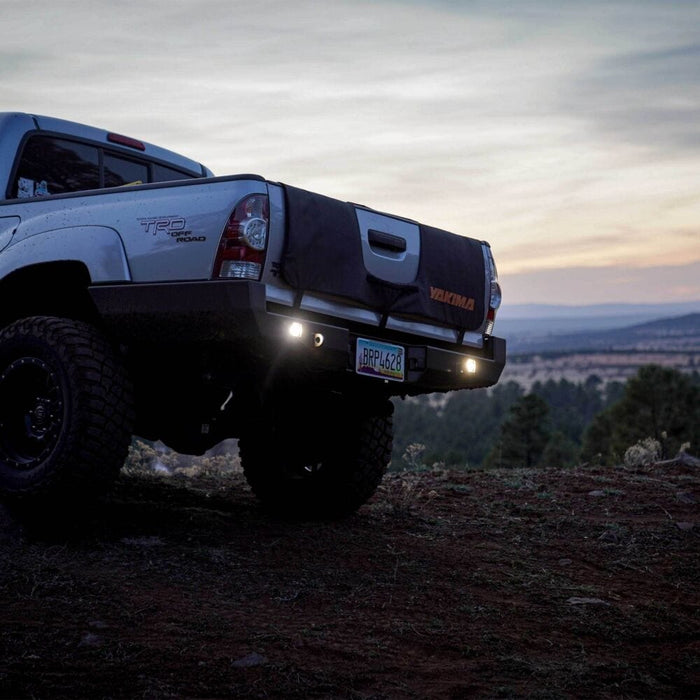

- Ideal for rear bumpers with integrated light cutouts
- Includes an extended-length harness for easier rear vehicle routing
- Universal mounting compatibility for trucks, SUVs, Jeeps, vans, and off-road vehicles
FLEX ERA® 1 Performance
Despite its compact size of less than 2.7 inches, the FLEX ERA® 1 delivers impressive light output and versatility. The spread beam pattern provides broad illumination for backing up, campsite visibility, and work-area lighting.
Customizable Styling
Following KC's FLEX LED® tradition, the FLEX ERA® 1 features interchangeable accent bezels. Gold bezels come standard, while optional red, blue, and black bezels are available separately to match your vehicle's style.
The KC HiLiTES FLEX ERA® 1 Backup Light Kit offers a powerful, compact, and easy-to-install solution for improving rear visibility and safety in both on-road and off-road environments.
Specifications
| SKU | 0520 |
|---|---|
| Weight | 5.000000 |
| Wattage Per Light | 5W / 23W |
| Total Wattage | 10W / 46W |
| Amp Draw Per Light | 0.42 a / 1.92 a |
| Total Amp Draw | 0.83 a / 3.83 a |
| Voltage | 9V-36V |
| Lumens Per Light | 2430 lm |
| Total Lumens | 2431 lm |
| Lux Per Light | 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot) |
| Total Lux | 45.1 lx (flood) / 162 lx (spread) / 310 lx (spot) |
| Candela Per Light | 4510 cd (flood) / 16200 cd (spread) / 31000 cd (spot) |
| Total Candela | 4511 cd (flood) / 16200 cd (spread) / 31000 cd (spot) |
| Light Temp | 5000 K |
| Lens Color | Clear |
| LED Color | Amber / White |
| Beam Pattern | Spread What's this? |
| Beam Distance | 67.2 m flood / 127.3 m spread / 176.1 m spot |
| Light Technology | LED |
| Mount Location | Bumper, Overhead, Rear / Back-up, Roof |
| Size of Products | 3" |
| Material | Aluminum Alloy |
| Product Finish | Black |

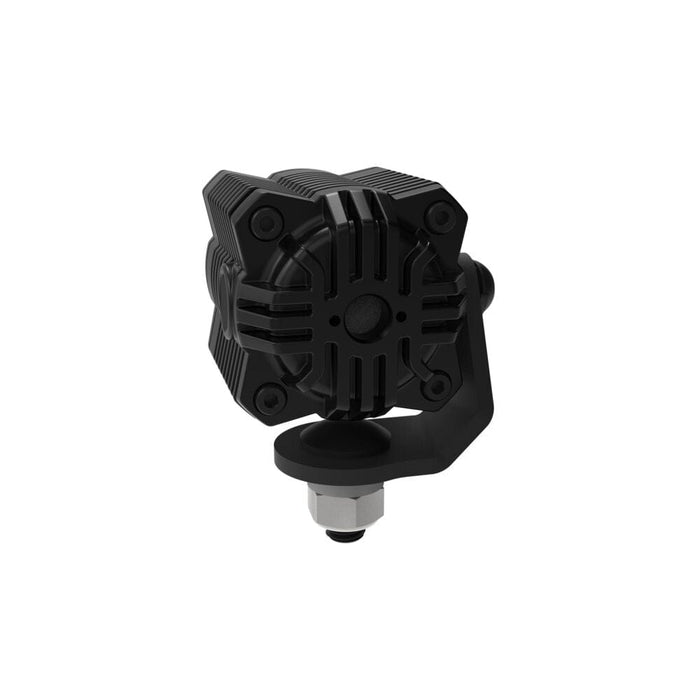

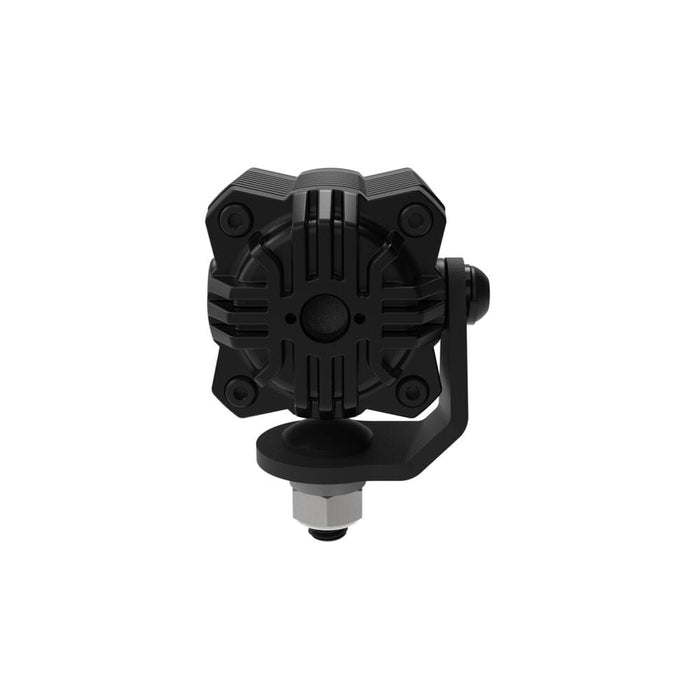

| Included Components | 2 x KC FLEX ERA® 1 LED Lights with Spread Lens, Extended Wiring harness with Weatherproof Connectors, 3-position switch, 2 x Mounting Bracket, 2 x KC Covers and Mounting hardware |
| Color | Black |
| Product Dimensions | W: 2.6 " x H: 2.72 " x D: 2.9 " |
| UPC | 084709005207 |
| IP Rating | IP68 |
