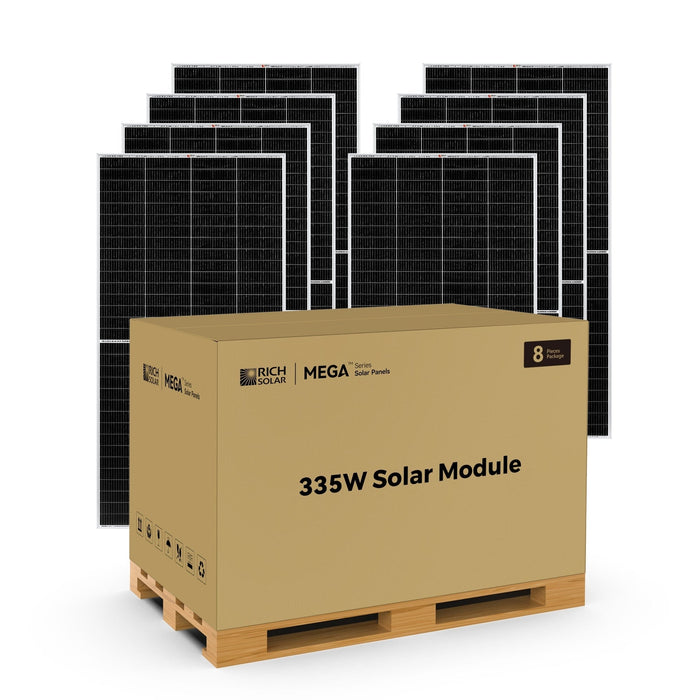

Rich Solar | MEGA 335 | 335 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel | 25-Year Output Warranty | UL Certified
by Rich Solar
SKU RS-M335-8
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$2,299.99
$2,299.99
-
$3,299.99
Current price
$2,299.99
Overview
FEATURES
- Industry Standard - Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
- High Performance - Excellent low-light performance even on early mornings, evenings, and cloudy days.
- Rugged Durability - Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame.
- Simple Installation -Fast and easy installation thanks to 14 pre-drilled holes that are compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
- Warranty - 25-year power output warranty and a 10-year workmanship warranty.
Specifications
SOLAR PANEL INFO- Maximum Power(Pmax): 335W
- Maximum Power Voltage(Vmp): 38.2V
- Maximum Power Current(Imp): 8.77A
- Open Circuit Voltage(Voc): 47.6V
- Short Circuit Current(Isc): 9.19A
- Maximum System Voltage(Vmax): 1500VDC
- Temperature Range: -40°F ~ 185°F
- Max Series Fuse Rating: 20A
- Dimensions: 69.3 x 34.6 x 1.2 in
- Weight: 39.3 lb
Built-in Components
- 335-watt monocrystalline solar panel
- Panel leads (pair): 3 feet each
- IP67-rated waterproof junction box
- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box
