Midnite Solar | Charge Controller (Barcelona) 200A 600V Input, 48VDC, Dual MPPT Inputs
Charge Controller (Barcelona) 200A 600V Input, 48VDC, Dual MPPT Inputs

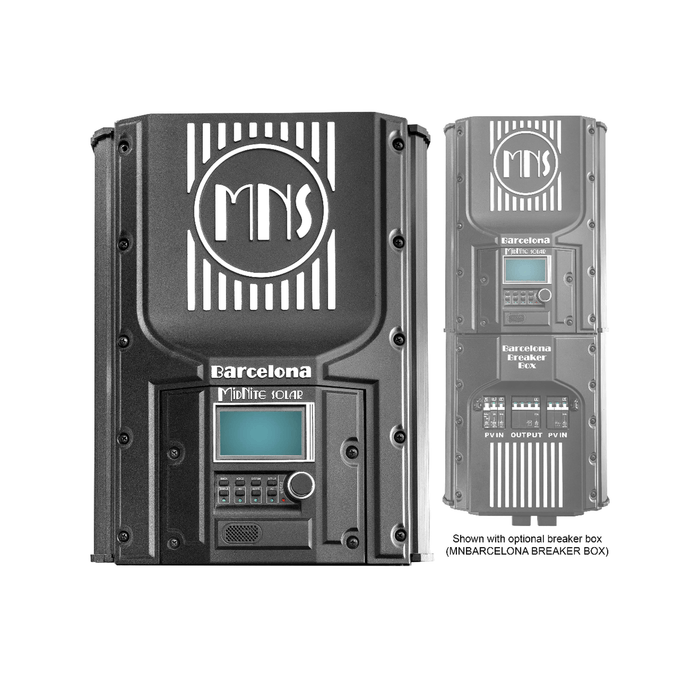

The Charge Controller (Barcelona) 200A 600V Input, 48VDC, Dual MPPT Inputs from MidNite Solar is a powerful and intelligent solution designed to meet the demands of high-performance solar energy systems. Ideal for both off-grid and grid-tied battery-based applications, the Barcelona controller offers 200 amps of charging power and dual independent MPPT channels—each capable of handling up to 100A.
With its robust 600VDC input, this controller allows for long string configurations, reducing installation complexity and cost. It features a rugged die-cast aluminum chassis, intuitive MNGP2 graphical interface with voice annunciation, and an installed options board for arc fault protection, ensuring safety and ease of use.
Whether you're managing a large-scale residential or commercial system, the Barcelona controller provides unmatched flexibility, compatibility, and efficiency.
Key Features
-
200A Total Charging Current
Two 100A MPPT channels for independent string configurations and maximum solar harvest. -
High Voltage Input (600VDC Max)
Allows for longer PV strings, reducing BOS (Balance of System) costs and improving design flexibility. -
Wide MPPT Operating Range
Tracks optimal power from 185V to 550VDC for both channels independently. -
Dual MPPT Input Channels
Operate and monitor two arrays separately, maximizing energy capture under variable conditions. -
Advanced Compatibility
Supports a wide range of battery chemistries including Flooded, AGM, Gel, NiFe, and Lithium. -
Integrated Arc Fault Protection
Includes UL1699B transmitter and factory-installed Options Board for enhanced safety. -
Battery Monitoring & Protection
Features include Remote Battery Voltage Sense, Battery Temperature Sensor, and dedicated Whiz Bang Jr. input. -
Remote Communication Ready
Equipped with CANBUS, Bluetooth, and dual AUX circuits for advanced system integration and automation. -
Graphical Display (MNGP2)
Easy-to-navigate interface with 365-day data logging, voice announcements, and detailed system metrics. -
ETL Listed to UL1741 & CSA Standards
Ensures compliance with safety and performance regulations. -
Made in the USA
Designed and assembled in the United States for high reliability and long-term support.
Specification
- 200 amp 48V output
- Min VOC is 220 volts
- Ideal VOC 300-600 volts
- MPPT Window 185 to 585 volts
- Two PV inputs track independent
- Listed to UL1741 and CSA
- Listed for US and Canada
- Safety certifications: UL1741, CE low voltage directive EN50178
- 5 year warranty standard
- Designed and assembled in Arlington, WA USA
