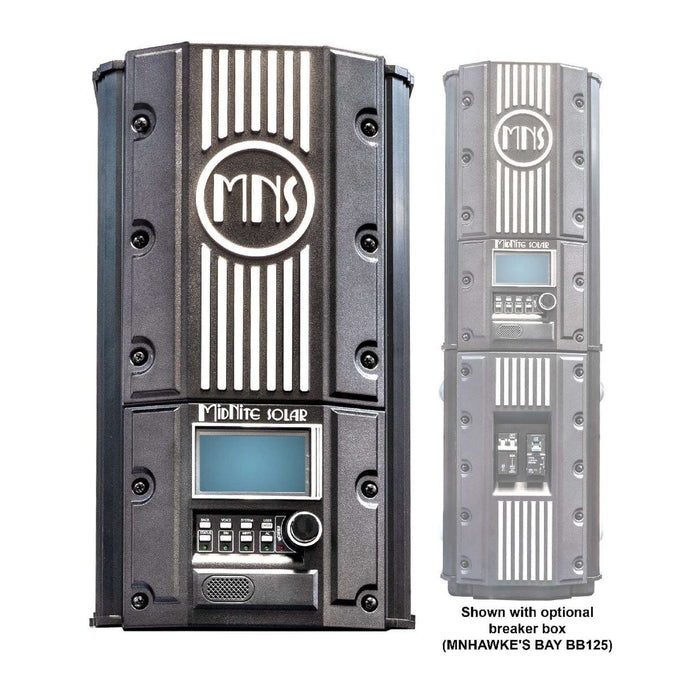

Charge Controller (Hawke's Bay) 120A 600V Input, 48VDC
Overview
The Charge Controller (Hawke's Bay) 120A 600V Input, 48VDC by MidNite Solar is an advanced, high-voltage MPPT charge controller designed to deliver performance, flexibility, and value. With 600VDC input capability and 120 amps of charging current, it is ideally suited for large-scale off-grid or grid-tied solar power systems.
This controller stands out as one of the most affordable large-output 600V MPPT solutions on the market. It comes equipped with a built-in MNGP2 graphical interface with voice annunciation, providing complete system visibility and intuitive control. The rotary dial enables fast navigation through custom programming menus, while network compatibility allows for centralized management of future MidNite products.
Key Features
-
High Voltage & High Output
- Accepts up to 600VDC PV input
- Delivers up to 120 amps of charge current to a 48VDC battery bank
- Ideal for large PV arrays and advanced solar configurations
-
Cost-Effective Performance
- Competitive price point among large 600V MPPT charge controllers
- Excellent value for high-power systems, whether standalone or networked
-
Built-in MNGP2 Interface
- Integrated talking graphical display and programming module
- Enables full monitoring and configuration of connected MidNite Solar devices
- Voice prompts aid in diagnostics and status alerts
-
Rotary Dial Navigation
- Intuitive user interface with rotary dial for seamless menu access
- Customize system settings quickly and efficiently
-
Advanced Network Compatibility
- Centralized control of future MidNite Solar products through one MNGP2
- Simplifies system management across large installations
-
Flexible Programming Options
- Supports custom configurations for diverse energy system requirements
- Designed for both off-grid and grid-tied solar energy systems
-
Rugged and Reliable Design
- Engineered for long-lasting performance in demanding environments
- Compatible with a wide range of battery chemistries including lithium and lead-based technologies
- Specification
| Feature | Description |
|---|---|
| Nominal Battery Voltage | 48V |
| Max Output Current | 90 or 120 amps (depending on model) |
| PV Open Circuit Voltage (VOC) | 600VDC |
| Power Conversion Efficiency | 98% (Typical system) |
| Arc Fault & NEC 2020 Ground Fault Protection | Optional plugin modules (user-installed) |
| Charging Regulation | Bulk, Absorb, Float, and Equalization |
| Battery Voltage Regulation Set Points | 40V to 65V |
| Equalization Charging | Adjustable voltage and duration |
| Battery Over Voltage Protection | Fully protected (Optional Hawke's Bay Breaker Box trips PV input breaker if battery exceeds 68VDC) |
| Battery Short Circuit Protection | Fully protected |
| Battery Temp Compensation | Automatic with BTS installed, adjustable mV per °C per 2V cell |
| Programmable Auxiliary Inputs/Outputs | 3 auxiliary I/Os |
| Graphic Display | MNGP2 - 64 x 122 |
| Stacking Cables for System Networking | Standard CAT5 - Canbus |
| Communications | Canbus |
| Remote Display | MNGP2 can be relocated, second display can be added |
| External Monitoring | Phone app software allows local monitoring via Bluetooth from Hawke's Bay |
| Terminal Rating | 75°C |
| Data Logging | 380 days of daily history |
| Wind and Hydro Applications | Coming soon (firmware upgradeable) |
| Positive Ground Applications | Requires 2-pole input and output breakers |
| Operating Temperatures | -40°C to 50°C (Auto derates above 25°C) |
| Environmental Rating | Indoor Type 1 |
| Warranty | 5 years |
| Weight and Dimensions | 17-5/8" x 9" x 8-1/8", 23 lbs |
| Shipping Dimensions | 23" x 15.05" x 11.05" |
| Certifications | ETL listed for US (Not listed for use in Canada) |
- Manuals and Downloads
- User Manual
