Midnite Solar | Charge Controller (Hawke's Bay) 90A 600V Input, 48VDC
Charge Controller (Hawke's Bay) 90A 600V Input, 48VDC

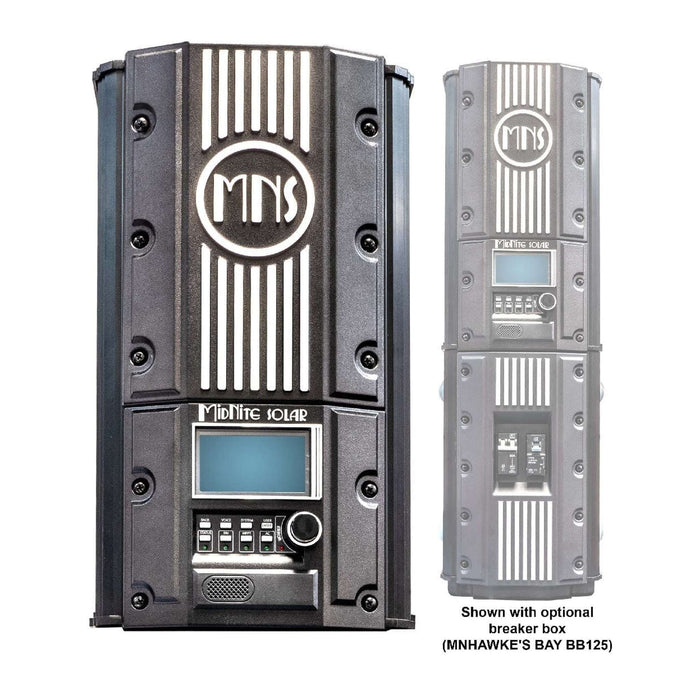

The MidNite Solar Hawke’s Bay 90A Charge Controller offers powerful MPPT technology in a high-voltage, cost-effective package. Capable of handling 600VDC input and delivering up to 90 amps of charge current, it’s an ideal solution for large solar arrays and demanding energy systems.
Designed for both off-grid and grid-tied renewable energy applications, the controller includes an integrated MNGP2 graphical interface with voice annunciation and intuitive rotary navigation. This allows for seamless control, monitoring, and configuration of the unit and other MidNite devices, all from a single platform.
Key Features
High Voltage, High Performance
-
Supports up to 600VDC PV input
-
Provides up to 90A charging current to 48V battery banks
-
Built for large solar arrays and advanced power systems
Affordable, Efficient Power
-
Among the most cost-effective high-output 600VDC MPPT controllers available
-
Great value standalone or with optional upgrades
Integrated MNGP2 Display
-
Built-in talking graphical programming module
-
Real-time monitoring of all connected MidNite Solar products
-
Voice alerts for system status and error conditions
Rotary Dial Navigation
-
Fast, intuitive access to system menus and custom settings
-
Simplifies advanced configuration tasks
Advanced Network Compatibility
-
Centralized control of future MidNite Solar devices through the MNGP2
-
Seamless integration into complex system networks
Flexible System Design
-
Customizable for a wide range of applications
-
Suitable for off-grid and grid-interactive installations
-
Supports various battery chemistries including lithium, AGM, gel, and flooded
Specification
| Feature | Description |
|---|---|
| Nominal Battery Voltage | 48V |
| Max Output Current | 90 or 120 amps (depending on model) |
| PV Open Circuit Voltage (VOC) | 600VDC |
| Power Conversion Efficiency | 98% (Typical system) |
| Arc Fault & NEC 2020 Ground Fault Protection | Optional plugin modules (user-installed) |
| Charging Regulation | Bulk, Absorb, Float, and Equalization |
| Battery Voltage Regulation Set Points | 40V to 65V |
| Equalization Charging | Adjustable voltage and duration |
| Battery Over Voltage Protection | Fully protected (Optional Hawke's Bay Breaker Box trips PV input breaker if battery exceeds 68VDC) |
| Battery Short Circuit Protection | Fully protected |
| Battery Temp Compensation | Automatic with BTS installed, adjustable mV per °C per 2V cell |
| Programmable Auxiliary Inputs/Outputs | 3 auxiliary I/Os |
| Graphic Display | MNGP2 - 64 x 122 |
| Stacking Cables for System Networking | Standard CAT5 - Canbus |
| Communications | Canbus |
| Remote Display | MNGP2 can be relocated, second display can be added |
| External Monitoring | Phone app software allows local monitoring via Bluetooth from Hawke's Bay |
| Terminal Rating | 75°C |
| Data Logging | 380 days of daily history |
| Wind and Hydro Applications | Coming soon (firmware upgradeable) |
| Positive Ground Applications | Requires 2-pole input and output breakers |
| Operating Temperatures | -40°C to 50°C (Auto derates above 25°C) |
| Environmental Rating | Indoor Type 1 |
| Warranty | 5 years |
| Weight and Dimensions | 17-5/8" x 9" x 8-1/8", 23 lbs |
| Shipping Dimensions | 23" x 15.05" x 11.05" |
| Certifications | ETL listed for US (Not listed for use in Canada) |
Manuals and Downloads
