Midnite Solar | POWERFLO 16 kwh, 48 Volt 314 AH, Wall/Floor Mount, Lithium Battery
Overview

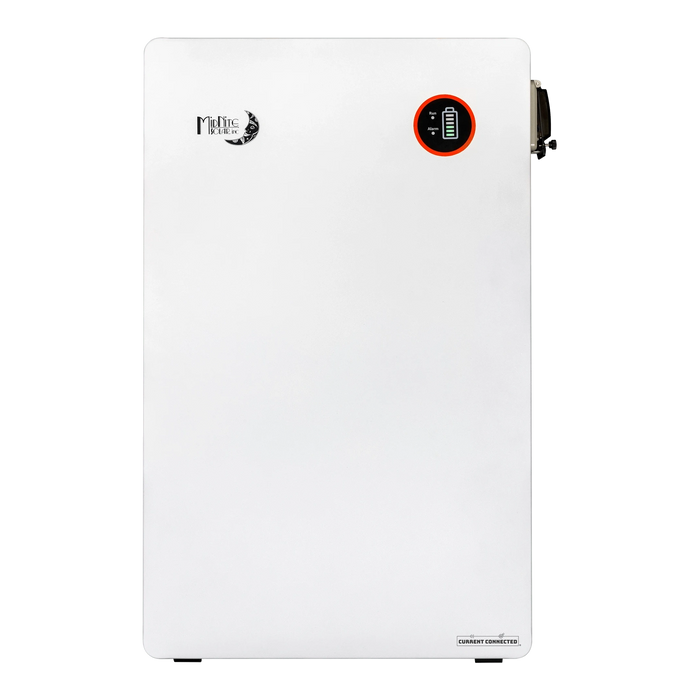

The MidNite MNPowerflo16 is a high-performance, lithium iron phosphate (LiFePO4) wall-mounted battery designed for seamless integration with the MNROSIE and MN15-12K-AIO closed-loop systems. Built with Grade A+ EVE cells, the MNPowerflo16 delivers dependable energy storage with the added benefit of built-in heating for cold climates, making it suitable for a wide range of indoor and outdoor applications. Supporting the Pylontech communication protocol, it effortlessly pairs with any compatible inverter for a smooth plug-and-play experience.
Paired with the MidNite Pro app, users gain complete visibility into their entire system—charger, inverter, loads, MPPTs, and battery—all in one place. The system also supports real-time remote monitoring and local performance viewing from the inverter display, offering complete control from anywhere.
KEY FEATURES
- Plug-and-play installation – No dip switches or programming required
- Closed-loop ready with MNROSIE and MN15-12K-AIO systems
- Uses Pylontech protocol – Compatible with a wide range of inverters
- Built-in battery heating – Ideal for cold climate installations
- High-quality Grade A+ EVE cells – Ensures long life and safety
- Wall or floor mountable – Flexible installation options
- Integrated system monitoring with the MidNite Pro app
- Seamless firmware updates for both battery and inverter
- Real-time control and monitoring – Remote access or local display
What's Included
1 x Electric Insigh tHome Communications Device
Specification
- 51.2V Nominal
- 314Ah capacity
- Absorb Voltage 56.4V, Absorb Time 5 minutes, Float Voltage 54V
- 16,076Wh capacity
- LFP Lithium Iron Phosphate
- 8000 Cycles @ 77F (25C), 0.5C / 0.5C
- Operating Voltage 46.4 to 57.6 Volts
- Heated for cold climates
- Heater power 7.8A, On around 2C, Off around 10C
- Communication using Can / RS485 / RS232
- Stack up to 16 units
- =< 35mA idle draw
- Nominal Discharge Current 160A
- Nominal Charge Current 160A
- Max Discharge Current 210A
- Outdoor or Indoor rated, IP65
- Operating Temperature -4F to 122F (-20C to 50C)
- Storage Temperature 14F to 113F (-10C to 45C)
- Max Altitude 9,843 feet (3,000 m)
- Natural convection cooling
- Wall or Floor mount installation
- Active Balancing
- Compliance UL 1973,UL 9540A,UL9540
