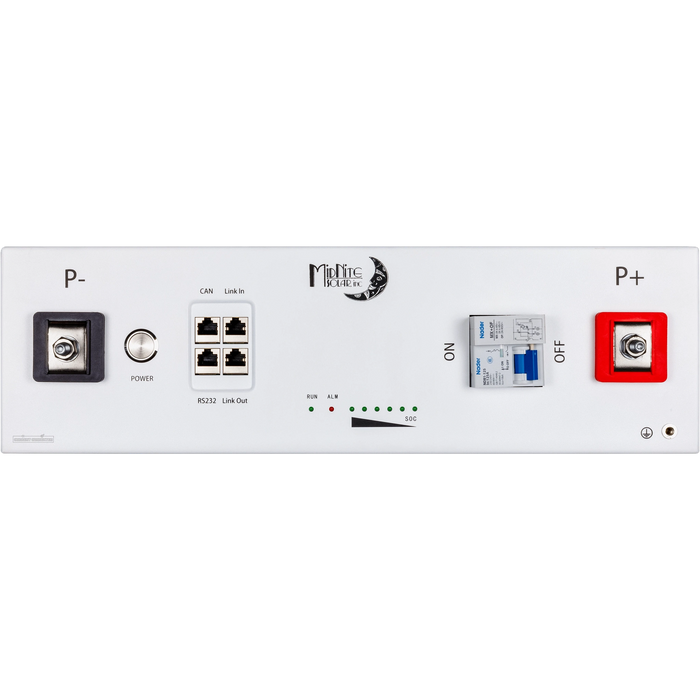

Midnite Solar | POWERFLO 5.1 kwh,48 Volt 100 AH, Rack Mount, Lithium Battery
Overview
MidNite Solar’s new server rack battery, the MNPowerflo5! This unit has EVE A+ grade lithium iron phosphate cells. The MNPowerflo5 has a design life of 15 years and 6,000 cycles, making it one of the longest-life batteries in the industry. Up to 16 units can be paralleled, allowing up to 81kWh storage. The MNPowerflo5 works flawlessly with the MidNite ‘TheOne’ inverter and can easily stack with other MNPowerflo5s. This server rack has a racking solution (only works with other MNPowerflo5s).
KEY FEATURES
-
High-Safety LiFePO4 Chemistry
Uses lithium iron phosphate cells known for stability, long cycle life, and enhanced safety. -
Smart Battery Management System (BMS)
Monitors real-time voltage, current, and temperature with advanced passive cell balancing. -
Plug-and-Play Installation
No dip switches or manual configuration—automatically assigns addresses for quick setup. -
Pylontech Protocol Communication
Enables seamless closed-loop communication with compatible inverters. -
MidNite Pro App Monitoring
Offers remote access to battery and system performance data in real time. -
Modular & Scalable Design
Stackable rack-mount form factor allows up to 16 units in parallel (up to 81 kWh total). -
Wide System Compatibility
Ideal for residential, commercial, off-grid, grid-tied, and self-consumption energy systems. -
Certified for Safety
UL 1973, UL 9540A, and UL 9540 compliant for use in on-grid systems requiring certified storage. -
Optional Heating for Cold Climates
Compatible with heated module variants for reliable operation in low temperatures. -
Integrated Racking System
Batteries securely stack with included brackets—no separate rack purchase required.
Specification
- 51.2V Nominal
- 100Ah capacity
- Absorb Voltage 56.4V, Absorb Time 5 minutes, Float Voltage 54V
- 5,120Wh capacity
- LFP Lithium Iron Phosphate
- 6000 Cycles @ 77F (25C), 0.5C / 0.5C
- Communication using Can / RS485 / RS232
- Stack up to 16 units
- =< 35mA idle draw
- Nominal Discharge Current 75A
- Nominal Charge Current 75A
- Max Discharge Current 100A
- Indoor Type 1 rated, IP20
- Non Heated Operating temperature 32F to 122F (0C to 50C)
- Storage temperature 14F to 113F (-10C to 45C)
- Max Altitude 9,843 feet (3,000 m)
- Natural convection cooling
- Rack mount installation
- Passive Balancing
- Compliance UL 1973,UL 9540A,UL9540
