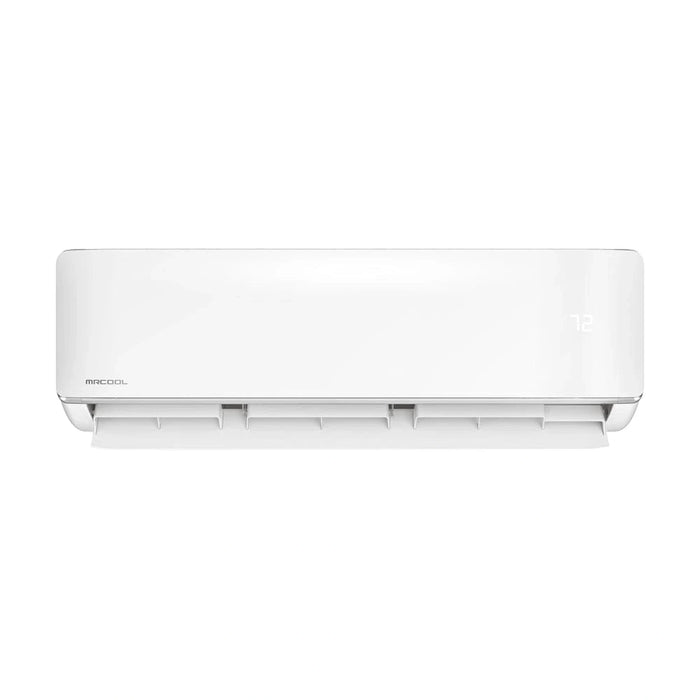

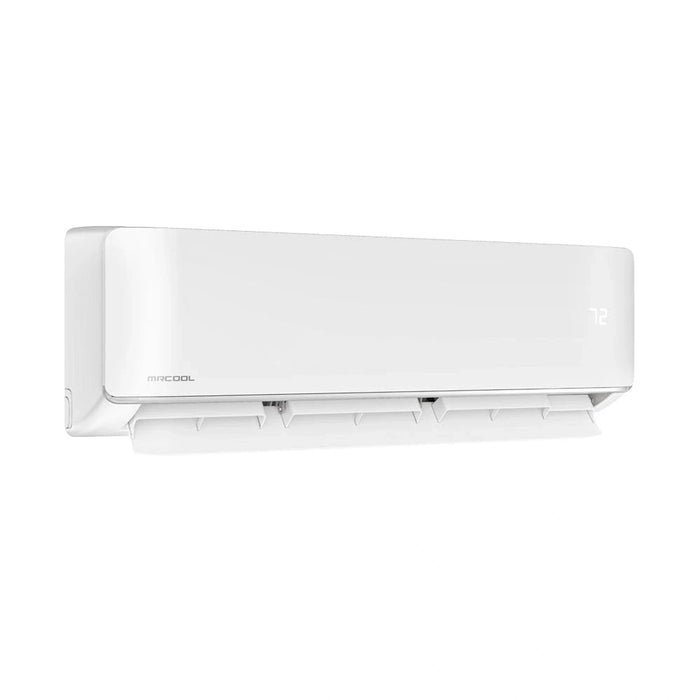

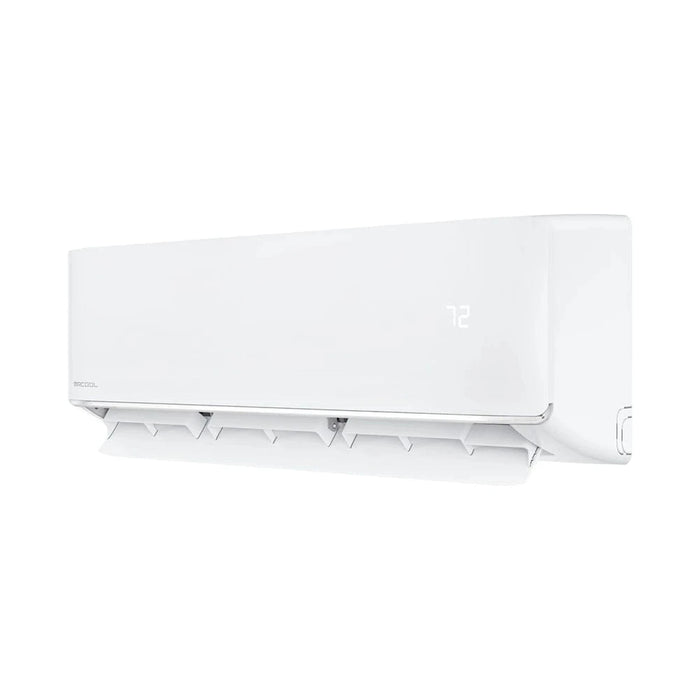

MRCOOL DIY | 18k DIY 5th Generation Mini-split Air Handler 230v
Overview
18K DIY 5TH GENERATION MINI-SPLIT AIR HANDLER 115V
The 5th Generation MRCOOL® DIY® 18K BTU Ductless Mini-Split delivers powerful heating and cooling for spaces up to 800 sq. ft. with a true DIY installation—no special tools or professional help needed. The pre-charged 25-foot DIY® QuickConnect® line set with R-454B refrigerant eliminates vacuuming, while the DIYPRO® cable enhances durability. Control it easily via wireless remote, SmartHVAC app, or voice commands with Alexa & Google Assistant. The Gold Fin® Condenser resists corrosion, ideal for coastal areas. Features like Follow Me temperature control and Dry Mode for humidity reduction ensure personalized comfort. Backed by an industry-leading warranty, this system offers reliable, year-round climate control.
KEY FEATURES
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specification
|
TONNAGE |
1.5 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
MAX COVERAGE AREA |
800 sqft |
|
DECIBEL RATING LOW (DBA) |
19 |
|
DECIBEL RATING HIGH (DBA) |
54.5 |
|
NUMBER OF SPEEDS |
5 |
|
OSCILLATION |
Yes |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
1/2 |
|
FILTER TYPE |
Reusable |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
5 |
|
BASE COMPRESSOR WARRANTY |
7 |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
8.9 |
|
NET HEIGHT (IN) |
13.19 |
|
NET WIDTH (IN) |
42.52 |
|
NET WEIGHT (LBS) |
35.49 |
|
GROSS DEPTH (IN) |
17.68 |
|
GROSS HEIGHT (IN) |
14.29 |
|
GROSS WIDTH (IN) |
46.73 |
|
GROSS WEIGHT (LBS) |
49.6 |
