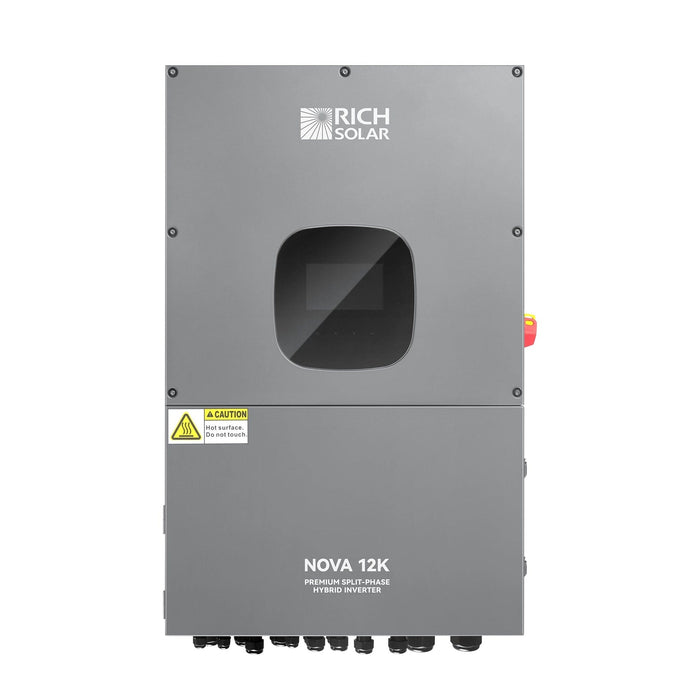

Rich Solar | NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V

NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V

The NOVA 12K is a high-performance 48V split phase hybrid inverter engineered for whole-home or large-scale off-grid and grid-tied applications. With a 12000W PV input and a 10000W continuous output, this inverter is built to handle demanding energy needs while ensuring seamless solar, battery, and generator integration.

Key Features

• Split Phase Output (120/240V & 120/208V)
  Supports both residential and light commercial power configurations, providing flexible output options for different system designs.

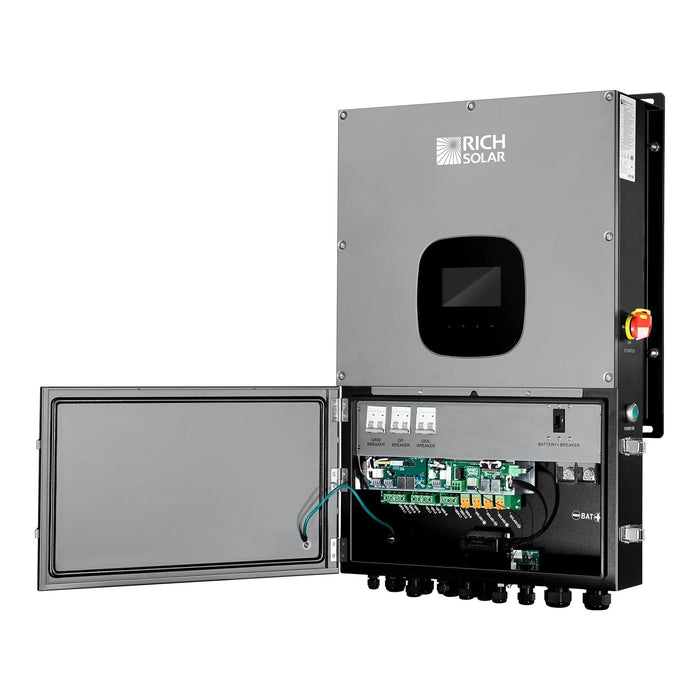

• Integrated Breakers
  Includes a built-in 300A DC breaker and 60A AC breaker for added safety and easy system integration.

• AC-Coupled Functionality
  Enables connection with existing solar inverters—ideal for retrofits and expanding solar setups.

• Mobile Monitoring with Built-In Wi-Fi
  Stay in control using a dedicated mobile app for real-time data on energy production, consumption, and battery status.

• Generator Input Compatible
  Accepts a secondary power source, perfect for backup generator systems in hybrid or off-grid configurations.

• Advanced Safety Features
  Equipped with Arc Fault Detection (AFD) and Rapid Shutdown (RSD) for enhanced protection and compliance with safety standards.

• External CT Sensor Support
  Ensures 100% self-consumption by monitoring load usage and optimizing solar output accordingly.

• BMS Communication Ready (RS485)
  Seamlessly integrates with smart lithium battery systems for real-time charge and discharge management.

• User-Adjustable Settings
  Customize charging current, voltage levels, and power priorities based on your specific energy needs.

• Parallel Operation Up to 6 Units
  Expandable system design supports parallel installation for larger power systems and scalable capacity.

• Low Idle Consumption
  Draws just 150W (±10%) when idle, ensuring energy efficiency even during standby periods.

Specification

Maximum PV Input Power: 12000W
Parallel Capability: 6 units

INPUT

• Maximum PV input Power: 12000W
• Maximum DC Voltage: 600VDC
• Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
• MPP Voltage Range: 120VDC-550VDC
• Number of MPPT Trackers/Maximum Input Current: 2/18A

OUTPUT

• Rated Output Power: 10000VA/10000W
• Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
• Output Voltage Range: 105.5-132VAC per phase
• Nominal Output Current: 41.5A per phase

BATTERY

• Battery DC Voltage Range: 40-62VDC / 48VDC
• Maximum Solar Charging Current: 200A
• Maximum AC Charging Current: 200A
• Maximum Charging Current: 200A

OPERATING ENVIRONMENT

• Operating Temperature Range: -25°C to 60°C(>45°C derating)
• Protection Degree: IP 65
• Communication Port: RS232, RS485, WI-FI, USB

PHYSICAL

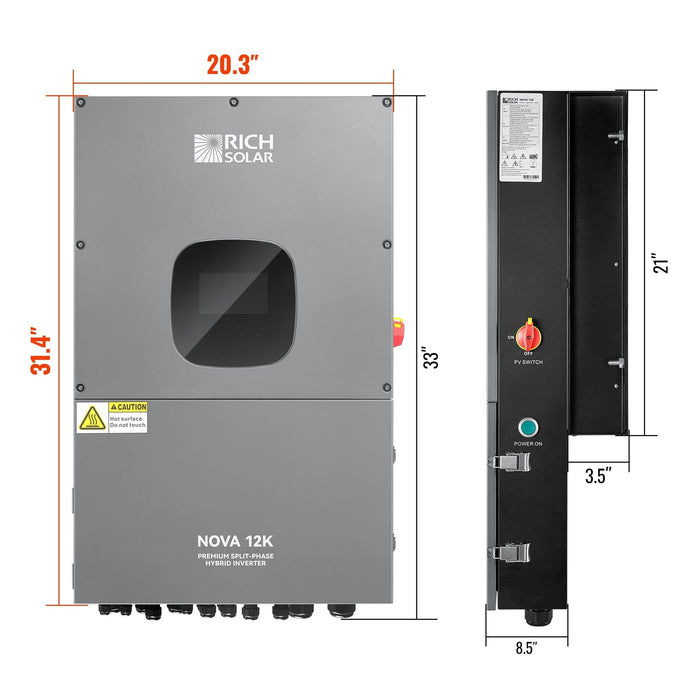

• Dimension (LxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
• Net Weight: 99.2lb / 45kg

CERTIFICATE

• UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
