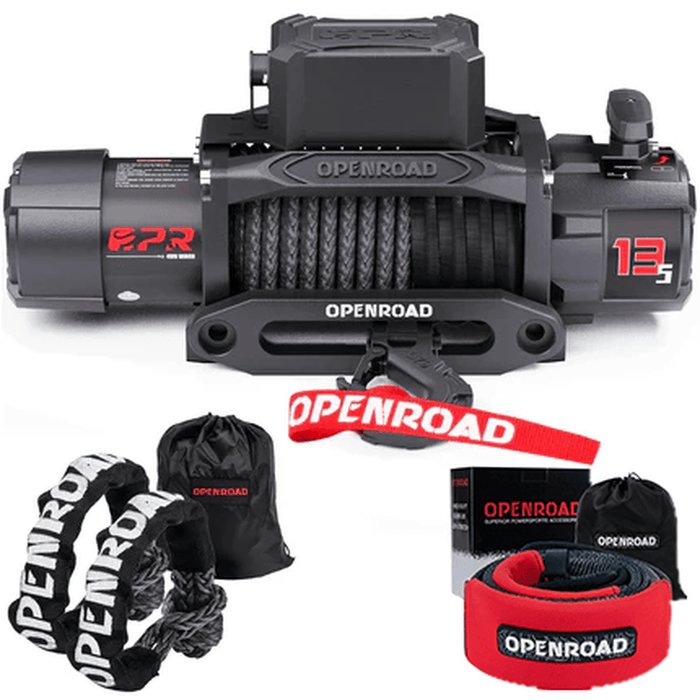

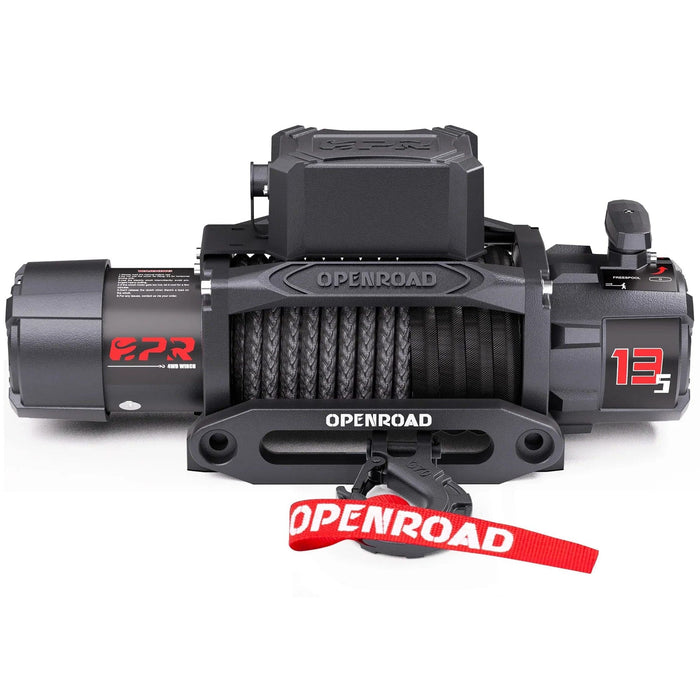

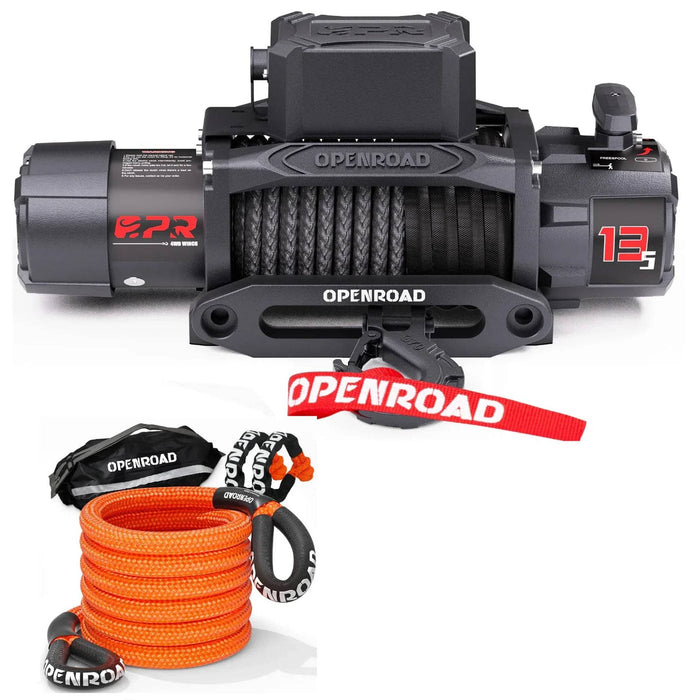

OPENROAD | 13,500lbs electric winch with Synthetic Rope - Panther Series 3S
OPENROAD | 13,500 lb Electric Winch with Synthetic Rope, Panther Series 3S

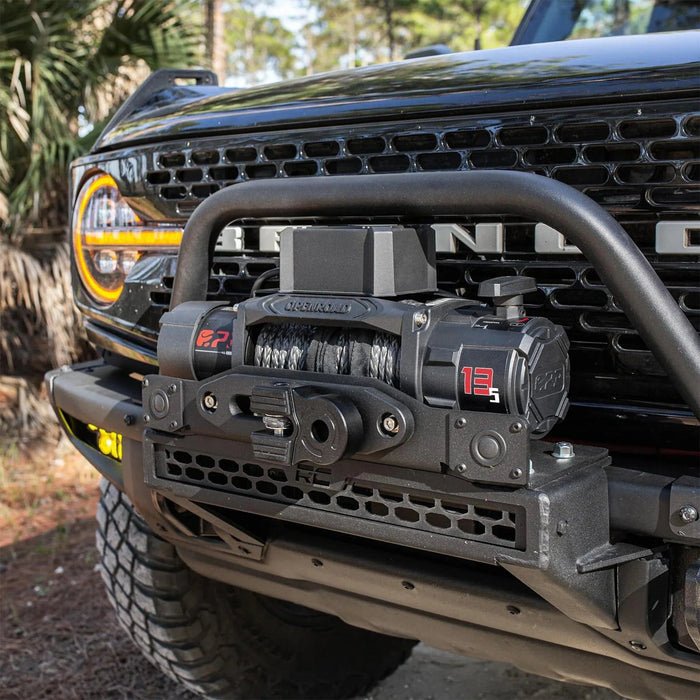

The OPENROAD Panther Series 3S 13,500 lb Electric Winch is designed to assist with vehicle recovery for trucks, SUVs, Jeeps, and off-road vehicles. Equipped with a synthetic rope and high-capacity electric motor, it provides reliable pulling performance for off-road recovery and utility applications. The winch is built for compatibility with suitable winch mounting systems and is intended for use in demanding outdoor environments.
KEY FEATURES
-
Best Waterproofing. With an upgraded IP68 waterproof rating, this winch delivers stable performance even in heavy rain or murky water conditions.
- Upgraded Look. Experience a striking new exterior design that guarantees your vehicle will stand out on every adventure.
-
Heavy Duty Swing Arm and Hinge. Equipped with a pure copper motor and an upgraded 6.6 HP power, this winch effortlessly pulls a 7,000 lb pickup truck and is built to offer the longest lifespan, ensuring reliable performance for countless adventures to come..

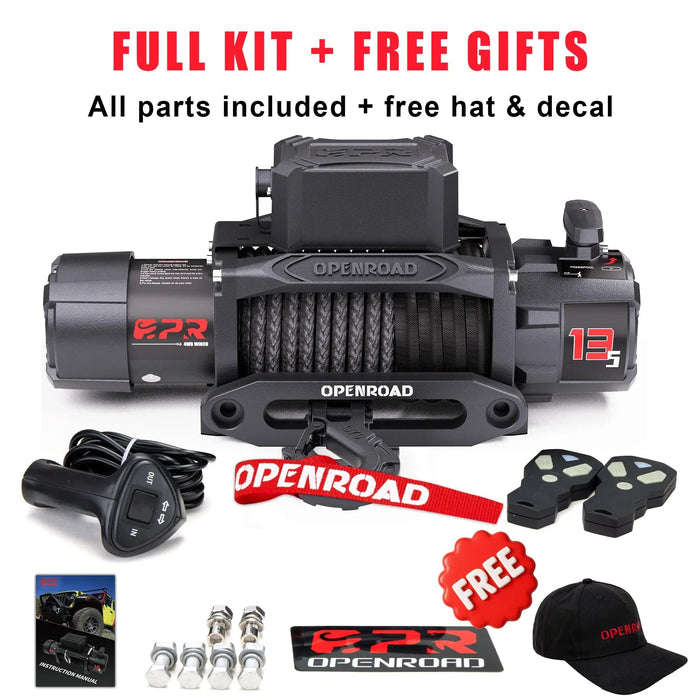

Package Includes
- Panther Series 3S-13,500lb Winch
- Wired Handheld Remote

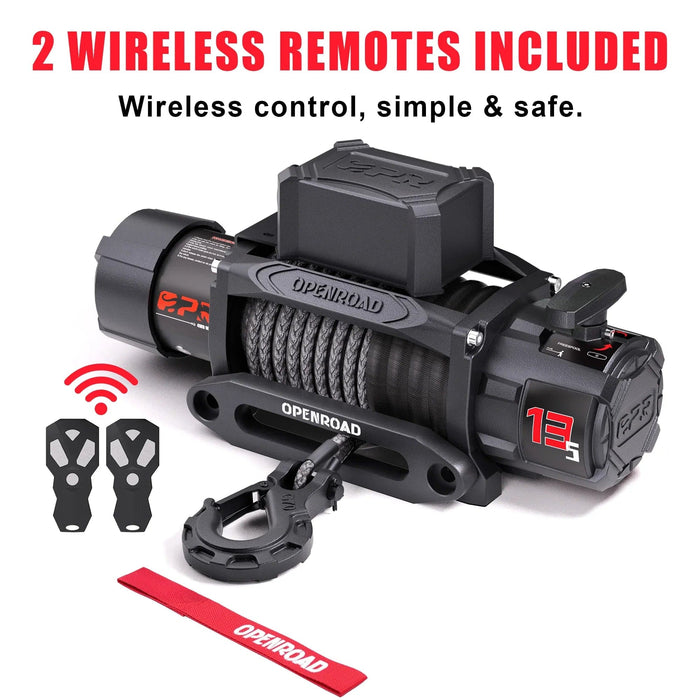

- Wireless Remote * 2
- Black Heavy Duty Hook
- Bolt Set
- Mounting Bolts
- User Manual
- Hat and Sticker
Specifications
| Specification | 13,500 lb Winch (6,136 kg) | 12,000 lb Winch (5,454 kg) | 10,000 lb Winch (4,535 kg) |
|---|---|---|---|

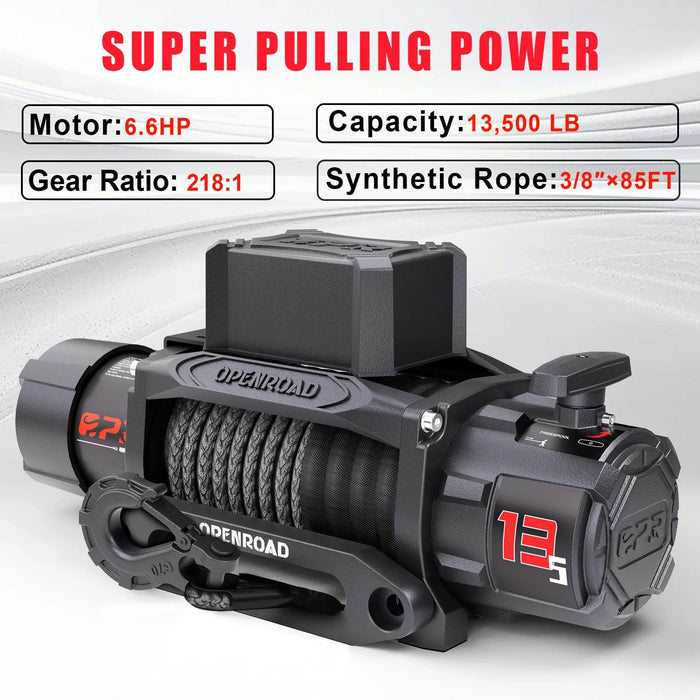

| Motor | 6.6 hp / 5.0 kw, Series Wound | 6.5 hp / 4.8 kw, Series Wound | 6.2 hp / 4.6 kw, Series Wound |
| Gear Train | 3 Stage Planetary | 3 Stage Planetary | 3 Stage Planetary |
| Gear Reduction Ratio | 218:1 | 218:1 | 218:1 |
| Brake | Automatic Load-Holding | Automatic Load-Holding | Automatic Load-Holding |
| Control | 2 × Wireless Remote + 1 × Wire Remote | 2 × Wireless Remote + 1 × Wire Remote | 2 × Wireless Remote + 1 × Wire Remote |
| Battery | Recommended: 650 CCA | Recommended: 650 CCA | Recommended: 650 CCA |

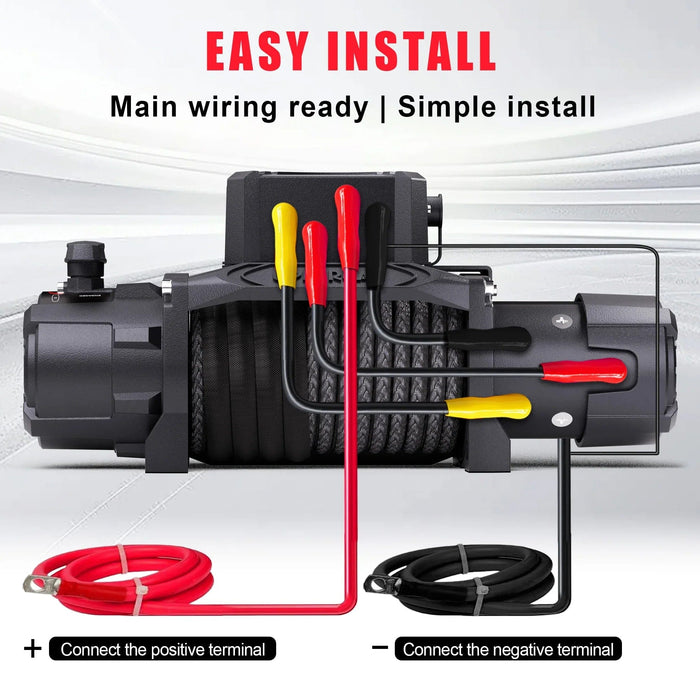

| Battery Cables | 72" | 72" | 72" |
| Fairlead | 4-Way Roller Fairlead | 4-Way Roller Fairlead | 4-Way Roller Fairlead |
| Cable Type | Synthetic Rope | Synthetic Rope | Synthetic Rope |
| Mounting Bolt Pattern | 10" × 4.5" | 10" × 4.5" | 10" × 4.5" |
| Cable Size (D × L) | 88 ft of 3/8" diameter | 88 ft of 3/8" diameter | 88 ft of 3/8" diameter |
| Overall Dimensions (L × W × H) | 20.8" × 6.3" × 9.5" | 20.8" × 6.3" × 9.5" | 20.8" × 6.3" × 9.5" |
| Weight | 65 lbs | 65 lbs | 65 lbs |
| Waterproof Rating | IP68 | IP68 | IP68 |
| Line Speed (Max Line Pull) | 5.2 ft/min | 5.7 ft/min | 7.4 ft/min |
| Amp Draw (Max Line Pull) | 320 (@12VDC) | 301 (@12VDC) | 262 (@12VDC) |
| Application | Truck / Jeep / SUV | Truck / Jeep / SUV | Truck / Jeep / SUV |
Dimensions
