Oscal | PowerMax 3600 Portable Power Station + 200W Portable Solar Panel (PRE-ORDER)

by Oscal
SKU PowerMax3600+PM200
Original price $1,698.00 - Original price $1,698.00
Original price
$1,698.00
$1,698.00 - $1,698.00
Current price $1,698.00
This Item Qualifies for FREE SHIPPING.
SUMMER SALE – LOWEST PRICES GUARANTEED
Summer is here, and so are unbeatable deals. Don’t wait—shop now and secure the lowest prices before the sale ends!

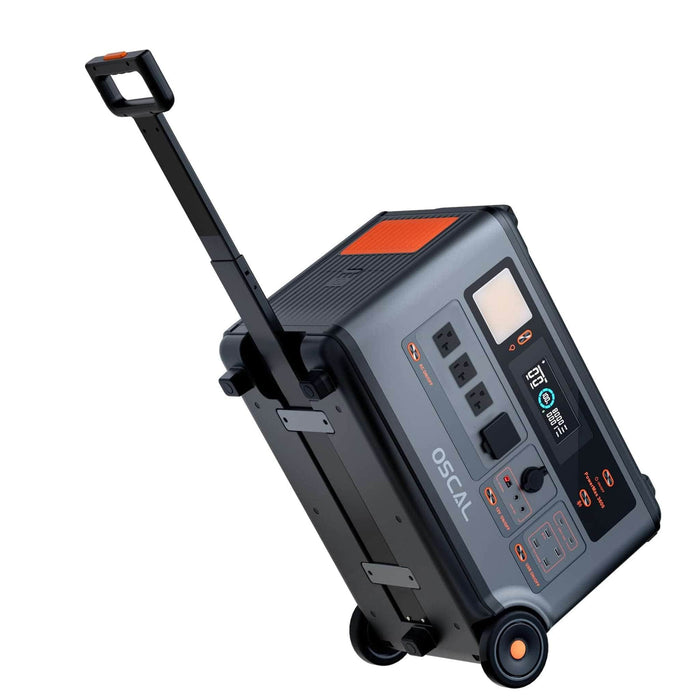

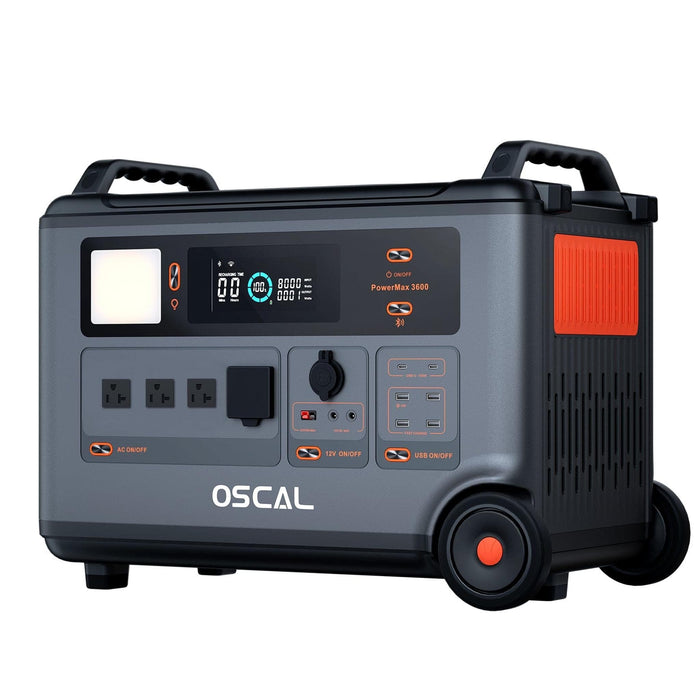

Oscal PowerMax 3600 Solar Kit – 3000W Portable Power Station with 200W Foldable Solar Panel (3600Wh LiFePO₄ Battery)

PREORDER: Estimated ETA October 25

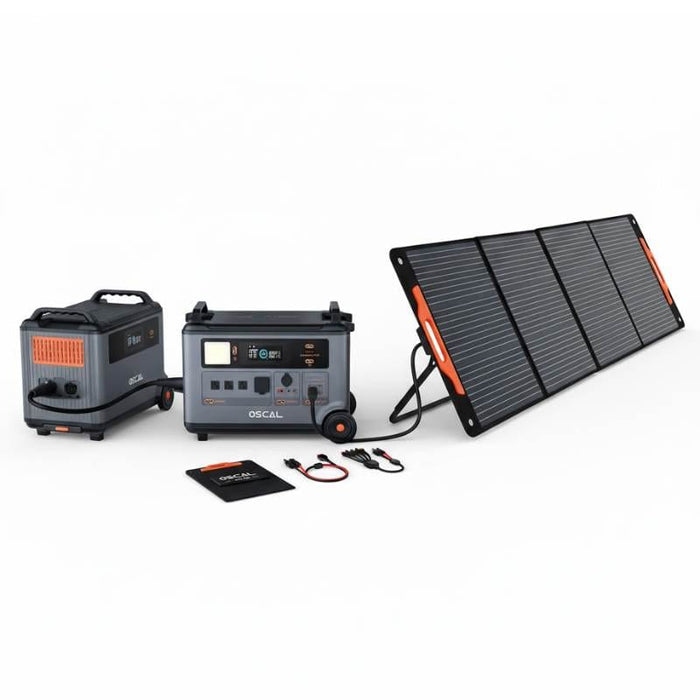

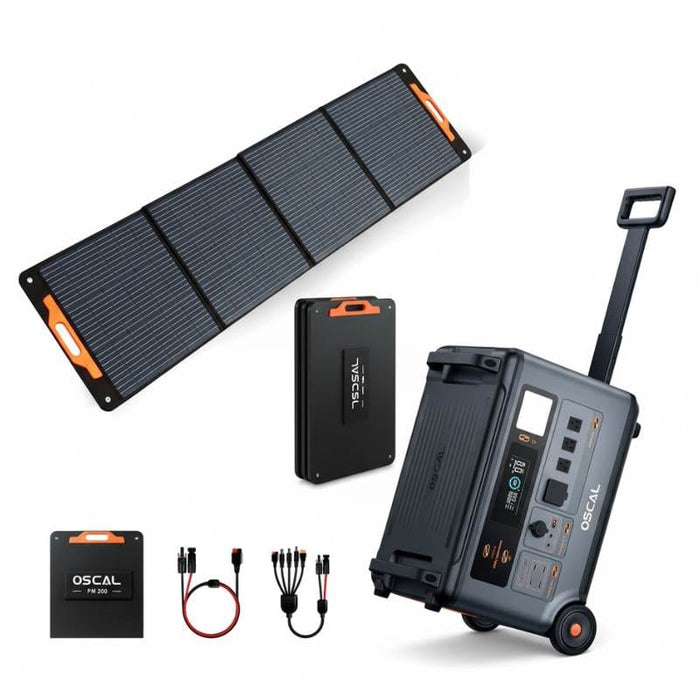

The Oscal PowerMax 3600 Solar Kit combines the PowerMax 3600 Portable Power Station and PM200 200W Foldable Solar Panel into one powerful, expandable clean-energy system. Built for home backup, RVs, worksites, and outdoor exploration, it offers 3000W of pure sine-wave output, a 3600Wh LiFePO₄ battery, and a high-efficiency 200W solar panel. With rapid dual charging, smart monitoring, and quiet, emission-free operation, this kit delivers dependable off-grid power—anywhere, anytime.

KEY FEATURES

  • Massive 3600Wh LiFePO₄ capacity – Runs high-demand appliances and tools with long battery life.
  • 3000W continuous AC output (6000W surge) – Pure sine wave for stable, clean power.
  • Fast dual recharging – Charge via AC and solar in under 1.5 hours.

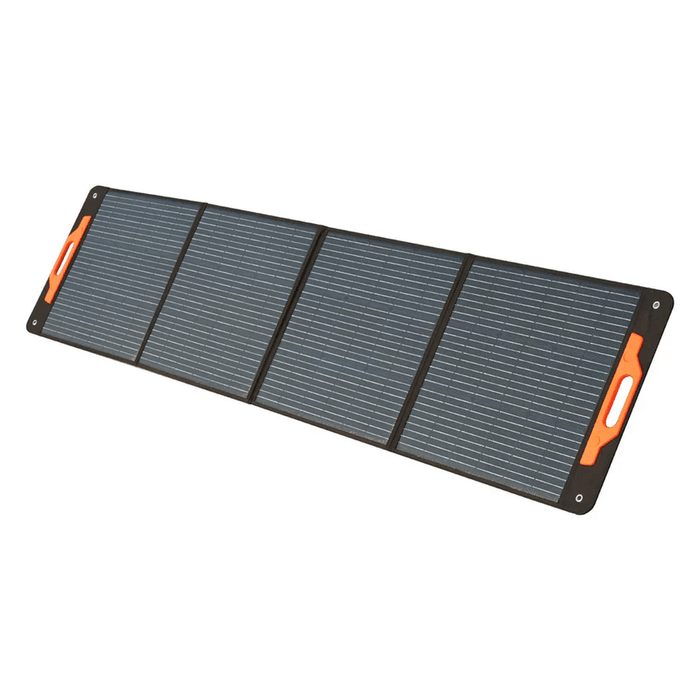

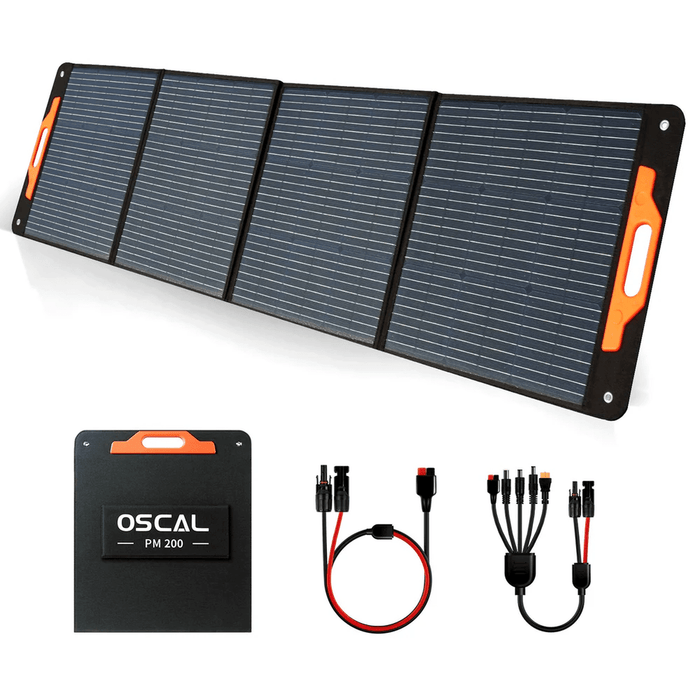

  • High-efficiency 200W solar panel – 21.7% conversion for faster energy harvesting.

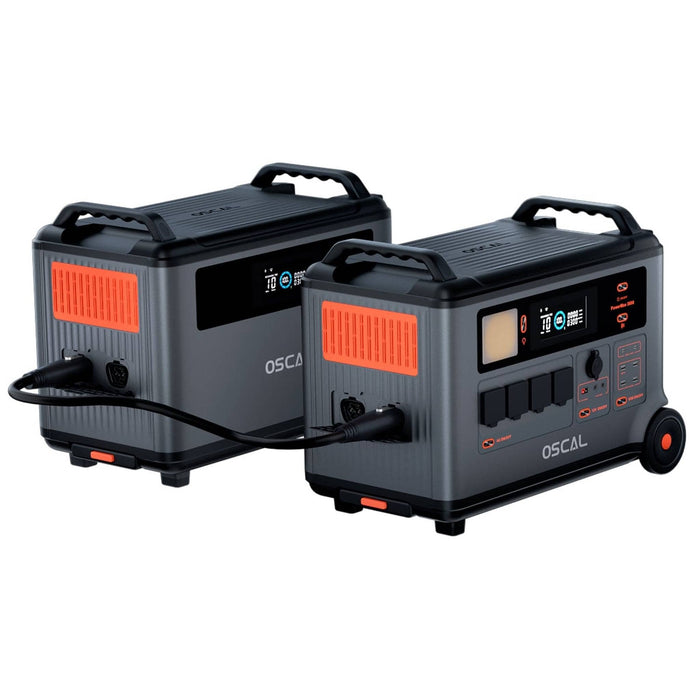

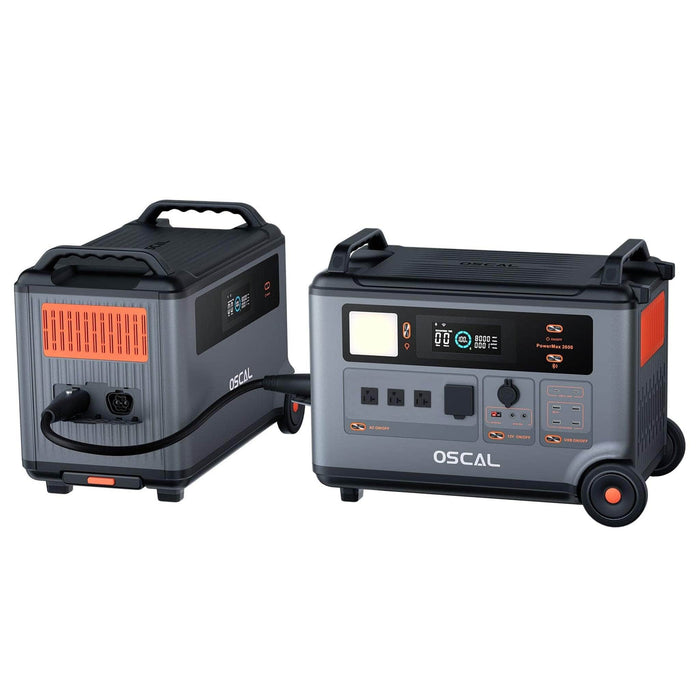

  • Expandable modular design – Add up to 15 BP3600 batteries for 57,600Wh total.
  • Smart touchscreen and app control – Monitor system data in real time.
  • Quiet and emission-free – Ideal for homes, RVs, and off-grid sites.
  • Durable and weather-resistant – ETFE-laminated, IP67-rated solar panels built to last.
  • Plug-and-play setup – No tools, no wiring, just unfold and connect.

Specifications

PowerMax 3600 Portable Power Station PM200 200W Foldable Solar Panel
Model PowerMax 3600 PM200
Battery Capacity 3600Wh
Battery Type LiFePO₄ (LFP)
Battery Life Cycles 3500+ cycles to 80% capacity
AC Output Power 3000W (Continuous) / 6000W (Surge)
Inverter Type Pure Sine Wave
USB-A Ports 1×12W, 3×18W
USB-C Ports 2×100W PD
DC Outputs 1×Anderson 378W, 2×DC5521 36W
Car Port 1×120W Cigarette Lighter
AC Input 2200W Max (≈1.96 hrs recharge)
Solar Input 1600W Max (≈2.25 hrs recharge) 200W ±5%
Car Input 120W Max (≈30 hrs recharge)
Dual Charging AC+Solar ≈1.2 hrs / AC+Car ≈1.86 hrs
App Control WiFi & Bluetooth
Display Smart Touchscreen
UPS Function Yes
Cell Type Monocrystalline Silicon
Conversion Efficiency ≥21.7%
Maximum Power (Ppm) 200W ±5%
Maximum Power Current (Im) 9.52A (≥9.33A)
Maximum Power Voltage (Vm) 21V (≥20.58V)
Open Circuit Voltage (Voc) 25.2V (≥23.94V)
Short Circuit Current (Isc) 11.42A (≥10.85A)
Panel Lamination ETFE
Waterproof Rating IP67
Weight 98.1 lbs (44.45 kg) 15.4 lbs ± 2.2 lbs (7 ± 1 kg)
Dimensions (L×W×H) 590 × 350 × 441 mm 21.1" × 92.5" × 1.0" (Unfolded) / 21.1" × 24.3" × 2.1" (Folded)
Operating Temperature -20°C to +55°C (-4°F to 131°F)
Charging Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 45°C (14°F to 113°F)
Certifications CE, RED, ROHS, FCC, DOE, UL, IEC62368
Warranty 5 Years 5 Years
