Oscal | PowerMax 3600 Portable Power Station + 400W Portable Solar Panel

by Oscal
SKU PowerMax3600+PM400
Original price $1,898.00 - Original price $1,898.00
Original price
$1,898.00
$1,898.00 - $1,898.00
Current price $1,898.00
This Item Qualifies for FREE SHIPPING.
SUMMER SALE – LOWEST PRICES GUARANTEED
Summer is here, and so are unbeatable deals. Don’t wait—shop now and secure the lowest prices before the sale ends!

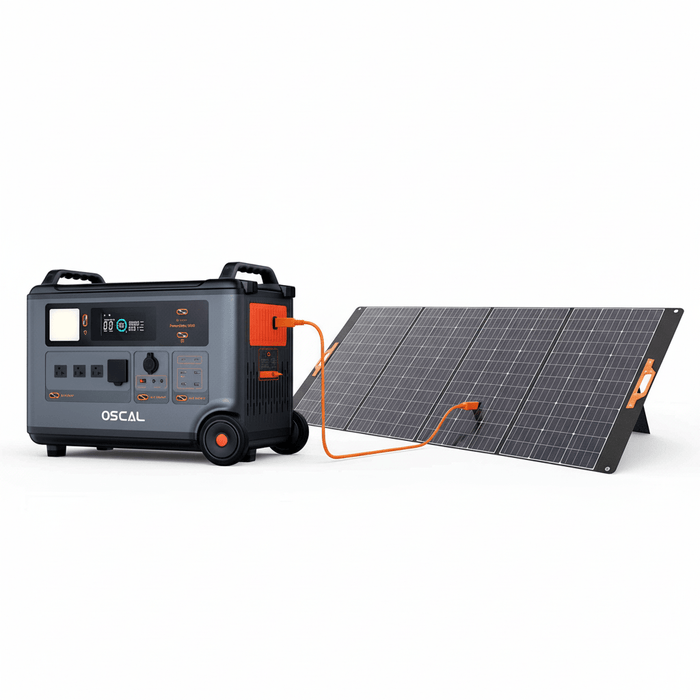

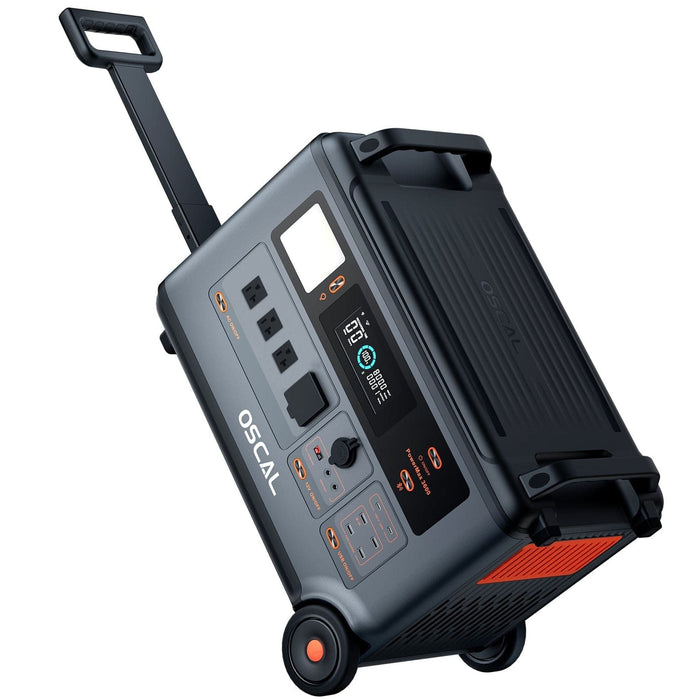

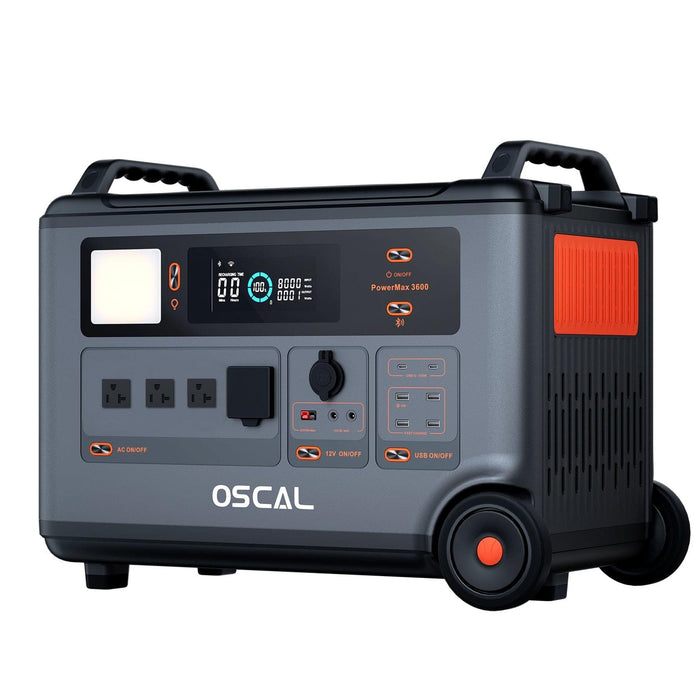

Oscal PowerMax 3600 + PM400 Solar Kit – 3000W Portable Power Station with 3600Wh Battery & 400W Foldable Solar Panel

Unlock powerful off-grid energy independence with the Oscal PowerMax 3600 + PM400 Solar Kit. Featuring a high-capacity 3600Wh LiFePO₄ power station paired with a 400W high-efficiency foldable solar panel, this complete system delivers reliable, quiet, and sustainable power for homes, RVs, worksites, and outdoor adventures. Designed for performance and portability, it’s your ultimate all-in-one backup and off-grid energy solution.

KEY FEATURES

  • Massive 3600Wh LiFePO₄ battery capacity for extended runtimes and long battery life with 3500+ charge cycles.
  • Powerful 3000W pure sine wave inverter (6000W surge) handles heavy-duty tools, appliances, and sensitive electronics.
  • Dual fast-charging support allows 80% recharge in just 1.5 hours via AC and solar input.
  • Smart touchscreen display provides real-time data on power usage, charging status, and battery health.
  • Expandable energy system supports additional BP3600 batteries for increased total capacity.
  • Integrated MPPT solar controller optimizes solar input up to 1600W for efficient recharging.

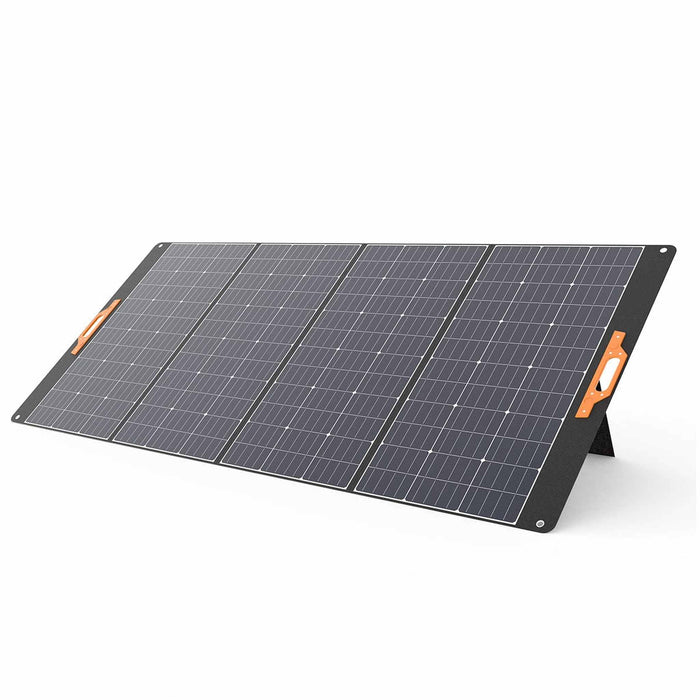

  • PM400 400W solar panel delivers up to 23% conversion efficiency for maximum power generation.
  • ETFE-laminated, IP67-rated solar design ensures weather-resistant durability in outdoor conditions.

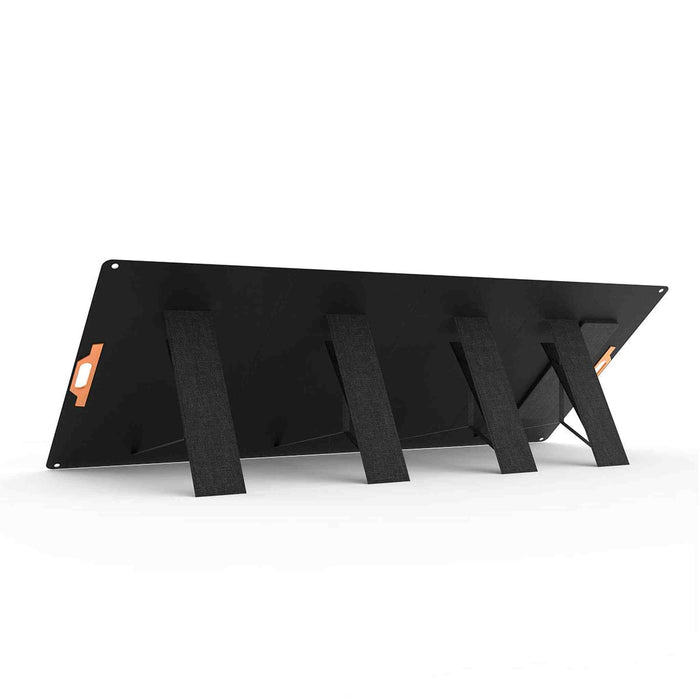

  • Foldable and portable panel construction with adjustable kickstands for easy setup and transport.
  • Comprehensive compatibility with Oscal PowerMax units and other major portable power stations.
  • Zero-emission operation with silent, eco-friendly, and maintenance-free performance.

Specifications

Category PowerMax 3600 Portable Power Station PM400 400W Foldable Solar Panel
Model PowerMax 3600 PM400
Battery Capacity 3600Wh
Battery Type LiFePO₄ (LFP)
Battery Life Cycles 3500+ cycles (to 80% capacity)
Inverter Type Pure Sine Wave
Continuous Output Power 3000W
Surge Power 6000W (EU) / 7200W (EU Internal Spec)
AC Output Ports 4 × 3600W Max
USB-A Ports 1 × 12W, 3 × 18W
USB-C Ports 2 × 100W PD
DC Outputs 1 × Anderson (378W), 2 × DC5521 (36W)
Car Port 1 × 120W (Cigarette Lighter)
AC Input Power 2200W Max (≈1.96 hrs recharge)
Solar Input Power 1600W Max (≈2.25 hrs recharge) 400W ±5%
Car Input Power 120W Max (≈30 hrs recharge)
Dual Charging AC + Solar ≈1.2 hrs / AC + Car ≈1.86 hrs
App Control WiFi + Bluetooth
Display Smart Touchscreen
UPS Function Yes (Automatic Power Backup)
MPPT Controller Built-in
Expandable Battery Supports BP3600 expansion packs
Cell Type Monocrystalline Silicon
Transformation Efficiency ≥22.7%
Maximum Power (Ppm) 400W ±5%
Maximum Power Current (Im) 10.1A ±5%
Maximum Power Voltage (Vm) 39.6V ±5%
Open Circuit Voltage (Voc) 47.52V ±5%
Short Circuit Current (Isc) 11.11A ±5%
Panel Lamination ETFE
Waterproof Rating IP67
Operating Temperature -20°C to +55°C (-4°F to 131°F) -10°C to +65°C
Charging Temperature 0°C to +50°C (32°F to 122°F)
Storage Temperature -10°C to +45°C (14°F to 113°F)
Weight 98.1 lbs (44.45 kg) 37.5 lbs ± 2.2 lbs (17 kg ± 1 kg)
Dimensions (L×W×H) 590 × 350 × 441 mm Unfolded: 41.3" × 91.9" × 1.0" / Folded: 20.9" × 39.4" × 2.5"
App Compatibility Yes (Oscal Smart Control)
Certifications CE, RED, ROHS, FCC, DOE, UL, IEC62368
Warranty 5 Years 5 Years
