Oscal | PowerMax | 3600SE 3600W Portable Power Station + 1*200W Portable Solar Panel

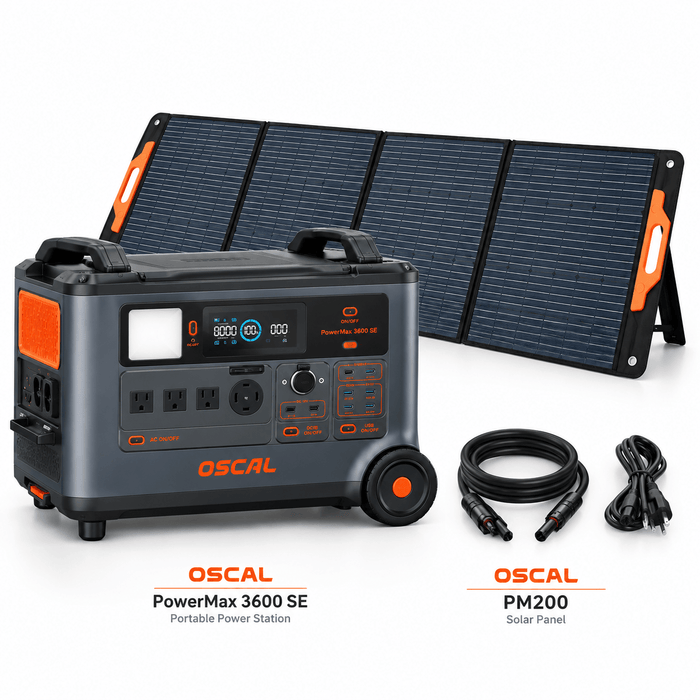

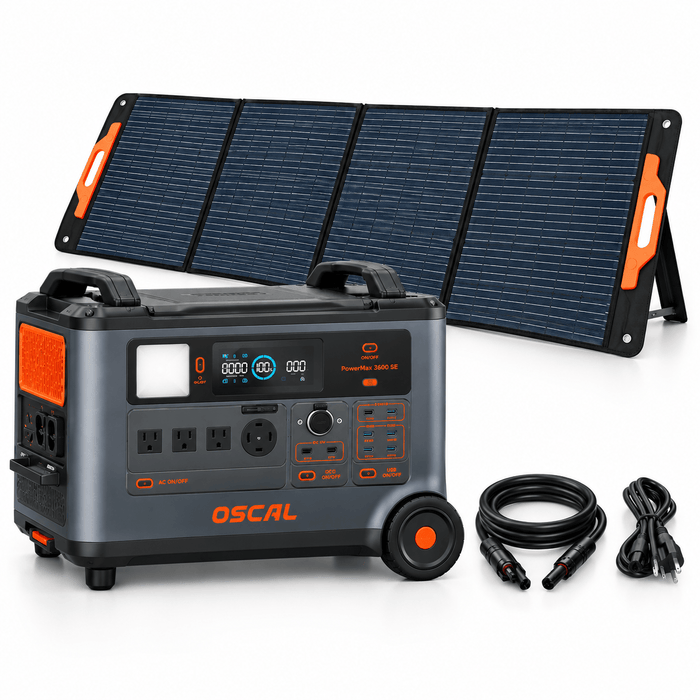

Oscal | PowerMax 3600 SE Portable Power Station + PM200 200W Portable Solar Panel
The OSCAL PowerMax 3600 SE combines a 3,600Wh LiFePO4 portable power station with a 200W PM200 folding solar panel for portable power and solar charging. The power station provides up to 3,600W pure sine wave AC output, 4,500W surge power, 2,400W maximum solar input, and multiple AC, USB, DC, and vehicle outputs. The PM200 uses monocrystalline solar cells with up to 23% conversion efficiency and an IP67-rated design.
KEY FEATURES
- 3600Wh High-Capacity Backup Power — Ideal for home outages, camping, RV use, outdoor work, and emergency situations.
- 3600W Pure Sine Wave Output — Supports high‑power appliances and sensitive electronics with stable, reliable performance.
- 14 Versatile Output Ports — AC, USB‑C, USB‑A, DC, and car outlets for powering multiple devices at once.
- Fast Multi‑Method Recharging — AC, solar, car, and dual charging options reduce downtime and keep power ready when needed.
- LiFePO4 Battery Technology — Long cycle life, enhanced safety, and dependable long‑term durability.
- UPS Function + Smart App Control — 5–8ms switching protects essential devices; monitor and control via WiFi/Bluetooth.
- Rugged Indoor/Outdoor Build — Drop‑resistant, splash‑resistant, and dust‑resistant design for tough environments.
- Portable High‑Capacity Power — Suitable for home backup, travel, creative work, and emergency preparedness.
Specifications

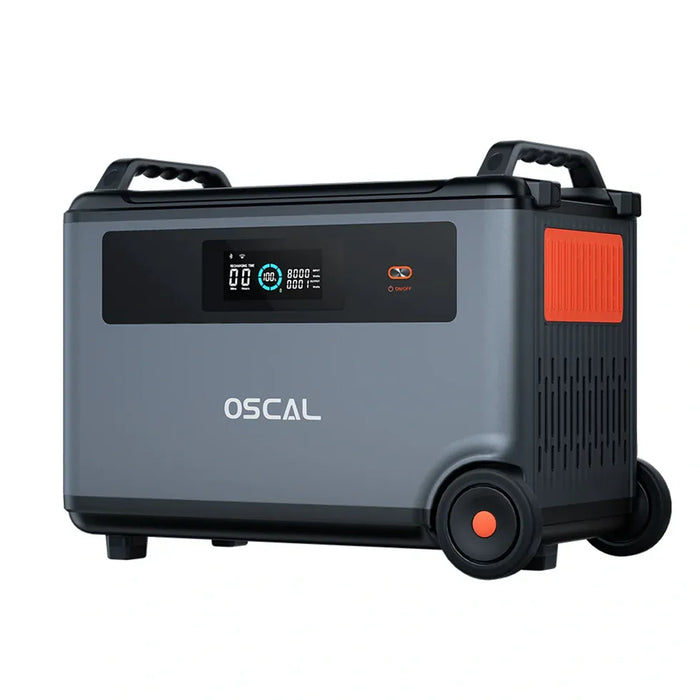

| PowerMax 3600 SE Specs | |
|---|---|
| Battery | |
| Battery Capacity | 3600 Wh |
| Battery Type | LFP (LiFePO4) |
| Battery Life Cycles | 3500+ cycles to 80% capacity |
| Output | |
| AC Output | 3600W Max |
| Inverter Type | Pure Sine Wave |
| Surge Power | 4500W |
| USB-C Ports | 100W × 2 |
| USB-A Ports | 12W × 1, 18W × 3 |
| DC Output | Anderson 378W × 1, DC5521 120W × 2 |
| Cigarette Lighter Port | 120W × 1 |
| AC Adapter Input | 2300W Max (1.96h recharge) |
| Solar Input | 2400W Max (2.25h recharge) |
| Car Input | 120W Max (30h recharge) |
| Dual Charging | AC + Solar: 1.2h AC + Car: 1.86h |
| General | |
| Weight | 98.10 lbs (44.45 kg) |
| Dimensions (L×W×H) | 590 × 350 × 441 mm |
| Charging Temperature | 0°C–50°C (Best: 0°C–45°C) |
| Discharging Temperature | –20°C–55°C (Best: –10°C–45°C) |
| Storage Temperature | –10°C–45°C |
| App Control | WiFi + Bluetooth |
| Certification | CE / RED / ROHS (EU) PSE / METI / IEC (Japan) FCC / DOE / CEC / UL (USA) IEC62368 (South Africa) |
| Warranty | 5 Years |
| In the Box | PowerMax 3600 User Manual + Warranty Card AC Charging Cable Car Charging Cable Solar Charging Cable |

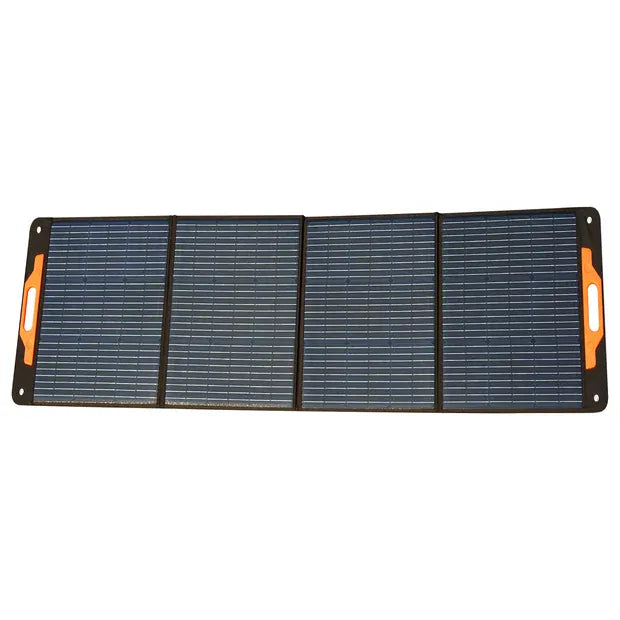

| PM200 Solar Panel Specs | |
|---|---|
| Panel Info | |
| Power | 200W |
| Cell Lamination | ETFE |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | ≥21.7% |
| MPPT Efficiency | Up to 95% |
| Open Circuit Voltage | 25.2V |
| Short Circuit Current | 11.42A |
| General | |
| Operating Temperature | –10°C to 65°C (14°F–149°F) |
| Weight | 7 kg / 15.43 lbs |
| Dimensions (Unfolded) | 53.6 × 235 cm |
| Dimensions (Folded) | 53.6 × 61.8 cm |
| Warranty | 5 Years |
