Oscal | PowerMax | 3600SE 3600W Portable Power Station + 1*400W Portable Solar Panel

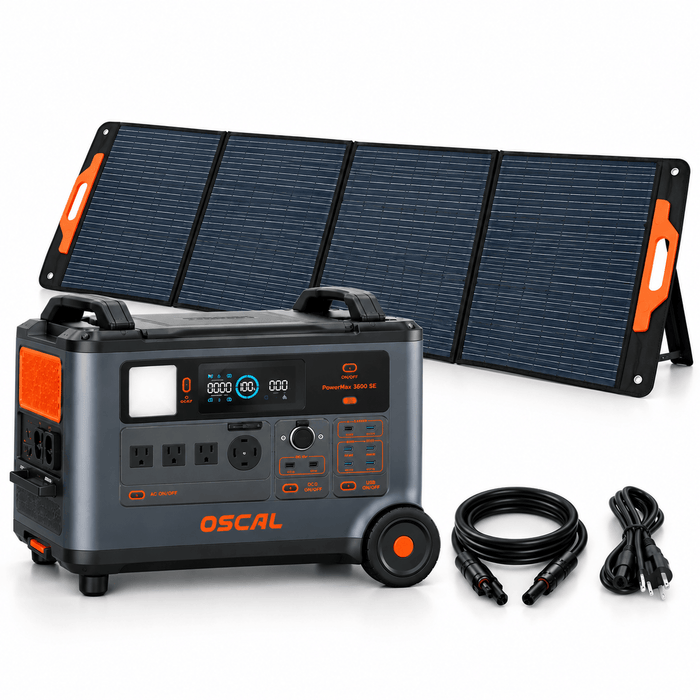

Oscal | PowerMax 3600 SE Portable Power Station + PM400 Pro 400W Portable Solar Panel
OSCAL PowerMax 3600 SE combines a 3,600Wh LiFePO4 battery with 3,600W pure sine wave AC output and 4,500W surge power. The included PM400 Pro provides up to 400W solar power with ≥23% cell efficiency, monocrystalline cells, ETFE coating, IP67 protection, adjustable positioning, and MC4 connectors. The PowerMax 3600 SE supports AC, solar, vehicle, and dual charging, plus Wi-Fi/Bluetooth app control and UPS functionality.
KEY FEATURES
- 23% High Solar Conversion (Up to 1.5× Faster Charging) — PM400 Pro uses high‑efficiency monocrystalline cells and optimized light absorption to deliver faster, more effective solar charging.
- 4 Adjustable Tilt Angles for Maximum Sun Capture — Choose from 30°/40°/50°/80° to maintain ideal positioning year‑round, ensuring consistent solar performance anywhere.
- IP67 Waterproof & Adventure‑Ready — Built to withstand rain, dust, and splashes, the PM400 Pro stays reliable in outdoor environments and unpredictable weather.
- Portable, Foldable & Travel‑Friendly — The PM400 Pro folds quickly and weighs only 22.1 kg, making transport and storage easy for mobile or off‑grid setups.
- High‑Performance MC4 Connectors — Ensures stable, efficient power transfer with superior conductivity and reduced energy loss compared to XT‑60 connectors.

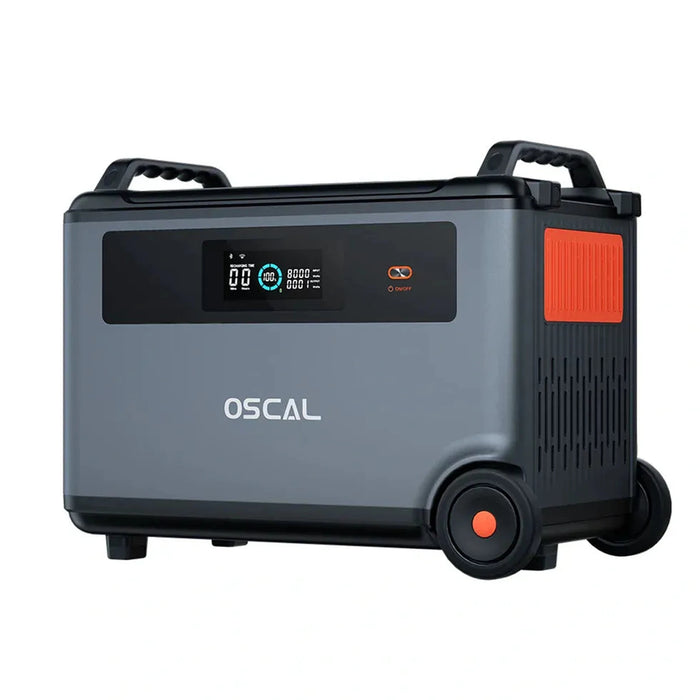

- 3600Wh Large-Capacity Backup Power — PowerMax 3600 SE provides dependable energy for home outages, camping, RV trips, outdoor work, and emergency use.
- 3600W Pure Sine Wave Output — Safely powers high‑load appliances and sensitive electronics with stable, clean energy.
- 14 Multi‑Device Output Ports — Includes AC, USB‑C, USB‑A, DC, and car outlets to run or charge multiple devices simultaneously.
- Fast Multi‑Method Recharging — Supports AC, solar, car, and dual charging to minimize downtime and keep power ready when needed.
- Long‑Life LiFePO4 Battery — Offers enhanced safety, long cycle life, and reliable long‑term performance compared to traditional battery types.
- UPS Function + Smart App Control — 5–8ms switching protects essential devices; WiFi/Bluetooth app control provides easy monitoring and management.
- Rugged Indoor/Outdoor Durability — Built with drop resistance, splash protection, dust resistance, and a tough outer shell for demanding environments.
- Portable High‑Capacity Power Anywhere — Ideal for home backup, travel, creative work, camping, and emergency preparedness.
Specifications
| PowerMax 3600 SE Specs | |
|---|---|
| Battery | |
| Battery Capacity | 3600 Wh |
| Battery Type | LFP (LiFePO4) |
| Battery Life Cycles | 3500+ cycles to 80% capacity |
| AC Output | 3600W (Max) |
| Inverter Type | Pure Sine Wave |
| Surge Power | 4500W |
| Output | |
| USB-C Ports | 100W × 2 |
| USB-A Ports | 12W × 1, 18W × 3 |
| DC Output | Anderson 378W × 1, DC5521 120W × 2 |
| Cigarette Lighter Port | 120W × 1 |
| AC Adapter Input | 2300W Max (1.96h recharge) |
| Solar Input | 2400W Max (2.25h recharge) |
| Car Input | 120W Max (30h recharge) |
| Dual Charging |
AC + Solar: 1.2h AC + Car: 1.86h |
| General | |
| Weight | 98.10 lbs (44.45 kg) |
| Dimensions (L×W×H) | 590 × 350 × 441 mm |
| Charging Temperature | 0°C–50°C (Best: 0°C–45°C) |
| Discharging Temperature | –20°C–55°C (Best: –10°C–45°C) |
| Storage Temperature | –10°C–45°C |
| App Control | WiFi + Bluetooth |
| Certification |
CE / RED / ROHS (EU) PSE / METI / IEC (Japan) FCC / DOE / CEC / UL (USA) IEC62368 (South Africa) |
| Warranty | 5 Years |
| In the Box |
PowerMax 3600 User Manual + Warranty Card AC Charging Cable Car Charging Cable Solar Charging Cable |

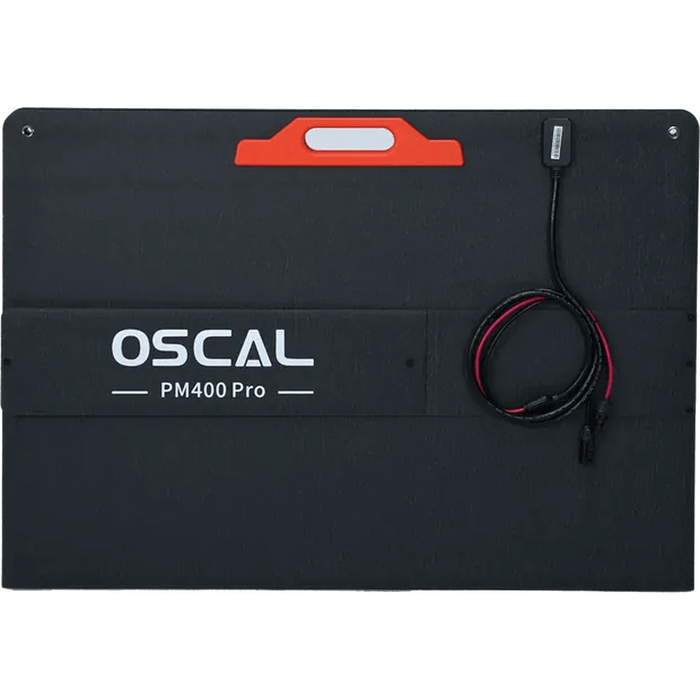

| OSCAL PM400 Pro Solar Panel Specs | |
|---|---|
| Panel Info | |
| Peak Power | 400W |
| Coating Material | ETFE |
| Solar Cell Material | Monocrystalline Silicone |
| Cell Efficiency | ≥23% |
| Rated Voltage | 36V |
| Rated Current | 11.1A |
| Open Circuit Voltage | 43.2V |
| Short Circuit Current | 13.9A |
| General | |
| Operating Temperature Range | –10°C to +65°C |
| Waterproof Level | IP67 |
| Folded Dimensions | 959 × 679 × 50 mm |
| Unfolded Dimensions | 2554 × 959 × 21 mm |
| Item Weight | 22.1 kg |
