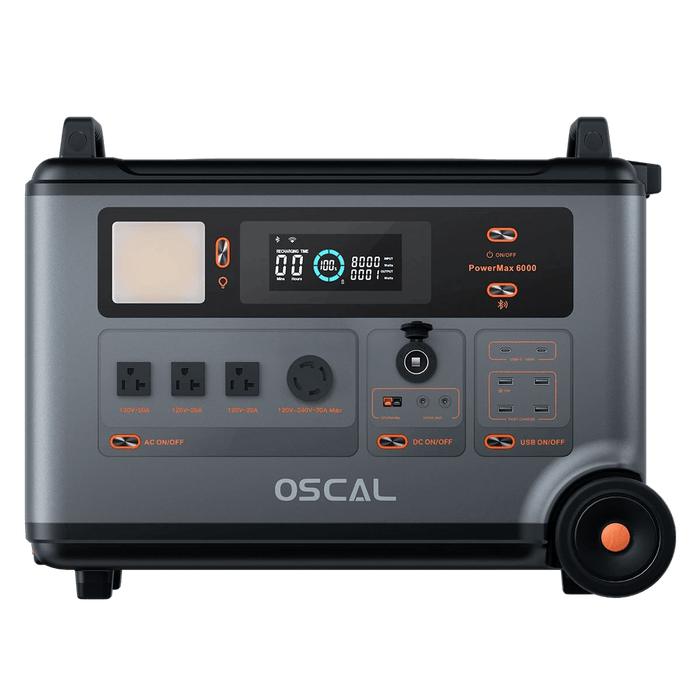

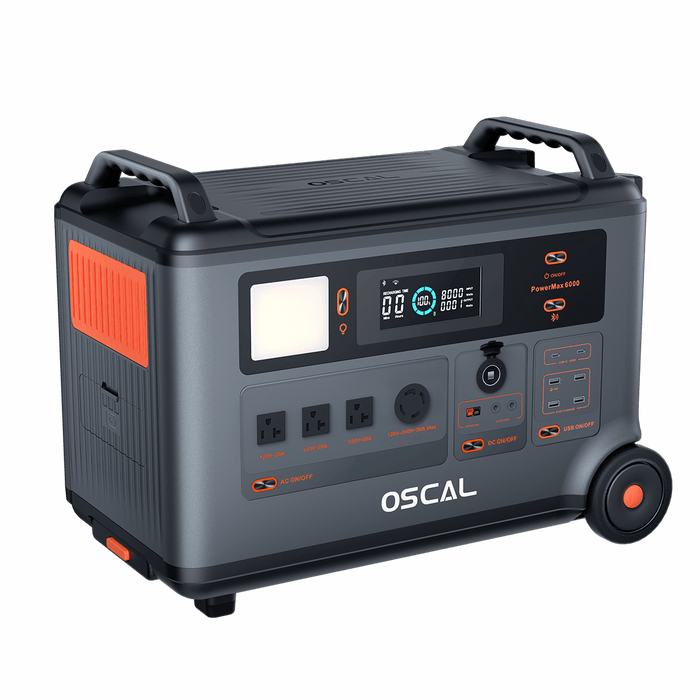

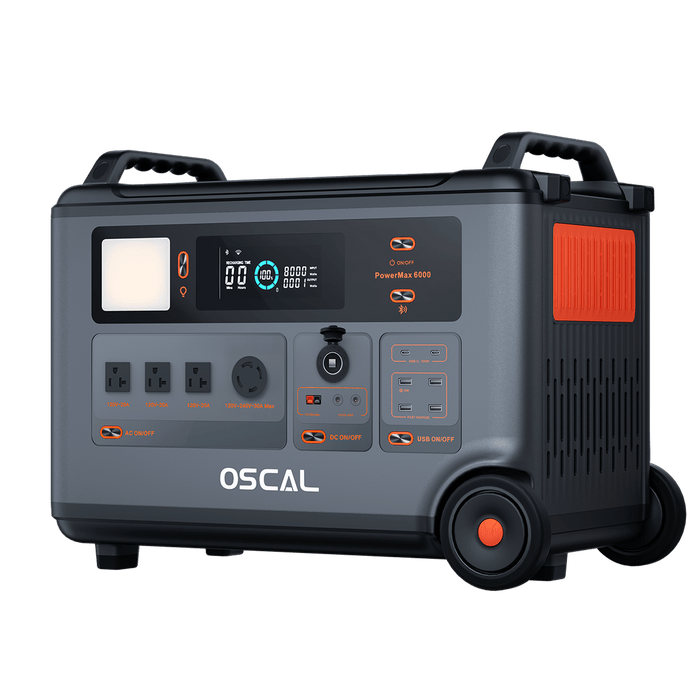

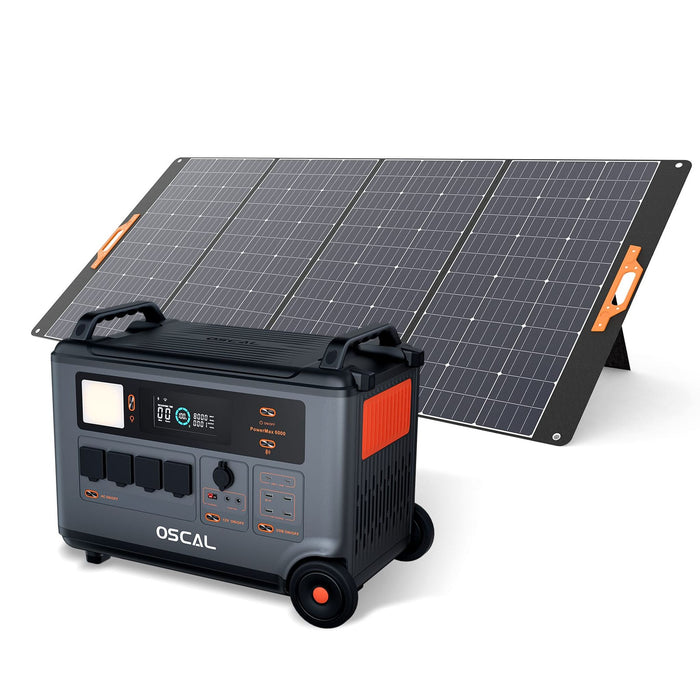

Oscal | PowerMax 6000 Portable Power Station + 400W Portable Solar Panel

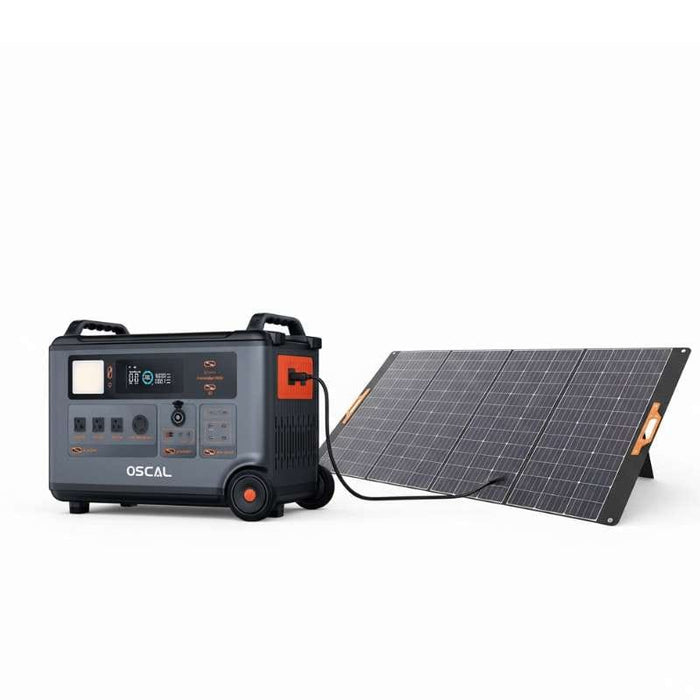

Oscal | PowerMax 6000 + PM400 Solar Kit – 6000W Dual Voltage Power Station with 400W High-Efficiency Solar Panel

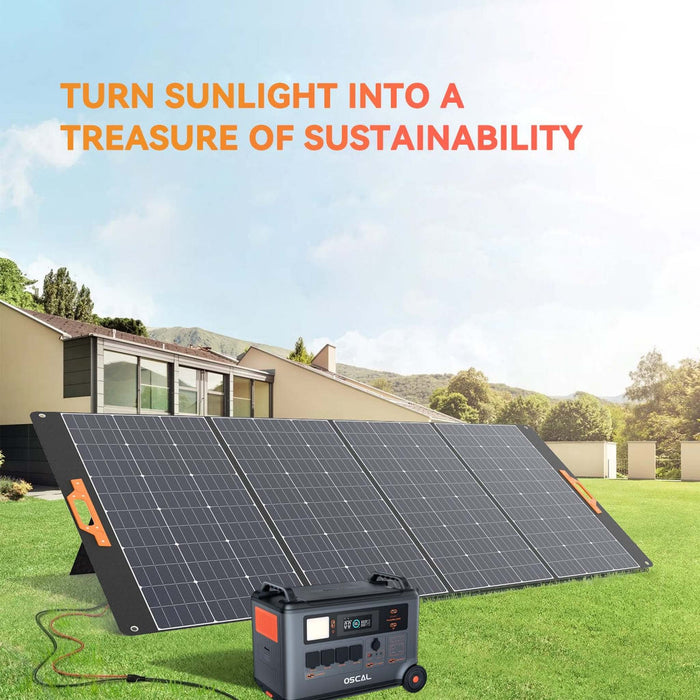

Experience true off-grid power independence with the Oscal PowerMax 6000 + PM400 Solar Kit, a high-performance energy system built for home backup, RVs, and outdoor adventures. Combining a powerful 6000W dual-voltage portable power station with a rugged 400W foldable solar panel, this kit delivers reliable, renewable energy anywhere. With ultra-fast charging, 3600Wh LiFePO4 capacity, and up to 23% solar efficiency, it’s engineered for those who need dependable power—on or off the grid.
KEY FEATURES
-
Massive 3600Wh LiFePO4 battery capacity
Provides long-lasting, stable energy with over 3500 life cycles to 80% capacity—built for heavy-duty performance and safety. -
6000W dual-voltage AC output (120V/240V)
Powers large home appliances, power tools, and electric vehicles simultaneously with 9000W surge protection. -
Ultra-fast hybrid charging
Recharge in as little as 1.2 hours using AC + solar dual input for continuous, efficient power availability. -

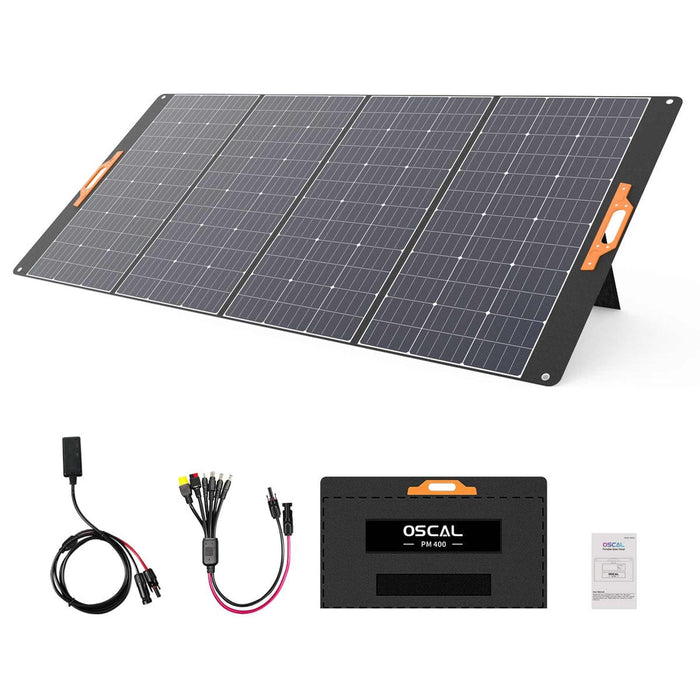

High-efficiency 400W solar panel
Premium monocrystalline cells achieve up to 23% conversion efficiency—ideal for fast and consistent solar charging. -

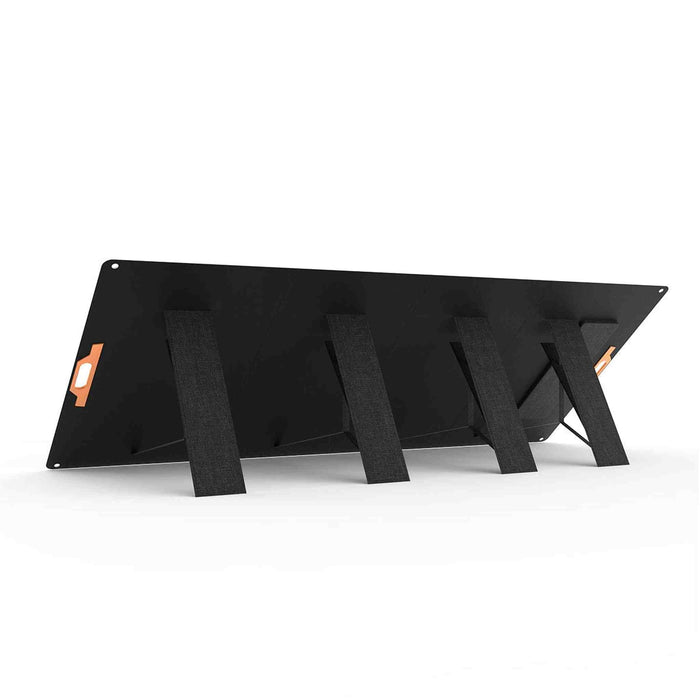

Durable, foldable, and weather-resistant design
PM400 features IP67 ETFE coating for dust and water protection, ensuring reliability in all environments. -
Smart control and monitoring
WiFi and Bluetooth connectivity with touchscreen interface for real-time tracking of input/output, battery status, and power usage. -
Expandable modular system
Supports Oscal BP3600/BP6000 expansion batteries to scale up energy capacity for long-term or industrial needs. -
Multi-device versatility
Includes 16 output ports—AC, USB-C PD, USB-A, DC, and 12V car outlets—to power everything from smartphones to refrigerators. -
Clean, quiet, and emission-free operation
Delivers efficient, eco-friendly power with zero noise or fumes—perfect for indoor and outdoor use.
Specifications
Category | PowerMax 6000 Portable Power Station | PM400 Portable Solar Panel |
---|---|---|
Model | PowerMax 6000 | PM400 |
Battery Capacity | 3600Wh | — |
Battery Type | LiFePO4 (LFP) | Monocrystalline Silicon |
Battery Life Cycles | 3500+ cycles (to 80% capacity) | — |
AC Output | 4 × AC Outlets (Total 6000W) | — |
Surge Power | 9000W (5ms) | — |
Voltage Output | 120V / 240V Dual Voltage | 39.6V ± 5% (Vm) |
USB-A Output | 1 × 12W, 3 × 18W | — |
USB-C Output | 2 × 100W PD | — |
DC Output | 1 × Anderson 378W, 2 × DC5521 36W | — |
Car Port | 12V / 10A (120W) | — |
AC Input | 2200W Max (Recharge ≈ 1.96H) | — |
Solar Input | 2400W Max (Recharge ≈ 1.5H) | 400W ± 5% |
Dual Charging | AC + Solar (≈ 1.2H total) | — |
Maximum Power Current (Im) | — | 10.1A ± 5% |
Maximum Power Voltage (Vm) | — | 39.6V ± 5% |
Open Circuit Voltage (Voc) | — | 47.52V ± 5% |
Short Circuit Current (Isc) | — | 11.11A ± 5% |
Transformation Efficiency | — | ≥22.7% |
Cell Lamination | — | ETFE |
Conversion Efficiency | — | Up to 23% |
Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) | -10°C ~ 65°C |
Weight | 101.41 lbs (46 kg) | 37.5 lbs ± 2.2 lbs (17 kg ± 1 kg) |
Dimensions (L×W×H) | 590 × 350 × 441 mm | Unfolded: 41.3" × 91.9" × 1.0" Folded: 20.9" × 39.4" × 2.5" |
App Control | Yes (WiFi + Bluetooth) | — |
Weather Resistance | — | IP67 Rated |
Certifications | CE, RED, ROHS, FCC, DOE, CEC, UL, IEC62368 | — |
Warranty | 5 Years | — |
