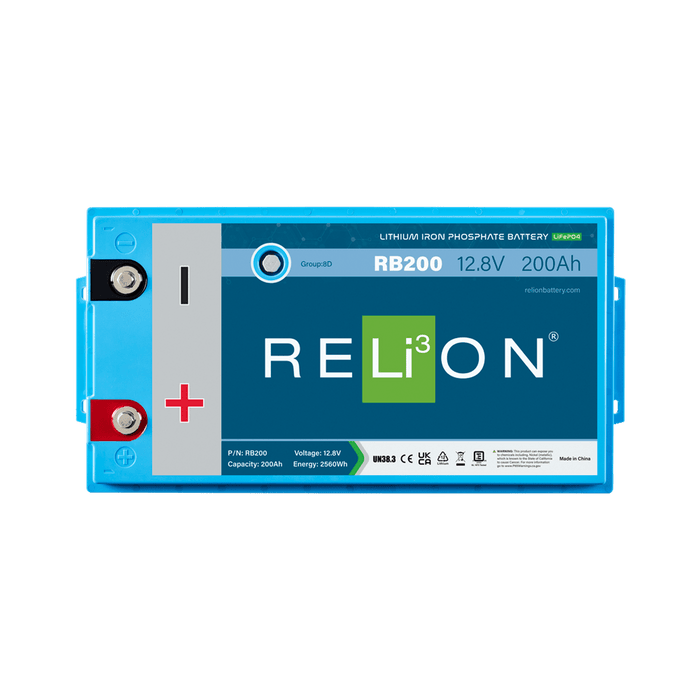

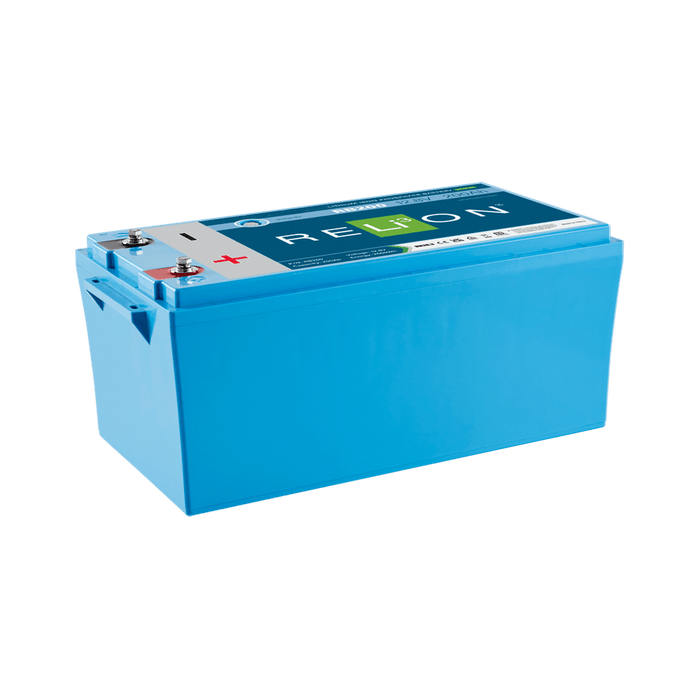

RELiON | RB200 12V 200Ah Deep Cycle Lithium Battery – Group 8D
RB200 12V 200Ah Deep Cycle Lithium Battery – Group 8D
The RB200 12V 200Ah Group 8D Deep Cycle Lithium Battery delivers long-lasting power and exceptional performance for marine, RV, off-grid, and solar applications. Built with advanced LiFePO4 technology, it provides superior cycle life, high energy capacity, and consistent voltage output. Designed for demanding environments, it is lightweight, maintenance-free, and equipped with a robust Battery Management System for optimal safety and reliability.
KEY FEATURES
- High capacity for extended runtime in large-scale energy systems
- Long cycle life with thousands of charge/discharge cycles
- Consistent voltage output for reliable performance
- Integrated Battery Management System for safety and protection
- Lightweight construction compared to lead-acid batteries
- Maintenance-free design for hassle-free operation
- Shock and vibration resistant for rugged applications
- Eco-friendly LiFePO4 chemistry with no hazardous materials
Specification
Electrical Specifications
- Nominal voltage: 12.8V
- Capacity: 200Ah
- Energy: 2560Wh
- Chemistry: Lithium Iron Phosphate (LiFePO4)
- Cycle life: 3500+ cycles at 80% depth of discharge
- Self-discharge: <3% per month
Discharge Specifications
- Max continuous discharge current: 200A
- Peak discharge current: 400A (7.5 ± 2.5 s)
Charge Specifications
- Recommended charge voltage: 14.2V – 14.6V
- Max charge current: 100A
Temperature Specifications
- Operating temperature (discharge): -4°F to 140°F (-20°C to 60°C)
- Operating temperature (charge): 32°F to 113°F (0°C to 45°C)
Mechanical Specifications
- Weight: 59.5 lbs (27 kg)
- Dimensions: Group 8D standard size (L x W x H)
- Terminal type: M8 bolt
- Waterproof rating: IP67
Compliance & Certifications
- CE, UKCA
- UN38.3 (battery)
- UL1642 (cells)
- IEC62133 (cells)
