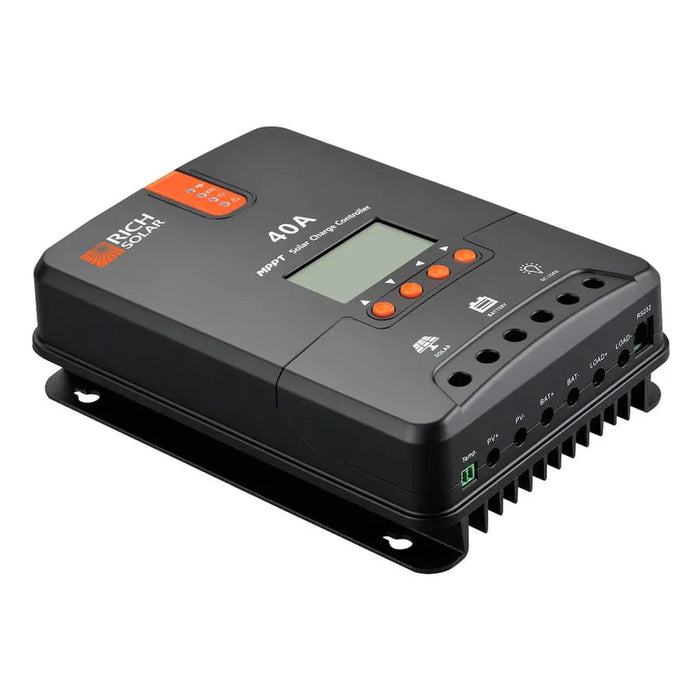

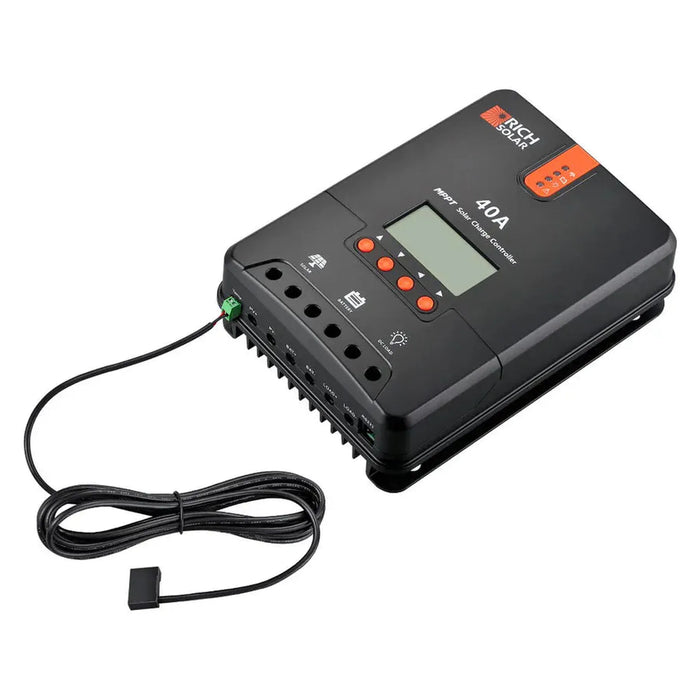

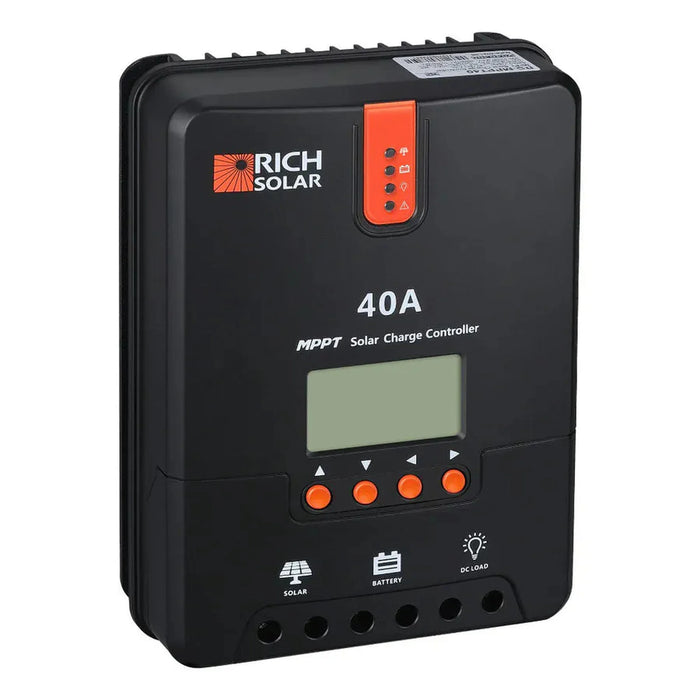

Rich Solar | 40 Amp MPPT Solar Charge Controller
Rich Solar | 40 Amp MPPT Solar Charge Controller
The Rich Solar 40 Amp MPPT Solar Charge Controller is a high-efficiency solar charging solution designed to maximize energy harvest from your solar panels while protecting your battery system. Using advanced MPPT technology, it continuously tracks the optimal power point to ensure faster charging, improved efficiency, and stable battery performance. Ideal for RVs, cabins, boats, and off-grid solar systems, it supports multiple battery types and delivers reliable protection for long-term solar energy use.
KEY FEATURES
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.

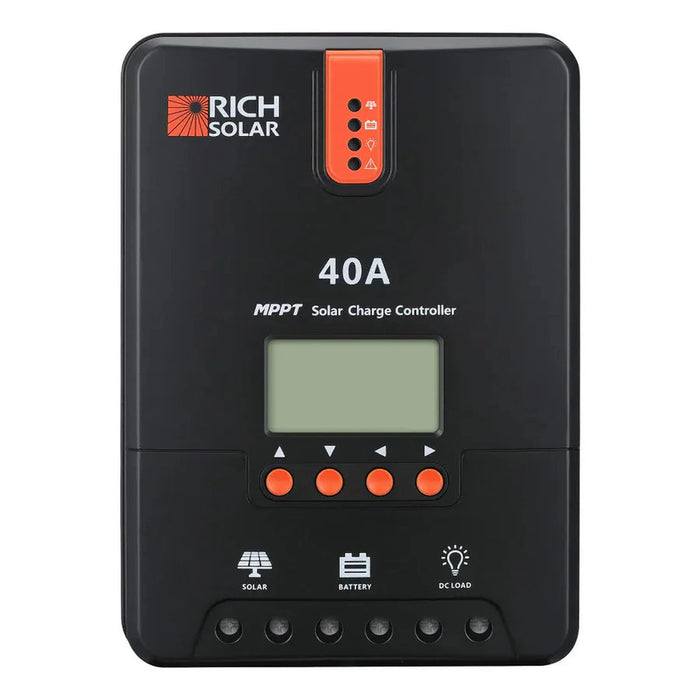

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.

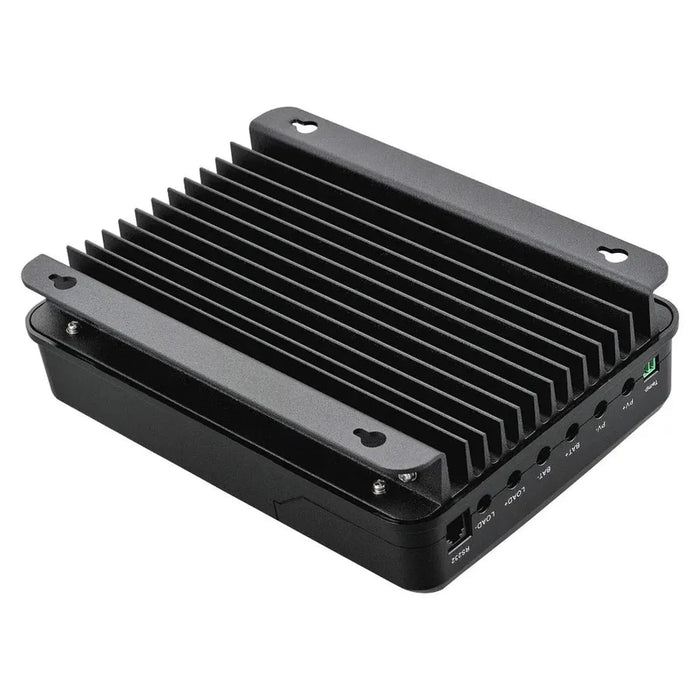

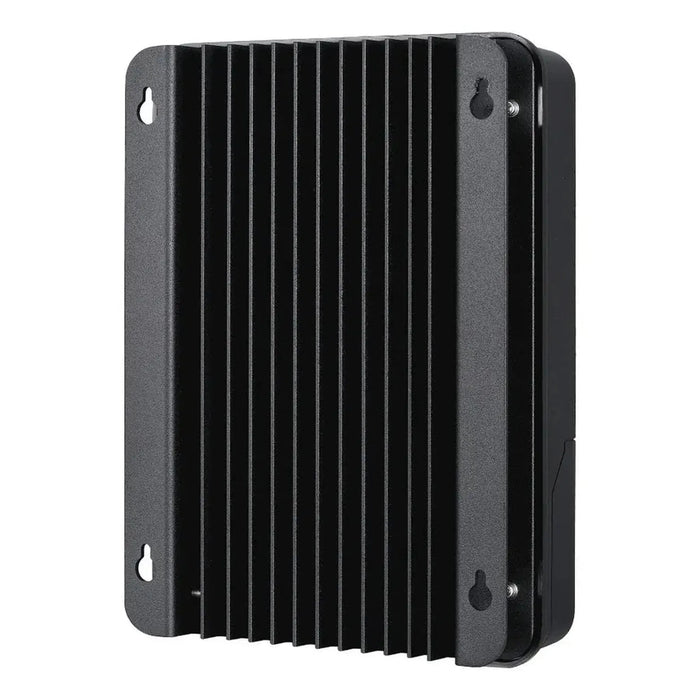

- Die-cast aluminum design allows for efficient heat dissipation.

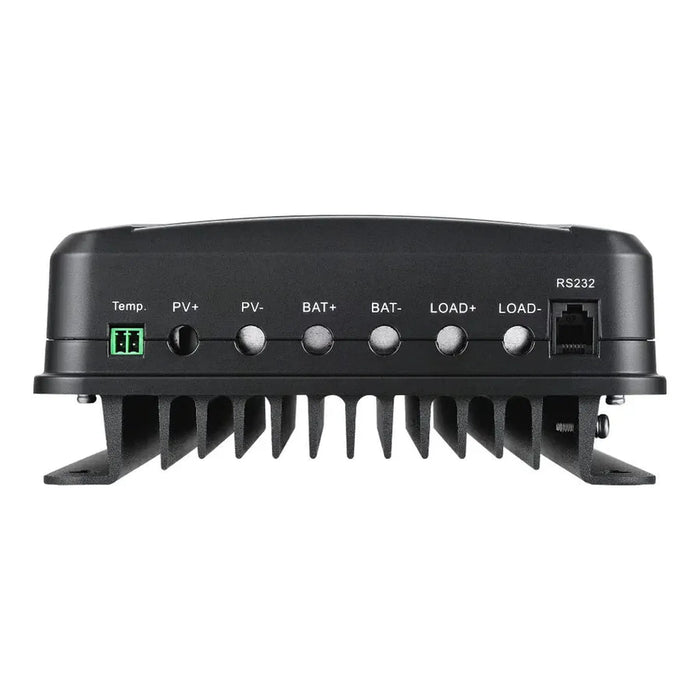

- RS232 port to communicate with BT-1 Bluetooth module.
Specifications
- Rated Battery Current: 40A
- Rated Load Current: 20A
- Max. PV Input Short Current: 50A
- Max. Battery Voltage: 32V
- Max Solar Input Voltage: 100VDC
- Charge Circuit Voltage Drop: ≤0.26V
- Discharge Circuit Voltage Drop: ≤0.15V
- Working Temperature: -31°F to +113°F
- Max Terminal Size: 8AWG
- Rated Load Current: 10% to 90% NC
- Overall Dimensions: 9.37 x 6.81 x 2.85 in
- Net Weight: 4.41 lb
