Rich Solar | 50 Watt Solar Kit | 50W Panel + 20A MPPT Controller + Wiring & Mounting Brackets
Rich Solar | 50 Watt Solar Kit | 50W Panel + 20A MPPT Controller + Wiring & Mounting Brackets
Power small devices and maintain batteries with the Rich Solar 50 Watt Solar Kit, designed for simple DIY installation and dependable off-grid performance. This compact system includes a high-efficiency 50W solar panel, a 20A MPPT charge controller, wiring, and mounting brackets—everything you need to set up a reliable solar power source for RVs, boats, sheds, and remote equipment.
KEY FEATURES
MEGA 50 Watt Solar Panel
- 12V off-grid solar panel.
- 0~+5W guaranteed positive power output.
- IP67 rated.
- Built with strong tempered glass and an aluminum frame.
- Certified to withstand challenging environmental conditions.
20 Amp MPPT Solar Charge Controller
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency of up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries
- Die-cast aluminum design allows for efficient heat dissipation
- RS232 port to communicate with BT-1 Bluetooth module

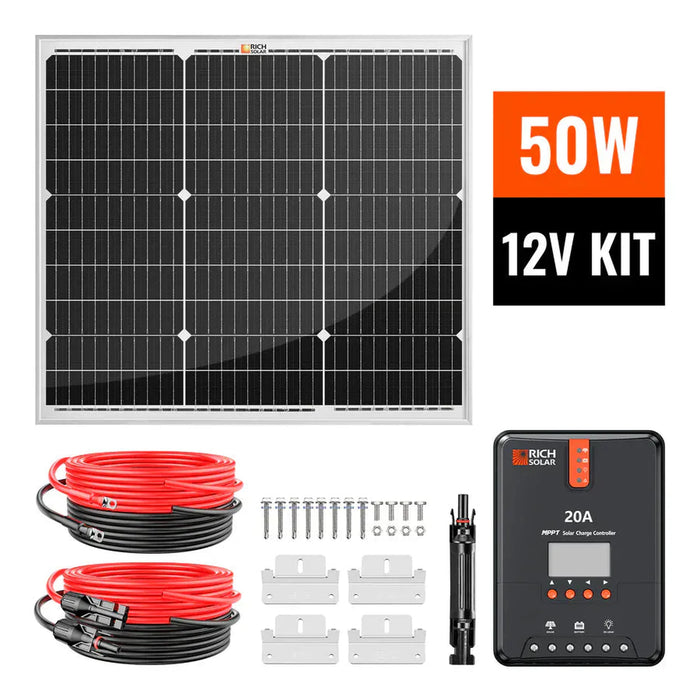

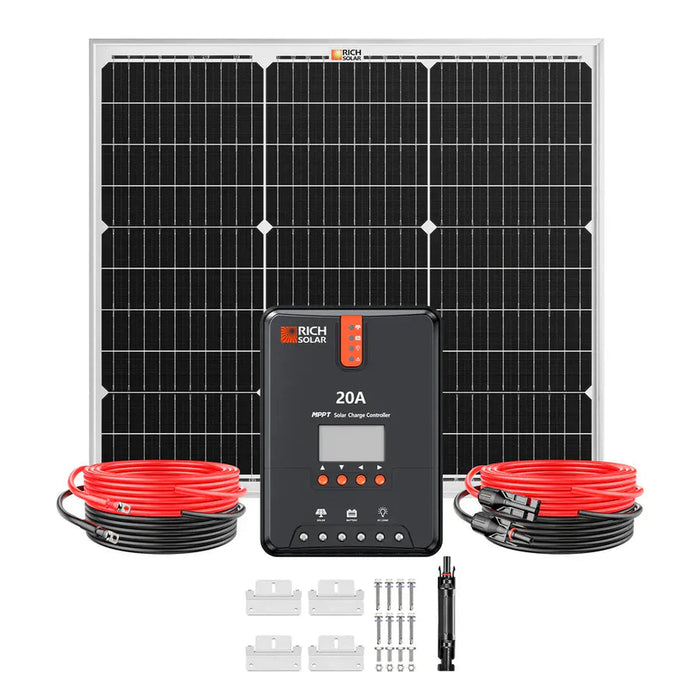

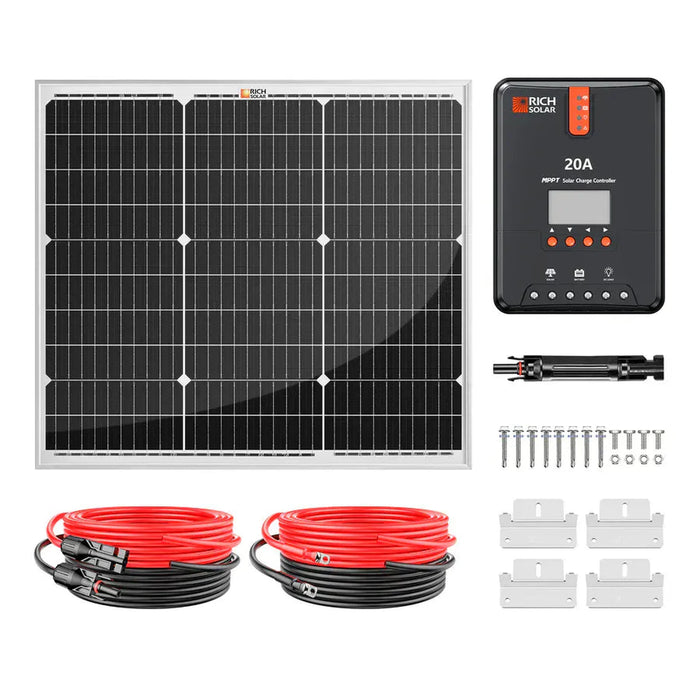

Kit includes:
- 1 x 50 Watt Monocrystalline Solar Panel
- 1 x 20A MPPT Solar Charge Controller
- 1 x 20' #10 Gauge Solar Cable (Red), connects the solar panel to the controller
- 1 x 20' #10 Gauge Solar Cable (Black), connects the solar panel to the controller
- 1 x 10' #10 Gauge Battery Cable (Red), connects controller to battery
- 1 x 10' #10 Gauge Battery Cable (Black), connects controller to battery
- 1 x Mounting Z Brackets (one set)
- 1 x 10A Inline Fuse Holder with Fuse
Specifications
| Category | MEGA 50W Solar Panel | 20A MPPT Solar Charge Controller |
|---|---|---|
| Warranty | 25-year power output; 10-year workmanship | 2-year warranty |
| Nominal System Voltage | — | 12V / 24V (Auto Recognition) |
| Maximum Power (Pmax) | 50W | — |
| Maximum Power Voltage (Vmp) | 17.6V | — |
| Maximum Power Current (Imp) | 2.84A | — |
| Open Circuit Voltage (Voc) | 20.8V | — |
| Short Circuit Current (Isc) | 3.13A | — |
| Maximum System Voltage (Vmax) | 1000VDC | Max Solar Input Voltage: 100VDC |
| Maximum Series Fuse Rating | 10A | Max PV Input Short Circuit Current: 25A |
| Rated Battery Current | — | 20A |
| Rated Load Current | — | 20A |
| Max Battery Voltage | — | 32V |
| Discharge Circuit Voltage Drop | — | ≤0.15V |
| Weight | 8 lb | 3.08 lb |
| Dimensions | 22.8 × 20.5 × 1.2 in | 8.27 × 5.94 × 2.34 in |
