Rich Solar | 800W Solar Kit for Off-Grid and Backup Power Systems

The Rich Solar 800W Solar Kit provides a complete solution for generating reliable off-grid power. Designed for RVs, cabins, and backup energy systems, it delivers strong solar output to charge batteries efficiently and support essential appliances. With high-quality components and easy integration, this kit simplifies installation while ensuring consistent performance and long-term energy independence.

KEY FEATURES

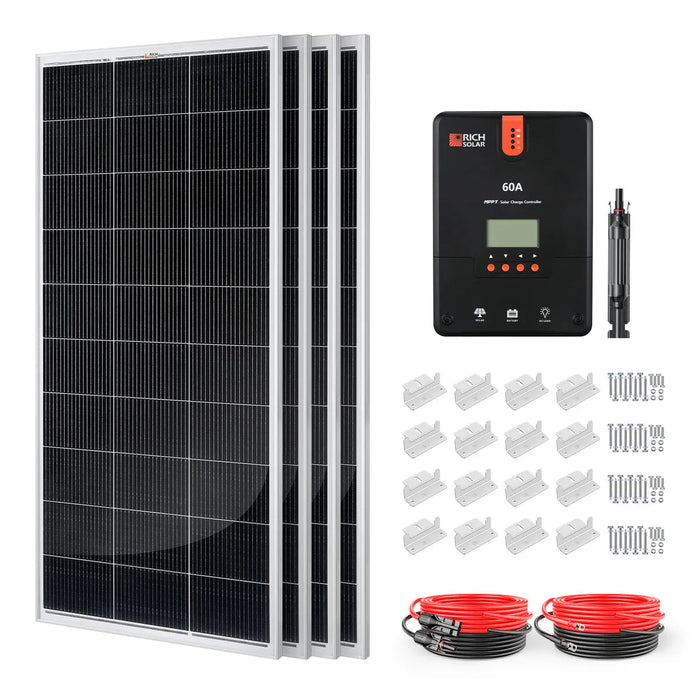

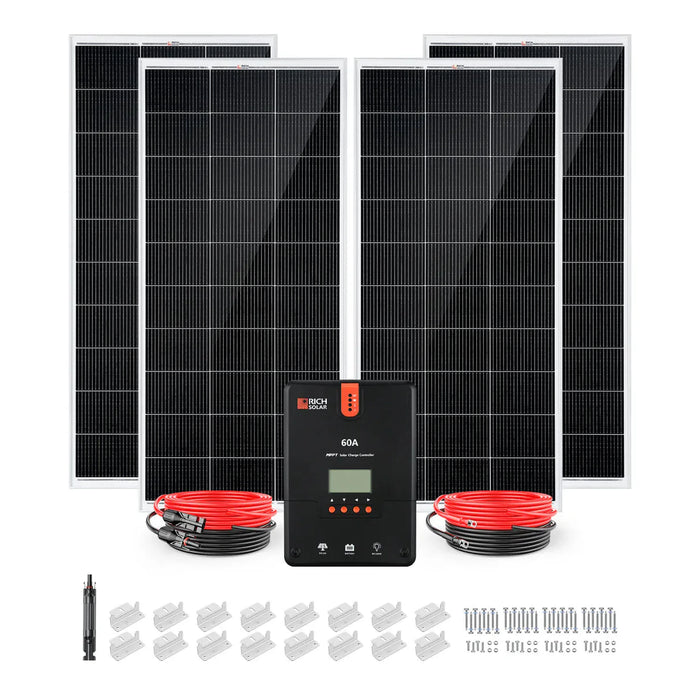

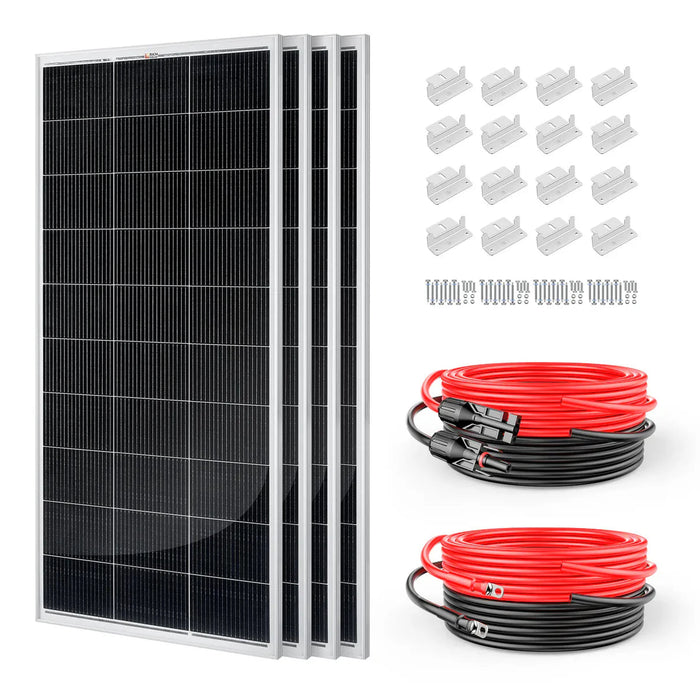

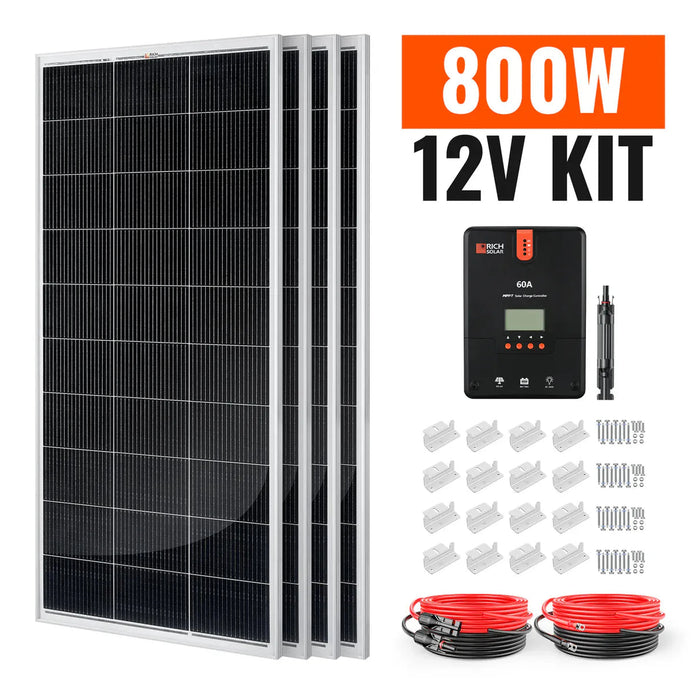

No. of Panels: 4 x MEGA 200 Watt Solar Panels
Wattage Per Panel: 200W
Total Wattage of Panels: 800W

    • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
    • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
    • 25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
  • Compatible with on-grid and off-grid inverters

Warranty:

  • Maximum Power(Pmax): 200W
  • Maximum Power Voltage(Vmp): 18.4V
  • Maximum Power Current(Imp): 10.9A
  • Open Circuit Voltage(Voc): 21.8V
  • Short Circuit Current(Isc): 11.6A
  • Temperature Range: -40 ~ +185°F
  • Maximum Series Fuse Rating: 15A
  • Weight: 24 lb
  • Dimensions: 58.7 x 26.8 x 1.2 in

60 Amp MPPT Solar Charge Controller

    • Automatically detects 12V/24V/36V/48V DC system voltages.
    • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
    • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
    • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
    • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
    • Features diverse load control; also capable of charging over-discharged lithium batteries.
    • Die-cast aluminum design allows for efficient heat dissipation.
    • RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

  • 2-Year Warranty

Specifications

  • Rated Battery Current: 60A
  • Rated Load Current: 20A
  • Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
  • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
  • Charge Circuit Voltage Drop: ≤0.26V
  • Discharge Circuit Voltage Drop: ≤0.15V
  • Operating Temperature: -31°F to 113°F
  • Max Terminal Size: <11mm
  • Overall Dimensions: 11.2 x 8.1 x 3.7 in
  • Net Weight: 7.94 lb
