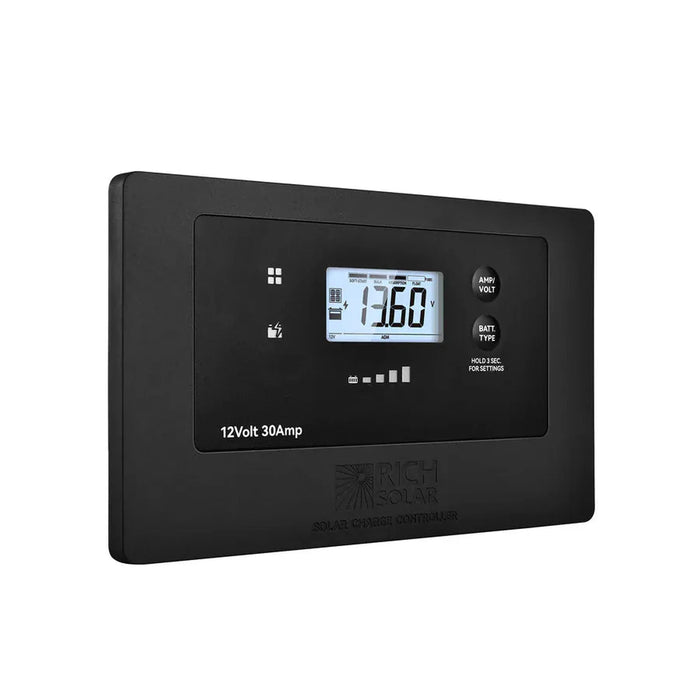

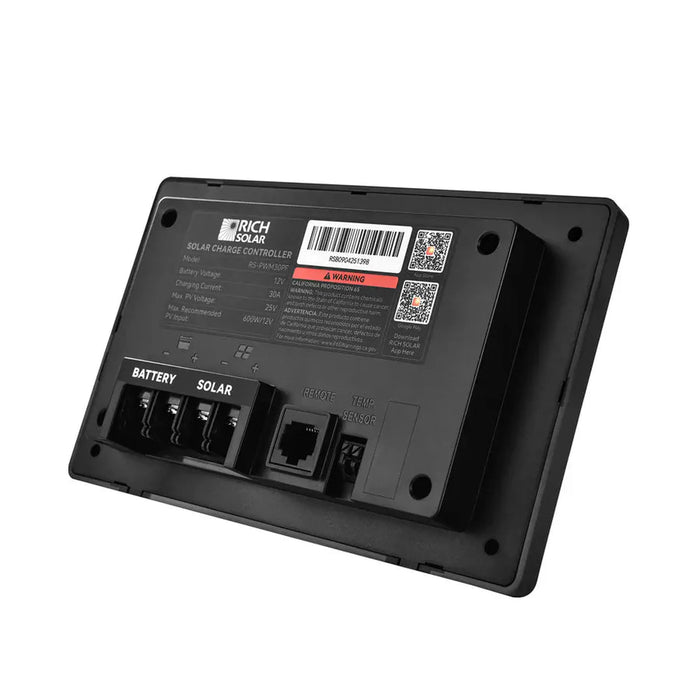

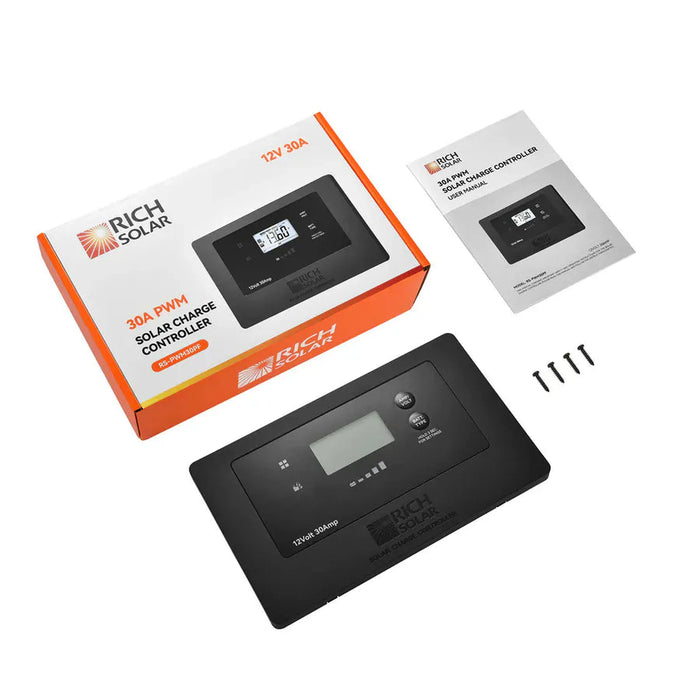

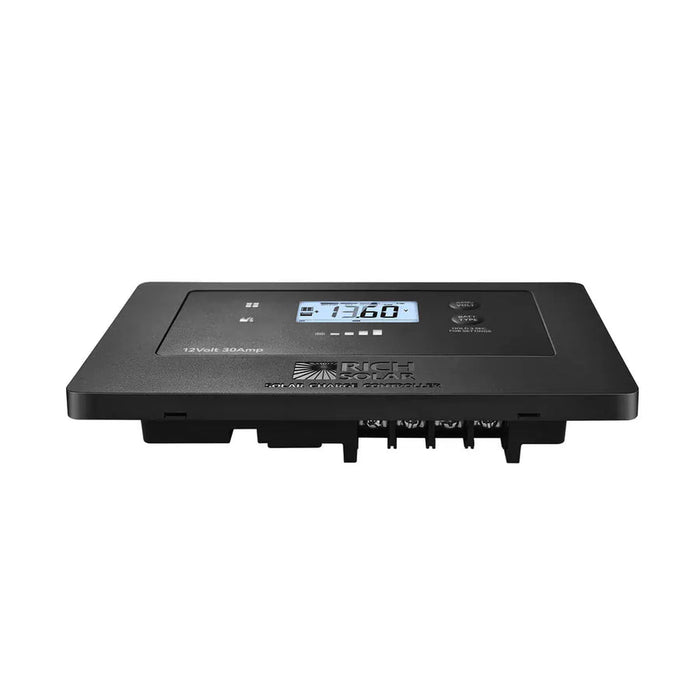

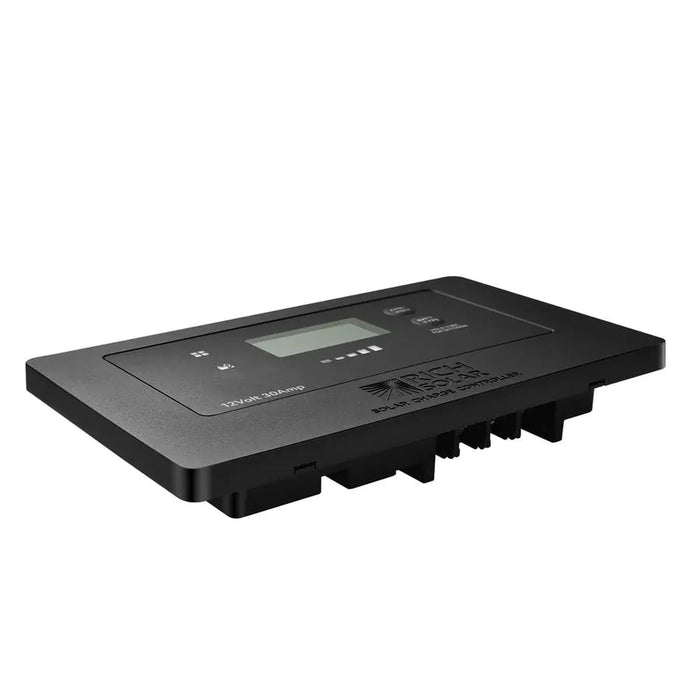

Rich Solar | BRAVO AIR 30 30A PWM Solar Charge Controller 12V Flush Mount with Bluetooth
Rich Solar | BRAVO AIR 30 30A PWM Solar Charge Controller 12V Flush Mount with Bluetooth
The BRAVO AIR 30 is a dependable 30A PWM solar charge controller built for 12V systems in RVs, trailers, campers, vans, and boats. Its flush mount design ensures a clean, integrated installation, while built-in Bluetooth allows convenient system monitoring. Designed with multi-protection features and stable charging performance, it helps regulate power efficiently and extend battery life in mobile and off-grid environments.
KEY FEATURES
-
Smart Charging Control
- PWM + MOSFET for efficient, stable output
- Intelligent multi-stage charging
- Auto BMS activation for lithium batteries
- Built-in Bluetooth for remote monitoring
- Battery type selection, with real-time display and LED status indicators
-
Full Electrical Protection
- Protection against: over-voltage, short circuit, reverse polarity, and over-temperature
- Spark-free safety
- Fully certified: ETL, CE, EMC, FCC, and RoHS
-
Broad Battery Compatibility
- Supports: Flooded, AGM, GEL, Calcium, LiFePO4
- Optional external temperature sensor (BTS) for temp-compensated charging
Specifications
| Electrical Parameters | Rated Solar Panel Current | Max. 30 A |
| Solar Input Voltage Range | Max. 5–22 VDC | |
| Max. Solar Array Voltage (No Load) | Max. 25 VDC | |
| Minimum Operating Voltage (Solar/Battery) | Min. 8 VDC | |
| Standby Current Consumption (Night) | Max. 10 mA | |
| Max Voltage Drop (Solar to Battery) | Max. 0.25 VDC | |
| Protection | Electrical Protection | Reverse polarity & short circuit protection (panel or battery side) |
| Over Temperature Protection | 185°F / 85°C (during charging) | |
| Environmental Characteristics | Operating Temperature | -13°F to 122°F (-25°C to 50°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) | |
| Operating Humidity | 0–85% RH | |
| Physical Parameters | Controller Material | Plastic (PC) |
| Power Terminal Wire Size | #8 AWG stranded – 0.2 in² | |
| Power Terminal Torque | 6.2–7.1 in-lb (0.7–0.8 N·m) | |
| Mounting Type | Vertical wall mounting | |
| IP Rating | IP22 |
