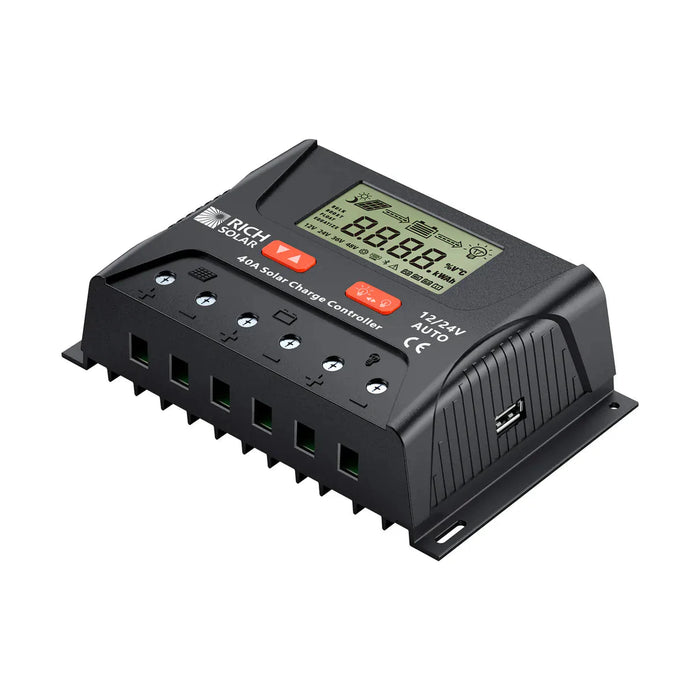

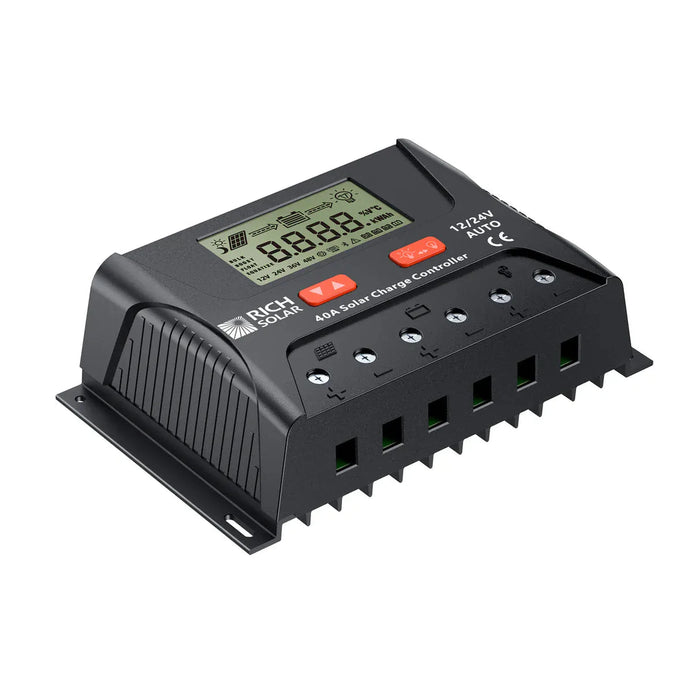

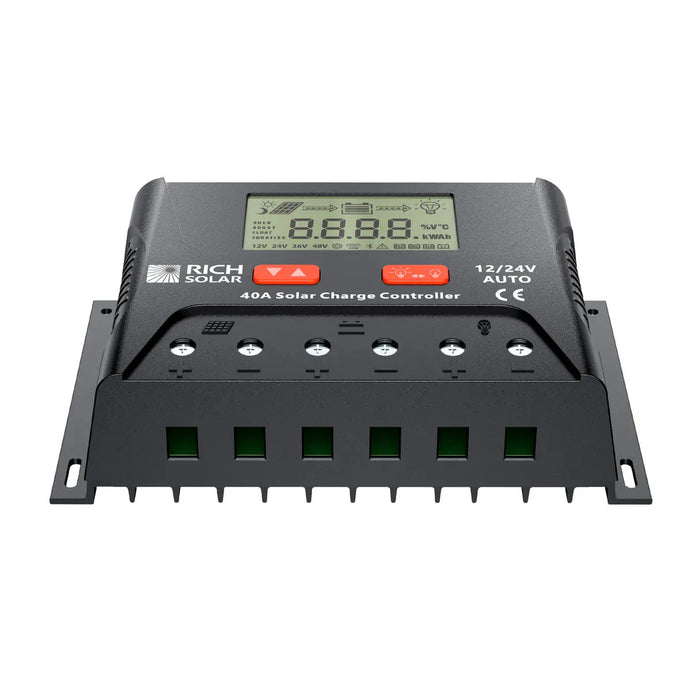

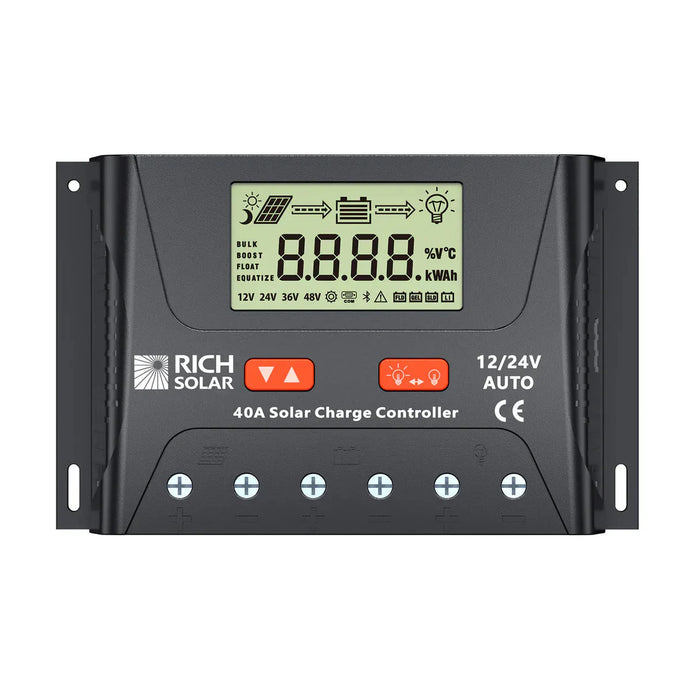

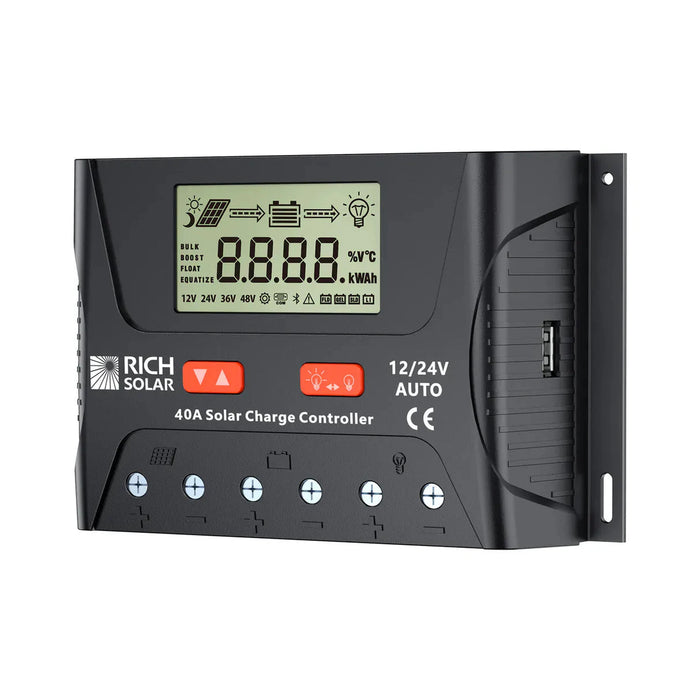

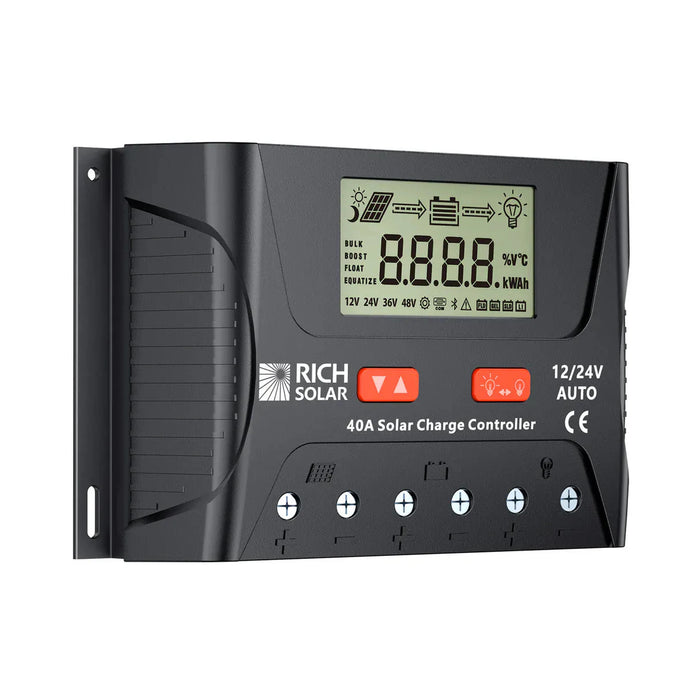

Rich Solar | BRAVO LEGEND 40 – 40A PWM Solar Charge Controller (12V/24V Auto)
Rich Solar | BRAVO LEGEND 40 – 40A PWM Solar Charge Controller (12V/24V Auto)
The Rich Solar BRAVO LEGEND 40 PWM Solar Charge Controller is a reliable and efficient solar charging solution designed for small to medium off-grid systems. With automatic 12V/24V detection and advanced 3-stage charging, it ensures safe battery charging and improved battery lifespan. Ideal for RVs, boats, cabins, and basic off-grid solar setups, it provides stable power regulation and essential protection features for dependable system performance.
KEY FEATURES
Smart Charging Management
- Auto Voltage Detection: Automatic 12V/24V system recognition (manual setup available)
- Multi-Battery Compatibility: Optimized charging profiles for Sealed, GEL, Flooded, and Lithium battery types
- Advanced 3-Stage PWM Charging: Boost, Float, and Equalization — prevents sulfation in lead-acid batteries (excludes GEL and Lithium)
- Temperature Compensation: Automatic voltage adjustment (-3.0mV/°C/2V) based on ambient temperature (excludes Lithium)
Advanced Load Management
- 5 Operating Modes: Light Control (10-min delay) | Light Control+Timer Control (1–14h) | Manual | Debug | Normal On
- Comprehensive Protection: Includes overcharge, over-discharge, overload, short-circuit, and reverse polarity protection
- TVS Lightning Protection: Industrial-grade surge protection for harsh environments
User Interface & Durability
- Interactive LCD Display: Dot-matrix screen with real-time system monitoring
- Dual-Button Control: Intuitive parameter adjustment with memory function
- Rugged Construction: IP30-rated enclosure with wide operating temperature range
Specifications
- Rated Current: 40A
- System Voltage: Auto recognition: 12V/24V (Manual setup optional)
- Rated Power: 600W @12V / 1200W @24V
- Max. Solar Input Voltage: < 55V
- Max. Battery Voltage: < 34V
- No-load Loss: <13mA @12V / <15mA @24V
- Battery Compatibility: Lithium / Sealed / GEL / Flooded
- Operating Temperature: –13°F to +131°F (–25°C to +55°C)
- Protection Rating: IP30 (Dust/Splash Resistant)
- Dimensions: 164×103×47 mm (6.46×4.07×1.85 in)
- Net Weight: 0.39 kg (0.86 lb)
