Rich Solar | MEGA 430 Bifacial 430W N-Type Solar Panel for Grid-Tie and Off-Grid Systems
Rich Solar | MEGA 430 Bifacial 430W N-Type Solar Panel for Grid-Tie and Off-Grid Systems
The Rich Solar MEGA 430 Bifacial panel delivers efficient dual-sided energy generation using advanced N-type cell technology. Designed to capture sunlight from both the front and rear, it increases total energy output for residential, commercial, and agricultural applications. Built for durability and long-term performance, this 430W panel is ideal for maximizing efficiency in both grid-tie and off-grid solar systems.
KEY FEATURES
Unmatched Performance
- 22.0% Module Efficiency: Industry-leading conversion with +5W positive tolerance
- 430W Maximum Output: High power density reduces BOS (Balance of System) costs
- -0.30%/°C Pmax Coefficient: Superior heat resistance (up to 185℉) for stable desert performance
Breakthrough Cell Technology
- N-TOPCon Cells: 10–30% higher yield than conventional P-type modules
- Zero LID: Minimal 1% first-year degradation for lasting output
- Passivated contact design minimizes power degradation

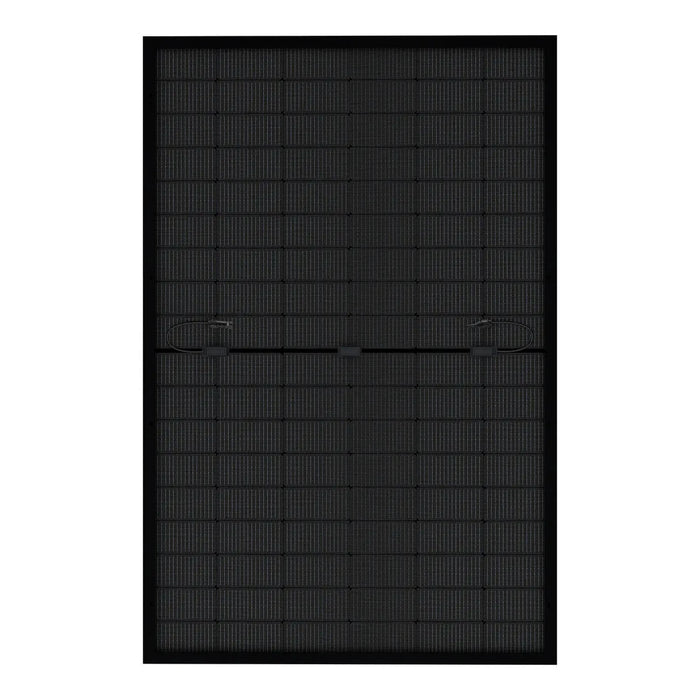

Advanced Bifacial Design
- 80%+ Bifaciality Factor: Maximizes rear-side energy harvest
- 15–25% Additional Yield: In standard ground-mounted systems
- Dual-Glass Construction: 94% light transmittance for maximum albedo utilization
Military-Grade Durability
- 5400Pa Front Load: Certified for heavy snow regions
- 2400Pa Wind Load: Withstands hurricane-force winds
- IP68 Protection: Fully submersible junction box
Versatile Applications
- BIPV (Building-Integrated Photovoltaics)
- Vertical Mounting Systems
- Extreme Environments: Coastal / Desert / Arctic (up to -40℉)
Intelligent Integration
- 1500V System Voltage Ready: Reduces wiring costs
- MC4-Compatible Connectors for plug-and-play installation
- 30A Fuse Rating: Meets global safety standards
Warranty
12-year product warranty + 30-year linear power output guarantee (≤0.4% annual degradation)
Specifications
- Model: RS-M430BF
- Peak Power: 430W
- Module Efficiency: 22.0%
- Max Power Voltage (Vmp): 31.9V
- Max Power Current (Imp): 13.5A
- Open Circuit Voltage (Voc): 37.4V
- Short Circuit Current (Isc): 14.7A
- Max Series Fuse Rating: 30A
- Maximum System Voltage: 1500VDC
- Number of Cells: 108 cells
- Front Glass: 2.0 mm Tempered Glass
- Frame Material: Anodized Aluminum Alloy
- Operating Temperature: -40°F to 185°F (-40℃ to +85℃)
- Dimensions (L × W × H): 67.8" × 44.7" × 1.2" (1722 × 1134 × 30 mm)
- Weight: 50.9 lb
