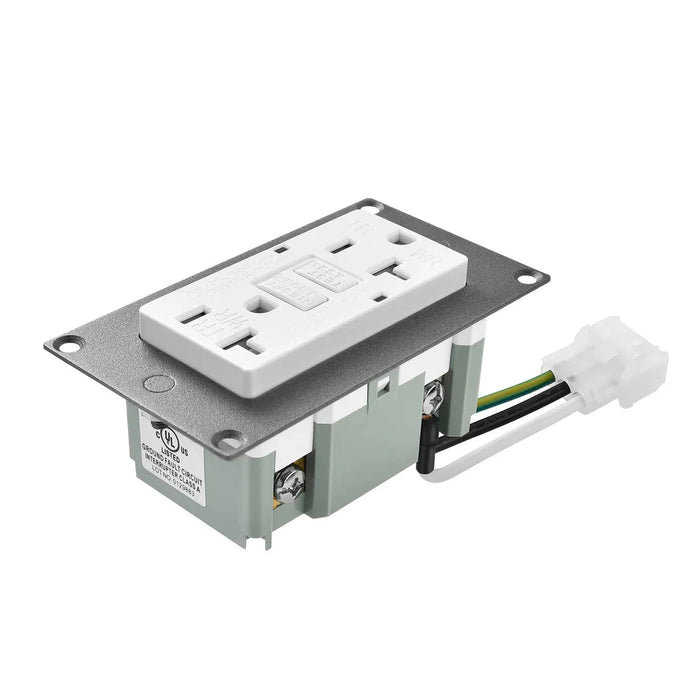

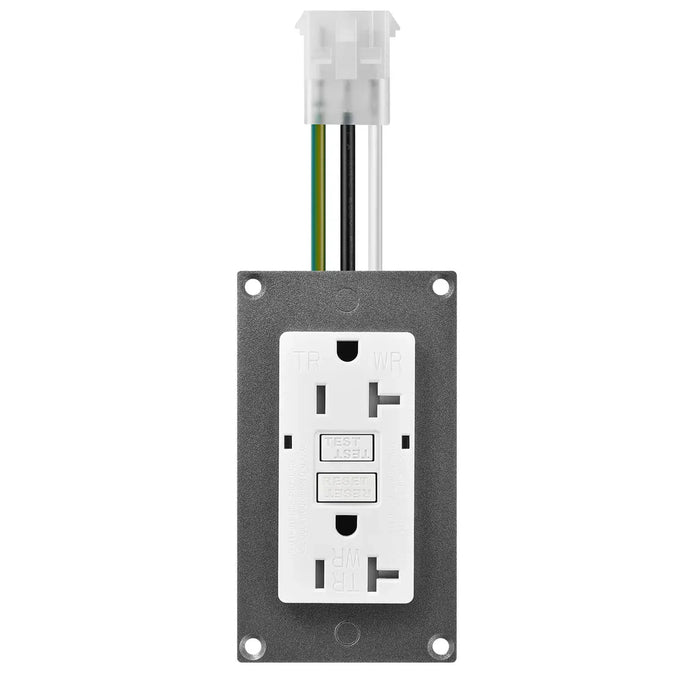

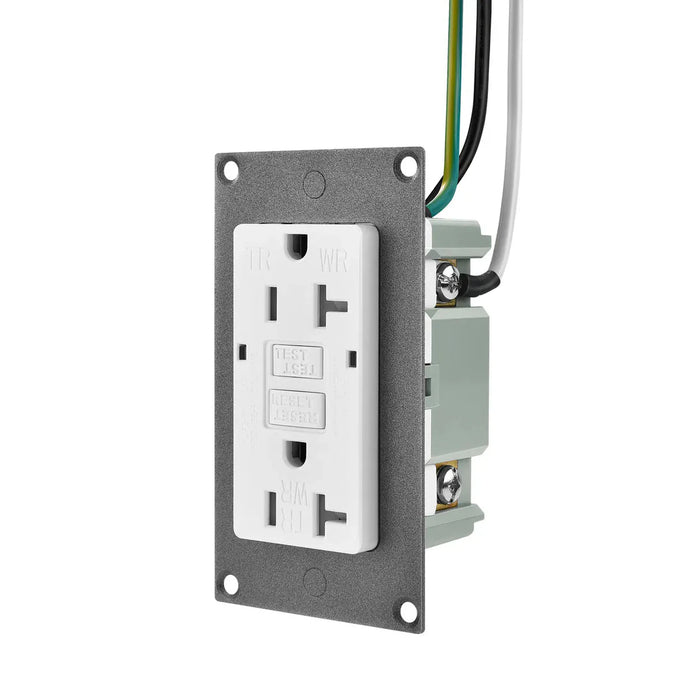

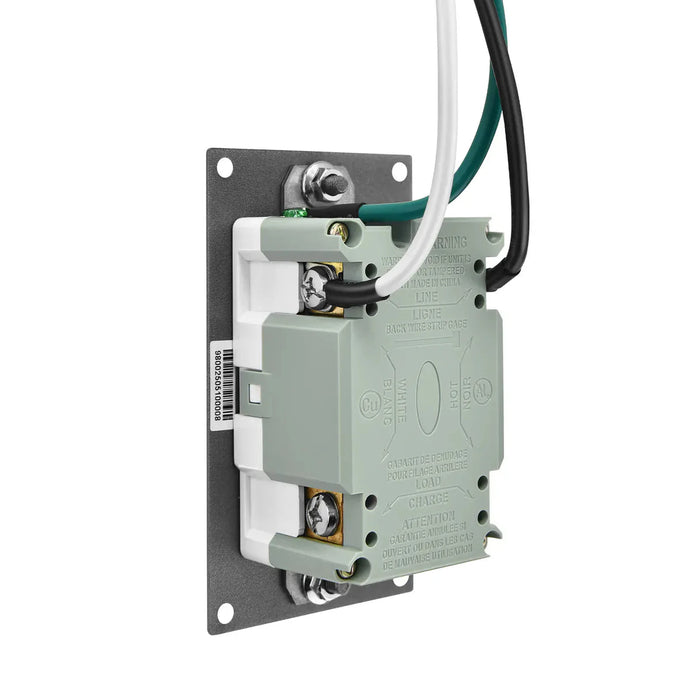

Rich Solar | Slim 20 Amp GFCI Outlet with Self-Test, Tamper-Resistant Design, and LED Indicator
Rich Solar | Slim 20 Amp GFCI Outlet with Self-Test, Tamper-Resistant Design, and LED Indicator

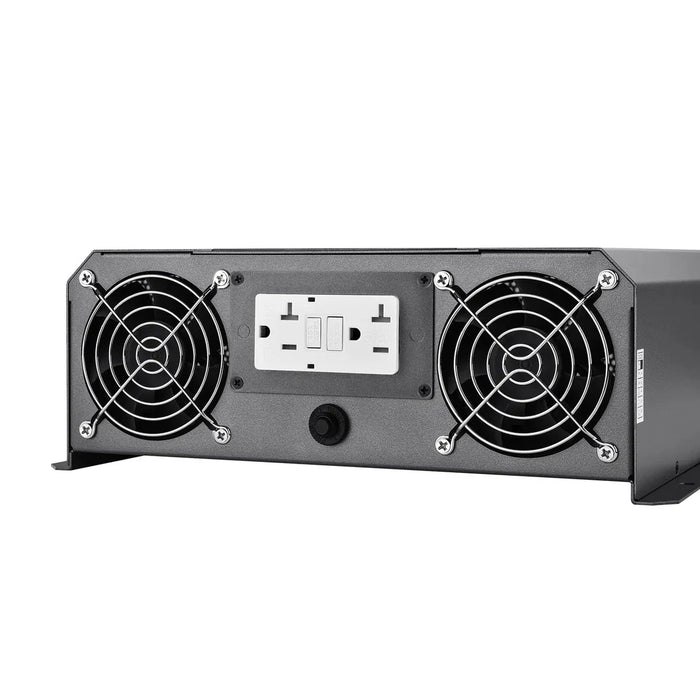

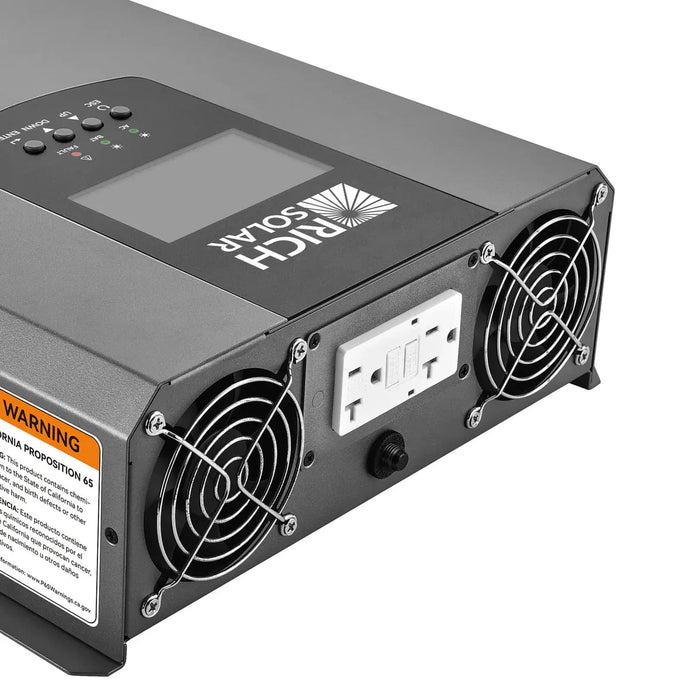

The Rich Solar Slim 20 Amp GFCI Outlet provides reliable electrical protection with a compact, space-saving design. Built with self-testing functionality and tamper-resistant features, it ensures safe operation in residential and off-grid applications. The integrated LED indicator offers clear status monitoring, while its UL-listed construction delivers dependable performance for use with Nova Switch and Nova Supercharger systems.
KEY FEATURES
- Auto Self-Test: Performs a self-check every second at power-up to ensure continuous GFCI protection.
- Ultra-Fast Trip Response: Trips in just 0.025 seconds at 125V AC with 4–6mA fault current—400% faster than standard outlets.
- Weather-Resistant Housing: WR-rated design withstands wet and humid outdoor conditions.
- Tamper-Resistant Shutters: Blocks foreign objects to enhance child safety.
-
Durable, High-Performance Shell: High-impact polycarbonate housing resists damage and performs reliably from -4°F to 140°F.
- Corrosion-Resistant & Rigid Frame: Brass-plated components prevent rust. A zinc-plated steel bracket ensures a strong and long-lasting mounting.
- LED Status Indicator: Green = Protection Active, Red = Fault Detected — real-time visual safety status at a glance.
- UL Listed & NEC 2023 Compliant: Meets U.S. residential and commercial safety standards for dependable operation.

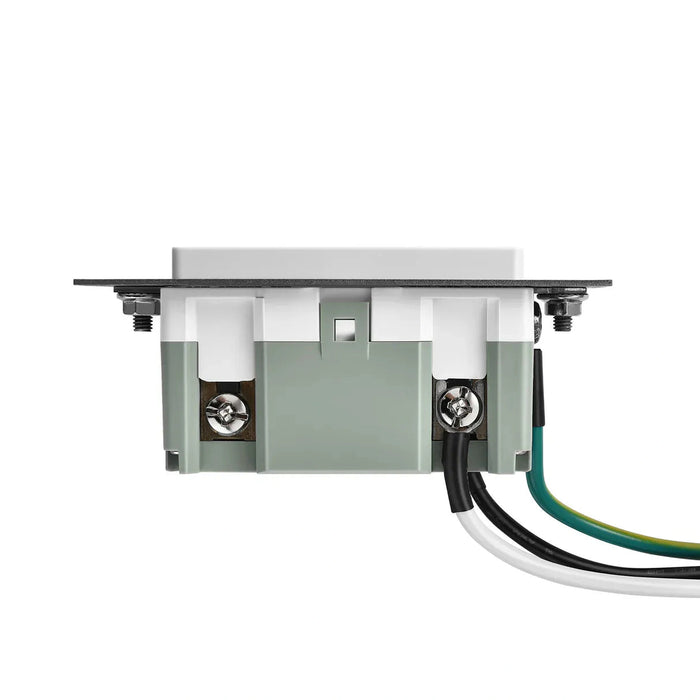

- Slim Profile – Only 1.54" Deep: Fits both standard and shallow electrical boxes with ease.

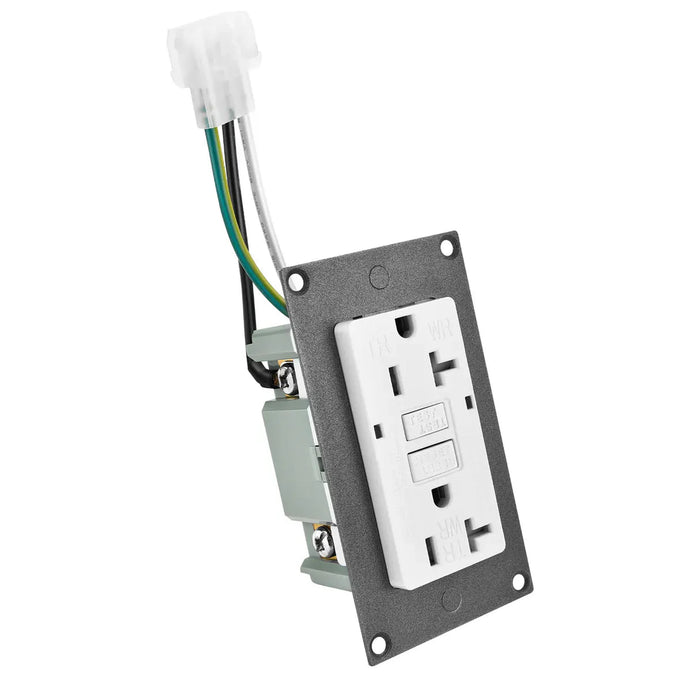

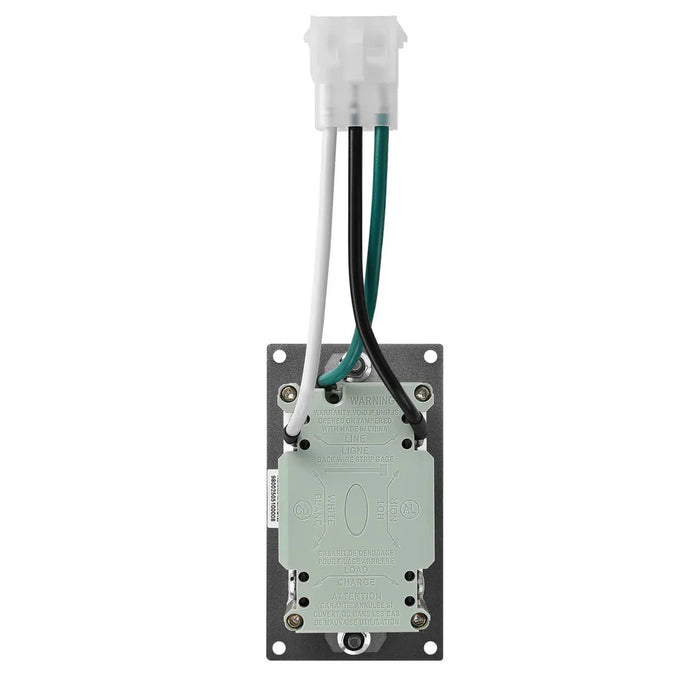

- 3-Pin Quick Connector: Pre-wired terminals for fast, tool-free installation — ideal for both professionals and DIYers.
Specifications
-
Input Voltage: 120V AC, 60Hz
-
Rated Current: 20A
-
Trip Time: 0.025s @ 4-6mA (125V AC)
-
Operating Temp: -20°C to 60°C (-4°F to 140°F)
-
Dimensions: 94×51×39mm (3.70"×2.01"×1.54")
-
Weight: 160g (0.35lb)
-
Material: PC + Zinc-plated steel
- Certifications: UL
