RUIXU | 19" Rack Mounted 3U Module 51.2V100Ah 5.12kWh | UL1973 Certified | Self-heating RX-LFP48100-H
Overview

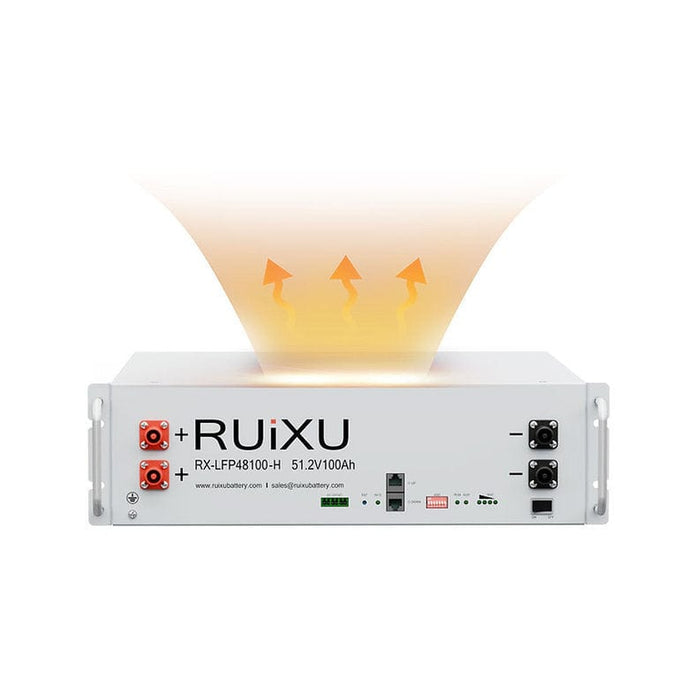

RX-LFP48100-H: Self-Heating 48V Lithium Battery for Cold Weather
The RX-LFP48100-H is a self-heating lithium iron phosphate (LiFePO4) battery module specifically designed for operation in cold weather conditions. This 19" rack-mounted battery delivers exceptional performance, enabling safe charging at temperatures as low as -20°C (-4°F) using standard chargers or solar chargers. The integrated heater pads draw power directly from the charger, ensuring reliable functionality in frigid environments.
Modular Design: The RX-LFP48100-H supports a modular configuration, allowing you to connect up to 32 units in parallel. This flexibility lets you scale your energy storage capacity from 5 kWh to 160 kWh without requiring an external controller, making it ideal for growing energy needs.
Inverter Protocol Configuration: Easily customize your system using a DIP address to set the RS485 baud rate and choose the appropriate inverter protocol, ensuring seamless integration with various inverter brands.
Communication Compatibility:
- CANbus Support: Compatible with major brands such as Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
- RS485 Support: Works with MPP, Voltronic, RCT, and Alpha Outback systems.
Included Accessories:
- (1) RUiXU 48V Server Rack Battery (RX-LFP48100-H)
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
***Cables***
1.6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
2.No busbar connection,250MM cable (battery to battery) included,only available for 48V system 2000W-5000W.
Applications: The RX-LFP48100-H is perfect for a variety of applications, including off-grid systems, backup power solutions, and renewable energy installations, particularly in colder climates where traditional batteries may struggle.
Certifications:
- UL1973 Certified
- UL9540 Pending
Specifications
- Nominal Voltage: 51.2V
- Nominal Capacity (0.2C): 100 Ah
- Minimum Capacity (0.2C): 100 Ah
- Nominal Energy: 5120Wh

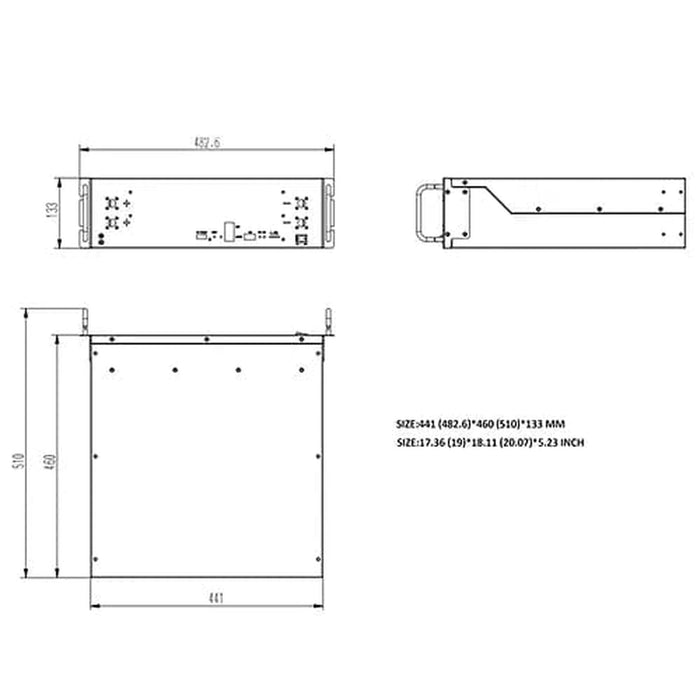

- Dimensions (W x D x H): 482.6 x 460 x 133 mm (19 x 18.1 x 5.23 inches)
- Weight: ~47 kg (103.6 lb)
