RUIXU | 19" Rack Mounted 3U Module 51.2V100Ah 5.12kWh | UL1973 Certified | UL9540 pending RX-LFP48100
Overview

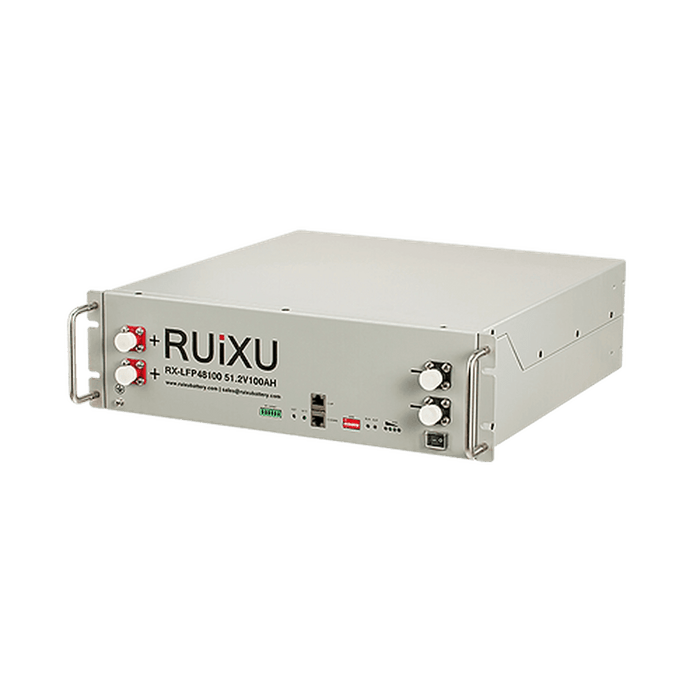

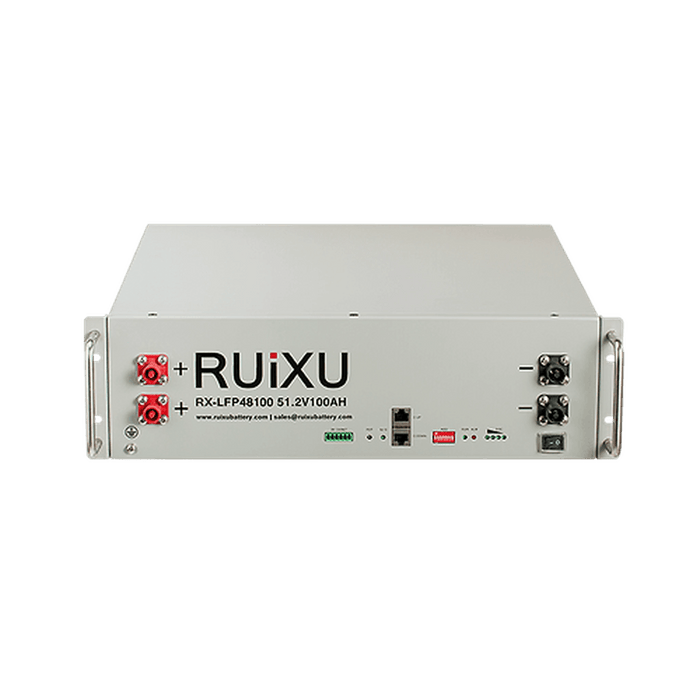

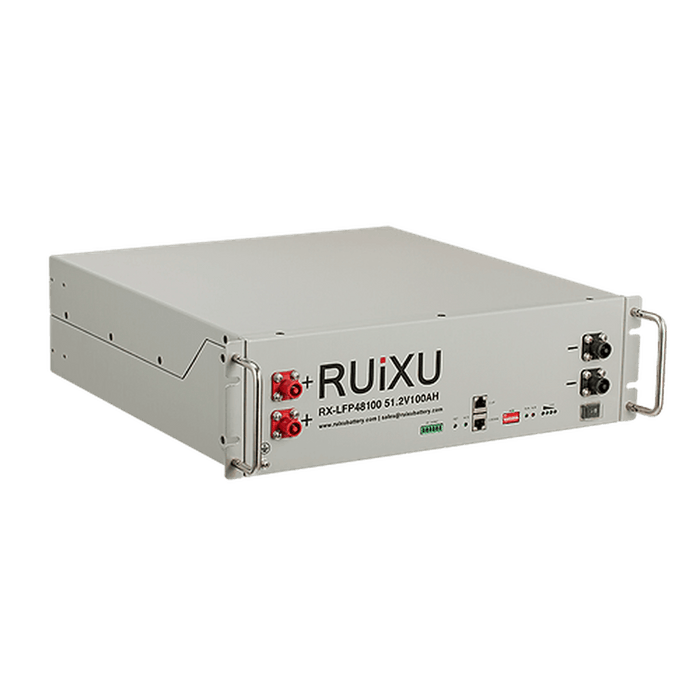

RX-LFP48100: 19" Rack Mounted 3U Battery Module
The RX-LFP48100 is a high-capacity, 19" rack-mounted lithium iron phosphate (LiFePO4) battery module designed for scalability and versatility in energy storage solutions. With a nominal voltage of 51.2V and a capacity of 100Ah, this robust unit is perfect for various applications, including off-grid systems, backup power, and renewable energy setups.
Modular Design: The RX-LFP48100 supports a modular architecture, allowing you to connect up to 32 units in parallel. This enables scalable configurations ranging from 5 kWh to 160 kWh without the need for an external controller, making it ideal for growing energy needs.
Inverter Protocol Selection: Easily configure your system using a DIP address to set the RS485 baud rate and select the appropriate inverter protocol, ensuring compatibility with various inverter brands.
Communications: The RX-LFP48100 features comprehensive communication options:
- CANbus Compatibility: Works seamlessly with brands such as Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, and Schneider.
- RS485 Compatibility: Compatible with MPP, Voltronic, RCT, and Alpha Outback.
Included Accessories:
- (1) RUiXU 48V Server Rack Battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
Certifications:
- UL1973 Certified
- UL9540 Pending
***Cables***
1.6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
2.No busbar connection,250MM cable (battery to battery) included,only available for 48V system 2000W-5000W.
Specifications
- Nominal Voltage: 51.2V
- Nominal Capacity (0.2C): 100 Ah
- Minimum Capacity (0.2C): 100 Ah
- Nominal Energy: 5120Wh

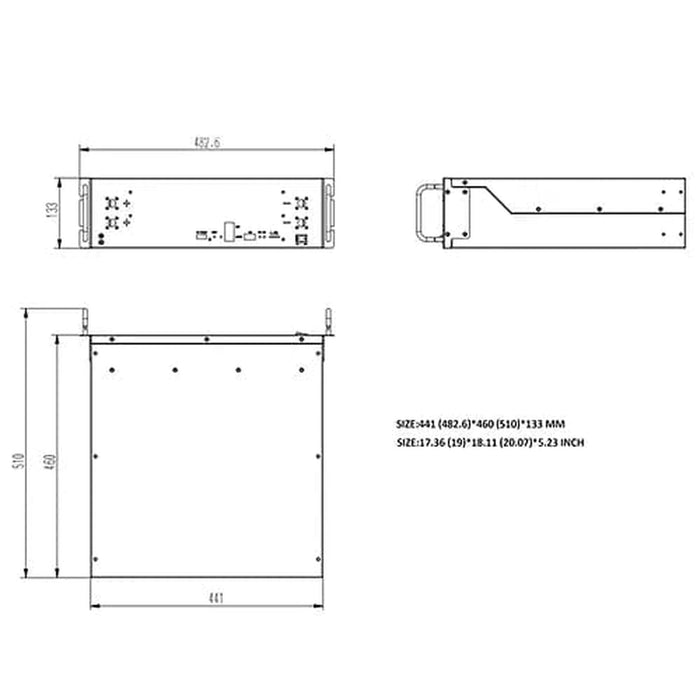

- Dimensions (W x D x H): 482.6 x 460 x 133 mm (19 x 18.1 x 5.23 inches)
- Weight: ~47 kg (103.6 lb)
