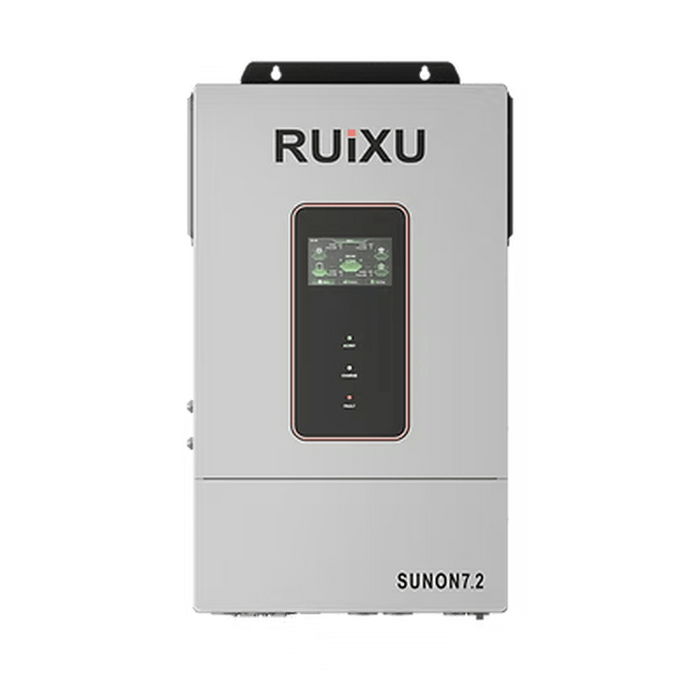

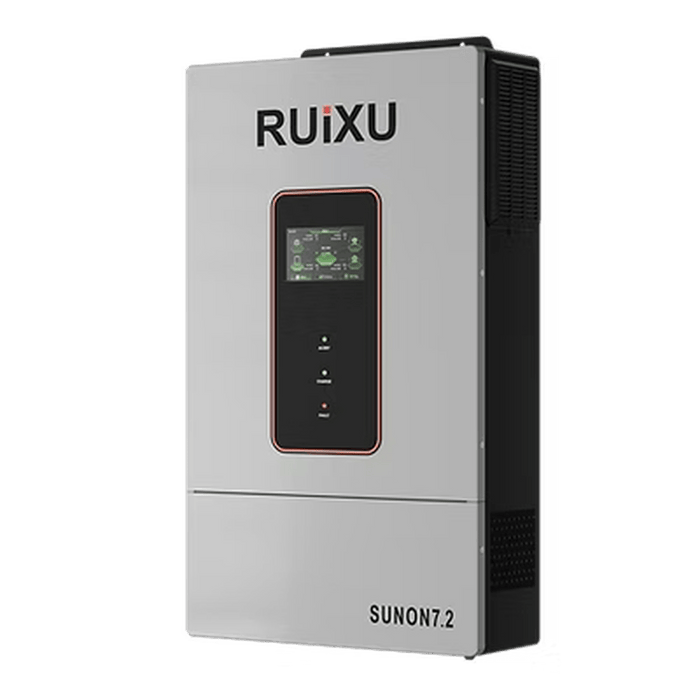

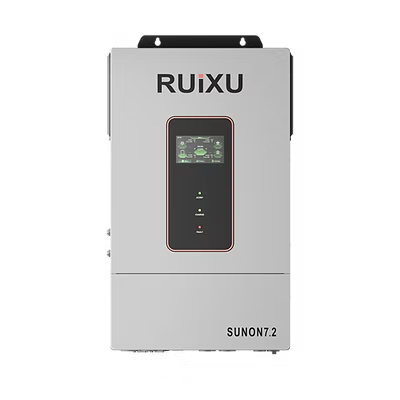

RUiXU | Single Split Phase Off Grid Inverter SUNON7.2 7.2kW UL1741

Note: Pre-order ETA – End of November

The RUiXU SUNON7.2 Single/Split-Phase Off-Grid Inverter delivers powerful and efficient energy conversion for advanced off-grid systems. With a 7.2kW continuous output and UL1741 certification, it provides reliable, safe, and clean power for residential, commercial, and remote energy applications. Designed for seamless integration with solar panels, battery banks, and generators, this inverter ensures stable operation, intelligent control, and maximum system efficiency.

KEY FEATURES
  • Powerful Hybrid Charging - Supports charging up to 150A, combining solar and grid hybrid charging
  • Intelligent Time-Sharing - Allows for timed charging and discharging, maximizing energy efficiency.
  • Stackable Design - Stack up to 6 units for a total output of 43.2kW120V/240V Output. Provides 120V and 240V to meet you need.
  • Dual MPPT Technology - Dual MPPT design ensures optimal solar energy utilization, 99% MPPT efficiency.
  • Rapid Shutdown - Quickly de-energizes solar PV systems to protect first responders
  • WiFi & App Integration - Connects via WiFi to an app for easy access and monitoring of information.

Specifications

Category Item Specification
Model Product Name RUiXU SUNON10.8 — Single/Split-Phase Off-Grid Inverter
Certification UL1741 / FCC Part15 Class B
Inverter Output Max. Output Power 10,800 VA (10.8 kW)
Rated Output Voltage 120/240 Vac (single-phase / split-phase)
Load Capacity (Motors) 4 HP
Rated Frequency 50 / 60 Hz
Output Waveform Pure sine wave
Switching Time 10 ms (typical)
Battery Battery Type Lithium-ion / Lead-acid / User-defined
Rated Battery Voltage 48 V
Voltage Range 40 – 60 Vdc
Max. Solar Charging Current 150 A
Max. Grid/Generator Charging Current 120 A
Max. Mixed Charging Current 150 A
Solar Input (MPPT) No. of MPPTs 2
Max. Input Power 4,500 W + 4,500 W
Max. Input Current 16 A + 16 A
Max. Open Circuit Voltage (Voc) 500 Vdc
MPPT Voltage Range 90 – 450 Vdc
Grid / Generator Input Input Voltage Range 85 – 140 Vac
Input Frequency Range 50 / 60 Hz
Bypass Overload Current 50 A
Efficiency MPPT Tracking Efficiency 99 %
Max. Overall Efficiency 92 %
Parallel & Expansion Parallel Capacity 1 – 6 Units (≥ 2 Units → Three-phase output)
General Data Dimensions (L × W × H) 22.83 × 16.1 × 5 in (580 × 409 × 127 mm)
Weight 42.77 lb (19.4 kg)
Noise Level < 60 dB
Cooling Method Intelligent fan
Protection Degree IP20 (Indoor only)
Operating Temperature -10 °C to 55 °C (derate > 45 °C)
Warranty 3 Years
Communication Interfaces RS485 / CAN / USB / Dry Contact
Optional Modules Wi-Fi / GPRS
Integrated Circuit Breaker
Protection & Recovery Overload Protection Output restores after 3 min; after 5 overloads inverter shuts down until restart. (102–125 %: error after 5 s)
