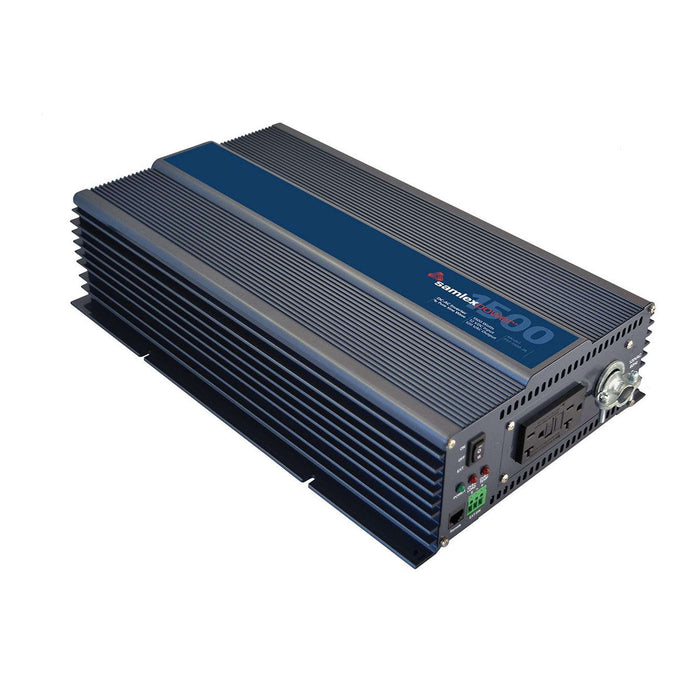

1500W Pure Sine Wave Inverter – 24VDC to 120VAC

This high-efficiency pure sine wave inverter converts 24 Volts DC into 1500 Watts of clean, stable 120 Volts AC power at 60 Hz, making it ideal for running sensitive electronics and heavy-duty equipment. Designed for demanding applications, it features dual GFCI-protected AC outlets, low idle power draw, and advanced safety protections to ensure reliable operation under continuous use.

The unit is hard-wire capable and safety certified to UL and FCC standards, making it a dependable choice for off-grid systems, mobile power applications, and emergency backup.

Key Features

• • 1500 Watts Continuous Pure Sine Wave Power
    Delivers clean AC output compatible with sensitive electronics and appliances.

  • High Efficiency, Low Idle Power Draw
    Minimizes battery drain and optimizes performance.

  • Wide DC Input Range (21.4 – 33.0 VDC)
    Supports voltage fluctuations in 24V battery systems.

  • Temperature-Controlled Cooling Fan
    Reduces energy consumption and operates only when needed.

  • Dual NEMA-20R GFCI AC Outlets
    Safe, grounded power output for multiple devices.

  • Hard Wire Capable
    Supports permanent installations for home, RV, or industrial use.

  • Universal Protection Circuit (UPC)
    Protects against:

    • Low/High voltage

    • Over temperature

    • Overload

    • Short circuit

  • Remote Input Compatible
    Allows ON/OFF control via vehicle ignition or remote switch.

  • Optional Remote Control Available (Model RC-300)

  • Low RF Emissions for Minimal Interference

  • Safety Certified to UL Standards, FCC Compliant

Specification

Input: 24 VDC
Output: 120 VAC
Watts: 1500
Surge: 3000 Watts
Remote Control: RC-300 sold seperately
Weight: 15.6 (lbs)
Weight: 7.1 (kg)
Dimensions: 10.35 x 18.43 x 4.16 (in)
Dimensions: 263 x 468.2 x 105.6 (mm)
Safety: ETL to UL Standards
