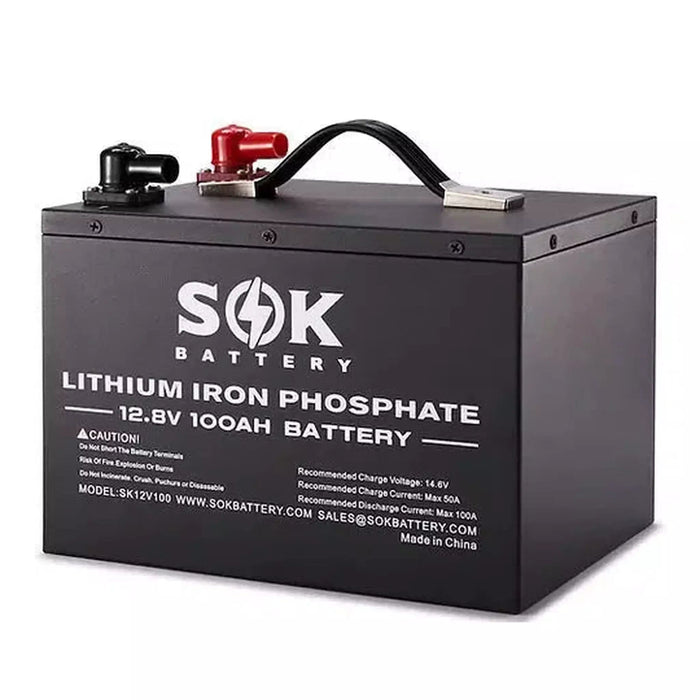

SOK Battery | 12V100Ah LiFePO4 Battery Bluetooth & Built-in heater | 12V Systems Only
Overview
Latest V8 version Bluetooth BMS, top battery cells balance function.
SK12V100H designed for cold weather using! Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger. The heater pads which draws power from the charger itself,battery cells no power lost.
Download the app to connect and monitor your SOK Battery.
Search ABC-BMS on google or apple store, download and install.
Please note: SOC is initially incorrect, it takes 2 full charge / discharge cycles to reach proper calibration.
FEATURES
- 7 year warranty and maintenance free with a 4000-8000 cycles life span.
- Detachable cover with replaceable BMS and cells.
- Built-in heater pad for using in down to -4°F.
- Bluetooth4.0 , supprot IPhone or Android smartphone.
- Support connect in parallel for larger capacity.
- Built-in smart Battery Management System (BMS).
- Low temperature charging cut-off.
- High temperature charging or discharging cut-off.
- Over charging and discharging protection.
- Over current and short circuit protection.
- Battery cells auto balance.
Please note for connecting in series: NOT OVER 4 Batteries IN SERIES, and make sure add the battery voltage balancer.
Specification
Charge information:
Recommended Charge Current 20 A
Maximum Charge Current 70 A
Recommended Charge Voltage 14.6 V
Discharge information
Maximum Continuous Discharge Current 170 A
Peak Discharge Current 200 A (3 s)
Recommended Low Voltage Disconnect 10.4V
Size Information:
Terminal Type: M8, 5/16 lugs
Weight: 27 lbs.
Temperature Information:
Discharge Temperature -4 to 140 ºF
Charge Temperature -4 to 113 ºF
Storage Temperature 23 to 95 ºF
Certifications Information:
UL1973&IEC62619 for Battery cells.
