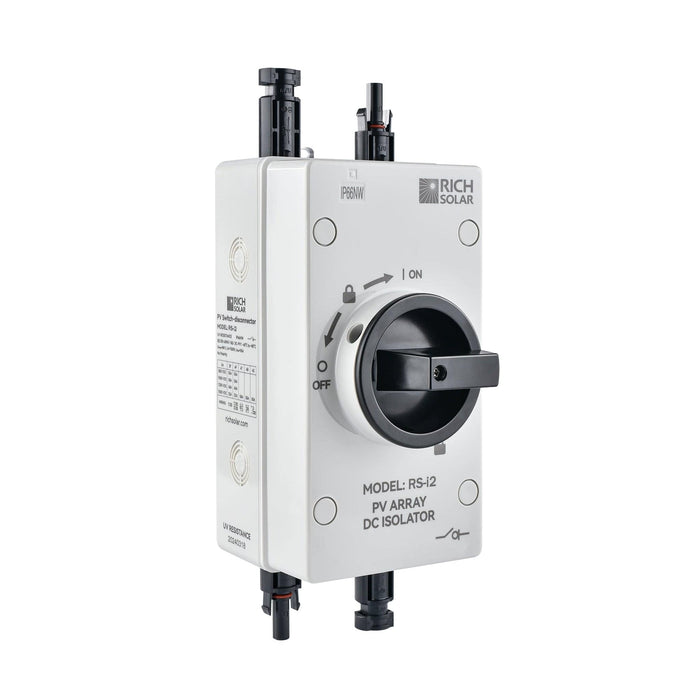

Rich Solar | Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 2 Pole 1 String | Easy to Install
Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 2 Pole 1 String | Easy to Install
Ensure the safety and control of your solar power system with the Solar PV DC Quick Disconnect Switch, engineered for both off-grid and on-grid installations. This 1500V 32A 2 Pole 1 String disconnect is purpose-built to provide fast, secure isolation of your solar array’s DC power from charge controllers, batteries, and inverters — protecting your equipment and simplifying maintenance.
Key Features
-
Quick, Reliable Disconnect
Instantly cuts DC power from your solar array to essential components like inverters and batteries for safe servicing. -
Outdoor Rated for All Conditions
Built to withstand harsh weather, this disconnect switch is perfect for exterior setups in residential, commercial, or mobile solar systems. -
Supports Off-Grid & On-Grid Applications
Ideal for diverse system types including backup solar arrays, RV solar, and grid-tied solutions. -
Isolated SAFE-LOCK Mechanism
Features a unique three-position rotational lock design that reduces tampering and enhances safety. -
Single Pull Double Throw (SPDT) Functionality
Offers 1 Input / Output (IO) control with high-precision arc suppression in under 3 milliseconds. -
User-Friendly Setup
Built-in input and output terminals make installation simple and efficient. -
Secure Lockout Option
Integrated lockout mechanism ensures secure deactivation during servicing or extended downtime.
Specifications
| Max. Rated Current: | 32A |
| Max. Rated Voltage: | 1500A |
| Circuit: | 2 pole and 1 string |
| Standard: | TUV, SAA, CE, IP certified & ROHS compliant |
| Waterproof: | IP66NW |
| Arc time | <3ms |
| Operating Temperature: | -40℉ to +185℉ (-40℃ to +85℃) |
| Warranty: | 10 years warranty |
| Dimensions(HxWxD): | 9.8x3.8x4.3in / 249.4x97.6x110 mm |
| Non-corrosive |
Manuals and Downloads
I2 PV ARRAY DC ISOLATOR Disconnect Switch
