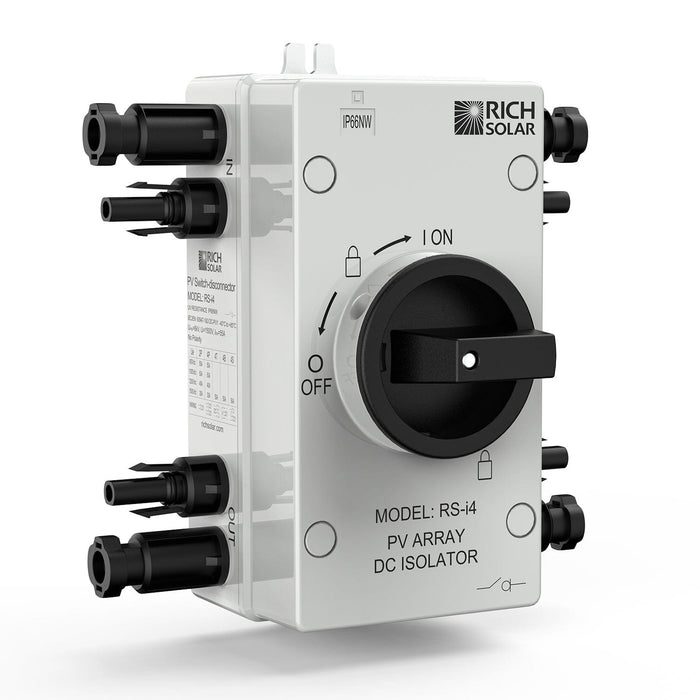

Rich Solar | Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 32 Amp | 4 Pole 2 Strings | Easy to Install
Reliable and Secure DC Power Control with the Solar PV DC Quick Disconnect Switch
Ensure the safety and efficiency of your solar power system with this high-performance Solar PV DC Quick Disconnect Switch. Engineered for both on-grid and off-grid solar applications, this device enables fast and secure disconnection of DC power from your solar array to charge controllers, batteries, or inverters. Built for durability and ease of use, it’s ideal for residential, commercial, or industrial PV installations.
FEATURES
-
Fast & Safe DC Disconnection
Instantly disconnects DC power from your solar array to critical components like batteries, inverters, and charge controllers. -
Outdoor-Rated Durability
Weatherproof housing supports long-term outdoor use in harsh environmental conditions. -
Compatible with On & Off-Grid Systems
Versatile application for various solar installations. -
Isolated SAFE-LOCK Mechanism
Features a secure three-position rotary switch to prevent accidental tampering. -
Single Pull, Double Throw (2 I/O)
Enables precise switching and effective circuit isolation. -
Ultra-Fast Arc Suppression
Disconnects load circuits and suppresses arcs in under 3 milliseconds for added safety. -
Built-In Lockout Option
Supports lockout/tagout procedures for added compliance and protection during maintenance. -
Easy Input/Output Setup
Designed for straightforward installation with clearly labeled input and output connections.
Specification
| Max. Rated Current: | 32A |
| Max. Rated Voltage: | 1500V |
| Circuit: | 4 pole and 2 string |
| Standard: | TUV, SAA, CE, IP certified & ROHS compliant |
| Non-corrosive | |
| Waterproof: | IP66NW |
| Arc time | <3ms |
| Operating Temperature: | -40℉ to +185℉ (-40℃ to +85℃) |
| Warranty: |
10 years warranty |
| Dimensions(HxWxD): | 7.1x6.8x4.3in / 179.5x173.9x110mm |
| Net Weight: | 1.7lb / 0.77kg |
