16KW 48V Split Phase Solar Inverter (2 Units Parallel) – Smart, Scalable, and High-Capacity Power for Home or Business

Unlock the full potential of solar energy with the SunGold Power 16KW 48V Split Phase Solar Inverter (2 Units Parallel)—a powerful, UL1741-listed hybrid inverter system designed for both on-grid and off-grid energy independence. Featuring advanced power control, flexible configurations, and intelligent battery management, this system delivers reliable, scalable performance for residential, commercial, and industrial applications.

All-in-One Hybrid Inverter with Dual MPPT & Smart Control

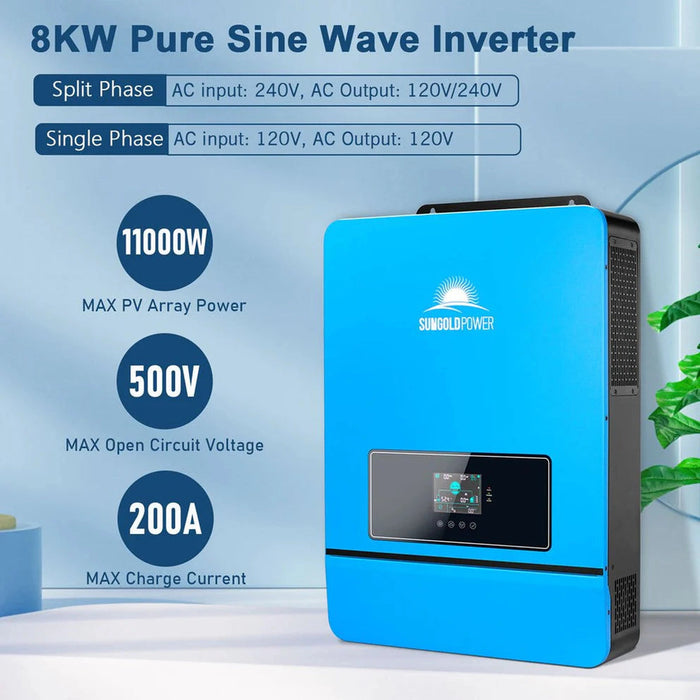

Each 8KW unit includes a pure sine wave inverter, dual MPPT solar charge controllers, and a 200A battery charger—all integrated into one system. Capable of handling up to 500VDC open-circuit PV input, the inverter offers split-phase (120V/240V) and single-phase (120V) output for a wide range of applications.

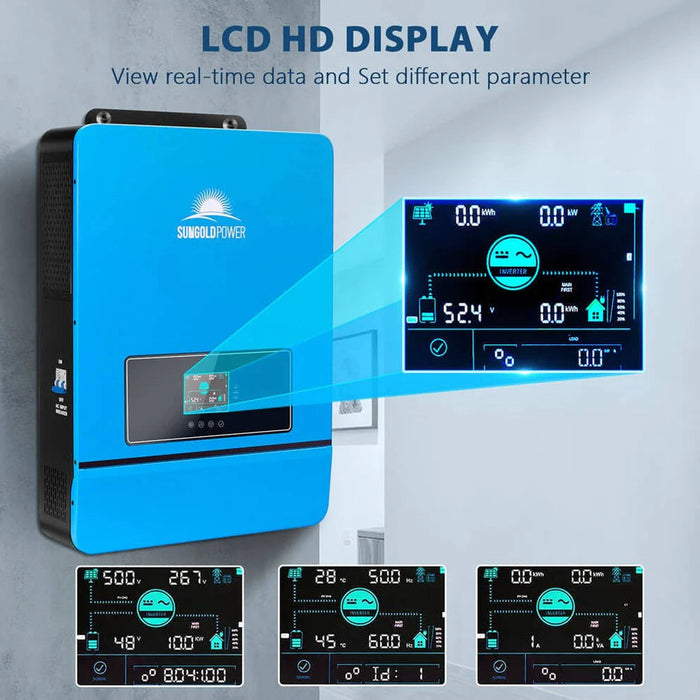

Manage your system effortlessly using the built-in Wi-Fi module, which allows real-time monitoring and configuration via mobile app.

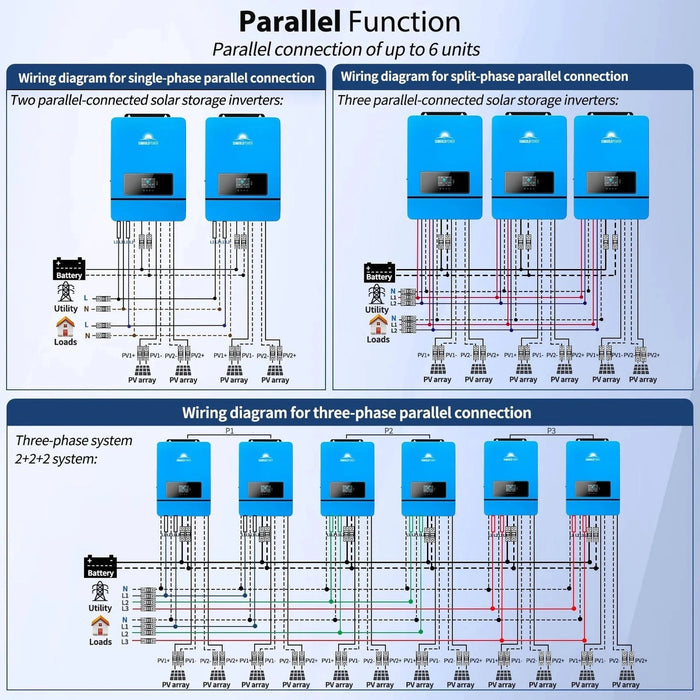

Scalable Output – Up to 48KW Parallel Operation

With 2 units connected in parallel, this system delivers 16KW total output and supports:

• 120V single-phase output

• 120V/240V split-phase output

• 208V three-phase output (when 3+ units are connected)

Expandable up to six units (48KW), this configuration ensures ample power for high-demand systems and critical loads.

Reliable AC Output with Peak Protection

Delivering a rated output of 8,000W per unit (16,000W total) and 16,000W peak per unit, this inverter supports high-powered appliances, tools, and HVAC equipment. A 6HP motor capacity and built-in protections against:

• PV input over-voltage/current

• AC over-voltage

• Battery over-voltage

• Overload and short circuit

ensure safe and stable operation around the clock.

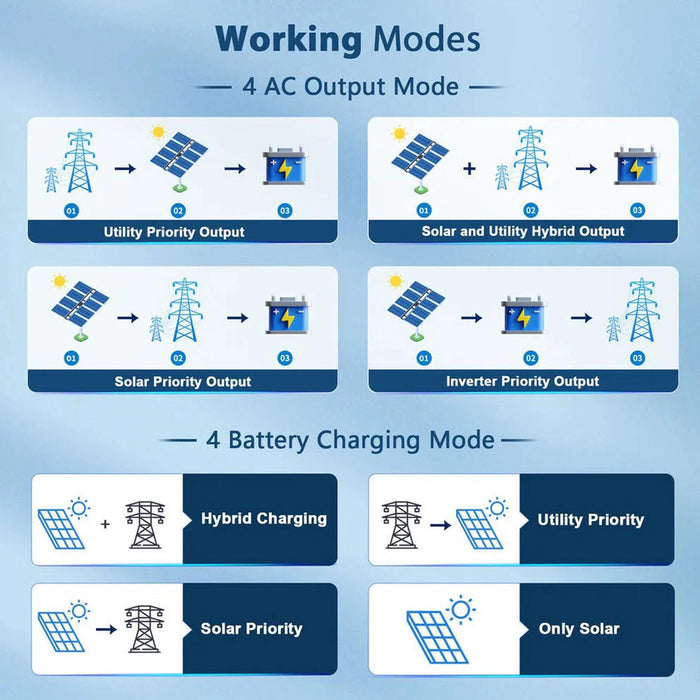

Versatile Charging & Output Modes for Flexible Control

Customize your energy management with four charging modes:

• Hybrid Charging

• Utility Priority Charging

• Solar Priority Charging

• Only Solar Charging

Choose from four output modes based on your needs:

• Utility Priority

• Solar & Utility Hybrid

• Solar Priority

• Inverter Priority

This level of control allows you to optimize energy usage, reduce costs, and improve system lifespan.

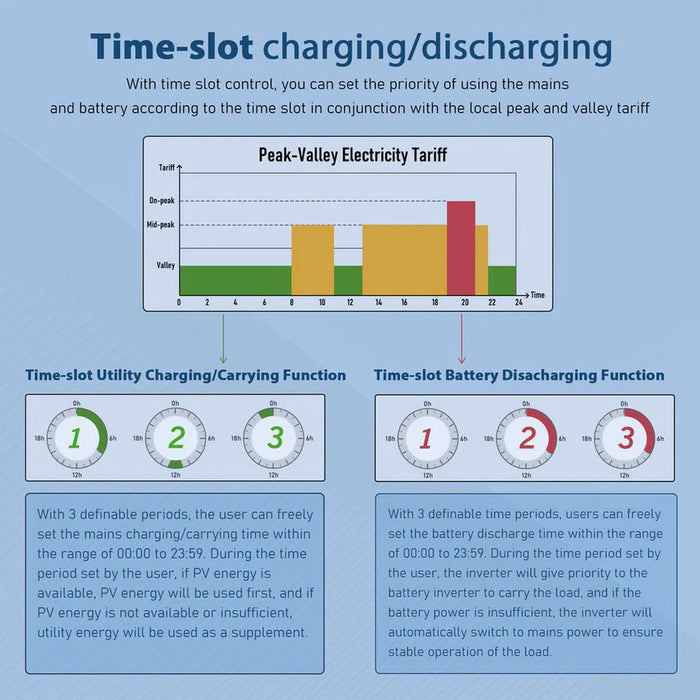

Time-Slot Charging & Battery Flexibility

Take advantage of time-slot charging and discharging, allowing you to schedule energy usage around peak and off-peak utility rates—ideal for maximizing cost savings and energy efficiency.

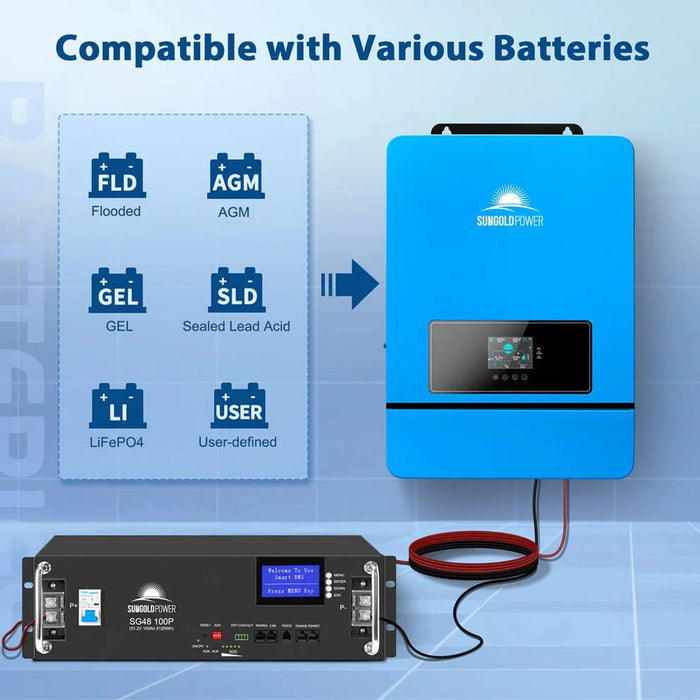

Compatible with all 48V battery types, including:

• AGM/Sealed

• Gel

• Flooded

• Lithium (with User Mode and Wake-Up Function)

Supports CAN, USB, and RS485 communication for seamless integration with SunGoldPower batteries and BMS systems.

Key Features:

• Total Output Power (2 Units): 16KW

• Battery Voltage: 48V

• PV Input: Max 500VDC open-circuit

• Charger Current: Max 200A

• Parallel Support: Up to 6 units (48KW total)

• Output: 120V/240V split-phase, 208V 3-phase, 120V single-phase

• Certifications: UL1741 Listed by ETL

• Monitoring: Built-in Wi-Fi + mobile app access

• Battery Support: Full 48V compatibility + communication protocols

System Connection

PV can charge the battery and supply the power to the load by inverter, if PV orbattery is no power, you can
powerthe load and charge the battery by the grid or generator.

Grid tied Function

An off-grid solar inverter with solar panels that generates electricity, stores that power in solar
batteries, and runs independently from the power grid.
