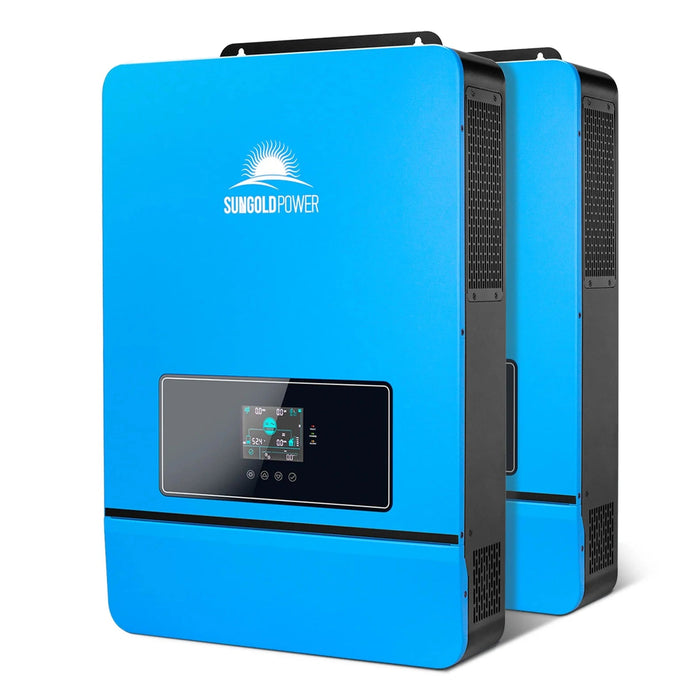

SunGoldPower | 20KW 48V Split Phase Solar Inverter(2 Units Parallel)
Overview
-
All-in-One Unit: This 10KW Pure Sine Wave Solar Inverter features a maximum 200A battery charger and includes two built-in MPPT solar controllers. It supports a maximum open circuit voltage of 500VDC, offering both split-phase (120V/240V) and single-phase (120V) output. A Wi-Fi module allows users to monitor the inverter's status and parameters via a mobile app, and it is UL1741 listed by ETL.
-
Parallel Capability: You can connect up to six units in parallel for a total output of 48KW. This setup provides options for 120V single-phase, 120V/240V split-phase, or 208V three-phase support (with more than three units), enhancing both power and surge capacity.
-
Reliable AC Output with Protection: The inverter delivers a rated output power of 10,000W and a peak power of 20,000W, with a motor capacity of 6HP. It includes protections for PV input over-voltage/current, AC input over-voltage, battery over-voltage, and overload.
-
Versatile Charging and Output Modes: Offers four charging modes: Hybrid Charging, Utility Priority Charging, Solar Priority Charging, and Only Solar Charging. Additionally, it features four output modes: Utility Priority, Solar and Utility Hybrid, Solar Priority, and Inverter Priority to suit various needs.
-
Time-Slot Charging/Discharging: The SPH series includes a time-slot charging and discharging feature, enabling users to set specific charging and discharging periods based on local peak and off-peak tariffs for optimized utility power and PV energy usage.
-
Battery Compatibility: Compatible with 48V AGM/Sealed, Gel, Flooded, and Lithium batteries, the inverter has a user mode for all battery types and can operate without a battery. When a lithium battery is dormant, mains power and photovoltaics can activate it. It supports CAN, USB, and RS485 communication with SunGoldPower batteries.
Introducing the SunGold Power 20 kW 48V Split Phase Solar Inverter, designed for optimal performance and flexibility. This advanced inverter supports parallel operation with two units, allowing for a total output of 40 kW, making it perfect for larger residential or commercial solar systems.
Key features include:
- High Efficiency: Achieves maximum efficiency to convert solar energy effectively.
- Split Phase Output: Delivers 240V output, suitable for a variety of applications.
- User-Friendly Display: Intuitive interface for easy monitoring and management.
- Robust Design: Built to withstand various environmental conditions, ensuring durability and longevity.
With the SunGold Power inverter, you can harness the full potential of your solar system and enjoy reliable, sustainable energy.
WiFi Monitoring
Configured with Wi-Fi components, allowing user to quick and easyaccess to inverter data on mobile phone.
System Connection
PV can charge the battery and supply the power to the load by inverter, if PV orbattery is no power, you canpowerthe load and charge the battery by the gridor generator.
Grid tied Function
An off-grid solar inverter with solar panels that generates electricity, stores that power in solarbatteries,
and runs independently from the power grid.
Specifications
Manual and Downloads
Warranty
2 Year Warranty
