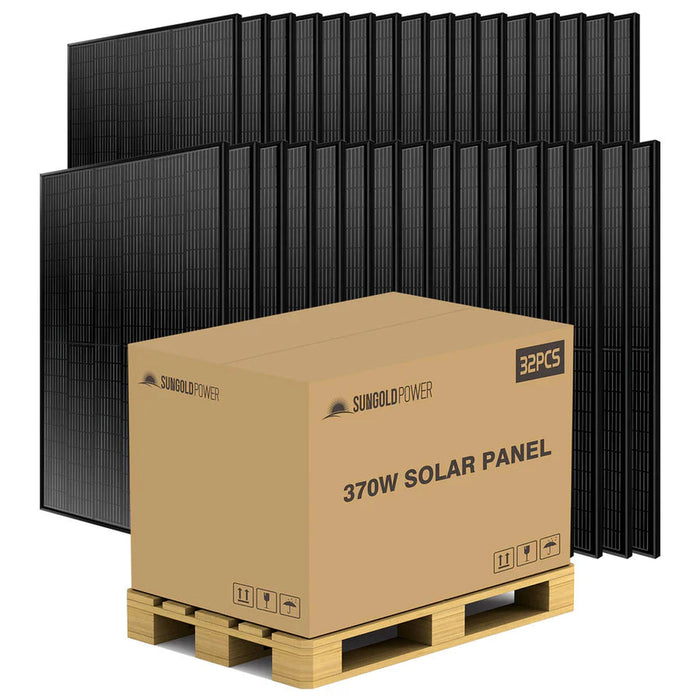

SunGold Power | 370W Mono Black Perc Solar Panel Full Pallet (32 Panels)
Overview
Off-grid & On-grid Solution & Hybrid System
This high-efficiency PERC solar panel is ideal for on-grid, off-grid, and hybrid solar systems. It effectively stores energy in batteries, lowers electricity costs, and can fully power an off-grid home.
High efficiency
High efficiency monocrystalline PERC module, 182 mono half-cells with an all-black design.
Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Wide Application
With balanced power, improved stability, and economical electricity costs.
Specifications
| Model Type | SG-370WMB |
|---|---|
| Peak Power (Pmax) | 370W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 11.15 A |
| Maximum Power Voltage (Vmp) | 33.2V |
| Short Circuit Current (Isc) | 11.81A |
| Open Circuit Voltage (Voc) | 40.17V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 120(6*20) |
| Cell Type | Mono182mm |
| Certifications | CE TUV |
| Product Weight | 41.8lbs |
| Product Dimension | 63.23*44.65*1.38inch (1606*1134*35mm) |
| Package Weight | 93.5lbs（2PCS） |
| Package Dimension | 66.02*47.64*3.54inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty |
10 year material and workmanship warranty |
