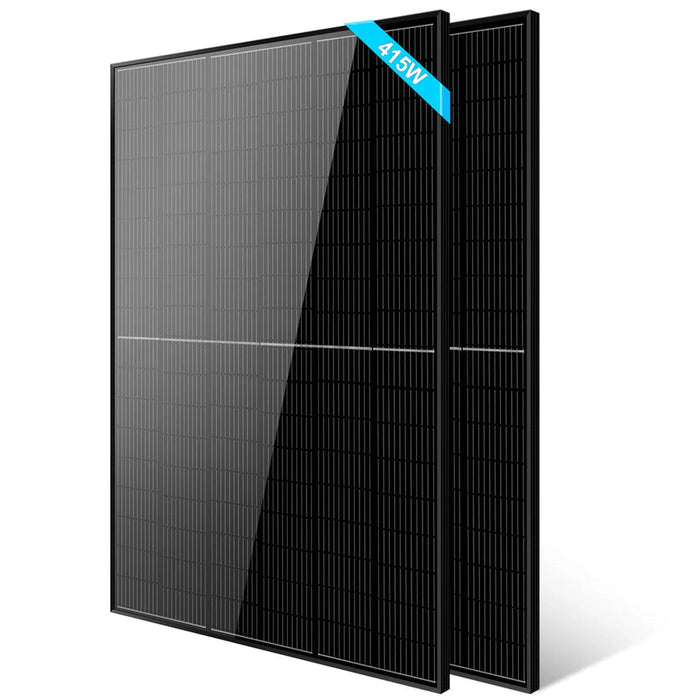

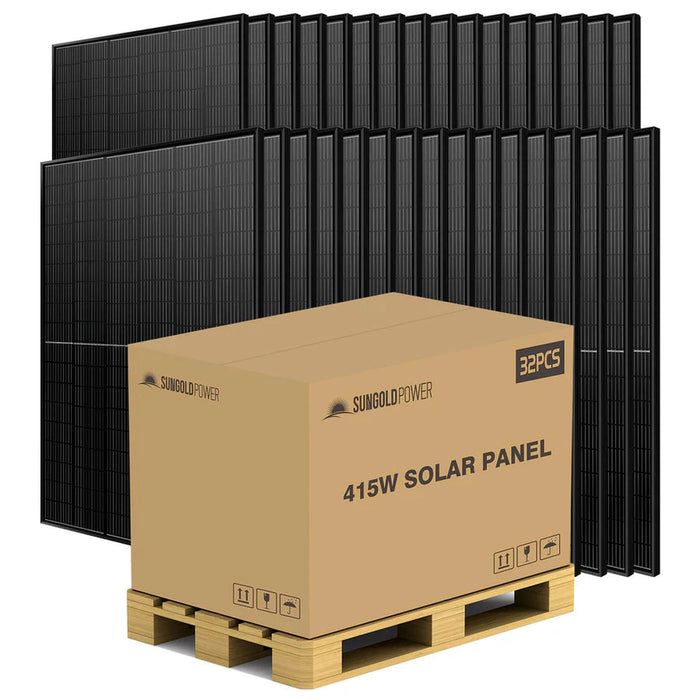

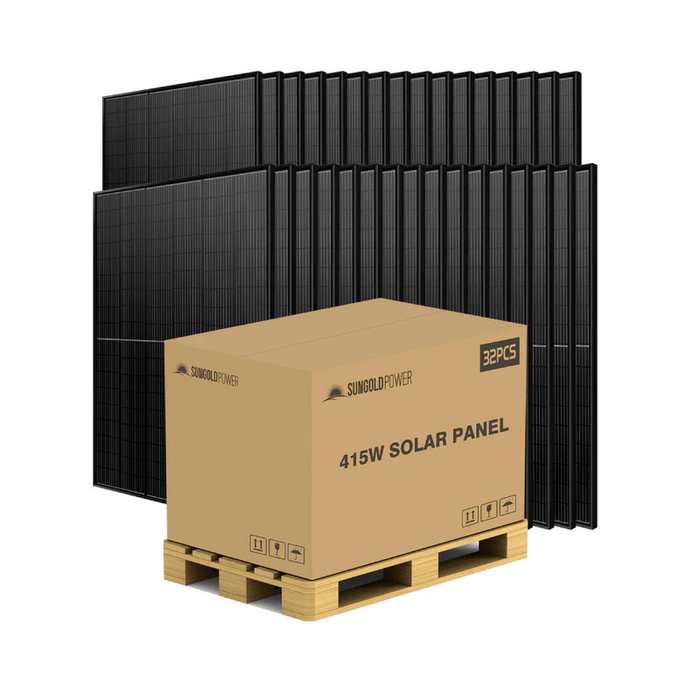

SunGoldPower | 415W Mono Black Perc Solar Panel Full Pallet (32 Panels)
Overview
-
High Efficiency Module: This panel utilizes Mono PERC Half-Cut Technology, achieving an efficiency of up to 21.25%. SunGoldPower's 415W panels deliver superior output per square meter compared to traditional models.
-
Enhanced Tolerance: Constructed with half-cell technology, these 415W solar panels enhance power output and performance by providing greater shade tolerance through a unique wiring system and an increased number of cells.
-
Versatile Applications: The 415W solar panel is perfect for off-grid, on-grid, or hybrid systems, making it suitable for RVs, tiny houses, marine applications, household power supply, and commercial buildings. This helps reduce energy consumption and offers significant long-term savings.
-
Warranty Assurance: Each solar panel is backed by a 10-year workmanship warranty and a 25-year linear performance warranty. They are TUV certified, with UL certification pending.
Off-grid & On-grid Solution & Hybrid System
This high-efficiency PERC solar panel is designed for on-grid, off-grid, and hybrid solar systems. It stores energy in batteries, reduces electricity costs, and can fully power an off-grid home.

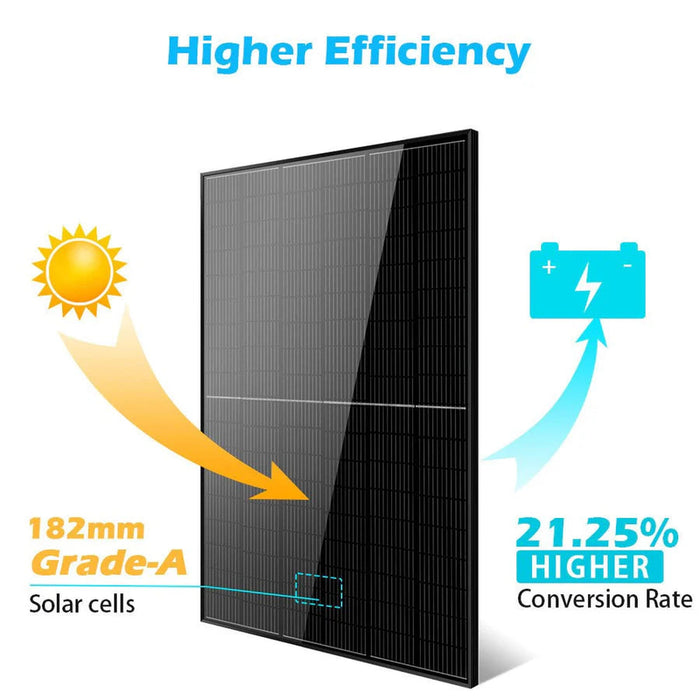

High efficiency
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

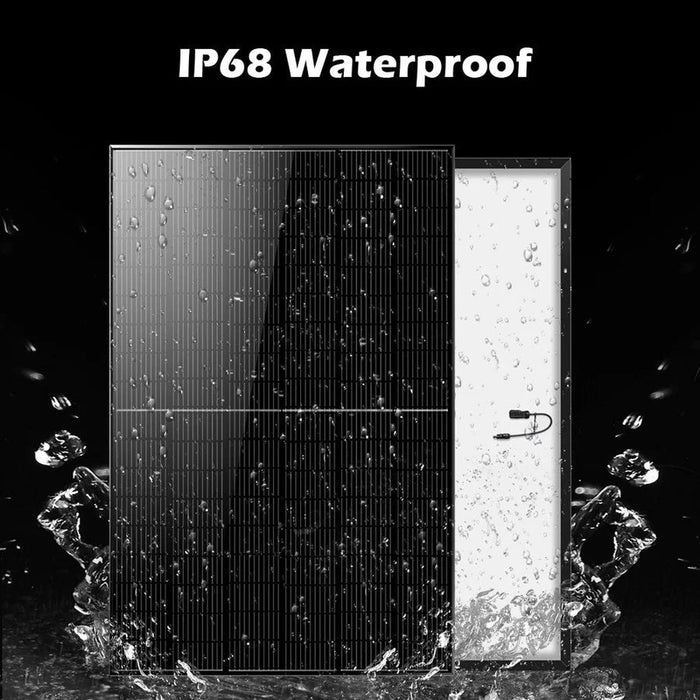

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).

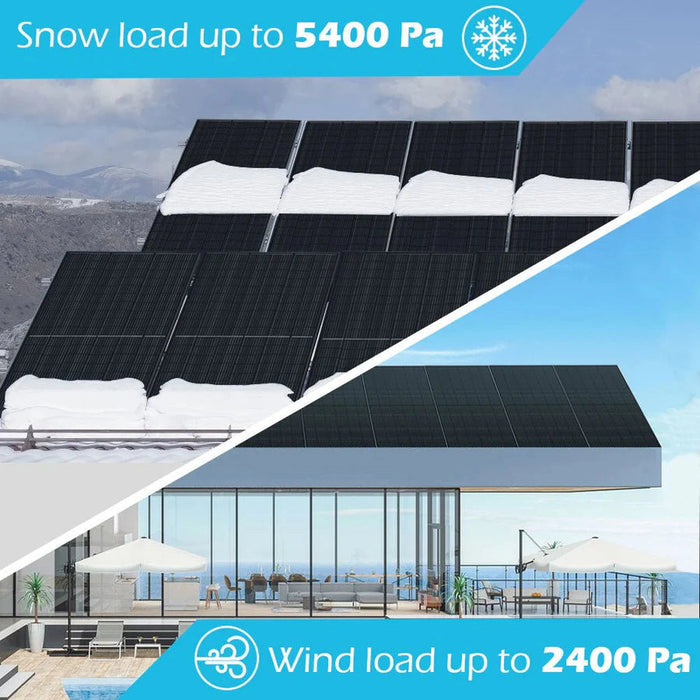

Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.

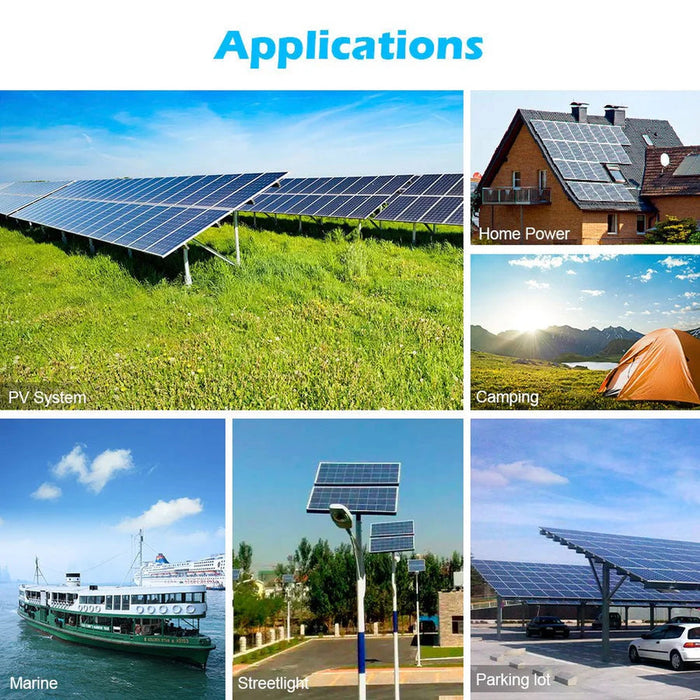

Wide Application
With balanced power, improved stability, and economical electricity costs.
Specifications
| Model Type | SG-415WM |
|---|---|
| Peak Power (Pmax) | 415W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.13 A |
| Maximum Power Voltage (Vmp) | 31.6V |
| Short Circuit Current (Isc) | 14.02A |
| Open Circuit Voltage (Voc) | 37.50V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 108(6*18) |
| Cell Type | Mono 182*91mm |
| Certifications | CE TUV |
| Product Weight | 45.8lbs |

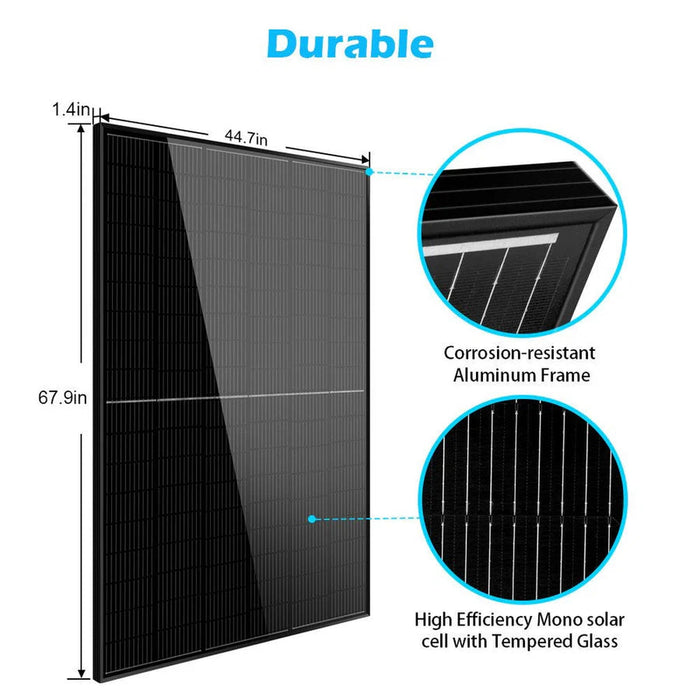

| Product Dimension | 67.8*44.6*1.4inch |
| Package Weight | 100.5lbs（2PCS） |
| Package Dimension | 70.1*47.2*3.9inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty. |
Manuals and Downloads
415W Mono Black Solar Panel User Manual
FAQ
Is it waterproof?
Yes, this solar panel is indeed waterproof. It is specifically designed to endure various environmental conditions, including rain and moisture.
Warranty
25 Year Warranty
