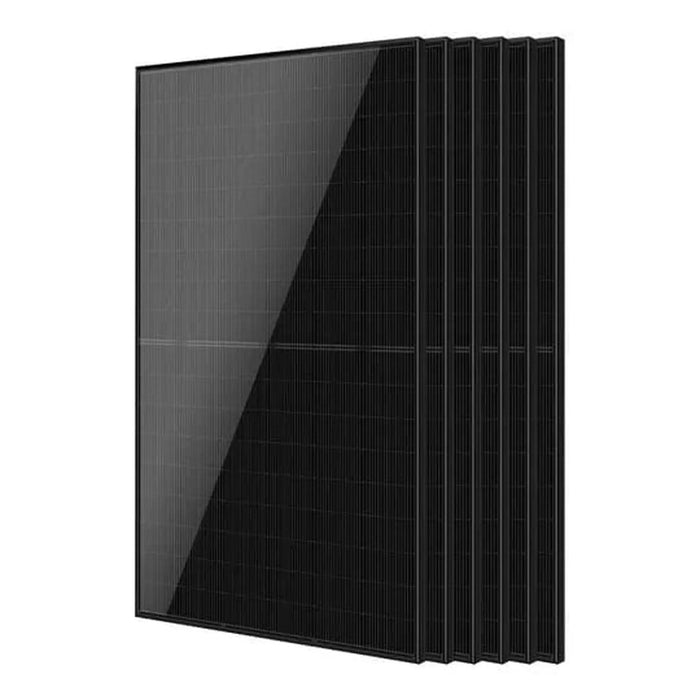

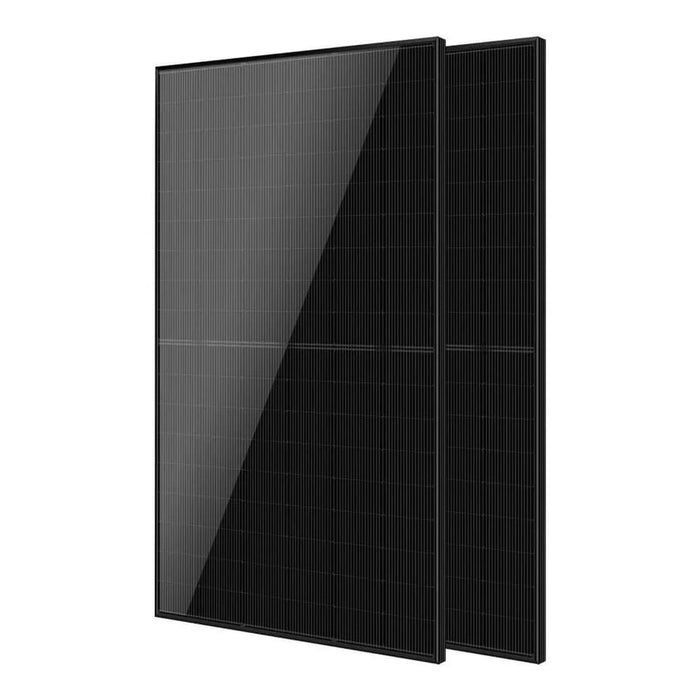

SunGoldPower | 440W Mono Black PERC Solar Panel
Overview
Off-grid & On-grid Solution & Hybrid System
This high-efficiency PERC solar panel is suitable for on-grid, off-grid, and hybrid solar systems. It effectively stores energy with batteries, helping to lower electricity bills or power an entire off-grid home. Enjoy versatile energy solutions with this reliable solar technology!

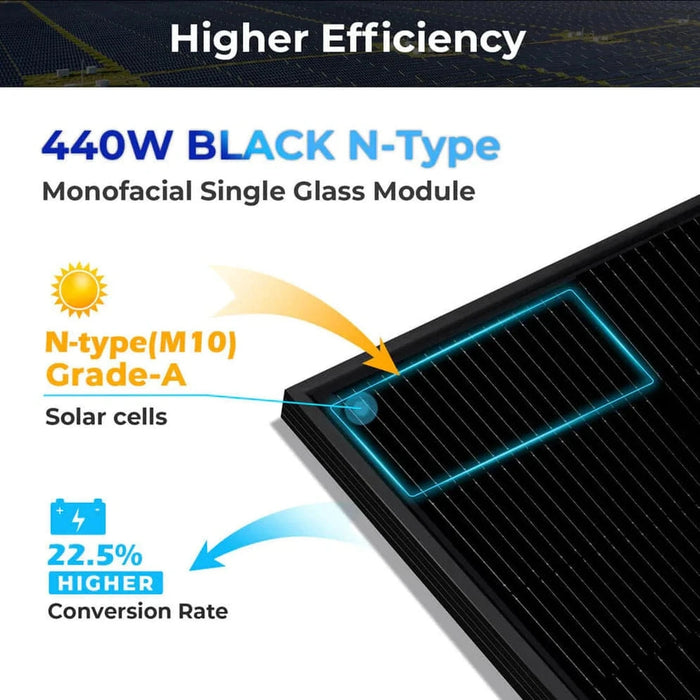

High efficiency
High efficiency monocrystalline PERC module, 182mono half-cells with an all-black design.

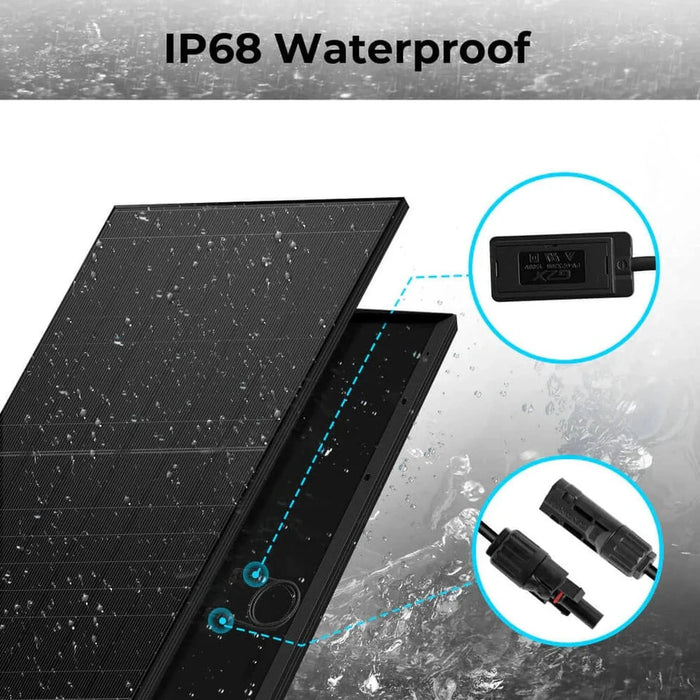

Water Proof
The solar junction box and solar connectors with an IP68 rating is completely protected from dust and will properly functional after Temporary immersion in water (up to 1m deep).
Snow and Wind Protection
Passed load test of 5400 Pa to withstand heavier snow load and 2400 Pa to withstand wind pressure .
Home Solar System
With balanced power, improved stability, and economical electricity costs.
Specifications
| Model Type | SG-440WM |
|---|---|
| Peak Power (Pmax) | 440W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.05A |
| Maximum Power Voltage (Vmp) | 33.72V |
| Short Circuit Current (Isc) | 13.73A |
| Open Circuit Voltage (Voc) | 39.79V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 12(6*20) |
| Cell Type | PERC Mono182*91mm |
| Certifications | CE TUV |
| Product Weight | 54.0lbs |
| Product Dimension | 75.16*44.65*1.38inch |
| Package Weight | 108lbs（2PCS） |
| Package Dimension | 76.56*47.6*3.5inch（2PCS） |

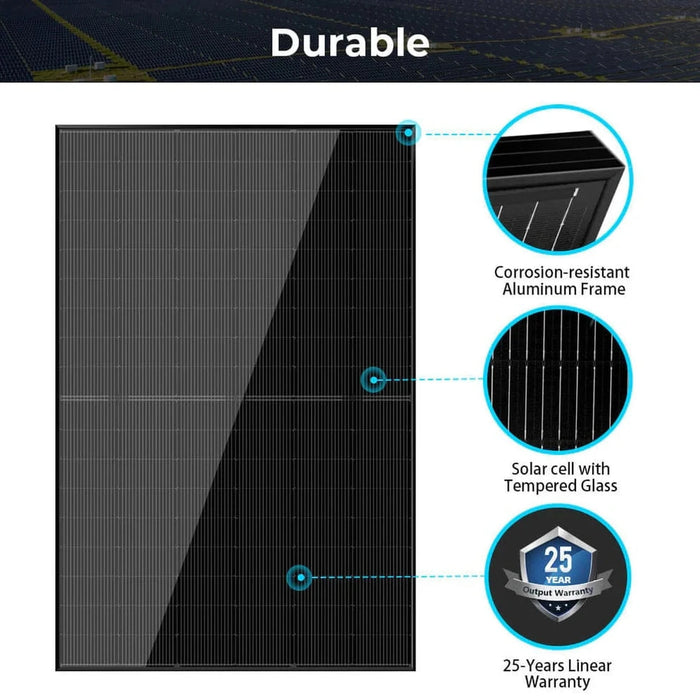

| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 25 years Linear Product Workmanship Warranty and 10 years workmanship warranty. |
