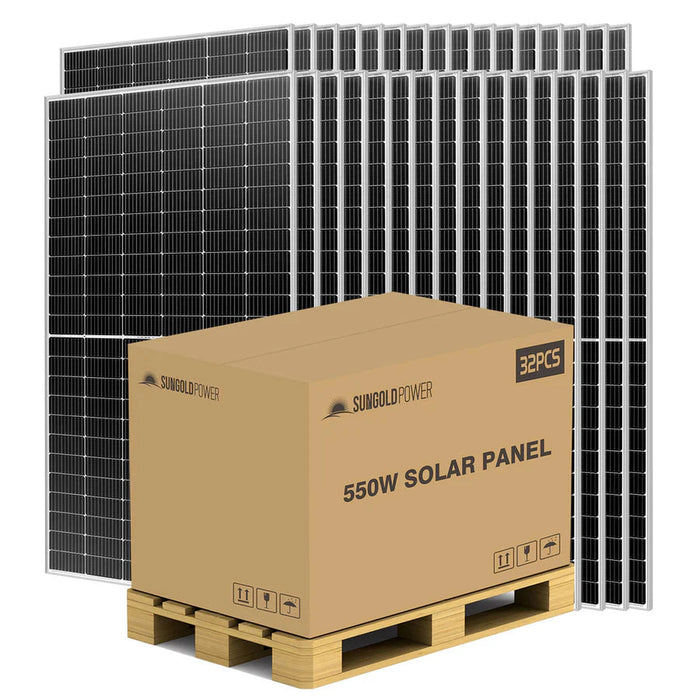

SunGoldPower | 550W Mono Perc Solar Panel Full Pallet (32 Panels)
Overview
-
Durable 550W Monocrystalline Solar Panel: Equipped with long-lasting PERC cells, this waterproof design allows for use in all weather conditions.
-
Robust Construction: Designed for industrial and professional use, the panel features a scratch-resistant anodized aluminum frame with a twin wall construction, ensuring years of reliable, free power.
-
High Conversion Efficiency: The 550W monocrystalline PV panel utilizes high-efficiency cells, delivering excellent performance even in low light conditions.
-
Simple Installation: Pre-drilled holes make installation easy, and the corrosion-resistant aluminum frame ensures durability for outdoor use. It's perfect for caravans, RVs, golf carts, electric vehicles, yachts, boats, tents, and backpacks.
-
Outstanding Performance Metrics: This panel boasts high conversion efficiency with Grade A solar cells and IP68-rated waterproof connectors. It offers a 5-year warranty for 95% output, a 10-year warranty for 90% output, and a 25-year warranty for 80% output.
550 Watt Monocrystalline PERC Solar Panel for Off Grid System
Sungoldpower PERC solar panels deliver quiet, clean energy, perfect for powering cabins, campers, RVs, or boats. Each panel is equipped with highly efficient silicon solar cells and features an IP68-rated junction box, making it suitable for marine environments. The corrosion-resistant aluminum frame ensures durability for prolonged outdoor use, extending the panel’s lifespan.
Utilizing solar panels is the most effective way to harness sunlight, helping you reduce energy costs and enjoy free energy for years to come.
Specifications
| Model Type | SG-550WM |
|---|---|
| Peak Power (Pmax) | 550W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.45A |
| Maximum Power Voltage (Vmp) | 41.00V |
| Short Circuit Current (Isc) | 14.03A |
| Open Circuit Voltage (Voc) | 49.7V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 144(6x 24),60 cells in series |
| Cell Type | PERC Monocrystalline (7.2x 3.6 in) |
| Certifications | CE TUV |
| Product Weight | 62.4lbs |
| Product Dimension | 89.7*44.7*1.4inch |
| Package Weight | 128.7lbs（2PCS） |
| Package Dimension | 92.1*47.2*3.5inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 10 year material and workmanship warranty |
Manuals and Downloads
550W Mono Perc Solar User Manual
FAQ
Is it waterproof?
Yes, this solar panel is indeed waterproof. It is specifically designed to endure various environmental conditions, including rain and moisture.
Warranty
25 Year Warranty
