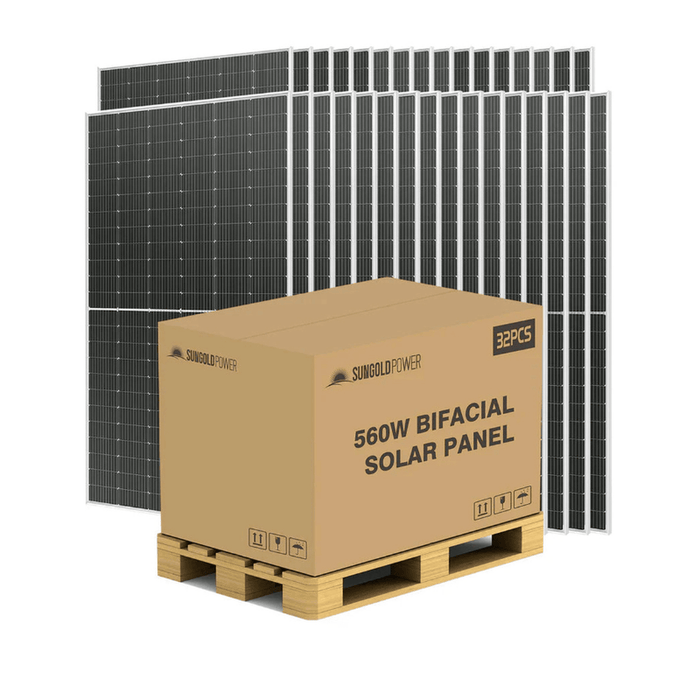

SunGoldPower | 560 Watt Bifacial Perc Solar Panel Full Pallet (32 Panels)
560 Watt Bifacial PERC Solar Panel – Full Pallet (32 Panels)
SunGoldPower's 560W Bifacial Monocrystalline PERC Solar Panels are built to deliver maximum efficiency and output, making them ideal for high-performance solar installations. By capturing sunlight from both the front and rear sides, these bifacial panels can generate up to 30% more energy than traditional panels.
Key Features:
-
-
High-Efficiency Bifacial Output
Utilizing bifacial PERC technology, these panels absorb sunlight from both sides, significantly boosting total energy production—especially in reflective environments like gravel, white roofs, or concrete. -
Rugged and Weather-Resistant
Engineered to withstand extreme temperatures, snow, wind, and other harsh weather conditions. Perfect for both residential and commercial applications that demand long-term durability. -
Space-Saving Design
Thanks to their high output per panel, fewer panels are required for a given energy target, allowing for space-efficient installations in areas with limited surface area. -
Flexible Mounting Options
Can be mounted at various angles without extensive calculations, offering easy integration into ground-mounted arrays, solar carports, and canopy systems. -
Long-Term Reliability
Backed by a 25-year performance warranty and eligible for the 30% residential Clean Energy Credit, providing peace of mind and long-term financial savings.
-
Improved PV Module Performance under
PartialShading Conditions
The panel features an innovative design of PERC, half-cut cells, bypass diodes and 11-busbar technology to maximize energy output even under partial shading.
Specification
| Model Type | SG-560WBG |
|---|---|
| Peak Power (Pmax) | 560W |
| Production tolerance | ±3% |
| Maximum Power Current (Imp) | 13.3A |
| Maximum Power Voltage (Vmp) | 42.1V |
| Short Circuit Current (Isc) | 14.09A |
| Open Circuit Voltage (Voc) | 50.09V |
| Maximum System Voltage | 1500V |
| Wind Resistance | 2400Pa |
| Output Cables | 12 AWG (1ft per cable) |
| Number of Cells | 144(6x 24),60 cells in series |
| Cell Type | PERC Monocrystalline (7.2x 3.6 in) |
| Certifications | CE TUV |
| Product Weight | 67.9lbs |
| Product Dimension | 89.8*44.7*1.4inch |
| Package Weight | 128.7lbs（2PCS） |
| Package Dimension | 92.5*47.6*3.1inch（2PCS） |
| Performance | 5 year 95% output warranty 10 year 90% output warranty 25 year80% output warranty |
| Material and workmanship warranty | 10 year material and workmanship warranty |
Manuals and Downloads
560 Watt Watt Bifacial Solar Panel User Manual
FAQ
Is it waterproof?
Yes, this solar panel is indeed waterproof. It is specifically designed to endure various environmental conditions, including rain and moisture.
Warranty
25 Year Warranty
