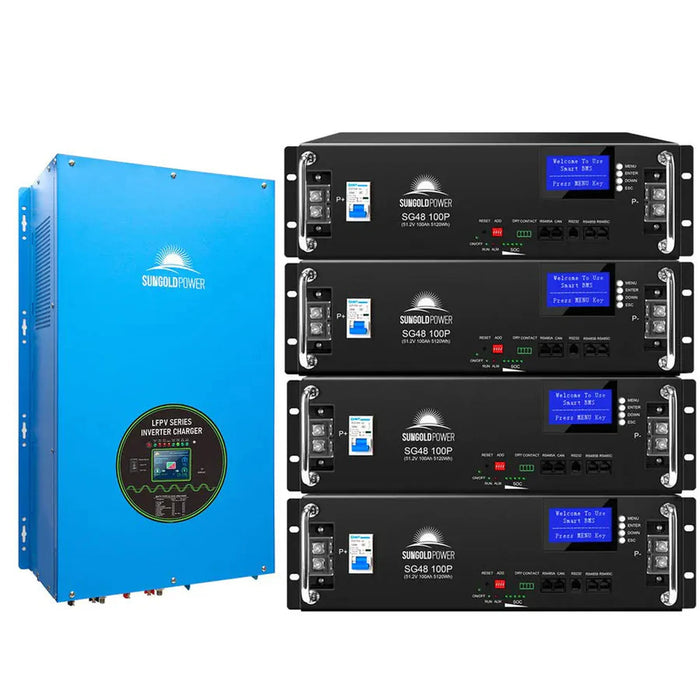

SunGoldPower 12000W 48V Split-Phase Pure Sine Wave Inverter Charger with 4× SG48100P Batteries
The SunGoldPower 12000W 48V inverter charger system delivers robust, reliable power for residential and off-grid applications. Paired with four SG48100P lithium batteries, it provides substantial energy storage and stable split-phase 120V/240V output. Designed for efficiency and durability, this system supports heavy loads while ensuring clean pure sine wave power for sensitive electronics.
KEY FEATURES
- High Output Power Options — Available in 12KW, 15KW, and 18KW split-phase pure sine wave inverter chargers (48V DC, 120V/240V AC output, 240V AC input)
- Auto Generator Start (AGS) — Automatically starts your generator when battery levels are low

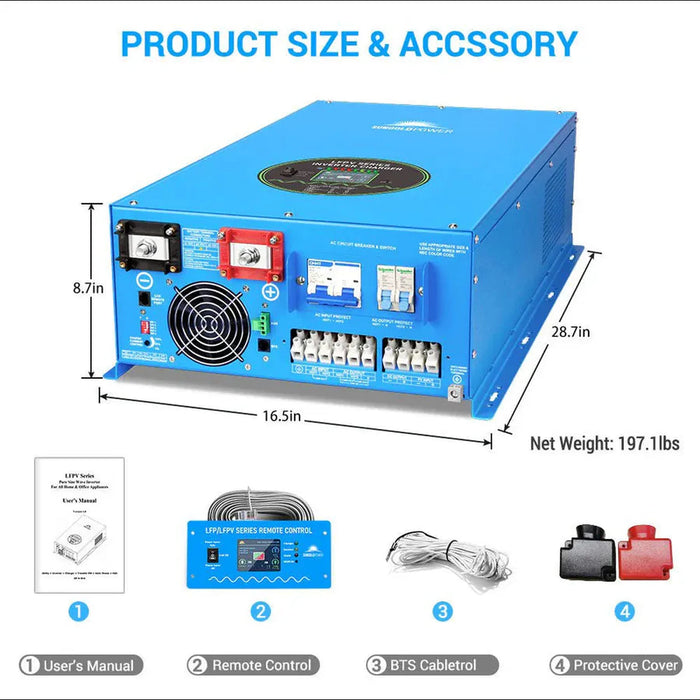

- Includes Battery Temperature Sensor (BTS) and Remote Control — For improved monitoring and performance

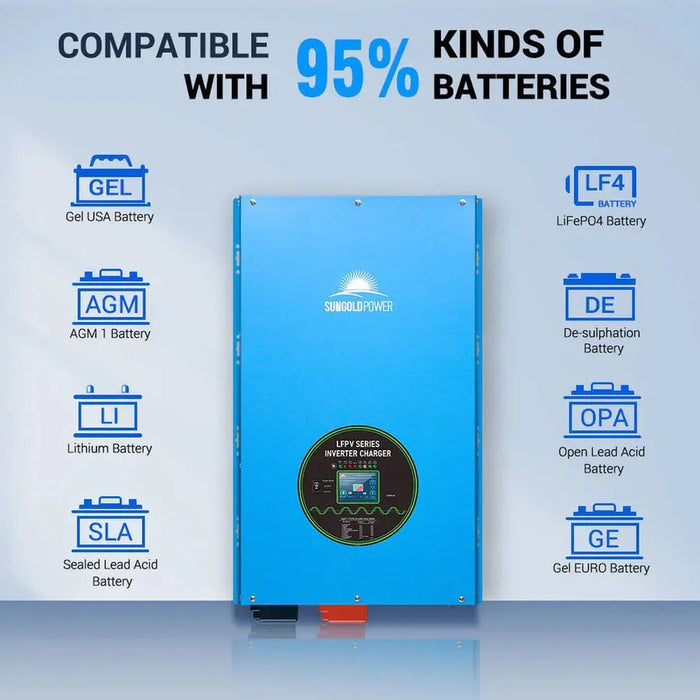

- Wide Battery Compatibility — Supports Lithium (LiFePO4), Gel, AGM, and Lead Acid batteries with multiple voltage selections

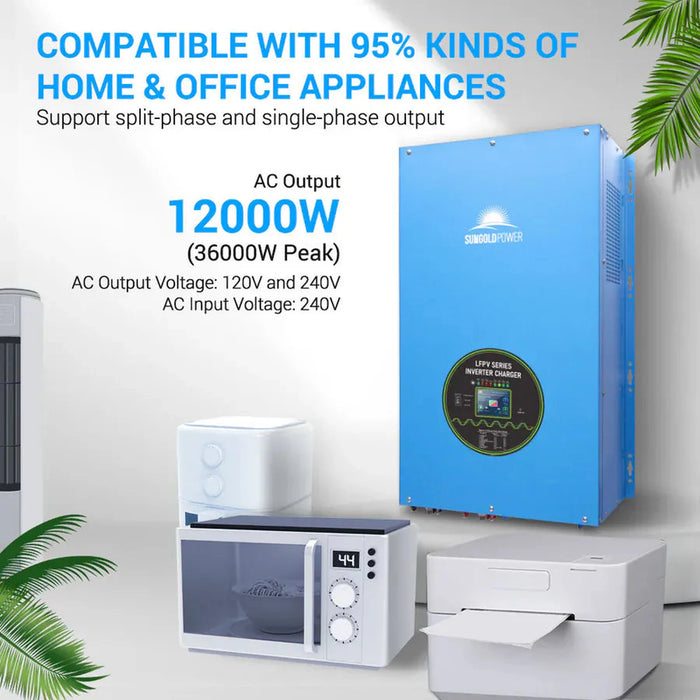

- Appliance Ready — Compatible with all types of home and office equipment
- Adjustable Charging Power — Up to 120A charge rate, selectable from 0% to 100%

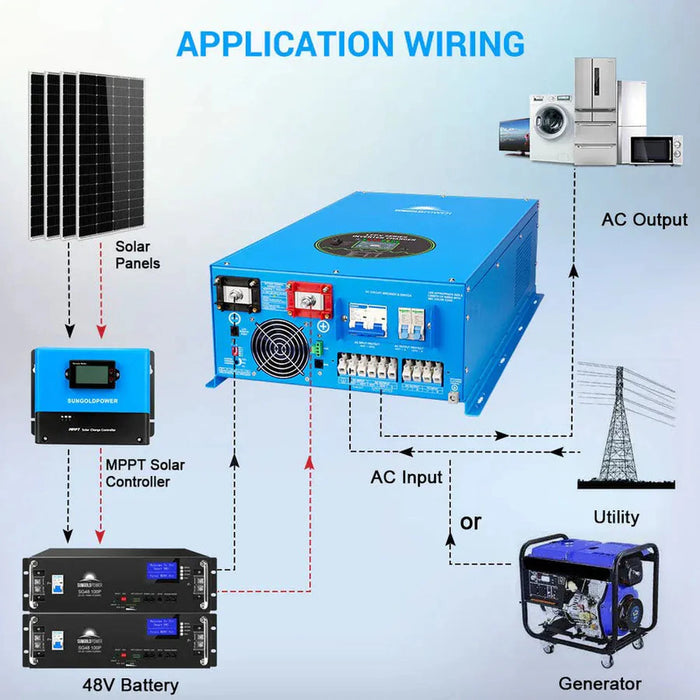

- Built-in Transfer Switch — Seamless transition between grid, battery, and off-grid power
- Flexible Power Priority Modes — AC priority or battery priority for customized operation
- Intelligent 4-Stage Charging — Includes Power Factor Correction (PFC) for efficient charging
- Fast Transfer Time — Approximately 8ms switching time ensures continuous power
- Generator Protection Delay — 15-second delay before transfer when AC power recovers to protect connected loads
Specifications
| 12000W Inverter | Continuous Output Power | 12000W |
| Surge Rating | 36KW (20 Seconds) | |
| Output Wave | Pure Sine Wave | |
| AC Output | AC 120V and AC 240V | |
| AC Input | 240VAC | |
| AC Input Range | 140–270VAC / 184–253VAC (select by SW2) | |
| Nominal DC Input Voltage | 48.0Vdc | |
| High Voltage Alarm | 64.0Vdc | |
| AC Charger Rate | 115 ± 5A | |
| Over Charge Protection Shutdown | 62.8V | |
| Idle Consumption | 180W | |
| Power Saver Idle Consumption | 40W | |
| Transfer Time | 10ms (Max) | |
| Nominal Efficiency | >88% | |
| SG48100P Battery Bank (4 Units) | Product Model | SG48100P |
| Nominal Voltage | 51.2V | |
| Battery Quantity | 4 | |
| Nominal Capacity | 100Ah × 4 | |
| Total Battery Capacity | 20.48kWh | |
| Discharge Cut-off Voltage | 43.2V | |
| Max Continuous Charge Current | 100A | |
| Cycle Life | ≥7000 cycles | |
| Storage Temperature | 14°F ~ 113°F | |
| Certificates | UL1973, UL9540A |
