Overview

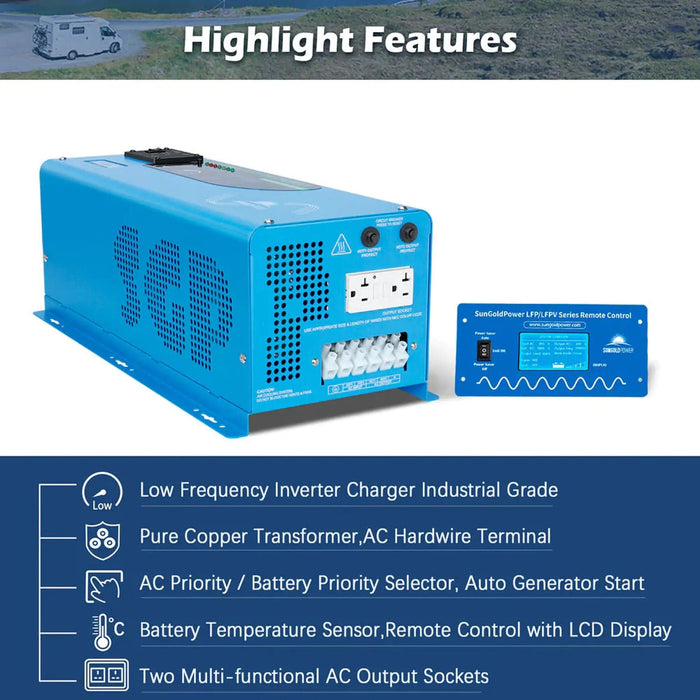

• LFP Series Pure Sine Wave Inverter: This unit integrates an inverter, battery charger, and AC auto-transfer switch, featuring low frequency, low idle current, a BTS cable, and remote control.

• Power Specifications: The split-phase 4000-watt inverter requires a 240VAC input and delivers 120VAC or 240VAC output for various appliances, with output frequencies of 50 or 60Hz adjustable via the SW4 switch.

• AC/Battery Priority: This inverter is set to AC priority by default, but you can switch to battery priority using the SW5 switch.

• Adjustable Charging Current: The maximum charging current can be modified from 0% to 100% using a linear switch.

• Automatic Generator Start: The inverter can automatically activate a generator when battery voltage is low and will turn it off once charging is complete.

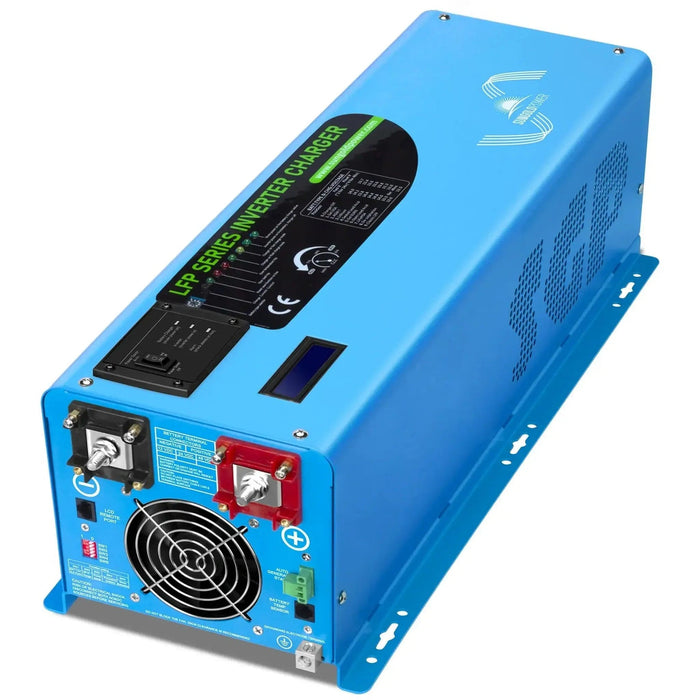

Introducing the SunGoldPower LFP 4000 Watt DC 24V AC 120/240 Split Phase Inverter Charger, a premier low-frequency power inverter designed for a variety of applications including small homes, businesses, RV systems, trailers, and boats. This versatile inverter charger is ideal for off-grid setups or as an emergency backup power source.

Operating with a split-phase design, this inverter requires a 240VAC input and offers flexible output options of 110/120V or 220/230/240VAC. It also provides the flexibility of 50Hz or 60Hz output via the SW4 adjustment. With the capability to produce 2 legs of 110V, it seamlessly integrates into home and business setups with a 220 panel in place.

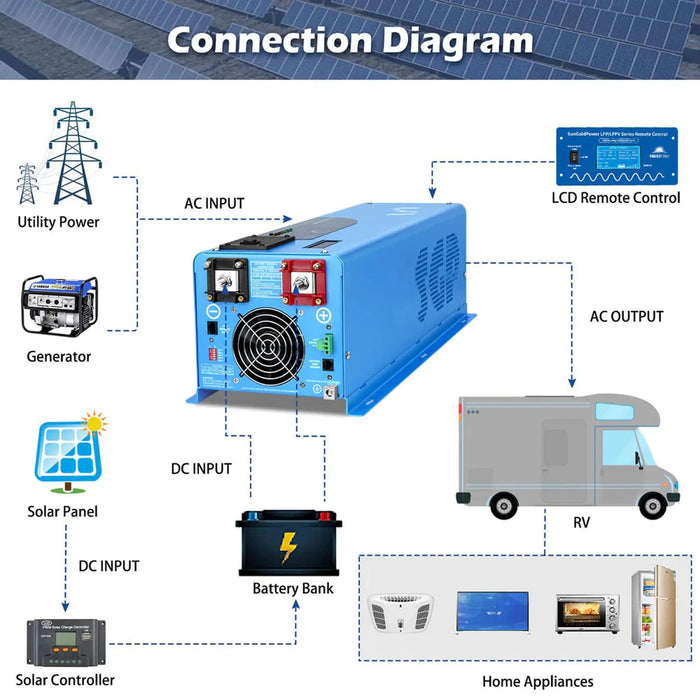

Three-in-One Functionality:

• The inverter converts 24V DC power from batteries into AC electricity to power various tools and appliances.
• Equipped with a built-in 50 amp battery charger, it facilitates grid or generator recharging of the battery.
• The transfer switch enables automatic switching between shore power and battery power within a rapid 10 milliseconds timeframe.

Specifications

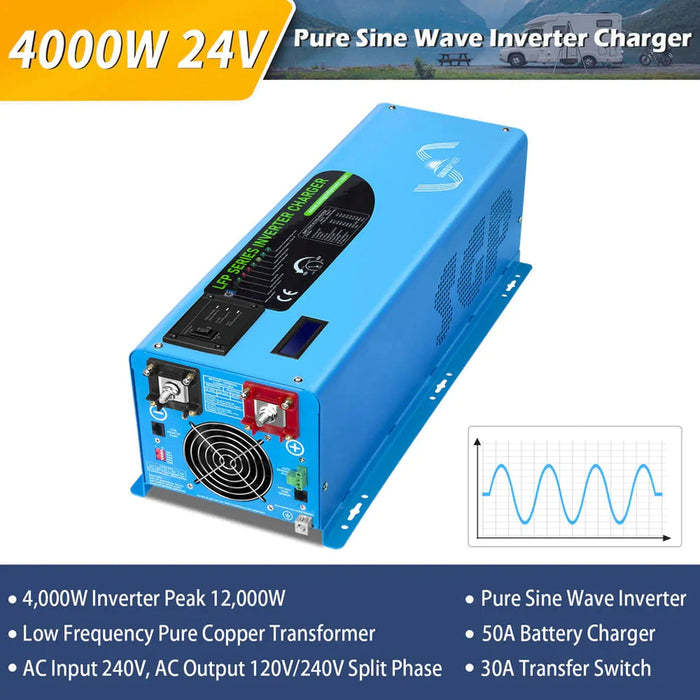

MODEL	4000W DC 24V Split Phase
Inverter Output:
Continuous Output Power	4000W
Surge Rating	12000W (20 Seconds)
AC Output	AC 120V and AC 240V
AC Input	240V
Output Wave	Pure Sine Wave (bypass mode)
Typical Transfer Time	10ms (MAX)
Nominal Efficiency	>88%
DC Input:
Nominal Input Voltage	24.0Vdc
Minimum Start Voltage	20.0Vdc
Low Battery Alarm	21.0Vdc-22.0Vdc
Low battery Trip	20.0Vdc-21.0Vdc (select by SW1)
High Voltage Alarm	32.0Vdc
Low battery Voltage Restart	26Vdc
*Idle Consumption	48W
Power Saver Mode Idle Consumption	19W
AC Charger :
Charger Rate	50+/-5A
AC input Range (Grid or Generator)	140V-270VAC/184V-253VAC (select by SW2)
Over Charge Protection Shutdown	31.4V
Selectable Charge Setting based on battery type
Adjustable charge current	off 0%-100%
3-step intelligent battery charger

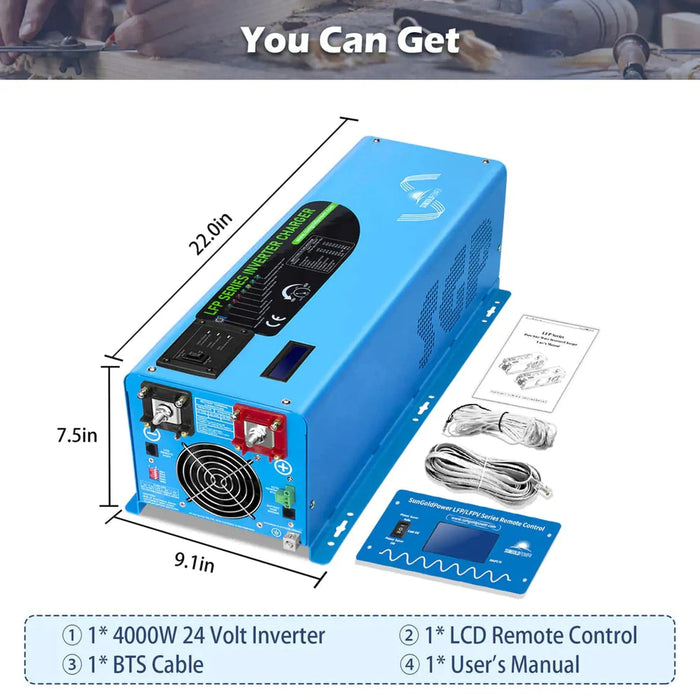

Packaging:
4000W 24V Low Frequency Pure Sine Inverter
English Manual
Remote Control
BTS Cable
Unit Weight	55 LB
Unit Size	22 x 9.1 x 7.5 inch
Shipping Weight	64 LB
Shipping Size	27 x 13.4 x 13 inch

Manuals and Downloads

DOWNLOAD LFP 4KW 24V PURE SINE WAVE SPLIT INVERTER/CHARGER DATA SHEET



Download LFP Series Pure Sine Wave Inverter/Charger User's Manual

FAQ

1.) Regarding the SunGoldPower 4000W DC 24V Split Phase Pure Sine Wave Inverter with Charger: Is a 220 amp hour, 24 volt AGM battery pack sufficient to start my 1.5 hp, 230 volt, 10.6 amp deep well pump?

Yes, a 220 amp hour AGM battery pack is adequate for your 1.5 hp, 230V well pump.

2.) What gauge size battery cable should be used with this inverter?

For a cable length of up to 10 meters, you can use a 120mm² cable.

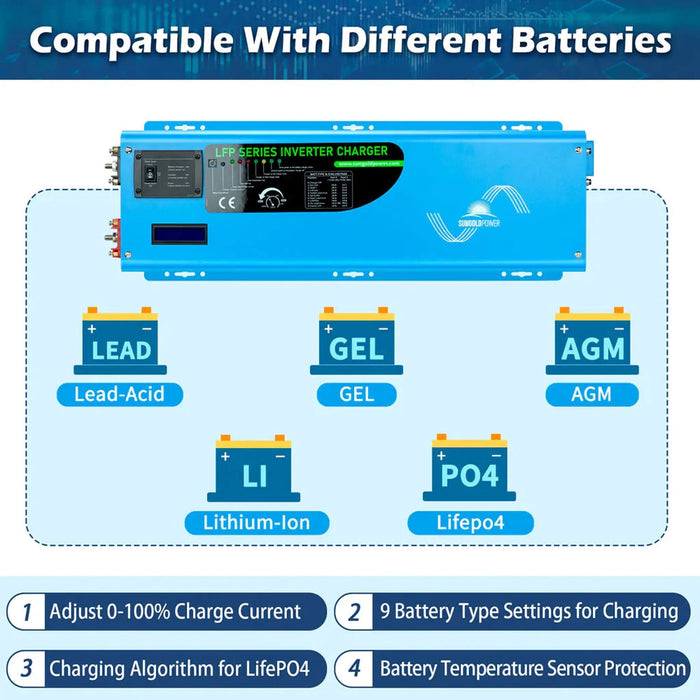

3.) Will the battery charger work with LiFePO4 (lithium) batteries?

Yes, it is compatible with LiFePO4 batteries. Please refer to the "battery type selector" section in the manual to ensure your battery voltage is within the specified range. You can download the manual from the product page.

Warranty

2 Year Warranty
